Introduction
Thank you for choosing the Hesung Portable Inflatable Swimming Pool. This manual provides essential information for the safe and efficient use, setup, maintenance, and troubleshooting of your new pool. Please read all instructions carefully before assembly and use to ensure a safe and enjoyable experience for all users.
Image: The Hesung Portable Inflatable Swimming Pool, a large rectangular blue and white pool filled with clear water, ready for use.
Safety Information
Your safety is paramount. Adhere to the following safety guidelines:
- Adult Supervision Required: Never leave children unattended in or around the pool. Drowning can occur quickly and silently.
- Level Surface: Always set up the pool on a flat, level surface free of sharp objects. Uneven surfaces can cause the pool to collapse or water to spill.
- Clear Area: Ensure the area around the pool is clear of obstacles and hazards.
- Drainage: Plan for proper drainage of water away from structures and electrical outlets.
- Chemicals: Use pool chemicals according to manufacturer instructions. Keep chemicals out of reach of children.
- No Diving: The pool is not deep enough for diving. Serious injury or death may result.
- Weight Limit: Do not exceed the maximum weight recommendation of 150 kg (330 lbs).
- Material Safety: This pool is made from Phthalate-free and lead-free PVC and has passed CPSIA, CPC, and ASTM certifications for child safety.
Image: Close-up of the pool material showing safety certifications (ASTM, CPC International, BPA Free) indicating compliance with child safety standards.
Setup Instructions
Follow these steps for proper pool setup:
- Choose Location: Select a flat, level, and clear area in your backyard or garden. Avoid placing the pool on sharp objects, uneven ground, or near electrical outlets.
- Unfold Pool: Carefully unfold the pool and lay it flat in the chosen location. Ensure the drain plug is accessible.
- Inflate Chambers: The pool features three independent air chambers. Use an electric pump (included with some models) to inflate each chamber.
- Locate the inflation valves on each chamber.
- Insert the pump nozzle into the valve and inflate until the chamber is firm but not overinflated. Overinflation can cause damage.
- Close the valve securely after inflation.
- Check for Leaks: After inflation, inspect the pool for any signs of air leaks. If a leak is detected, refer to the Troubleshooting section.
Image: A hand holding an electric pump nozzle, inserting it into an inflation valve on the pool to begin inflation.
Operating Instructions
Once set up, the pool is ready for use:
- Fill with Water: Begin filling the pool with water using a garden hose. Fill to the recommended water line, typically indicated on the inside of the pool or by the top inflatable ring. Do not overfill.
- Supervise Children: Always ensure constant, active adult supervision when children are in or near the pool.
- Entry and Exit: Ensure safe entry and exit from the pool. For younger children, consider using a small step stool if needed.
- Multifunctional Use: This pool can also be used as a ball pit indoors for children.
Image: A family, including two adults and two children, enjoying the large inflatable swimming pool in a backyard setting.
Image: The Hesung inflatable pool being used indoors as a ball pit, filled with colorful plastic balls, with a family playing inside.
Maintenance
Proper maintenance extends the life of your pool:
- Regular Cleaning: Clean the pool regularly to prevent algae and dirt buildup. Use a soft brush or cloth and mild soap. Rinse thoroughly.
- Water Quality: Monitor water quality and use appropriate pool chemicals if necessary, following product instructions.
- Draining: To drain the pool, locate the drain plug at the bottom. Open the plug to allow water to flow out. The included drain pipe can assist with directing water away.
- Drying: After draining, thoroughly dry the pool before folding and storing to prevent mold and mildew.
- Storage: Deflate the pool completely and fold it neatly. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- UV Protection: The pool material is designed with UV protection to extend its lifespan under sun exposure.
Image: A close-up of the pool's edge on grass, highlighting the anti-UV PVC material designed to protect the pool from sun damage and maintain its shape.
Troubleshooting
Common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pool deflates quickly. | Loose valve cap, small puncture, or extreme temperature changes. | Ensure all valve caps are tightly sealed. Check for punctures using soapy water (bubbles will appear at the leak). Use a repair patch kit (not included) for small holes. Inflate in stable temperatures. |
| Water is dirty or cloudy. | Lack of cleaning, algae growth, or improper chemical balance. | Clean the pool regularly. Drain and refill with fresh water. Consider using appropriate pool cleaning tablets or chemicals for larger pools (follow product instructions). |
| Pool walls bulge or are unstable. | Overfilling with water, uneven surface, or under-inflated chambers. | Do not fill above the recommended water line. Ensure the pool is on a completely flat and level surface. Inflate chambers to the correct firmness. |
Specifications
Key product specifications for the Hesung Portable Inflatable Swimming Pool:
| Feature | Detail |
|---|---|
| Brand | Hesung |
| Model Number | DR-HSP002 |
| Product Dimensions | 118"L x 69"W x 21"H (Large Size) |
| Material | Polyvinyl Chloride (PVC) - 0.42mm thickness |
| Color | Blue and White |
| Capacity | 186 Gallons |
| Occupancy | Up to 6 (2 adults, 4 children) |
| Maximum Weight Recommendation | 150 Kilograms (330 lbs) |
| Assembly Time | Approximately 3 minutes (with electric pump) |
| Special Features | Inflatable, Portable, Foldable, Anti-UV Material, Tear-resistant |
| Certifications | CPSIA, CPC, ASTM (Phthalate-free and lead-free PVC) |
Image: Two adults in the Hesung inflatable pool, demonstrating its strong and sturdy construction capable of holding significant weight.

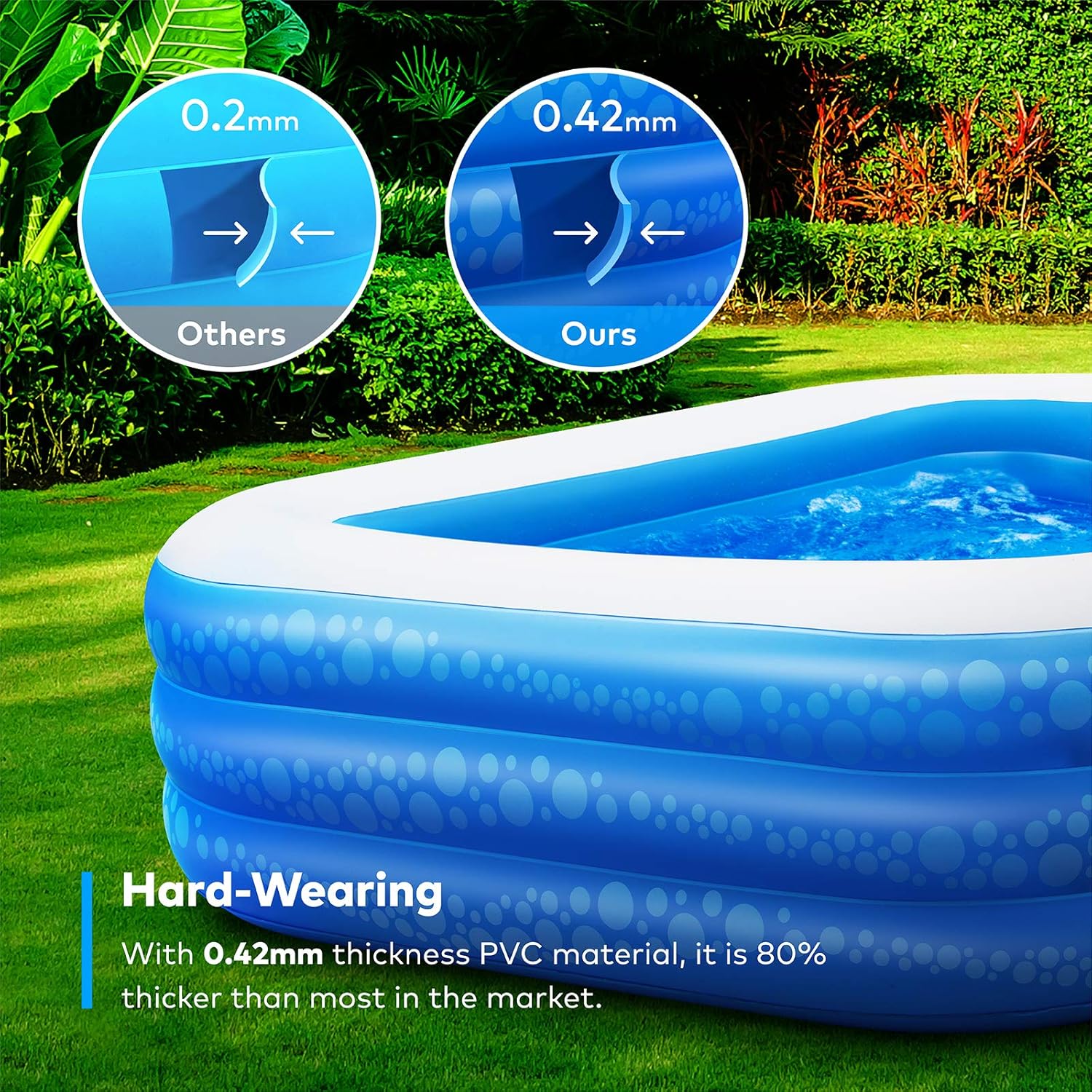

Image: A diagram comparing the 0.42mm thickness of the Hesung pool material to a thinner 0.2mm material, highlighting its hard-wearing and durable construction.
Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact Hesung customer service. Refer to the product packaging or the Hesung official website for contact details.
We are committed to providing high-quality products and excellent customer service.
