1. Introduction
This manual provides essential information for the safe and efficient operation of your Klarstein Eleonora Head-Free Extractor Hood. Please read these instructions thoroughly before installation and use, and retain them for future reference. This appliance is designed to remove cooking odors and steam from your kitchen environment.
2. Safety Information
General Safety:
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not allow children to operate the appliance.
- Regular cleaning of the grease filters is crucial to prevent fire hazards.
- Do not flambé under the extractor hood.
- Ensure adequate ventilation in the room when the extractor hood is used simultaneously with gas or other fuel-burning appliances.
- The exhaust air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- Always disconnect the appliance from the power supply before cleaning or maintenance.
Installation Safety:
- Installation must be carried out by a qualified person in accordance with all local regulations.
- Ensure the wall is strong enough to support the weight of the extractor hood.
- Maintain the minimum distance between the hob and the lower part of the hood as specified in the installation instructions.
3. Setup and Installation
The Klarstein Eleonora Head-Free Extractor Hood is designed for wall-mount installation. It can operate in either exhaust air mode or recirculation mode.
3.1 Included Components
- Extractor Hood Unit
- Complete assembly set (wall brackets, dowels, screws)
- Exhaust hose (approx. 160 cm length, 13 cm diameter)
- Flue covers
3.2 Dimensions

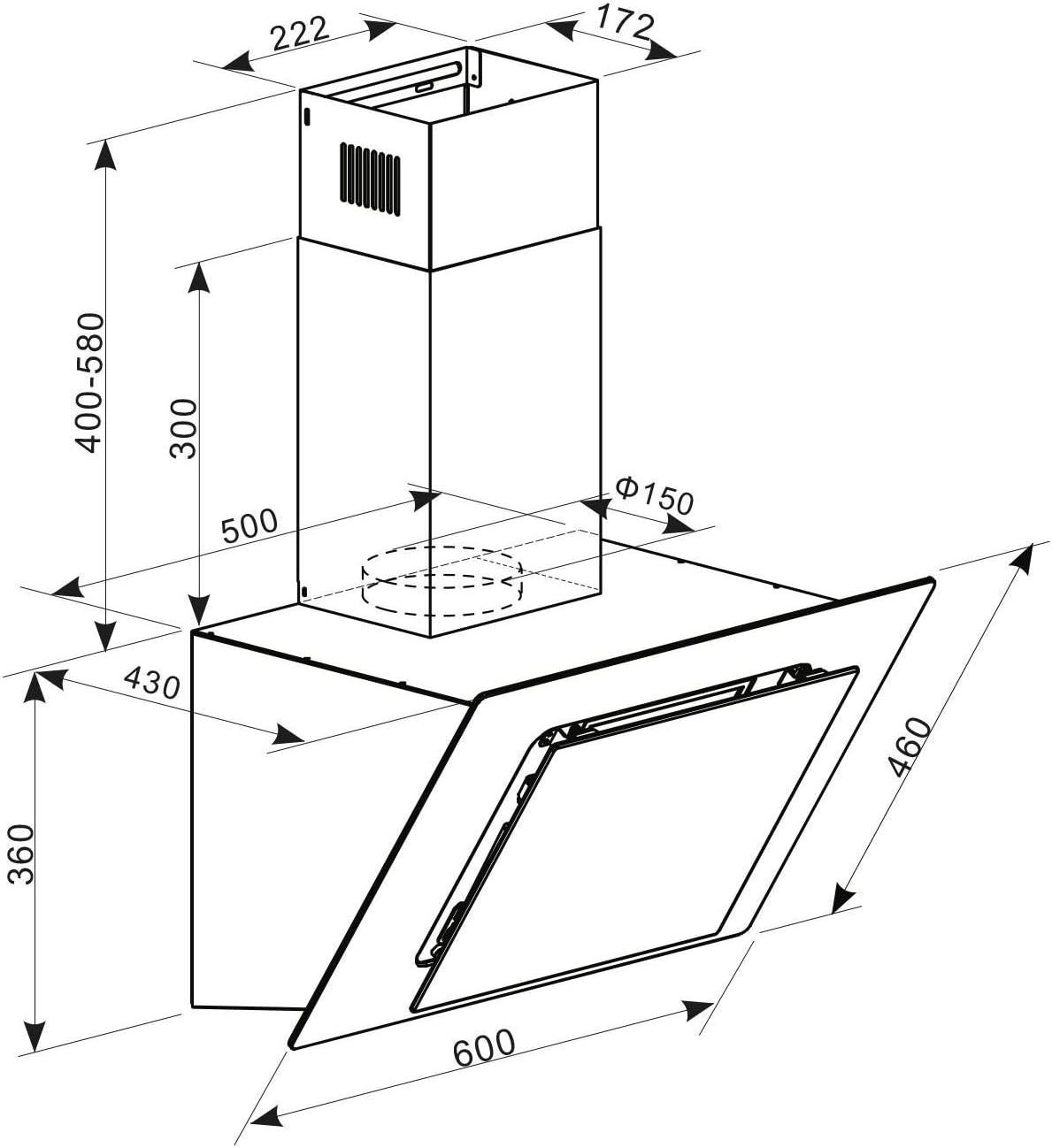

Refer to the diagram below for detailed dimensions to ensure proper installation space.
- Overall Dimensions (without flue cover): approx. 60 cm (W) x 39 cm (H) x 43 cm (D)
- Minimum/Maximum Device Depth: approx. 18 cm / 43 cm
- Flue Cover (one part): approx. 22 cm (W) x 43 cm (H) x 17.5 cm (D)
- Height of Flue Cover: approx. 80 cm
- Exhaust Air Hose Length: approx. 160 cm
- Exhaust Hose Diameter: 13 cm (Ø)
- Power Cable Length: approx. 160 cm
3.3 Electrical Connection
The appliance requires a power supply of 220 - 240 V ~ | 50 Hz.
3.4 Recirculation Mode Conversion
The hood can be converted for recirculation mode operation. This requires the installation of two activated carbon filters (article 10035386), which are sold separately. Follow the specific instructions provided with the activated carbon filters for installation.
4. Operating Instructions
The Klarstein Eleonora extractor hood features a touch control panel for easy operation.
4.1 Power Levels
The hood offers three performance levels to effectively remove steam and cooking odors. Select the appropriate level based on your cooking needs.
- Level 1: Low power for light cooking or maintaining air quality.
- Level 2: Medium power for general cooking.
- Level 3: High power for intensive cooking, frying, or when significant steam/odor is present.
At its highest level, the hood can convey up to 426 m³/h of exhaust air.
4.2 Touch Control Panel
The touch control panel is located on the front of the hood. Gently press the icons to activate functions such as power on/off, fan speed adjustment, and lighting control.
4.3 Lighting Functions
The hood includes two types of lighting:
- LED Cooking Surface Lighting: Separately switchable LED lights illuminate your cooking area.
- RGB Ambient Lighting: A special feature providing switchable ambient background lighting in various RGB colors. This can be adjusted to suit your preference.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your extractor hood.
5.1 Cleaning the Grease Filters
The hood is equipped with mesh grease filters. These filters trap grease particles from cooking fumes and must be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain extraction efficiency. They can typically be washed by hand with warm soapy water or in a dishwasher.
5.2 Replacing Activated Carbon Filters (Recirculation Mode)
If your hood is operating in recirculation mode with activated carbon filters, these filters cannot be cleaned and must be replaced periodically. The replacement frequency depends on usage, but typically every 3-6 months. Refer to the activated carbon filter instructions for specific replacement guidelines (article 10035386).
5.3 Exterior Cleaning
Clean the exterior surfaces of the hood with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals, abrasive pads, or steam cleaners, as these can damage the finish.
6. Troubleshooting
If you encounter issues with your extractor hood, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply; power cord disconnected; fuse blown. | Check power connection; check household fuse/circuit breaker. |
| Poor extraction performance | Grease filters clogged; activated carbon filters saturated (recirculation mode); exhaust duct blocked; fan speed too low. | Clean grease filters; replace activated carbon filters; check exhaust duct for obstructions; increase fan speed. |
| Excessive noise | Loose components; foreign object in fan; improper installation. | Check for loose parts; inspect fan for obstructions (with power off); ensure correct installation. |
| Lights not working | LED bulb failure; electrical connection issue. | Contact qualified service personnel for LED replacement if necessary. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | TK15CH-Eleonora-60BK |
| Brand | KLARSTEIN |
| Air Flow Capacity | 426 m³/h |
| Noise Level | 43/60 dB (lowest/highest power level) |
| Energy Efficiency Class | A++ |
| Lighting Efficiency Class | A |
| Grease Separation Class | D |
| Fluid Dynamic Efficiency Class | A |
| Energy Consumption | 10 kWh/year |
| Power | 76 watts |
| Material | Alloy Steel |
| Mounting Type | Wall Mount |
| Controls Type | Touch |
| Number of Speeds | 3 |
| Light Source Type | LED (with RGB ambient lighting) |
| Filter Type | Mesh (Grease Filter) |
| Ventilation Type | Exhaust / Recirculation |
| Product Dimensions (W x H x D) | approx. 60 x 39 x 43 cm (without flue cover) |
| Item Weight | approx. 17 kg (37.4 pounds) |
| Power Supply | 220 - 240 V ~ | 50 Hz |
8. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact Klarstein customer service through their official website or the contact details provided with your product packaging.
