1. Introduction
Thank you for choosing the UKICRA UFR-505 Electric Portable Sewing Machine. This manual provides comprehensive instructions for the safe and effective operation of your new sewing machine. Please read this manual thoroughly before use and keep it for future reference. This machine is designed for various sewing tasks, offering a range of stitches suitable for beginners and experienced users alike.
2. Important Safety Instructions
When using an electrical appliance, basic safety precautions should always be followed, including the following:
- Read all instructions before using this sewing machine.
- Keep the manual in a convenient place near the machine.
- Always unplug the machine from the electrical outlet immediately after using and before cleaning, removing covers, or making any user servicing adjustments.
- Never operate this machine if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
- Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
- Never drop or insert any object into any opening.
- Do not use outdoors.
- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
- To disconnect, turn all controls to the off position, then remove plug from outlet.
- The battery and power cord cannot be used at the same time.
3. Product Overview
Familiarize yourself with the components of your UKICRA UFR-505 sewing machine.

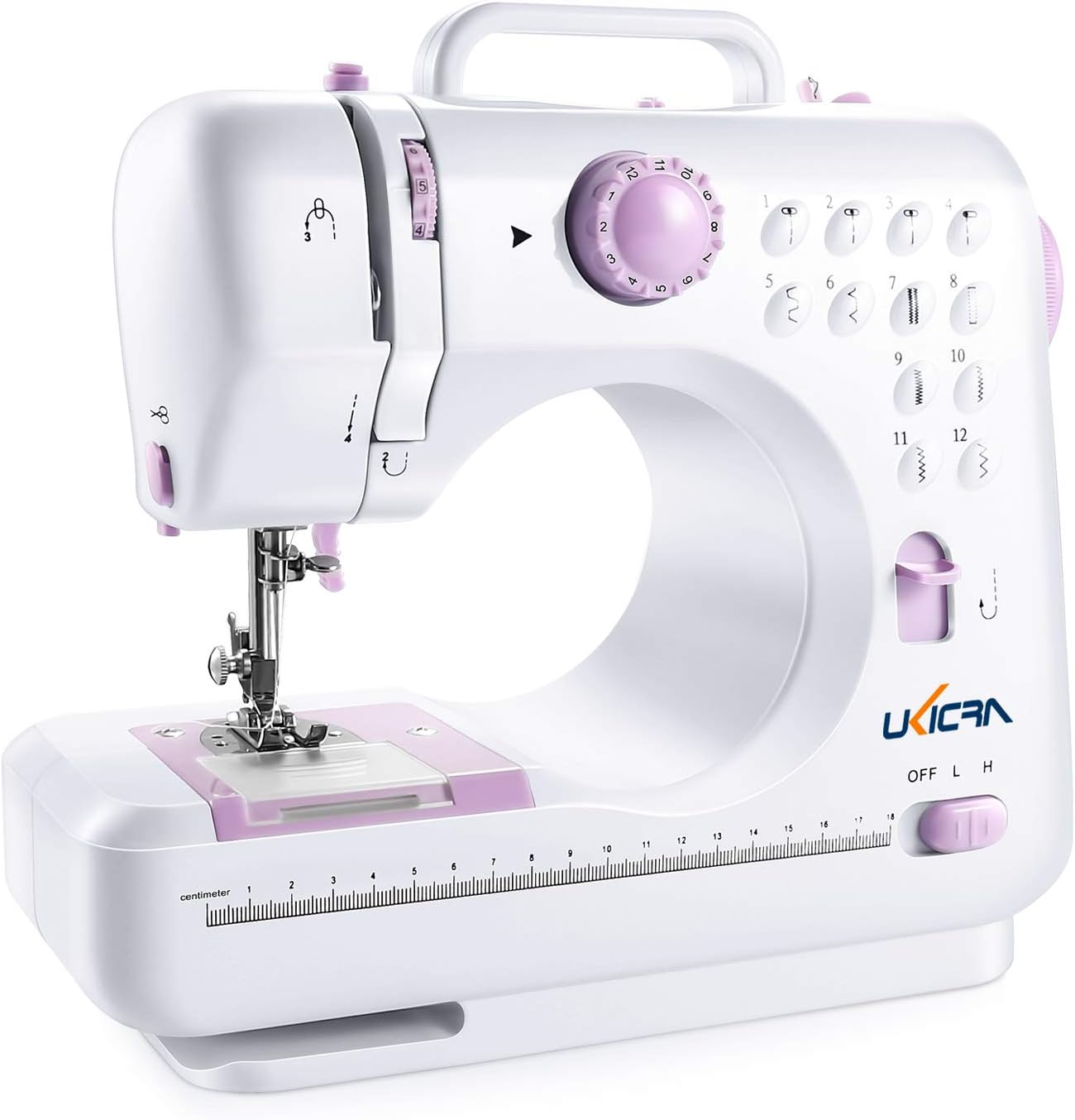

Figure 1: Front view of the UKICRA UFR-505 Electric Portable Sewing Machine, showcasing its compact design, stitch selector dial, tension dial, and various controls.
Figure 2: Diagram highlighting key features of the UKICRA UFR-505, including the fast winding bobbin, interchangeable presser foot, built-in thread cutter, and LED sewing light.
4. Setup
4.1 Power Supply
The UKICRA UFR-505 can be powered by two methods:
- AC Adapter: Connect the provided AC adapter (Input 110V/60HZ, Output DC 6V) to the machine's power input jack and then to a wall outlet.
- Batteries: Insert 4 AA batteries into the battery compartment located at the bottom of the machine. Ensure correct polarity.
Important: Do not use the AC adapter and batteries simultaneously.
4.2 Threading the Machine
Proper threading is crucial for smooth operation and stitch quality.
- Raise the needle to its highest position using the handwheel.
- Place a spool of thread on the spool pin.
- Guide the thread through the upper thread guides as indicated by the numbered path on the machine.
- Thread the needle from front to back.
4.3 Winding the Bobbin
The machine features an automatic bobbin winder.
- Place an empty bobbin onto the bobbin winder spindle.
- Guide the thread from the spool through the bobbin winding tension disc.
- Wrap the thread around the bobbin a few times, then push the spindle to the right.
- Start the machine using the foot pedal or hand switch. The bobbin will wind automatically.
- Once full, stop the machine, cut the thread, and push the spindle back to the left.
5. Operating Instructions
5.1 Stitch Selection
The UFR-505 offers 12 built-in stitch patterns. To select a stitch, turn the stitch selector dial to the desired number (1-12). The available stitches include:
- 4 Basic Stitches (1-4)
- 2 Decorative Stitches (5-6)
- 2 Built-in Buttonhole Stitches (7-8)
- 4 Stretch Stitches (9-12)
5.2 Sewing Basics
- Place your fabric under the presser foot.
- Lower the presser foot lever.
- Select your desired stitch pattern.
- Choose your sewing speed (High or Low) using the speed switch.
- Start sewing by pressing the foot pedal or the hand switch.
- To sew in reverse (for securing stitches), press and hold the reverse lever/button.
5.3 Special Features
- Two Speeds: Select between high and low speed for different sewing needs.
- Forward and Reverse Sewing: Use the reverse function to reinforce stitches at the beginning and end of seams.
- Automatic Thread Rewind: Simplifies bobbin winding.
- Built-in Free Arm: Remove the accessory drawer to access the free arm, ideal for sewing cuffs, sleeves, and pant bottoms.
- Adjustable Stitch Length: Customize stitch length for various fabric types and projects.
- Built-in Sewing Light: Illuminates the sewing area for better visibility.
- Thread Cutter: A convenient thread cutter is integrated into the machine for quick thread trimming after sewing.
- One-Step Buttonhole Sewing: Follow the instructions for stitch 7 or 8 to create buttonholes.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your sewing machine.
- Cleaning: Regularly clean lint and dust from the bobbin area and feed dogs using a small brush. Always unplug the machine before cleaning.
- Needle Replacement: Replace the needle frequently, especially if it becomes bent, dull, or if you notice skipped stitches. Ensure the flat side of the needle faces the back when inserting.
- Storage: Store the machine in a dry, dust-free environment.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Thread breaks | Incorrect threading, tension too tight, dull needle, poor quality thread. | Re-thread the machine, adjust tension, replace needle, use good quality thread. |
| Skipped stitches | Bent or dull needle, incorrect needle size for fabric, improper threading. | Replace needle, use appropriate needle, check threading. |
| Machine not starting | No power, foot pedal not connected, power switch off. | Check power connection, ensure foot pedal is plugged in, turn power switch on. |
| Fabric not feeding | Presser foot not lowered, feed dogs clogged. | Lower presser foot, clean feed dogs. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | UFR-505 |
| Brand | UKICRA |
| Product Dimensions | 9.84 x 7.87 x 4.72 inches |
| Item Weight | 3.96 pounds |
| Power Supply | AC Adapter (Input 110V/60HZ, Output DC 6V) or 4 AA Batteries |
| Built-in Stitches | 12 (4 Basic, 2 Decorative, 2 Buttonhole, 4 Stretch) |
| Speeds | 2 (High/Low) |
| UPC | 792276353620 |
9. Warranty and Support
UKICRA is committed to customer satisfaction. If you have any questions, require assistance, or encounter any issues with your UFR-505 sewing machine, please contact our customer service department. Refer to your purchase documentation for specific warranty details and contact information.
