ASPL 48LED Roof Top Strobe Light Bar Instruction Manual

Introduction

The ASPL 48LED Roof Top Strobe Light Bar is designed for high visibility and emergency safety warning. Featuring 48 high-intensity LED chips with magnifying lenses, this light bar ensures effective signaling to other vehicles. Its robust design includes upgraded materials for enhanced waterproof performance, extended cable length, and strong magnetic mounting for durability and ease of use.

This versatile light bar is an excellent choice for various applications, including snow plowing, safety warnings, and use on emergency vehicles, utility vehicles, postal service vehicles, and construction vehicles.

Key Features

• Enhanced Visibility: Utilizes 48 high-intensity LED chips with magnifying lenses for maximum light output and effective warning.
• Durable Construction: Upgraded materials ensure improved waterproof performance, integrated heatsink, and anti-condensation drain port for a lifespan of up to 50,000 hours.
• Easy Installation: Equipped with 2 x 7 strong magnets and larger, thick rubber suction cups for stable and quick mounting without damaging vehicle surfaces.
• Flexible Power: Features a 16.4 ft heavy-duty cable and 12-24V plug-and-play cigarette lighter adapter, allowing installation anywhere on the vehicle.
• Multiple Flash Patterns: Double switch buttons on the cigarette lighter plug offer 16 selectable flash patterns with a last-used pattern recall/memory function.

Specifications

Setup

The ASPL 48LED Roof Top Strobe Light Bar is designed for quick and easy installation. Follow these steps for proper setup:

1. Prepare Mounting Surface: Ensure the vehicle's roof or desired metal mounting surface is clean, dry, and free of debris. The magnetic base requires a flat, metallic surface for optimal adhesion.
2. Position the Light Bar: Carefully place the light bar on the chosen metallic surface. The 2 x 7 strong magnets with rubber suction cups will securely attach the unit. The rubber pads prevent scratching of your vehicle's paintwork.
3. Connect Power: Route the 16.4 ft heavy-duty power cable into your vehicle's cabin. Plug the cigarette lighter adapter into your vehicle's 12-24V power outlet.

Operating Instructions

The ASPL 48LED Roof Top Strobe Light Bar is operated directly from the cigarette lighter adapter's integrated control buttons.

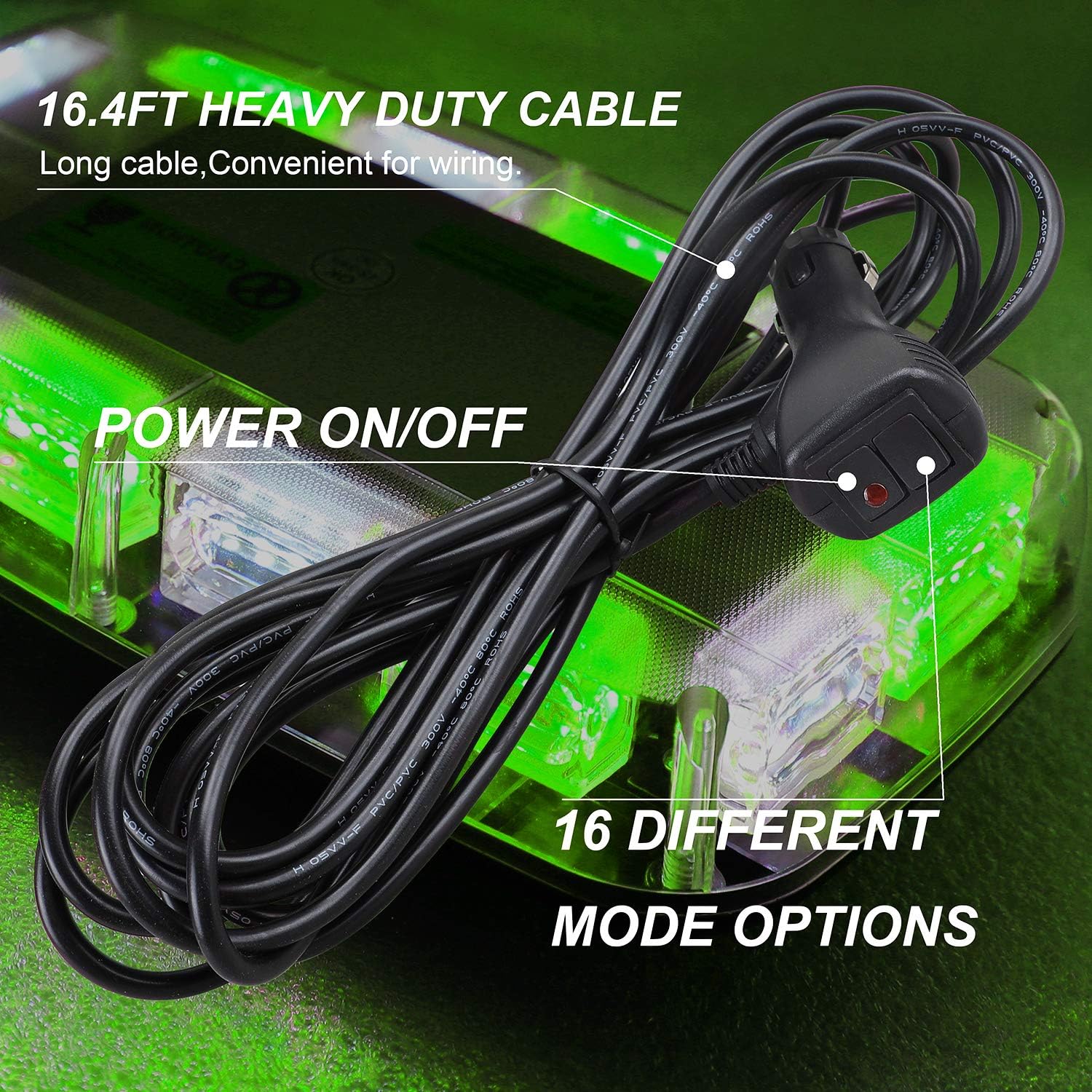

1. Power On/Off: Use the dedicated ON/OFF switch located on the cigarette lighter plug to turn the light bar on or off.
2. Change Flash Patterns: Press the mode selection button on the cigarette lighter plug to cycle through the 16 available flash patterns. The light bar features a memory function that recalls the last used pattern when powered on again.

Maintenance

To ensure the longevity and optimal performance of your ASPL 48LED Roof Top Strobe Light Bar, follow these maintenance guidelines:

• Cleaning: Regularly clean the light bar's clear housing and rubber suction cups with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the material.
• Inspect Mounting: Periodically check the magnetic suction cups for any signs of wear or damage. Ensure they are clean and free of debris to maintain a strong and secure attachment to your vehicle.
• Cable Inspection: Examine the power cable for any cuts, fraying, or damage. Ensure the cable is not pinched or exposed to excessive heat.
• Waterproofing: The unit is IP67 waterproof rated. While designed for outdoor use, avoid submerging the unit for extended periods or exposing it to high-pressure water jets directly on seals.

Troubleshooting

If you encounter issues with your ASPL 48LED Roof Top Strobe Light Bar, refer to the following common troubleshooting steps:

• Light Not Turning On:
  • Ensure the cigarette lighter plug is fully inserted into the vehicle's 12-24V outlet.
  • Check the vehicle's fuse for the power outlet.
  • Verify the ON/OFF switch on the plug is in the 'ON' position.
• Intermittent Operation:
  • Check for loose connections at the cigarette lighter plug or along the cable.
  • Ensure the magnetic base is securely attached to a clean, flat metal surface. Vibrations from an unstable mount can cause intermittent power.
• Magnets Not Holding Securely:
  • Clean both the vehicle's surface and the light bar's rubber suction cups thoroughly. Dirt or moisture can reduce suction.
  • Ensure the mounting surface is flat and metallic. The magnets will not adhere to non-metallic or uneven surfaces.

Warranty & Support

ASPL offers a 2-year warranty on this product, covering manufacturing defects and faulty materials. If you are not satisfied with the product or encounter any issues, please contact ASPL customer support for assistance.

For further support or to inquire about warranty claims, please visit the official ASPL Brand Store on Amazon: ASPL Brand Store.
