1. Important Safety Instructions
Read all safety warnings and instructions carefully before operating the brush cutter. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Personal Protective Equipment: Always wear protective gloves and safety glasses during operation.
- Keep Clear: Ensure children, pets, and bystanders are kept at a safe distance (at least 15 meters / 50 feet) from the operating area.
- Environmental Conditions: Do not use the brush cutter in rain, snow, or damp conditions. Avoid operating in wet grass.
- Direction of Cut: Never cut towards yourself or other people. Always direct the cutting line away from your body and others.
- Overheating Protection: The motor is designed with protection against overheating. Avoid prolonged continuous use to prevent damage.
- Power Source: Ensure the power source matches the specifications of the tool (230V-50Hz).
- Inspect Before Use: Before each use, inspect the cutting line, guard, and power cord for any damage. Replace damaged parts immediately.
- Secure Grip: Always maintain a firm grip on both handles during operation.
2. Product Overview
The BAKAJI Electric Brush Cutter is designed for efficient trimming and cutting of lawns, shrub beds, and garden edges. Its powerful motor and ergonomic design ensure comfortable and effective use.
Image 1: The BAKAJI Electric Brush Cutter, highlighting its 1000 Watts power, 7300 RPM speed, 35cm cutting diameter, and 230V-50Hz power requirement.
Key Features:
- Powerful Motor: 1000W motor provides a no-load speed of 7300 RPM for quick and effective cutting.
- Generous Cutting Diameter: A 35 cm cutting diameter ensures rapid work progression over large areas.
- Ergonomic Design: Features an ergonomic non-slip main handle and an additional handle for enhanced comfort and reduced effort during use.
- Safety Guard: Equipped with a plastic protection guard to prevent accidental damage and enhance user safety.
- Low Noise Operation: Designed for a very low noise level, making it suitable for use in residential areas.
- Lightweight and Balanced: The tool is lightweight and well-balanced for easy maneuverability.
3. Package Contents
Please check the package for the following items:
- BAKAJI Electric Brush Cutter Unit
- Additional Handle
- Protective Guard
- Shoulder Strap
- Nylon Trimmer Line (2mm diameter, 6 meters length)
- User Manual
4. Assembly Instructions
The assembly of the brush cutter is straightforward. Refer to the included instruction booklet for detailed steps and diagrams. The following general steps apply:
- Attach the Protective Guard: Secure the plastic protective guard to the cutting head assembly using the provided fasteners. Ensure it is firmly in place to protect against debris.
- Install the Additional Handle: Slide the additional handle onto the shaft and adjust its position for comfortable use. Tighten the adjustment knob to secure it.
- Connect the Shaft Sections (if applicable): If the shaft comes in multiple sections, connect them securely according to the manual's instructions.
- Attach the Shoulder Strap: Connect the shoulder strap to the designated attachment point on the brush cutter shaft. Adjust the strap length for comfortable weight distribution during operation.
Image 2: Detailed view showing the additional handle, adjustment knob for shaft length/handle position, and the cutting head with its protective guard.
Image 3: A close-up of the shoulder strap connected to the brush cutter, illustrating the attachment mechanism.
5. Operating Instructions
Follow these steps for safe and effective operation of your BAKAJI Electric Brush Cutter:
- Pre-Operation Check: Before plugging in, ensure all parts are securely assembled, the cutting line is correctly installed, and the protective guard is in place. Check the power cord for any damage.
- Connect to Power: Plug the brush cutter into a suitable 230V-50Hz power outlet. Use an outdoor-rated extension cord if necessary, ensuring it is in good condition.
- Starting the Unit: Hold the brush cutter firmly with both hands. Press the safety lock button (if present) and then squeeze the trigger switch to start the motor.
- Cutting Technique: Move the brush cutter in a sweeping motion, keeping the cutting head slightly above the ground. Avoid forcing the tool through dense vegetation. Allow the motor to reach full speed before engaging with grass or weeds.
- Using the Shoulder Strap: The shoulder strap helps distribute the weight of the tool, reducing fatigue during extended use. Adjust it so the cutting head is at a comfortable working height.
- Stopping the Unit: Release the trigger switch to stop the motor. Always unplug the brush cutter from the power source when not in use or before performing any maintenance.
Image 4: A user demonstrating the brush cutter in action, trimming grass along an edge.

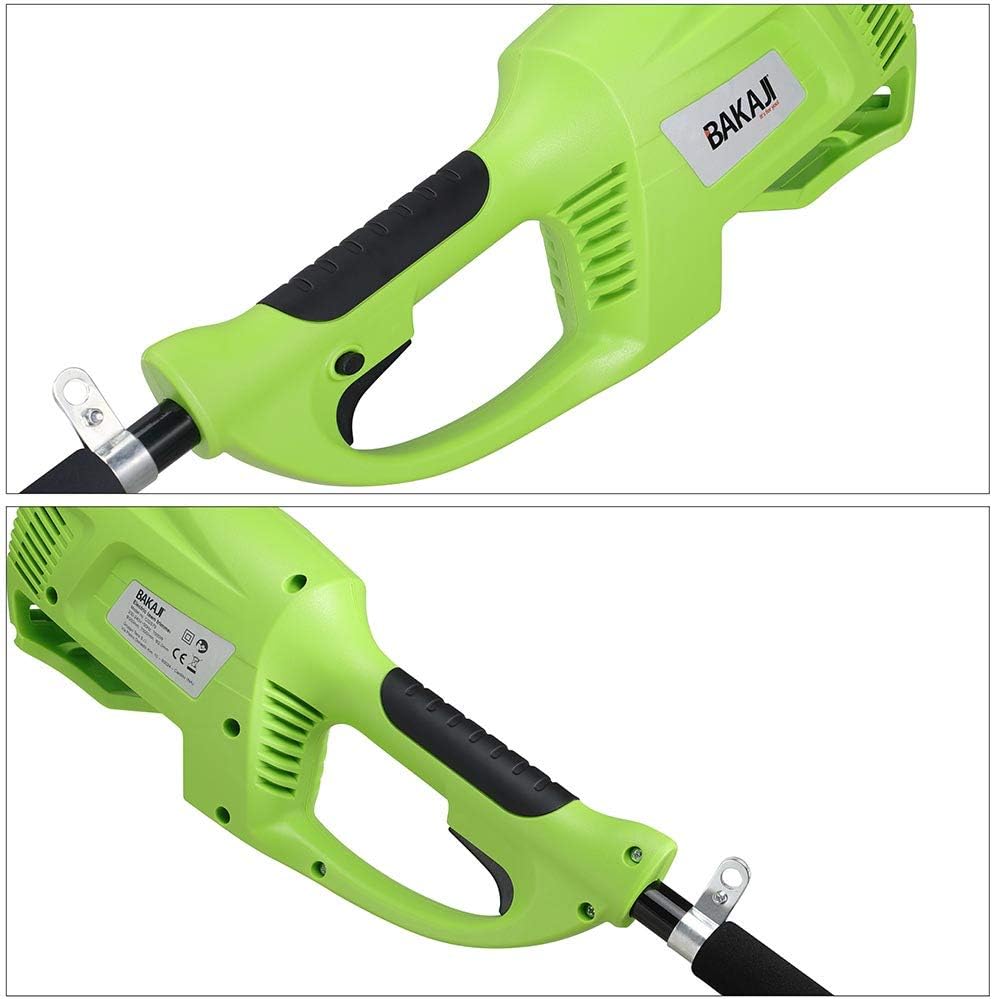

Image 5: A detailed view of the main handle, showing the ergonomic grip and the trigger switch for operation.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your brush cutter. Always unplug the tool before any maintenance.
- Cleaning: After each use, clean the cutting head and protective guard to remove grass clippings, dirt, and debris. Use a damp cloth; do not use harsh chemicals or abrasive cleaners.
- Nylon Line Replacement: When the nylon line wears down, replace it with a new line of the specified diameter (2mm). Refer to the instruction booklet for specific steps on how to open the spool and feed new line.
- Inspect for Damage: Regularly check the power cord, housing, and cutting head for any signs of wear or damage. If any part is damaged, have it repaired by a qualified service technician.
- Storage: Store the brush cutter in a dry, secure place, out of reach of children. Ensure the power cord is neatly coiled and not kinked.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Brush cutter does not start | No power supply; Damaged power cord; Safety switch not engaged | Check power connection; Inspect power cord for damage; Ensure safety lock and trigger are pressed correctly. |
| Motor runs but cutting line does not spin | Nylon line is jammed or broken; Spool is not correctly installed | Unplug and clear any obstructions; Replace nylon line; Reinstall spool correctly. |
| Reduced cutting performance | Worn or short nylon line; Cutting too much material at once | Replace nylon line; Take smaller passes; Avoid forcing the tool. |
| Tool overheats or emits smoke | Prolonged heavy use; Motor ventilation blocked; Internal fault | Stop use immediately and allow to cool; Clear any debris from ventilation openings; If problem persists, seek professional service. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact BAKAJI customer support or a qualified service technician.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | BAKAJI |
| Model Number | 8057711887217 |
| Power Source | Electric (Cable) |
| Motor Power | 1000 W |
| Speed | 7300 rpm (no-load) |
| Cutting Width | 35 cm |
| Product Dimensions (L x W x H) | 25 x 16 x 105 cm |
| Item Weight | 4 Kilograms |
| Color | Green |
| Nylon Line Diameter | 2 mm |
| Nylon Line Length (included) | 6 meters |
