Sunrosa Aluminum Bathroom Medicine Cabinet Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Sunrosa Aluminum Bathroom Medicine Cabinet, Model MC-02. This cabinet features a durable aluminum frame, mirrored doors with an asymmetrical design, and adjustable tempered glass shelves, offering both functionality and aesthetic appeal for your bathroom space.

Image 1.1: Front view of the Sunrosa Aluminum Bathroom Medicine Cabinet with asymmetrical mirrored doors.

2. Safety Information

Please read all safety instructions before installation and use to prevent injury or damage. Keep this manual for future reference.

• Ensure secure mounting to a structurally sound wall. Improper installation can lead to the cabinet falling, causing severe injury or damage.
• Avoid overloading the adjustable shelves. The maximum weight limit for the cabinet is 40 pounds. Distribute weight evenly.
• Exercise caution when handling glass components (mirrors, shelves) to prevent cuts or breakage.
• Do not use abrasive cleaners or sharp objects on mirrored surfaces, as this can cause scratches or damage.
• Keep small children away from the cabinet during installation and ensure doors are securely closed to prevent accidental injury.

Important: Ensure secure mounting, avoid overloading adjustable shelves, and be cautious of slipping hazards caused by the mirrored door.

3. Package Contents

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support.

• Aluminum Cabinet Frame
• Mirror Doors (Asymmetrical)
• Tempered Glass Shelves (2)
• Mounting Hardware (screws, anchors, brackets)
• Instruction Manual

Image 3.1: Interior view of the medicine cabinet showing the adjustable tempered glass shelves.

4. Specifications

Detailed specifications for the Sunrosa Aluminum Bathroom Medicine Cabinet (Model MC-02).

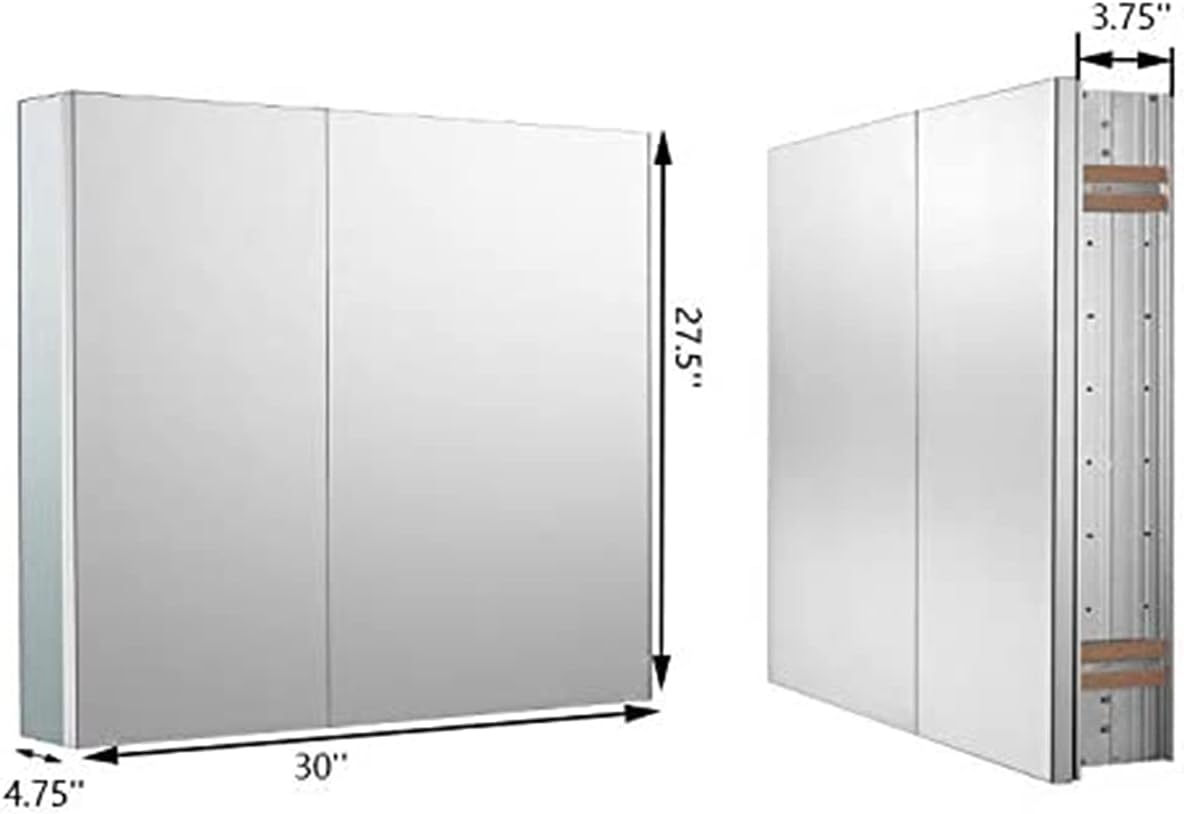

Image 4.1: Product dimensions for the Sunrosa Medicine Cabinet.

5. Installation (Setup)

The Sunrosa Medicine Cabinet can be installed using either surface-mount or recessed-mount methods. Choose the method appropriate for your bathroom structure.

Tools Required (Not Included):

• Measuring Tape
• Pencil
• Drill
• Level
• Screwdriver
• Stud Finder (for recessed mount)

5.1. Surface Mount Installation

Surface-mounted cabinets are installed directly onto the wall surface, hanging flush without the need for wall cutting.

1. Mark Location: Determine the desired height and center position for the cabinet. Use a level to mark the horizontal line for the bottom mounting bracket.
2. Install Bottom Bracket: Secure the bottom mounting bracket to the wall using appropriate screws and anchors. Ensure it is level and firmly attached. If possible, align with wall studs for maximum stability.
3. Hang Cabinet: Carefully lift the cabinet and hook it onto the installed bottom bracket.
4. Secure Top Brackets: Install the top mounting brackets to secure the upper part of the cabinet to the wall. Ensure the cabinet is plumb and level before tightening all screws.
5. Attach Side Panels (Optional): If your installation requires side panels for a finished look, carefully attach them according to the included instructions. Note that the adhesive is strong, so precise placement is crucial.

5.2. Recessed Mount Installation

Recessed cabinets are installed between wall studs, fitting neatly within the wall for a streamlined appearance. This method requires cutting into the wall.

1. Locate Studs: Use a stud finder to locate and mark the vertical studs in your wall. The cabinet is designed to fit between standard 16-inch on-center studs.
2. Mark Opening: Based on the cabinet dimensions (30"W x 27.5"H), mark the precise opening on the wall. Ensure the opening is level and plumb.
3. Cut Opening: Carefully cut out the marked section of the drywall. Ensure no electrical wires or plumbing are present behind the cutting area.
4. Install Bottom Bracket: Secure the bottom mounting bracket within the wall opening, attaching it to the studs or using appropriate anchors if studs are not accessible at the desired points.
5. Insert Cabinet: Slide the cabinet into the recessed opening.
6. Secure Cabinet: Use the provided screws to secure the cabinet frame directly to the wall studs through the pre-drilled holes on the cabinet sides. Install top brackets for additional stability.

Image 5.1: Comparison of Surface-Mount vs. Recessed Installation.

Image 5.2: Recommended installation clearances for optimal use.

6. Operation

Your Sunrosa Medicine Cabinet is designed for convenient and quiet daily use.

6.1. Adjustable Shelves

The cabinet includes two tempered glass shelves that can be adjusted to various heights to accommodate items of different sizes. To adjust a shelf:

1. Empty the shelf of all contents.
2. Carefully lift the shelf and remove it from its support clips.
3. Relocate the support clips to the desired height within the cabinet's pre-drilled holes. Ensure all four clips are at the same level.
4. Gently place the glass shelf back onto the support clips, ensuring it is stable and secure.

6.2. Soft-Closing Hinges

The cabinet doors are equipped with self-closing hinges that allow them to close slowly and quietly, preventing slamming and reducing wear. Simply push the door gently, and the mechanism will engage to close it smoothly.

Image 6.1: Features including adjustable shelves, sturdy hinges, and soft-close doors.

7. Maintenance

Regular cleaning and maintenance will ensure the longevity and appearance of your medicine cabinet.

• Cleaning Mirrors: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into edges. Wipe gently until clean and streak-free.
• Cleaning Aluminum Frame: Wipe the aluminum frame with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean, soft cloth. Avoid harsh chemicals or abrasive pads.
• Cleaning Glass Shelves: Remove shelves and wash with mild soap and water, or use a glass cleaner. Dry thoroughly before returning to the cabinet.
• Hinge Inspection: Periodically check hinges for any signs of loosening or wear. Tighten screws if necessary.

8. Troubleshooting

This section addresses common issues you might encounter with your medicine cabinet.

Issue: Doors are not aligned or do not close properly.

• Solution: The hinges are adjustable. Refer to the hinge adjustment instructions (usually found with the hinge manufacturer's guide or by gently turning the adjustment screws on the hinges) to align the doors. Ensure the cabinet itself is installed level and plumb.

Issue: Glass shelves are difficult to install or fit too tightly.

• Solution: Ensure the shelf support clips are fully inserted and correctly oriented. If the fit is extremely tight, some users have found it helpful to carefully trim the spring tabs on one side of the clips slightly to ease insertion, as mentioned in customer feedback. Exercise caution if attempting this.

Issue: Cabinet feels unstable after installation.

• Solution: Recheck all mounting screws and anchors to ensure they are securely tightened. For surface mount, verify that the bottom and top brackets are firmly attached to the wall, preferably into studs. For recessed mount, ensure the cabinet is screwed into studs where possible.

9. Warranty and Support

Sunrosa provides a 6-month coverage for this Medicine Cabinet. If you encounter any issues with the product or receive a faulty item, please contact Sunrosa customer support for assistance. We are committed to addressing your questions and concerns promptly.

For support, please refer to the contact information provided at the point of purchase or visit the official Sunrosa website.
