Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Atosa MCF8720GR 1 Door Merchandiser Freezer. Please read these instructions thoroughly before installation and use to ensure optimal performance and longevity of your unit. Keep this manual for future reference.
The Atosa MCF8720GR is a commercial-grade merchandiser freezer designed for displaying frozen products. It features a black steel exterior with a stainless steel interior, maintaining temperatures between -8°F and 0°F. Key features include a lighted header panel, LED interior lighting, a digital controller, and self-closing double pane glass doors with an automatic stay-open feature.
Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
- Ensure the unit is properly grounded.
- Do not operate the unit with a damaged power cord or plug.
- Keep ventilation openings clear of obstructions.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Only qualified personnel should perform repairs.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and your dealer.
Placement
Choose a location with adequate air circulation. Avoid direct sunlight or proximity to heat-generating appliances. Ensure the floor is level and strong enough to support the unit's weight when fully loaded.
Ensure proper clearance around the unit for ventilation and service access.
Caster Installation

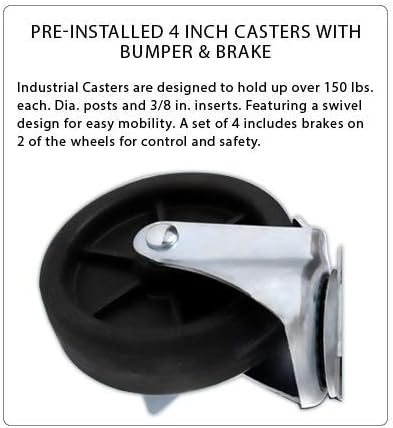

The unit comes with pre-installed casters for easy mobility. A set of four 4-inch casters includes brakes on two of the wheels for control and safety. Ensure the brakes are engaged once the unit is in its final position.
Image showing a pre-installed 4-inch caster with a bumper and brake, designed for industrial use and supporting over 150 lbs each.
Electrical Connection
Connect the unit to a dedicated 115V/60Hz/1-phase electrical outlet. The unit is equipped with a NEMA-5-15P plug. Do not use extension cords or adapter plugs.
The bottom mount compressor design is beneficial for hot environments and cooking lines, and also simplifies servicing and cleaning.
Illustration of the bottom mount compressor unit, highlighting its accessibility for service and cleaning.
Operating Instructions
Initial Startup
After installation, allow the unit to stand for at least 2 hours before plugging it in. Once plugged in, allow the unit to run for several hours to reach its operating temperature before loading products.
Temperature Control (Dixell Digital Controller)
The freezer is equipped with a Dixell digital temperature controller, which maintains temperatures between -8°F and 0°F. Refer to the separate Dixell controller manual for detailed programming instructions. The display shows the current internal temperature.

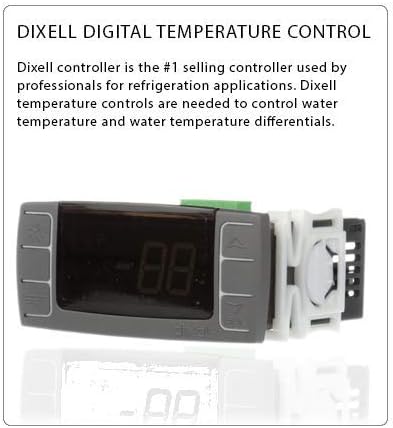

Close-up view of the Dixell digital temperature controller, used for precise temperature management in refrigeration applications.
Door Operation
The double pane glass door(s) are self-closing. They also feature an automatic stay-open mechanism when opened past 90 degrees, allowing for easy loading and unloading. The door(s) include locks for security and recessed handles for a sleek design.
Diagram illustrating the self-closing door feature, where the door automatically closes when open to 90 degrees or less, and stays open past 90 degrees.
Shelving
The unit comes with four (4) epoxy-coated shelves per section. These shelves are designed for moist environments and provide protection against rust and corrosion.

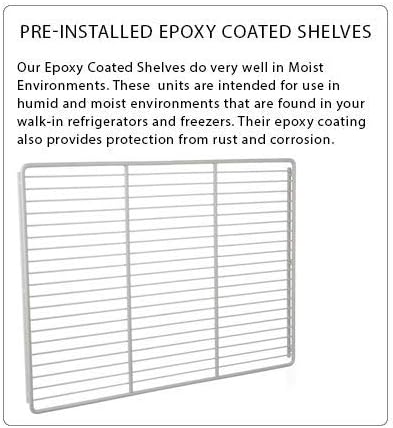

Image of a pre-installed epoxy-coated shelf, highlighting its suitability for humid and moist environments and protection against rust and corrosion.
Maintenance
Cleaning the Interior and Exterior
Clean the interior and exterior surfaces regularly with a mild soap and warm water solution. Avoid abrasive cleaners or scouring pads that can damage the finish. For stainless steel surfaces, use a cleaner specifically designed for stainless steel.
Door Gasket Maintenance
Inspect and clean the magnetic door gaskets regularly. Ensure they are free from food debris and remain flexible to maintain an airtight seal. Damaged gaskets should be replaced promptly to prevent energy loss.
Close-up view of magnetic door gaskets, designed to keep heat, cold, moisture, and dust out, providing energy-efficient seals.
Condenser Coil Cleaning
The condenser coil should be cleaned every 30 days or as needed to ensure efficient operation. Unplug the unit before cleaning. Use a stiff brush or vacuum cleaner to remove dust and debris from the coil. A dirty condenser coil can lead to increased energy consumption and reduced cooling performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cooling |
|
|
| Excessive noise |
|
|
| Ice buildup |
|
|
For issues not listed here or if problems persist, contact qualified service personnel.
Specifications
| Feature | Detail |
|---|---|
| Brand | Atosa |
| Model Number | MCF8720GR |
| Exterior Finish | Black Steel |
| Interior Finish | Stainless Steel |
| Temperature Range | -8°F to 0°F |
| Refrigerant | R290 (Environmentally Friendly) |
| Compressor Location | Bottom Mount |
| Shelves | 4, Epoxy Coated |
| Door Type | Double Pane Glass, Self-Closing with Stay-Open Feature |
| Lighting | LED Interior Lighting |
| Electrical | 115V/60Hz/1-Phase, NEMA-5-15P Plug |
| Casters | Pre-installed 4-inch with Bumper & Brake |
| UPC | 651357798029 |
| ASIN | B08R31G2FH |
Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Atosa customer service directly. Keep your purchase receipt and model number handy when contacting support.
Atosa Customer Service: Please visit the official Atosa website or contact your dealer for current support contact information.
