1. Introduction
The SUNWAYFOTO HB-03 Shoe Mount Tilt Head is a versatile accessory designed for photographers and videographers. It provides adjustable tilt and swivel capabilities for mounting various equipment such as external monitors, microphones, or LED lights onto a camera's hot shoe or other compatible mounts. Constructed from durable metal, the HB-03 offers robust support and precise positioning for your gear.

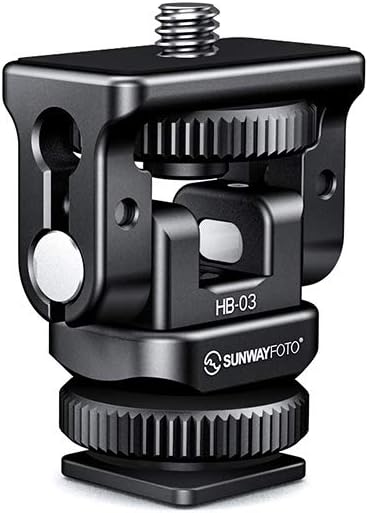

Image 1.1: The SUNWAYFOTO HB-03 Shoe Mount Tilt Head, a compact and robust accessory for camera setups.
2. Product Features
- All-Metal Construction: Ensures durability and stability for mounted equipment.
- Adjustable Tension: Tilt and swivel damping can be adjusted using the included hex wrench to suit user preference and equipment weight.
- Wide Tilt Angle: Offers a tilt range of -90° to +90° for flexible positioning.
- 360° Swivel: Allows for full rotational adjustment of the mounted accessory.
- Universal Mounting: Features a 1/4" top thread for attaching accessories and a 1/4" screw socket on the base for versatile mounting options.
- Compact and Lightweight: Weighs only 52g, making it easy to integrate into portable setups.
3. Setup and Installation
Follow these steps to properly install and set up your HB-03 Shoe Mount Tilt Head:
- Mounting to a Camera Hot Shoe:
Locate the shoe mount on the base of the HB-03. Slide this into your camera's hot shoe or a compatible cold shoe mount. Tighten the shoe lock wheel (located at the base) clockwise until the tilt head is securely fastened and does not wobble.

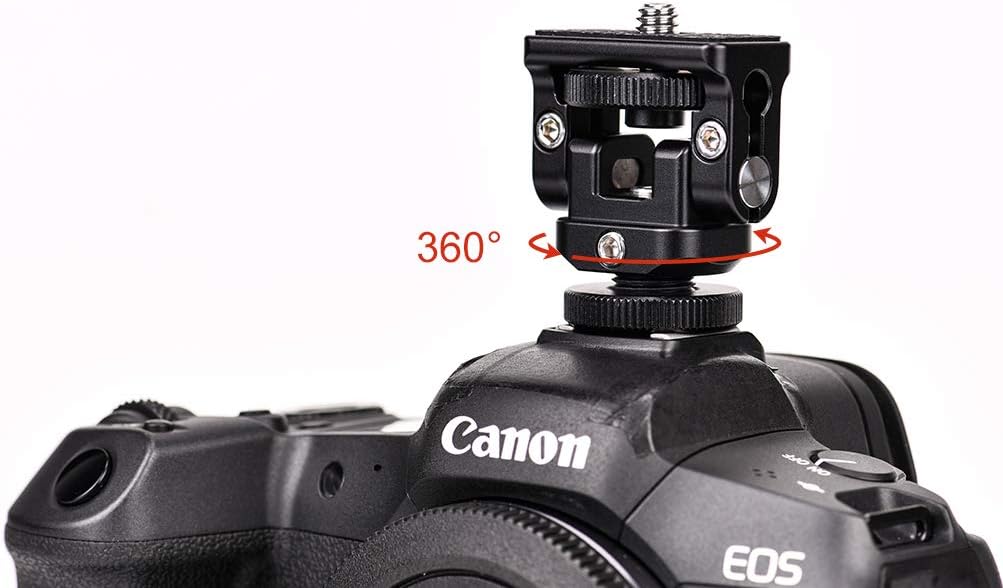

Image 3.1: The HB-03 mounted on a camera, illustrating its 360-degree swivel capability.
- Attaching an Accessory:
Identify the 1/4" mounting screw at the top of the HB-03. Align the 1/4" threaded hole on your accessory (e.g., LED light, monitor, microphone) with this screw. Rotate your accessory clockwise onto the screw until it is firmly attached. Ensure it is snug but do not overtighten.

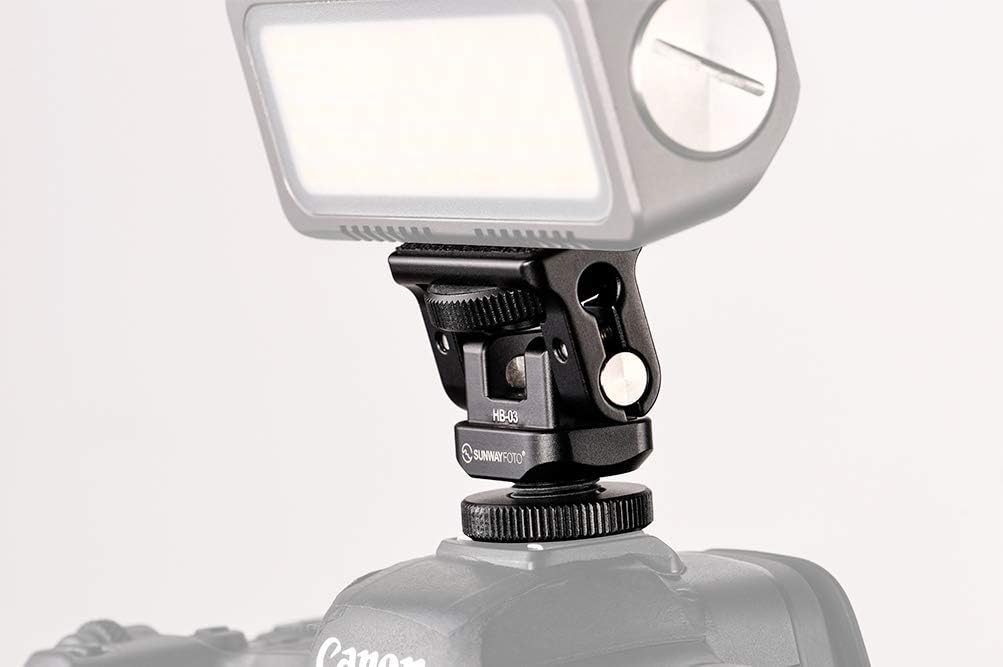

Image 3.2: An LED light securely mounted onto the HB-03 tilt head, ready for use.
- Alternative Mounting (1/4" Screw Socket):
The base of the HB-03 also features a 1/4" screw socket, allowing it to be mounted onto tripods, light stands, or other equipment with a compatible 1/4" screw. Simply thread the HB-03 onto the screw until secure.
Image 3.3: Detailed view of the 1/4" mounting screw on top and the 1/4" screw socket at the base for versatile attachment.
4. Operation
The HB-03 allows for precise adjustment of your mounted accessory's angle and rotation.
4.1 Adjusting Tilt Angle
The tilt head offers a 180° fore-aft tilting range (-90° to +90°). Simply grasp the mounted accessory and gently adjust it to the desired vertical angle. The internal damping mechanism will hold it in place.
Image 4.1: Visual representation of the HB-03's 180-degree fore-aft tilting capability.
4.2 Adjusting Swivel Rotation
The HB-03 can rotate 360° horizontally. Gently turn the mounted accessory to achieve the desired horizontal orientation.
4.3 Adjusting Damping/Tension
The damping (tension) for both tilt and swivel movements is user-adjustable. This allows you to customize the resistance based on the weight of your mounted equipment and your preference for movement fluidity.
- Locate the damping screws on the side of the HB-03.
- Use the included hex wrench to turn the damping screws.
- Turning clockwise will increase the tension, making the movement stiffer.
- Turning counter-clockwise will decrease the tension, making the movement looser.
- Adjust gradually until the desired level of resistance is achieved, ensuring your equipment holds its position securely without being too difficult to adjust.
Image 4.2: A hand demonstrating the adjustment of damping screws using the provided hex wrench for customized tension.
5. Maintenance
To ensure the longevity and optimal performance of your SUNWAYFOTO HB-03 Tilt Head, follow these maintenance guidelines:
- Cleaning: Wipe the tilt head with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the tilt head in a dry, cool place away from direct sunlight and extreme temperatures.
- Inspection: Periodically check all screws and connections to ensure they are secure. Retighten if necessary.
- Lubrication: The internal mechanisms are designed for maintenance-free operation. Do not attempt to lubricate internal parts unless specifically instructed by SUNWAYFOTO support.
6. Troubleshooting
If you encounter issues with your HB-03 Tilt Head, consider the following:
- Accessory Not Holding Position:
- Ensure the accessory is securely mounted to the 1/4" screw.
- Adjust the damping screws clockwise using the hex wrench to increase tension.
- Verify that the weight of the mounted accessory does not exceed the maximum load capacity of 2kg (4.4 lbs).
- Difficulty Adjusting Angle/Rotation:
- Adjust the damping screws counter-clockwise using the hex wrench to decrease tension.
- Ensure no foreign objects are obstructing the movement.
- Tilt Head Loose on Camera Shoe:
- Tighten the shoe lock wheel at the base of the HB-03 clockwise until it is firm.
7. Specifications

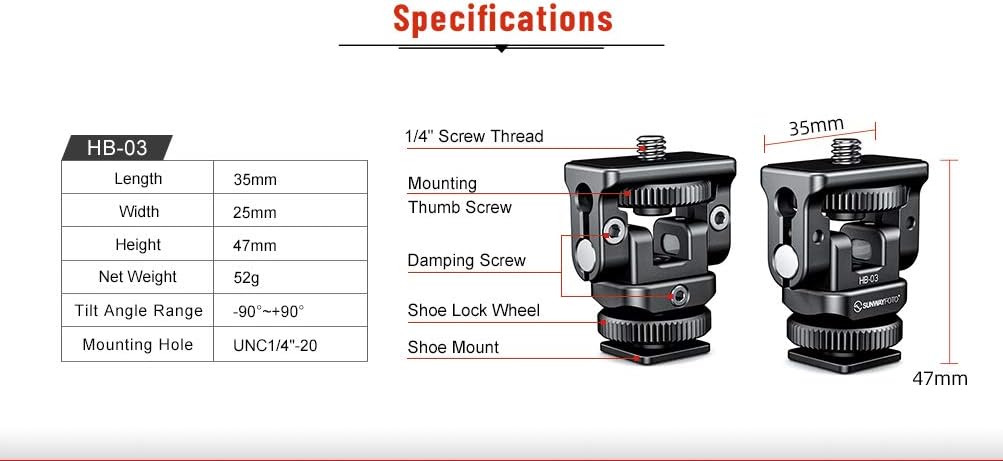

Image 7.1: Detailed specifications and labeled components of the HB-03 Tilt Head.
| Feature | Detail |
|---|---|
| Model | HB-03 |
| Material | All-metal construction |
| Max Load Capacity | 2 kg (4.4 lbs) |
| Net Weight | 52 g (1.83 ounces) |
| Height | 47 mm |
| Width | 25 mm |
| Length | 35 mm |
| Tilt Angle Range | -90° to +90° (180° total) |
| Swivel Rotation | 360° |
| Top Mounting Thread | 1/4" screw |
| Base Mounting Hole | 1/4" screw socket (UNC 1/4"-20) |
| Compatible Devices | Camera |
8. Warranty and Support
SUNWAYFOTO products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official SUNWAYFOTO website. If you require technical assistance or have questions regarding the HB-03 Shoe Mount Tilt Head, please contact SUNWAYFOTO customer support through their official channels.
Keep your purchase receipt as proof of purchase for any warranty claims.
