1. Introduction
The Kärcher K 3 Power Control Home T5 pressure washer is designed for effective cleaning tasks around your home and garden. This model features two wheels for easy mobility, a 7-meter high-pressure hose, and a water filter. It comes equipped with a T Racer T5 surface cleaner, a Vario Power spray lance, and a dirt blaster for tackling various levels of dirt and grime.
The Vario Power spray lance allows for easy adjustment of pressure levels and includes a detergent mode, making it versatile for different surfaces. Pressure settings are clearly indicated by symbols on the lance, corresponding to four modes: Soft, Medium, Hard, and Mix (for detergent application).
2. Safety Instructions
Always read and understand all safety warnings and instructions before operating the pressure washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Ensure the power supply matches the specifications on the product label.
- Never direct the water jet at people, animals, electrical equipment, or the appliance itself.
- Wear appropriate personal protective equipment, including safety glasses and hearing protection.
- Keep children and bystanders away from the operating area.
- Do not operate the pressure washer if the power cord or other important parts are damaged.
- Always disconnect the power supply before performing any maintenance or cleaning.
3. Setup
3.1 Assembly
The K 3 Power Control Home T5 is designed for straightforward assembly. Attach the wheels, handle, and telescopic handle as per the diagrams in the included quick start guide. Ensure all connections are secure before use.
3.2 Water and Power Connection
- Connect the high-pressure hose to the pressure washer and the spray gun.
- Connect a garden hose to the water inlet of the pressure washer. Ensure the water filter is clean and correctly installed.
- Plug the power cord into a suitable electrical outlet.

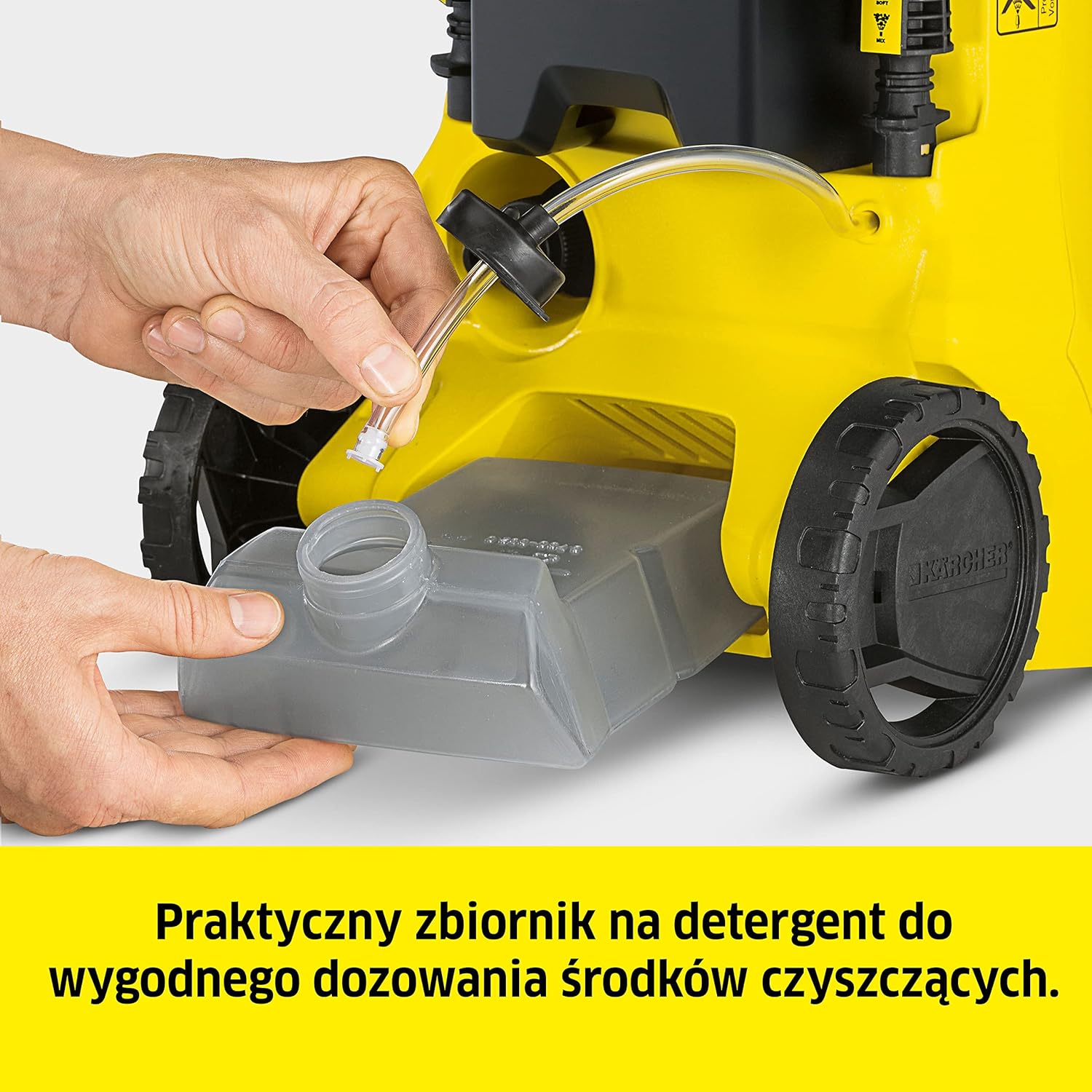

3.3 Detergent Tank
The unit features a practical detergent tank for convenient dosing of cleaning agents. To use, open the cap, pour in the appropriate Kärcher detergent, and close the cap. The detergent will be drawn into the water stream when the Vario Power lance is set to 'Mix' mode.
Image: Practical detergent tank for convenient dosing of cleaning agents.
4. Operating Instructions
4.1 Powering On and Off
- Turn on the water supply.
- Switch on the pressure washer using the main power switch.
- To turn off, switch off the pressure washer, turn off the water supply, and then squeeze the trigger gun to release any remaining pressure.
4.2 Using the Vario Power Spray Lance
The Vario Power spray lance allows for stepless and effortless pressure regulation by simply twisting the lance. The pressure is indicated by symbols on the lance, corresponding to the following modes:
- Soft: For delicate surfaces like wood or painted surfaces.
- Medium: For general cleaning of garden furniture, vehicles, etc.
- Hard: For stubborn dirt on robust surfaces like stone patios or concrete.
- Mix: For applying detergent.
Image: Easy control of settings thanks to the manual indicator on the Vario Power lance.
Image: Universal use on hard and delicate surfaces thanks to adjustable nozzle distance.
4.3 Using the Dirt Blaster
The dirt blaster provides a powerful rotating jet for removing extremely stubborn dirt and grime from robust surfaces. It is not recommended for delicate surfaces.
4.4 Using the T Racer T5 Surface Cleaner
The T Racer T5 is ideal for cleaning large outdoor surfaces like patios and driveways quickly and efficiently, minimizing splash-back.
Image: The pressure washer effectively cleans various outdoor items.
4.5 App Integration
For optimized cleaning results, recommended settings for the cleaned surface can be displayed and guided through the Kärcher Home & Garden application on your smartphone. This provides additional support for selecting the correct pressure for specific tasks.
Image: Recommended settings for the cleaned surface can be viewed in the application.
5. Maintenance
5.1 Cleaning the Water Filter
Regularly check and clean the water filter to prevent blockages and ensure optimal performance. A clogged filter can reduce water flow and damage the pump.
5.2 Storage
After each use, ensure the unit is depressurized and drained of water. The lances and accessories can be conveniently stored directly on the device. The retractable telescopic handle allows for compact storage.
Image: Extendable telescopic handle for convenient transport and storage.
6. Troubleshooting
If you encounter issues with your Kärcher K 3 Power Control Home T5 pressure washer, refer to the following common troubleshooting steps:
- No water pressure: Check water supply, ensure hose is not kinked, and clean the water filter.
- Motor not starting: Check power connection, circuit breaker, and ensure the unit is properly plugged in.
- Pulsating pressure: Air in the system (bleed by running with trigger open), or a clogged nozzle (clean the nozzle).
- Detergent not dispensing: Ensure the Vario Power lance is set to 'Mix' mode and the detergent tank is filled.
For more complex issues, please contact Kärcher customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 1.676-106.0 |
| Manufacturer | Kärcher |
| Product Dimensions (L x W x H) | 49.3 x 29.3 x 42.7 cm |
| Item Weight | 7.4 Kilograms |
| Power Source | Electric Corded |
| Max Pressure | 120 Bars |
| Max Flow Rate | 380 Litres per hour |
| Hose Length | 6 Meters |
| Color | Yellow/Black |
| EU Spare Parts Availability | 5 Years |

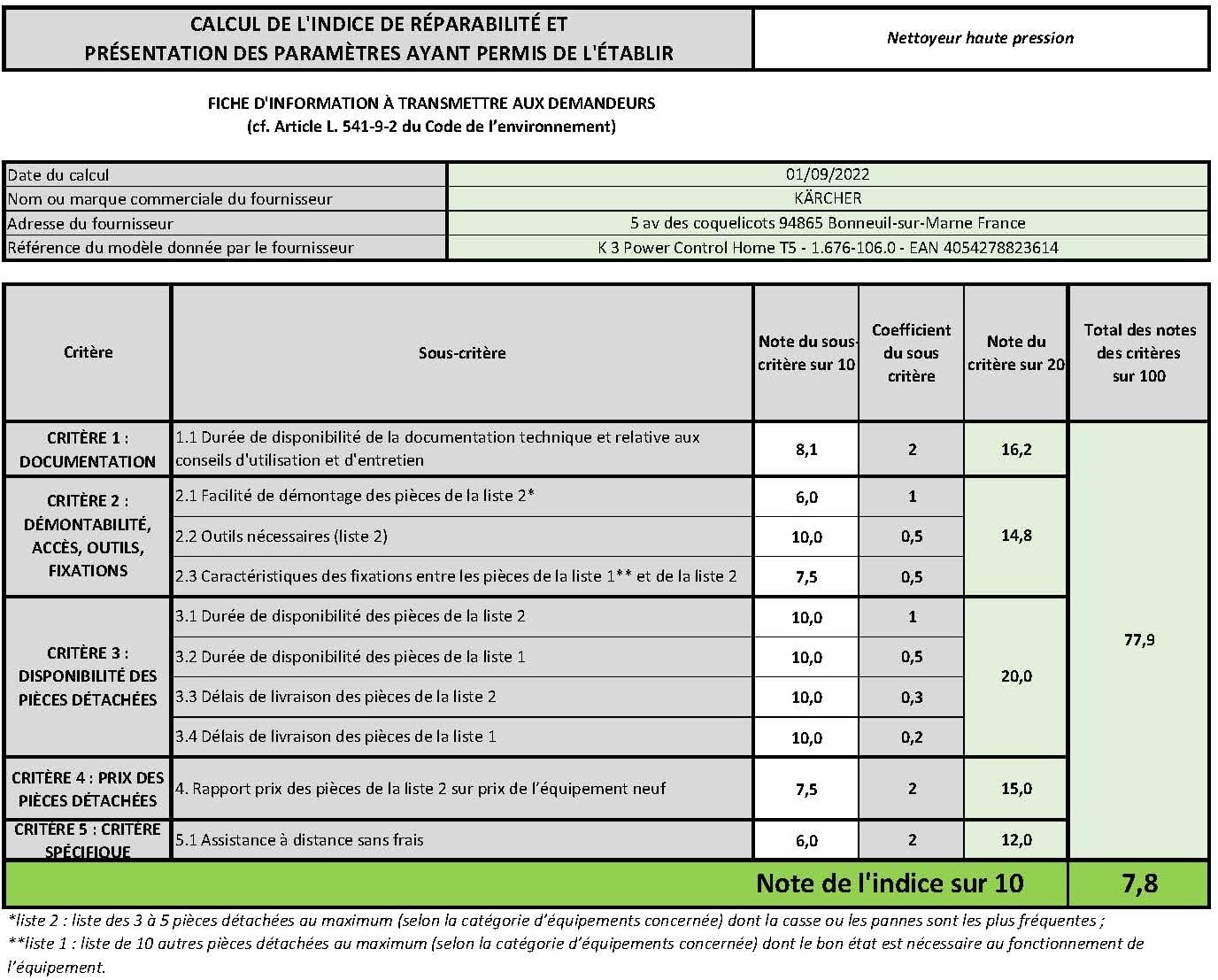

7.1 Repairability Index
The Kärcher K 3 Power Control Home T5 has a repairability index of 7.8 out of 10, indicating good ease of repair and availability of spare parts.
Image: Repairability Index Calculation for the Kärcher K 3 Power Control Home T5.
8. Warranty and Support
8.1 Warranty Information
This Kärcher pressure washer comes with a standard warranty. You can extend your warranty to five years by registering your product. Please visit the official Kärcher website for detailed terms and conditions and registration instructions.
Image: Register your Kärcher pressure washer and extend the warranty to five years!
8.2 Customer Support
For further assistance, spare parts, or service inquiries, please visit the official Kärcher website or contact their customer service department. You can find more information and contact details by visiting the Kärcher Store on Amazon.
