1. Product Overview
The hansgrohe Focus N kitchen faucet combines modern design with practical functionality, designed to integrate seamlessly into various kitchen styles. It features a high-arc spout, a pull-down sprayer, and a durable brushed black chrome finish. This faucet is equipped with QuickClean technology for easy maintenance and MagFit magnetic docking for the spray head.

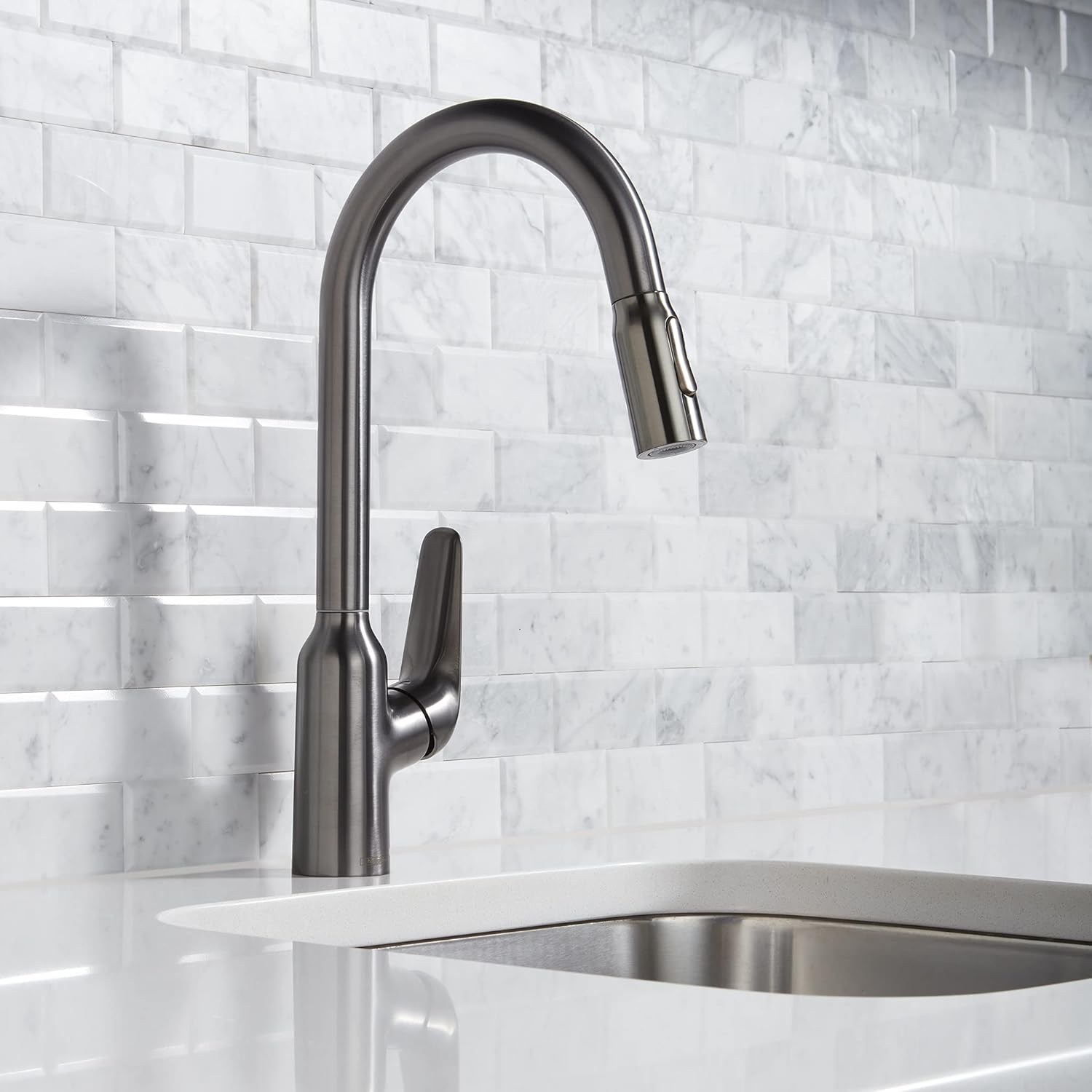

Image 1.1: The hansgrohe Focus N High Arc Kitchen Faucet in Brushed Black Chrome, showcasing its elegant design and pull-down sprayer.
2. Setup and Installation
Proper installation is crucial for optimal performance. hansgrohe recommends that a licensed plumber install this product. The faucet is designed for single-hole mounting but can be combined with a baseplate for multi-hole installations.
- Mounting Type: Single-hole.
- Hole Diameter: 1.5 inches.
- Water Connection: 3/8 inch hoses for quick connection to standard angle valves.
- Included Components: Kitchen Faucet, Sprayhead, Supply Hoses.
Image 2.1: Diagram illustrating the dimensions, spout reach, flow rate, and installation options (1-hole or multi-hole with baseplate) for the hansgrohe Focus N faucet.
Ensure all connections are secure and leak-free before regular use. The flexible 3/8-inch hoses are designed for easy connection to standard angle valves.
3. Operating Instructions
The Focus N faucet offers intuitive operation with its single lever handle and versatile pull-down sprayer.
- Water Flow and Temperature: The single lever handle controls both water flow and temperature. Move the handle up for increased flow and left/right for hot/cold water.
- Pull-Down Sprayer: The spray head can be pulled down for extended reach and flexibility within the sink. It features MagFit magnetic docking to securely hold the spray head in place when not in use.
- Spray Modes: Switch between two distinct spray modes directly at the spout:
- Laminar Spray: A crystal-clear, aerated stream ideal for quickly filling pots.
- Shower Spray: A gentle, wider spray suitable for rinsing fruits and vegetables.
Image 3.1: A detailed view of the faucet's pull-down spray head and ergonomic single lever handle.

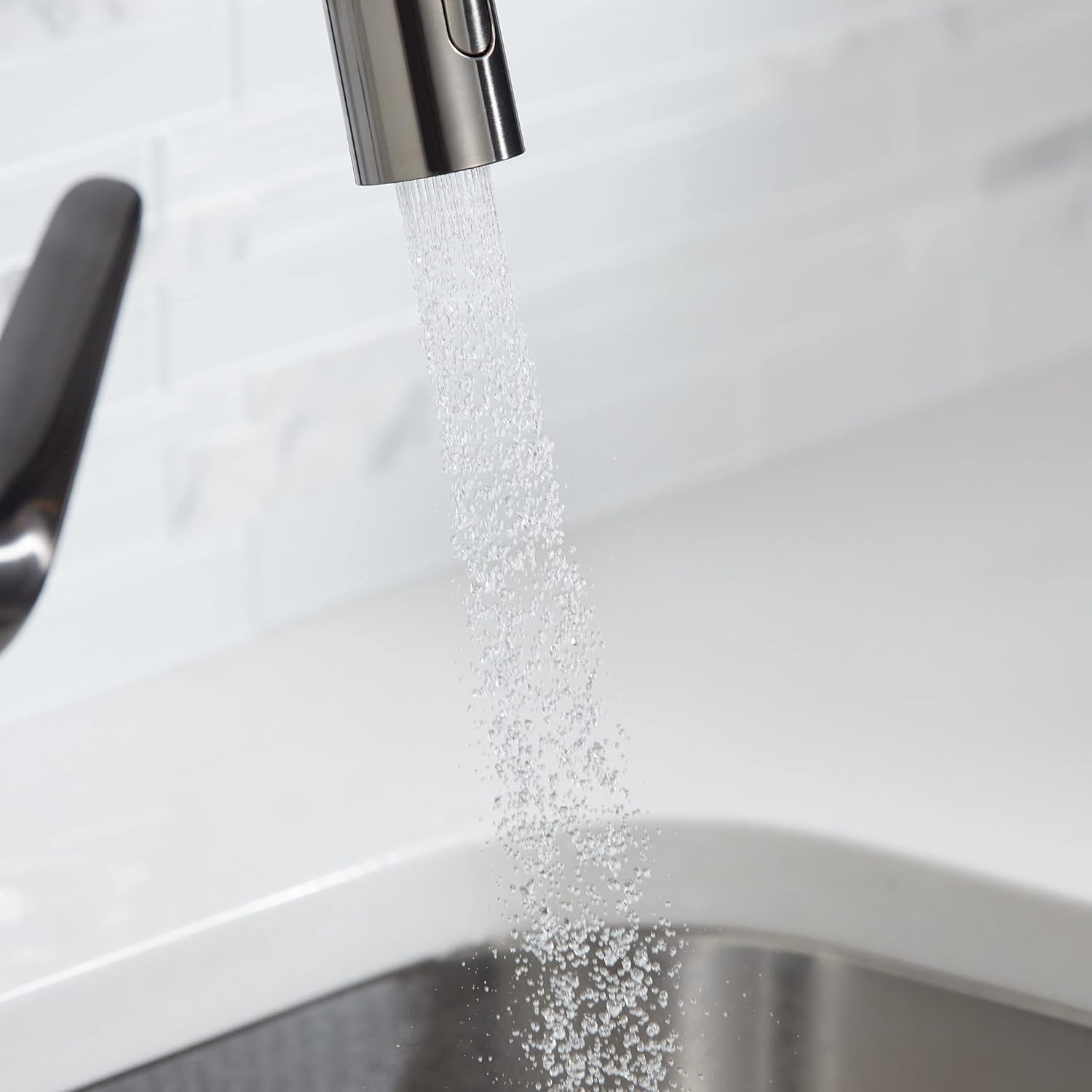

Image 3.2: The laminar spray mode providing a clear, steady stream of water.
Image 3.3: The shower spray mode, offering a wider, gentler flow.
Video 3.1: Official hansgrohe video demonstrating the features of the Focus N kitchen faucet, including its laminar and shower spray modes, MagFit docking, and ceramic cartridge.
4. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe faucet.
- QuickClean Technology: The faucet is equipped with QuickClean, allowing for easy removal of limescale deposits from the spray nozzles. Simply rub the silicone nozzles to dislodge mineral buildup.
- Cleaning the Finish: Use a soft cloth and mild soap to clean the brushed black chrome finish. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface.
- Ceramic Cartridge: The durable, silk-smooth ceramic cartridge ensures reliable operation. No specific user maintenance is typically required for the cartridge itself.
Image 4.1: Detail of the spray head, highlighting the QuickClean nozzles designed for easy limescale removal.
5. Troubleshooting
If you encounter issues with your faucet, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or supply lines. | Clean the aerator using QuickClean technology. Check supply lines for kinks or obstructions. |
| Leaking from Spout | Loose connections or worn cartridge. | Ensure all connections are tightened. If leaking persists, the ceramic cartridge may need inspection or replacement by a professional. |
| Spray Head Not Docking Securely | Debris in MagFit mechanism or weight issue. | Inspect the MagFit area for any obstructions. Ensure the counterweight on the hose under the sink is positioned correctly. |
| Difficulty Switching Spray Modes | Mineral buildup in spray head. | Activate QuickClean by rubbing the silicone nozzles to clear any buildup. |
If these steps do not resolve the issue, please contact hansgrohe customer support or consult a licensed plumber.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | hansgrohe |
| Model Name | hansgrohe Focus N 1-Handle 16-inch Tall Kitchen Faucet with Pull Down Sprayer with QuickClean |
| Model Number | 71800341 |
| Finish Type | Brushed Black Chrome |
| Material | Brass |
| Mounting Type | Single-hole |
| Number of Handles | 1 (Lever) |
| Special Feature | Pull Down Sprayer |
| Flow Rate | 1.75 Gallons Per Minute |
| Spout Design | HighArc |
| Spout Reach | 8.13 Inches |
| Hose Length | 19.6 Inches |
| Item Weight | 6.72 Pounds |
7. Warranty and Support
LIMITED LIFETIME CONSUMER WARRANTY: All hansgrohe products are covered by a limited manufacturer warranty applicable to the original purchaser. For detailed warranty information or technical support, please visit the official hansgrohe website or contact their customer service department.
For further assistance, please refer to the contact information provided on the hansgrohe official website.
