Introduction
Thank you for choosing the Xiaomi 100W 1A1C Dual Port Fast Car Charger. This manual provides essential information for the safe and efficient use of your new car charger. Please read it thoroughly before use and retain it for future reference.
This car charger is designed to provide rapid charging for a variety of devices, including smartphones, tablets, and other portable electronics, directly from your vehicle's power outlet. It features both USB-A and USB-C ports, supporting high-power output up to 100W.
Image: The Xiaomi 100W 1A1C Dual Port Fast Car Charger, showcasing its compact design with USB-A and USB-C ports.
Safety Information
- Do not disassemble, modify, or repair the device yourself.
- Keep the charger away from water, fire, and high temperatures.
- Avoid dropping or subjecting the charger to strong impacts.
- Ensure the car's power outlet (cigarette lighter socket) is clean and free of debris before inserting the charger.
- Do not use the charger if it appears damaged.
- Unplug the charger when not in use or when leaving the vehicle for extended periods.
- This product is designed for use in vehicles with a 12V-24V power supply.
Image: Diagram illustrating the internal high-quality chip and multiple protection features, including overcurrent, overvoltage, short circuit, and overheating protection.
Setup
- Locate the Car Power Outlet: Identify the 12V or 24V power outlet (cigarette lighter socket) in your vehicle.
- Insert the Charger: Firmly insert the Xiaomi car charger into the car's power outlet until it is securely seated.
- Verify Power: The charger features a color light effect that indicates its operational status and charging power. Ensure the light illuminates upon insertion.
- Connect Your Device: Use a compatible USB cable (such as the included Type-C cable) to connect your device to either the USB-A or USB-C port on the charger.

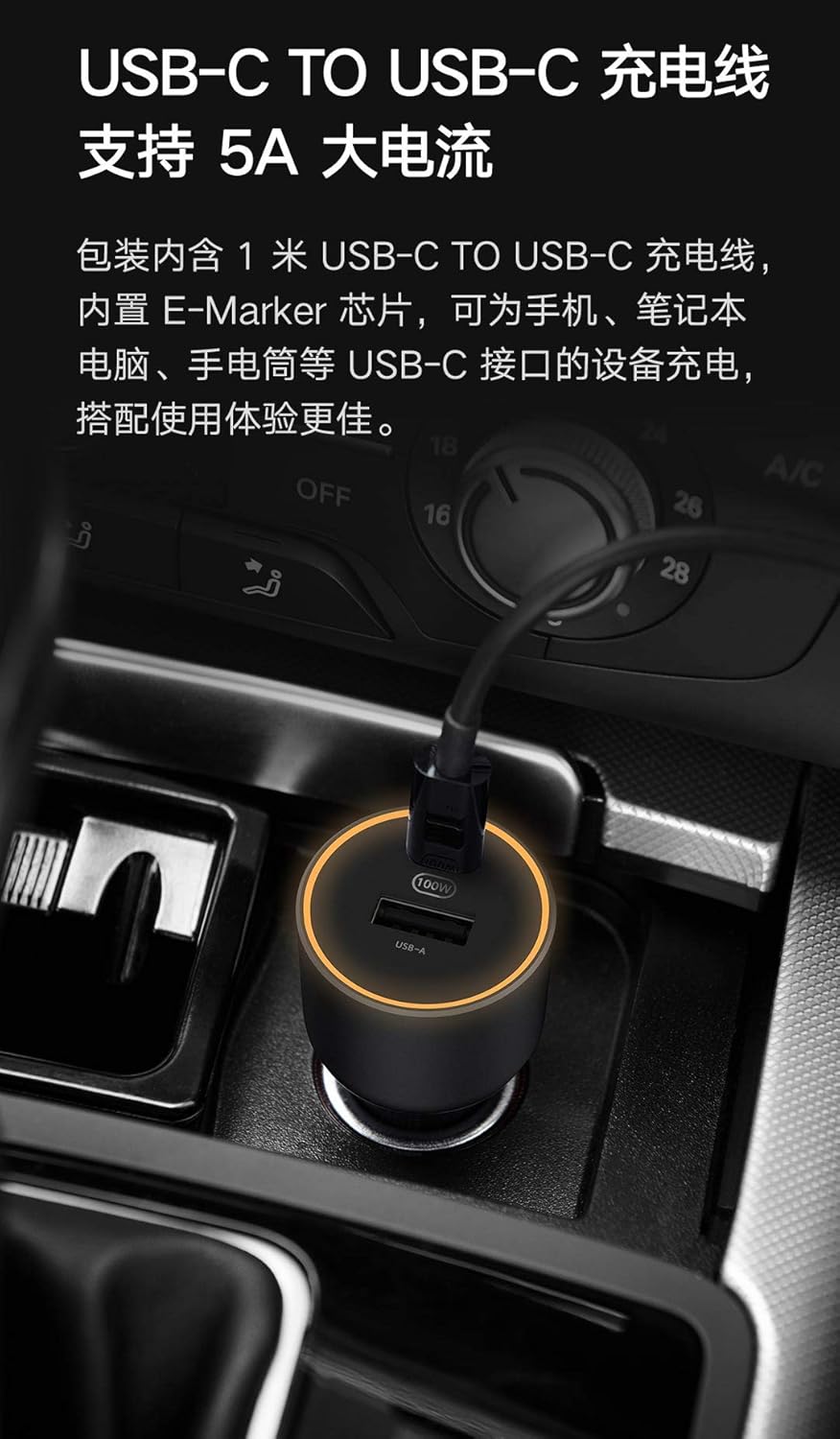

Image: The Xiaomi car charger securely plugged into a vehicle's power outlet, with a USB-C cable connected to a device.
Image: An overhead view of the Xiaomi car charger integrated into a car's center console, showing its discreet profile.
Operating Instructions
- Single Port Charging:
- Connect your device to the USB-A port for standard fast charging.
- Connect your device to the USB-C port for high-speed Power Delivery (PD) charging, supporting up to 100W for compatible devices.
- Dual Port Charging: When both USB-A and USB-C ports are used simultaneously, the total output power is dynamically distributed, with a maximum combined output of 68W. The charger intelligently adjusts power delivery to each connected device.
- Charging Indicator: The charger features an LED light that changes color to indicate different charging power levels, providing visual feedback on the charging status.
- Included Cable: The package includes a high-quality USB-C to USB-C 5A charging cable, optimized for fast charging with the USB-C port.
Image: A smartphone screen indicating "100W MAX" charging, demonstrating the high-power capability of the USB-C port.
Maintenance
- Cleaning: Use a soft, dry cloth to wipe the exterior of the charger. Do not use liquid cleaners or abrasive materials.
- Storage: Store the charger in a cool, dry place when not in use. Avoid extreme temperatures.
- Cable Care: Handle charging cables carefully. Avoid sharp bends or excessive pulling, which can damage the cable.
Troubleshooting
- Charger is not working:
- Ensure the charger is fully inserted into the car's power outlet.
- Check if the car's power outlet is functional (e.g., by testing with another device).
- Verify that your vehicle's engine is running or the ignition is in the accessory position, as some outlets only receive power then.
- Device is not fast charging:
- Ensure your device supports fast charging protocols compatible with the charger (e.g., Power Delivery for USB-C).
- Use a high-quality charging cable that supports fast charging, such as the included 5A Type-C cable.
- If charging multiple devices, the total power output is shared, which may reduce individual charging speeds.
- Charger feels warm:
It is normal for the charger to become warm during high-power charging. If it becomes excessively hot or emits smoke/odor, immediately unplug it and discontinue use.
Specifications
| Model Number | CC07ZM |
| Output Interface | USB-C / USB-A |
| Input Parameters | 12V-24V === 9.5A |
| Single Port Output (USB-A) | 5V === 3A, 9V === 2A |
| Single Port Output (USB-C) | 20V === 5A MAX (100W) |
| Dual Port Output (Simultaneous) | 68W MAX |
| Working Temperature | 0°C ~ 30°C |
| Product Dimensions | 75.15 × 33.3 × 33.3mm |
Image: A detailed table outlining the input, output, and environmental specifications of the car charger.

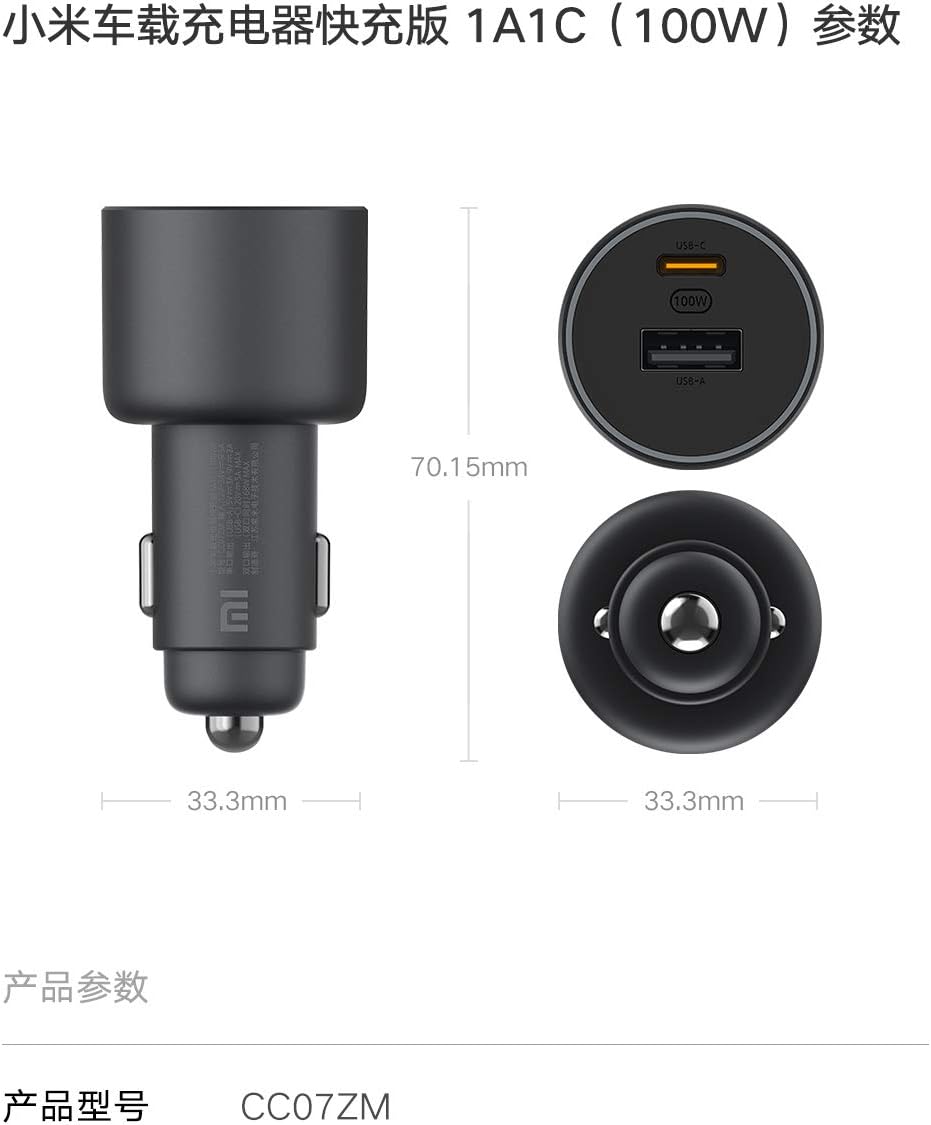

Image: Technical drawing showing the precise dimensions of the Xiaomi car charger.
Package Contents
- Xiaomi 100W 1A1C Fast Car Charger (x1)
- USB-C to USB-C Charging Cable (x1)
- User Manual (x1)

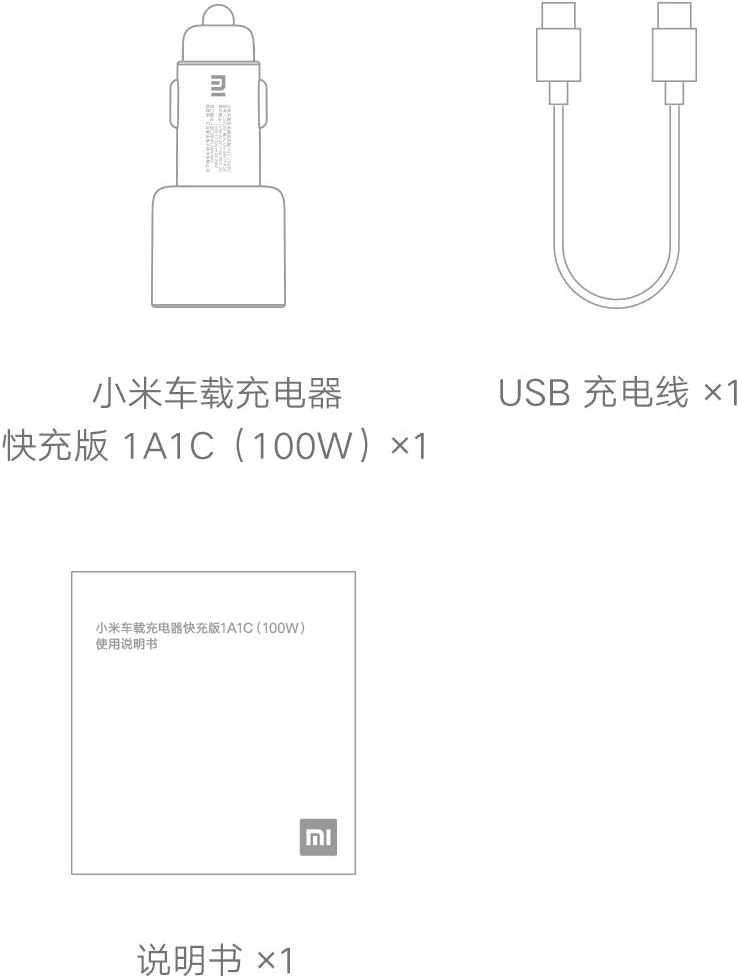

Image: An illustration depicting the items included in the product package: the car charger, a USB-C cable, and the user manual.
Warranty and Support
This product is covered by a limited warranty from the date of purchase. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, service, or warranty claims, please contact your local Xiaomi customer service or authorized dealer.
Keep your purchase receipt as proof of purchase for warranty purposes.
