1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Eltako FD62NPN-230V Flush-Mounted Dimmer Actuator. This universal wireless dimmer is designed for controlling various dimmable light sources, including 230V LED, incandescent, and halogen lamps. Please read this manual thoroughly before installation and use to ensure safe and correct operation.
2. Safety Information
WARNING: Electrical installation should only be performed by a qualified electrician. Failure to follow these instructions can result in electric shock, fire, or serious injury.
- Always disconnect power at the main circuit breaker before installing or servicing the device.
- Ensure that the supply voltage matches the device's specifications (230V AC, 50Hz).
- Do not exceed the maximum load capacity of 300W.
- Do not use with inductive transformers (wound).
- Neon lamp current is not permitted.
- Protect the device from moisture, dust, and extreme temperatures.
- Keep out of reach of children.

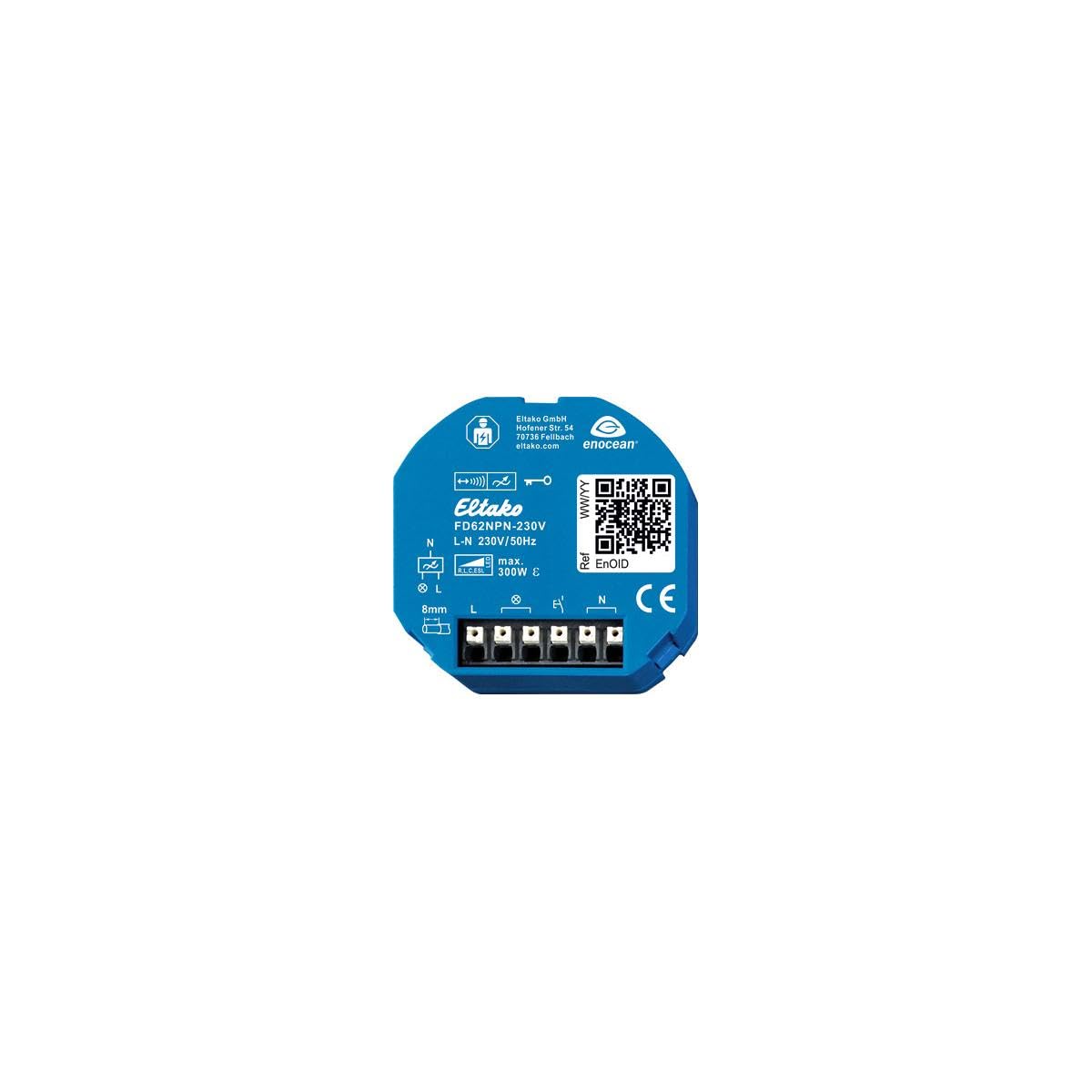

Figure 1: Eltako FD62NPN-230V Dimmer Actuator. This image shows the compact blue housing, terminal connections, and key technical specifications printed on the device, including model number, voltage, maximum load, and EnOcean ID.
3. Product Overview
The Eltako FD62NPN-230V is a compact, flush-mounted universal dimmer actuator designed for seamless integration into your electrical system. It utilizes EnOcean wireless technology for control and offers robust dimming capabilities for various lighting types.
Key Features:
- Universal Dimming: Compatible with 230V LED (phase cut-off/cut-in), incandescent, and halogen lamps.
- Power MOSFET Technology: Ensures efficient and reliable dimming.
- Wireless Control: Supports up to 32 EnOcean wireless buttons, directional buttons, central control buttons, and motion sensors.
- Local Control: Can also be controlled by a conventional 230V push-button switch.
- Memory Function: Retains the last set brightness level upon power off.
- Soft ON/OFF: Provides gentle illumination transitions.
- Zero-Crossing Switching: Enhances lamp life and reduces interference.
- Safety Features: Automatic electronic overload protection and overheating shutdown.
- Compact Design: Flush-mounted, dimensions 49 x 51 mm, 20 mm depth.
- Low Standby Loss: Only 0.5W.
- Repeater Function: Extends the range of EnOcean signals.
4. Setup & Installation
4.1 Mounting
The FD62NPN-230V is designed for flush-mounted installation. Its compact size (49 x 51 mm, 20 mm depth) allows it to fit into standard electrical boxes. Ensure adequate ventilation around the device, especially when operating at higher loads, to prevent overheating.
4.2 Wiring Connections
Before making any connections, ensure the main power supply is disconnected. The device features plug-in terminals suitable for conductor cross-sections from 0.2 mm² to 2.5 mm². Strip wires to 8mm before insertion.
Refer to the wiring diagram on the device and below for correct connections:
- N: Neutral conductor input.
- L: Live conductor input (230V AC, 50Hz).
- L with circle: Switched live output to the lamp.
- E': Input for local conventional 230V push-button switch (optional).
- N (second): Neutral conductor output (if applicable for local switch).

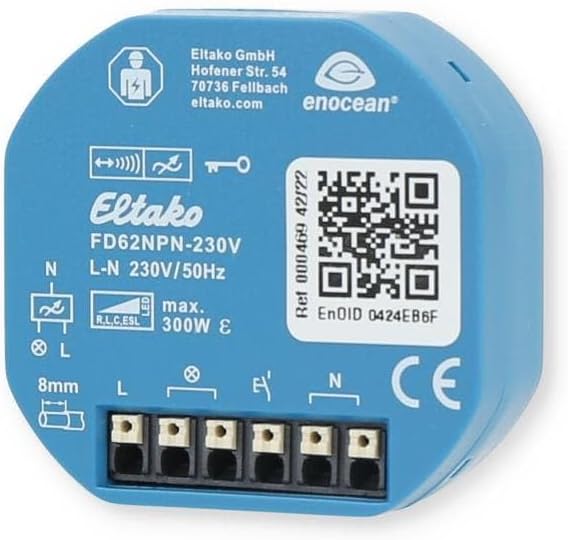

Figure 2: Close-up view of the wiring terminals on the Eltako FD62NPN-230V. Labels N, L, and the switched output are visible, along with the 8mm wire stripping guide.
4.3 Learning-in Wireless Transmitters (EnOcean)
The dimmer actuator can learn up to 32 wireless transmitters (buttons, sensors). The learning process typically involves a specific sequence of pressing the local control button (if connected) or a dedicated learning button on the device (refer to the full Eltako documentation for exact steps, as this device image does not show a dedicated learning button, implying local button or power cycle method). Once in learning mode, activate the desired wireless transmitter to pair it with the dimmer.
The EnOcean ID (EnOID 0424EB6F) and reference number (Ref 000469 42/22) are printed on the device for identification during advanced configuration or troubleshooting.
5. Operation
5.1 Dimming Control
Once installed and paired, the dimmer can be controlled via connected wireless transmitters or a local conventional push-button switch.
- Short Press: Toggles the light ON/OFF with a soft transition.
- Long Press: Dims the light up or down. Releasing and pressing again will reverse the dimming direction.
5.2 Memory Function
The dimmer actuator features a memory function. The last set brightness level is automatically saved and restored when the light is turned back on, even after a power outage. In case of a power failure, the device will default to a defined state (usually OFF or a low brightness level) upon restoration, then recall the last setting.
5.3 Load Type Selection (Automatic)
The FD62NPN-230V automatically detects the connected load type (R, L, C, ESL for LED) and adjusts its dimming curve accordingly. For 230V LED lamps, it operates in phase cut-off mode up to 300W or phase cut-in mode up to 100W, depending on the specific LED lamp and ventilation conditions. For incandescent and halogen lamps, it supports up to 300W.
6. Technical Specifications
| Model | FD62NPN-230V (Part No. 30100535) |
| Brand | Eltako |
| Supply Voltage | 230V AC, 50Hz |
| Max. Load (LED, phase cut-off) | Up to 300W (depending on ventilation) |
| Max. Load (LED, phase cut-in) | Up to 100W (depending on ventilation) |
| Max. Load (Incandescent/Halogen) | Up to 300W (depending on ventilation) |
| Minimum Load | None |
| Standby Loss | 0.5W |
| Dimensions (H x W x D) | Approx. 49 x 51 x 20 mm |
| Connection Terminals | Plug-in, 0.2 mm² to 2.5 mm² |
| Wireless Technology | EnOcean |
| EnOcean ID | 0424EB6F |
| Material | Plastic |
7. Maintenance
The Eltako FD62NPN-230V dimmer actuator is designed for maintenance-free operation. No regular servicing is required.
- Ensure the device remains free from dust and moisture.
- Do not attempt to open or repair the device yourself. This will void the warranty and may pose a safety risk.
- If cleaning is necessary, disconnect power and wipe with a dry, soft cloth. Do not use liquid cleaners.
8. Troubleshooting
If you experience issues with your Eltako FD62NPN-230V, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn ON/OFF or dim. | No power supply. Incorrect wiring. Wireless transmitter not paired. Overload protection activated. | Check circuit breaker. Verify wiring according to diagram. Perform learning-in procedure for wireless transmitter. Reduce load; device may reset automatically after cooling. |
| Light flickers or dims unevenly. | Incompatible lamp type. Load too low or too high. Poor quality LED lamps. | Ensure lamps are dimmable and compatible with phase cut-off/cut-in. Check total wattage of connected lamps against specifications. Try different brand/model of dimmable LED lamps. |
| Wireless control range is poor. | Obstructions (metal, concrete walls). Distance too great. | Relocate wireless transmitter or use the repeater function of the dimmer actuator. |
| Device is hot to the touch. | Overload. Insufficient ventilation. | Reduce connected load. Ensure proper air circulation around the device. The device has overheating protection and will shut down if necessary. |
If the problem persists after attempting these solutions, contact Eltako customer support or a qualified electrician.
9. Warranty & Support
Eltako products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Eltako website for detailed warranty terms and conditions.
For technical support, product inquiries, or service, please contact Eltako customer service:
- Website: www.eltako.com
- Address: Eltako GmbH, Hofener Str. 54, 70736 Fellbach, Germany
