OUSHI T20 7440 WY21W LED Turn Signal Bulbs Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your OUSHI T20 7440 WY21W LED Turn Signal Bulbs. These bulbs are designed as a direct replacement for vehicle turn signal lights, offering enhanced brightness and a longer lifespan compared to traditional halogen lamps.

Key Features:

• High Brightness: Each LED turn signal bulb features 6 pieces of 2835 SMD chips on top and 60 pieces of 4014 SMD chips, providing a 360° illumination angle and approximately 300% more brightness than standard halogen bulbs. Output is 4000LM (2000LM per bulb).
• Amber Yellow Color: Delivers a vivid 3200K amber yellow light, ideal for turn signal applications.
• Wide Voltage Range: Operates efficiently within a 12V-24V DC range.
• Durable Construction: Made from high-quality integrated aviation aluminum material for excellent heat dissipation, high-temperature resistance, and shock resistance.
• Long Lifespan: Engineered for a lifespan of up to 45,000 hours, ensuring long-term reliability.
• Canbus Compatibility: Designed to be error-free for approximately 98% of vehicles, minimizing hyper-flashing or dashboard error codes.
• Easy Installation: Features a 1:1 socket design for plug-and-play installation.

Image: Overview of OUSHI T20 7440 WY21W LED Turn Signal Bulbs, showcasing their design and illumination capabilities.

2. Setup & Installation

These LED bulbs are designed for straightforward replacement of your vehicle's existing turn signal bulbs. Always ensure the vehicle is turned off and cooled down before beginning installation.

Installation Steps:

1. Verify Compatibility: Before purchasing and installing, consult your car's owner's manual or visually confirm the size and socket type of the existing bulb you intend to replace. These bulbs are compatible with 7440, T20, 7440NA, 7441, WY21W, W21W, 992, and WX3x16d sockets.
2. Access Bulb Housing: Locate the turn signal bulb housing in your vehicle. This typically involves opening the hood or accessing the rear light assembly, depending on the bulb's position (front or rear).
3. Remove Old Bulb: Carefully twist and pull out the old halogen bulb from its socket.
4. Insert LED Bulb: Insert the OUSHI LED turn signal bulb into the socket. Ensure it is seated firmly. The 1:1 socket design allows for a direct plug-and-play fit.
5. Test Functionality: Before reassembling the housing, turn on your vehicle and test the turn signals to ensure the new LED bulbs are functioning correctly (flashing at a normal rate, no error messages).
6. Secure Housing: Once confirmed working, reassemble the bulb housing and any removed panels.

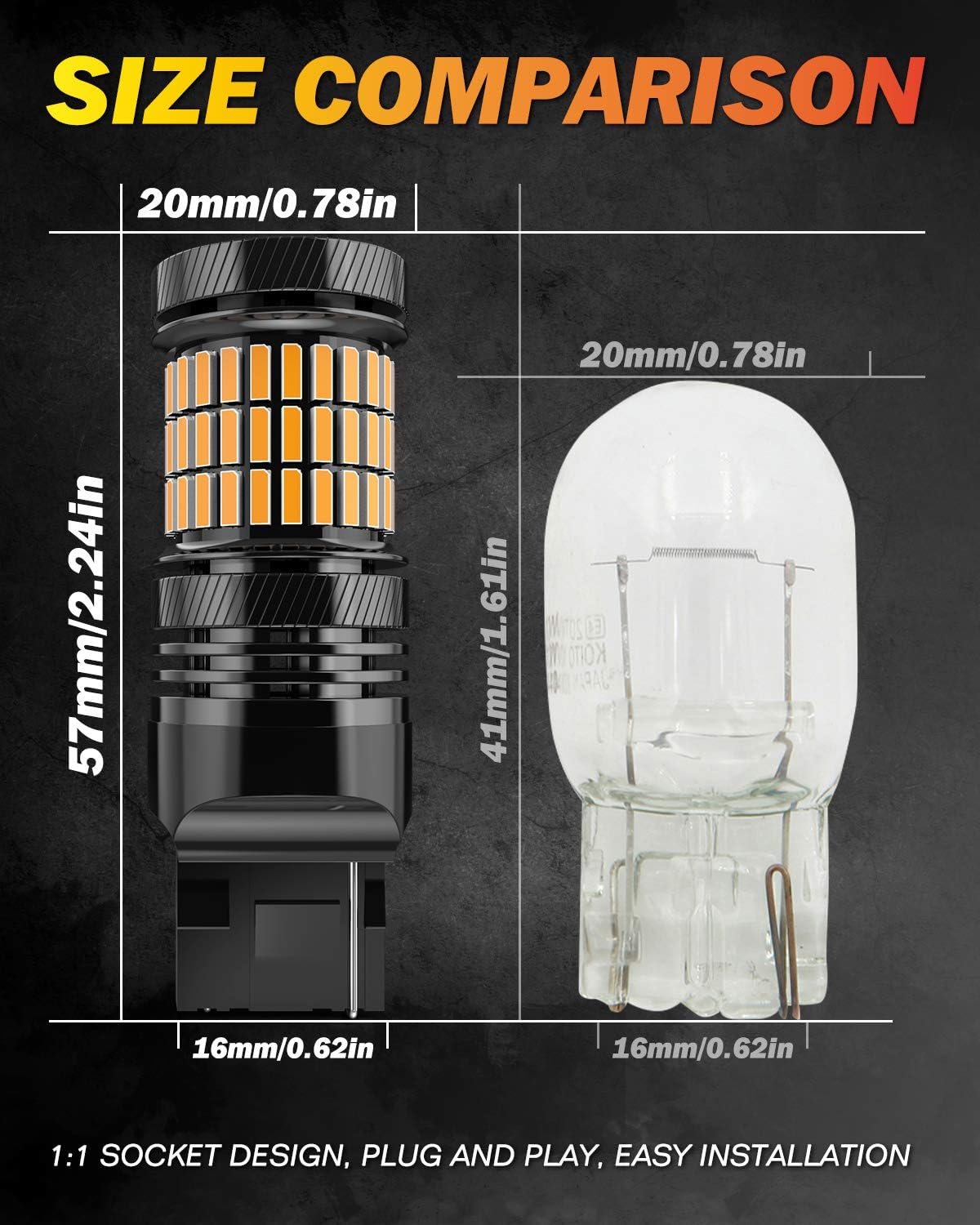

Image: Size comparison of the OUSHI LED bulb with a traditional halogen bulb, illustrating its compact design for easy fitment.

3. Operation

The OUSHI T20 7440 WY21W LED Turn Signal Bulbs operate automatically with your vehicle's existing turn signal system. Once installed, they will function as follows:

• Turn Signal Activation: When you activate your vehicle's turn signal lever, the corresponding LED bulb will illuminate with a bright, amber yellow light, indicating your intended direction to other drivers.

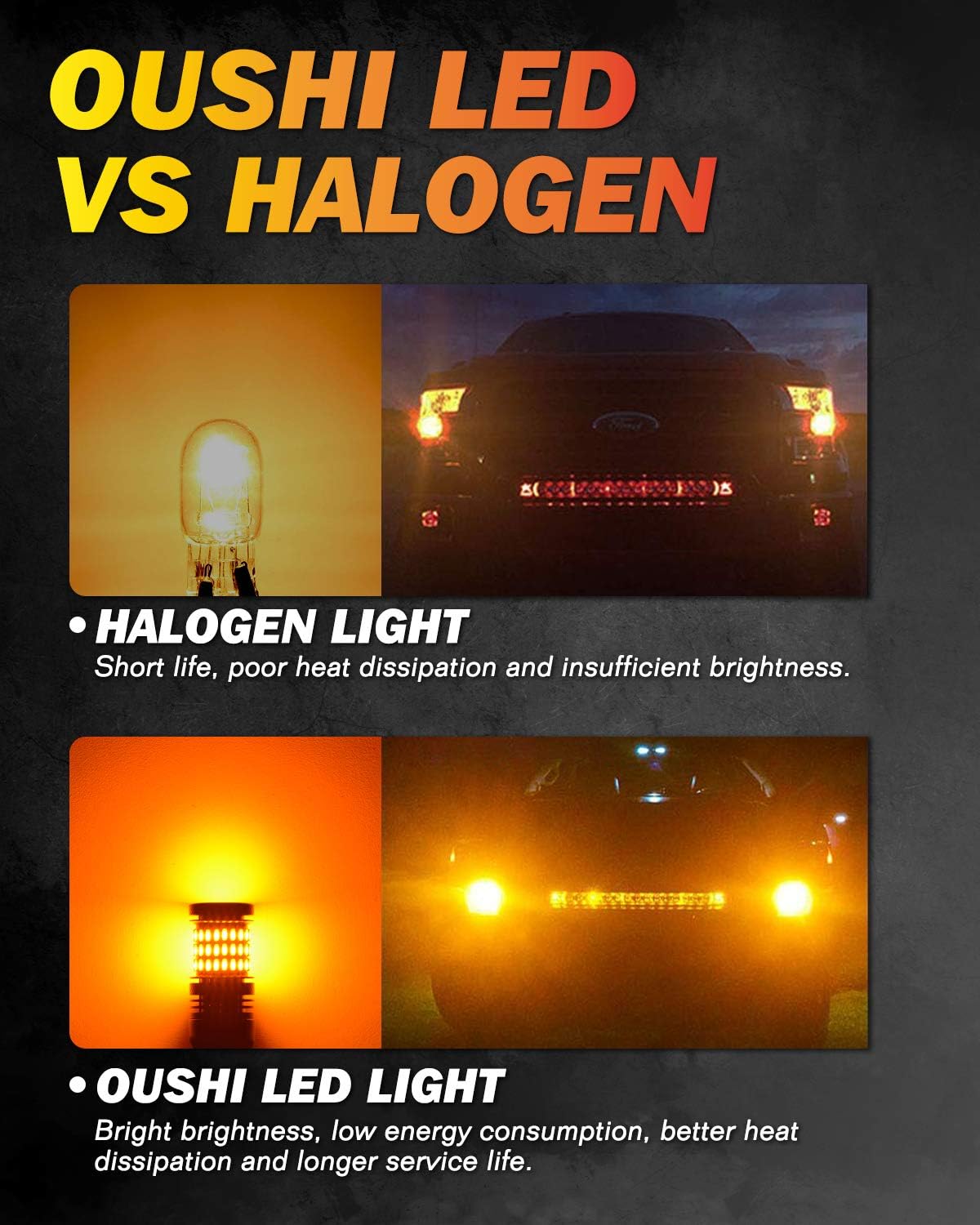

• Enhanced Visibility: The superior brightness (approximately 300% brighter than halogen) and 360° illumination ensure maximum visibility during day and night, improving driving safety.
• Instant On/Off: LED technology provides instant illumination and shut-off, which can offer a clearer signal compared to the slower fade of incandescent bulbs.

Important Note: These bulbs are designed exclusively for use as vehicle turn signal lights. They are not intended for use as headlights, brake lights (unless specified for dual-filament applications, which this model is not), or other lighting functions.

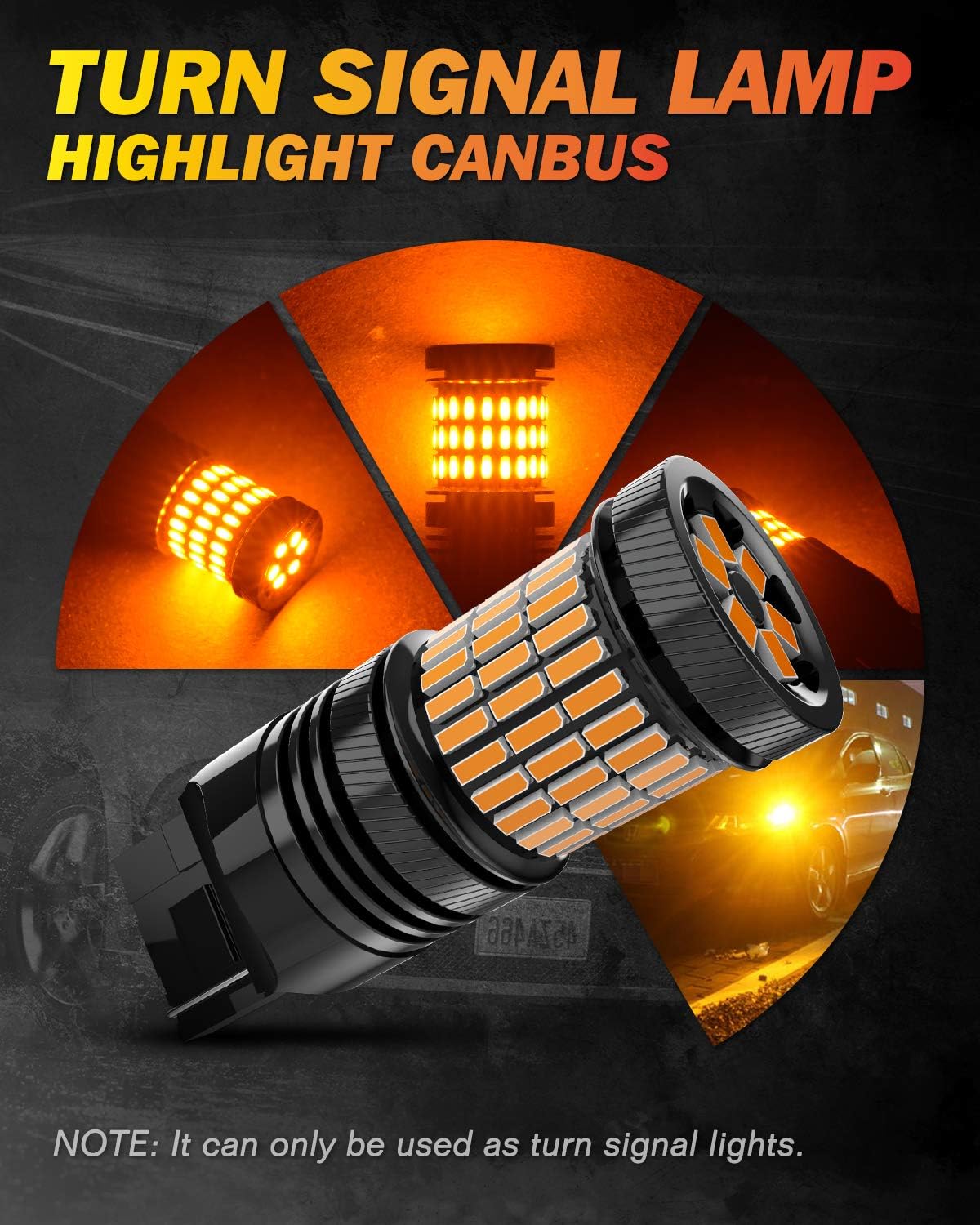

Image: The OUSHI LED turn signal bulb providing bright, clear amber illumination, enhancing visibility.

4. Maintenance

OUSHI LED Turn Signal Bulbs are designed for minimal maintenance due to their robust construction and long lifespan.

• Long Lifespan: With an estimated lifespan of up to 45,000 hours, these bulbs significantly outlast traditional halogen bulbs, reducing the frequency of replacements.
• Durable Materials: Constructed from high-quality integrated aviation aluminum, the bulbs offer excellent heat dissipation, preventing overheating and extending their operational life.
• Waterproof Design: The IP65 waterproof rating ensures protection against dust and water ingress, making them suitable for various weather conditions.
• Cleaning: If necessary, gently wipe the exterior of the bulb with a soft, dry cloth to remove any dust or debris. Avoid using harsh chemicals or abrasive materials.
• Inspection: Periodically check the bulbs for any visible damage or loose connections. While highly durable, extreme impacts could potentially affect performance.

Image: Internal components of the OUSHI LED bulb, illustrating the aviation aluminum housing and thermal conductive substrate designed for superior heat dissipation and extended lifespan.

5. Troubleshooting

While OUSHI LED bulbs are designed for high compatibility, certain vehicle systems may exhibit specific behaviors. Here are common issues and their solutions:

Common Issues:

• Hyper-Flashing (Rapid Flashing): This occurs when the vehicle's computer detects a lower power draw from the LED bulb compared to a standard halogen bulb, interpreting it as a burnt-out bulb.
  • Solution: For some sensitive vehicles, additional load resistors may be required to simulate the power draw of a halogen bulb and prevent hyper-flashing.
• Dashboard Error Message: Similar to hyper-flashing, some vehicle onboard computers may display an error message (e.g., "bulb out" warning) due to the lower power consumption of LED bulbs.
  • Solution: If your car system displays an error message, additional load resistors or a Canbus decoder might be necessary to resolve the issue.
• Bulb Not Lighting Up:
  • Solution 1: Ensure the bulb is correctly inserted into the socket. LED bulbs are polarity sensitive; if it doesn't light up, try rotating it 180 degrees and reinserting.
  • Solution 2: Check the vehicle's fuse box for any blown fuses related to the turn signal circuit.
  • Solution 3: Verify that the vehicle's wiring harness is intact and providing power to the socket.

Note: OUSHI LED bulbs are Canbus error-free for approximately 98% of vehicles. If you encounter persistent issues, please refer to the "Warranty & Support" section for assistance.

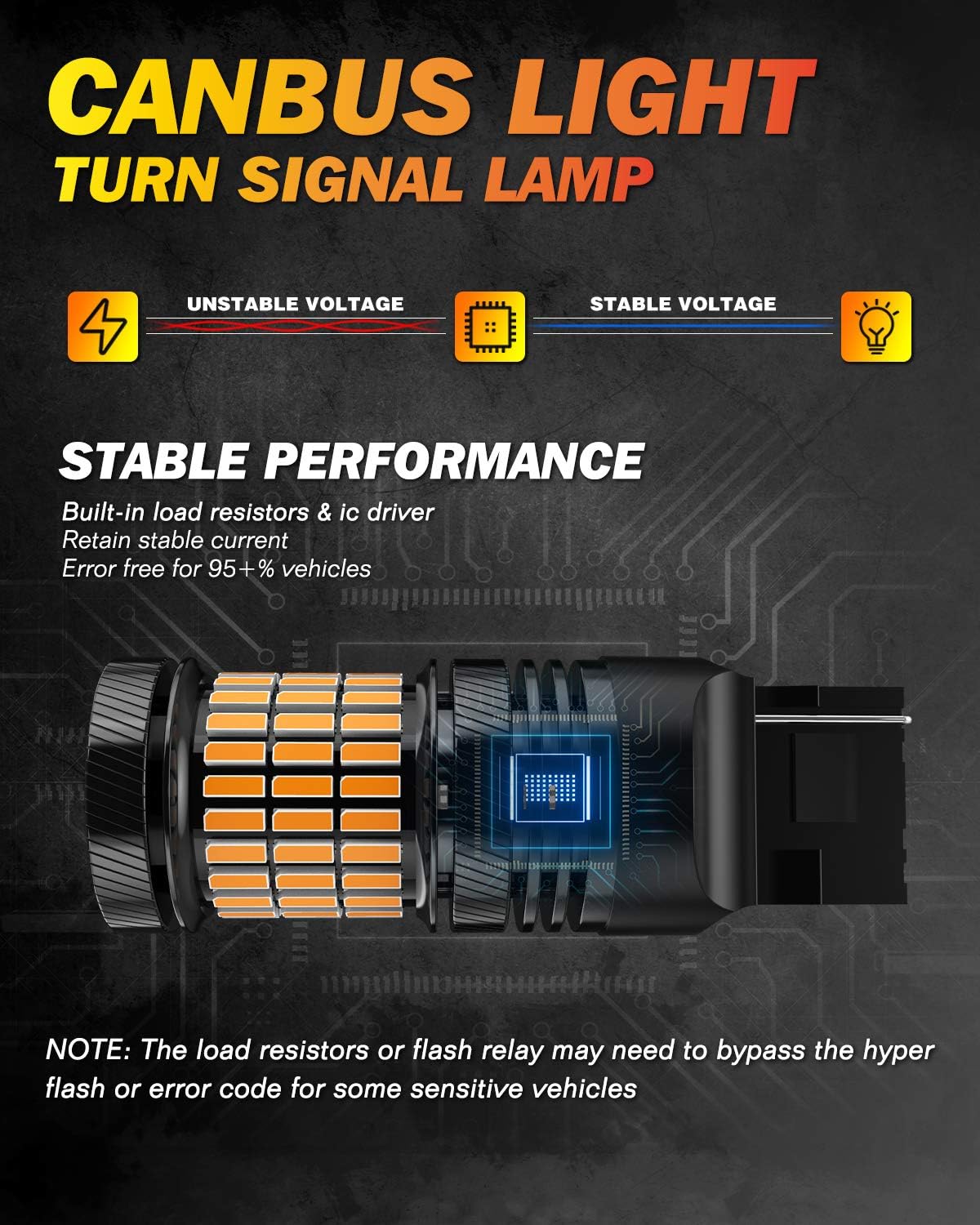

Image: Explanation of Canbus error-free functionality, demonstrating how OUSHI bulbs maintain stable voltage and prevent error codes in most vehicles.

6. Specifications

7. Warranty & Support

OUSHI is committed to providing high-quality products and excellent customer service.

• Warranty: We offer a TWO-YEAR warranty for our product against manufacturing defects. This warranty covers defects in materials and workmanship under normal use.
• Customer Support: If you encounter any issues, have questions about installation, or require assistance with troubleshooting, please do not hesitate to contact us. Our customer support team is dedicated to helping you resolve any problems and ensure your satisfaction.
• Contact: Please refer to your purchase documentation or the OUSHI official website for specific contact information.

We recommend checking the compatibility of these bulbs with your vehicle carefully before purchase to ensure optimal performance.
