1. Introduction
This manual provides essential instructions for the safe and effective use of your YESWELDER 20ft 250 Volt 10 AWG Welder Extension Cord. Please read this manual thoroughly before use and retain it for future reference.

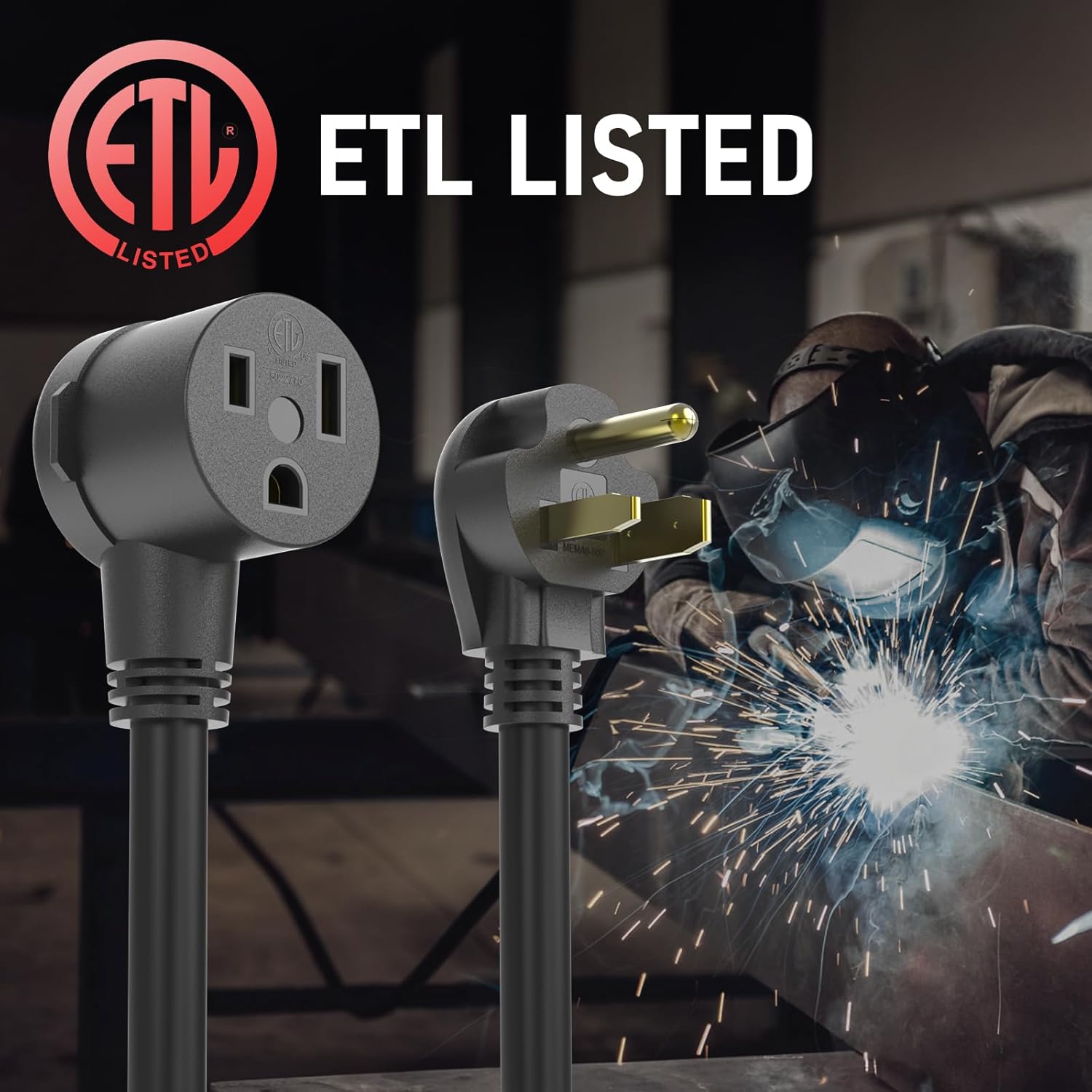

Image: The YESWELDER 20ft 250V 10 AWG Welder Extension Cord, highlighting its ETL Listed certification and NEMA 6-50P plug and 6-50R receptacle.
2. Safety Information
Always observe the following safety precautions when using electrical extension cords:
- Inspect Before Use: Before each use, visually inspect the cord for any damage, cuts, fraying, or exposed wires. Do not use if damaged.
- Proper Rating: Ensure the extension cord's voltage and amperage ratings match or exceed the requirements of your welding machine. This cord is rated for 25A, 250V.
- Avoid Overloading: Do not overload the extension cord. Overloading can cause overheating and fire.
- Dry Conditions: Use in dry conditions. While the cord features a water-resistant jacket, avoid submerging it in water or using it in excessively wet environments.
- Secure Connections: Ensure all connections (plug to outlet, cord to welder) are secure and fully inserted to prevent arcing and overheating.
- Keep Away from Heat/Sharp Objects: Do not run the cord near sharp edges, hot surfaces, or moving machinery that could damage the insulation.
- Unplug When Not in Use: Always unplug the extension cord from the power source when not in use or before performing maintenance on your welding equipment.
- Grounding: This cord is designed with a grounding pin. Ensure the power outlet is properly grounded.
3. Product Features
- Length: 20 feet (6.1 meters) for extended reach.
- Gauge: 10 AWG (American Wire Gauge) for efficient power transmission.
- Conductors: 3 conductors for safe grounding.
- Voltage/Amperage: Rated for 250 Volts and 25 Amps.
- Connectors: NEMA 6-50P (male plug) to NEMA 6-50R (female receptacle).
- Construction: Heavy-duty SOW jacket, corrosion-resistant, and water-resistant for indoor and outdoor use.
- Temperature Range: Operates effectively in temperatures from -40°C to +90°C (-40°F to 194°F).
- Compatibility: Designed for most welders including Miller Millermatic, Lincoln Power MIG, Hobart Handler, Ironman, Betamig, and Century welders.
Image: A diagram illustrating the STW (Hard Service Cord, Thermoplastic Insulation, Weather Approved) construction of the cable, showing the internal copper conductors.
Image: Visual representation of the extension cord's ability to function across a wide temperature range, from -40°F to 194°F, suitable for various working environments.
4. Setup
- Uncoil the Cord: Fully uncoil the extension cord before use to prevent overheating.
- Connect to Welder: Insert the NEMA 6-50R (female) end of the extension cord firmly into the NEMA 6-50P (male) plug of your welding machine. Ensure a snug fit.
- Connect to Power Source: Insert the NEMA 6-50P (male) end of the extension cord firmly into a compatible 250V NEMA 6-50R wall outlet. Ensure the outlet is properly grounded and rated for the required amperage.
- Route Safely: Route the cord in a manner that avoids tripping hazards, sharp objects, or areas where it could be crushed or damaged.
Image: The female end of the extension cord connected to the male plug of a welding machine, demonstrating a secure connection.
Image: The male end of the extension cord plugged into a NEMA 6-50R wall outlet, showing a complete power connection.
5. Operating Instructions
Once the extension cord is properly connected to both your welding machine and a suitable power source, you can operate your welding equipment as usual. The cord provides the necessary electrical extension without compromising performance, provided it is used within its rated specifications.
- Ensure the welding machine's power switch is in the OFF position before connecting or disconnecting the extension cord.
- Turn on the power source, then the welding machine.
- Monitor the cord during operation for any signs of overheating (e.g., unusual warmth, melting insulation, smoke). If any such signs appear, immediately disconnect power.
- When finished, turn off the welding machine, then disconnect the extension cord from the power source first, followed by the welding machine.
Image: A welder actively working with a welding machine, powered by the YESWELDER extension cord, demonstrating its use in a typical application.
6. Maintenance
- Cleaning: Keep the cord clean and free from dirt, grease, and debris. Use a dry cloth to wipe down the cord. Do not use harsh chemicals or solvents.
- Storage: When not in use, coil the cord loosely and store it in a dry, cool place away from direct sunlight, extreme temperatures, and potential physical damage. Avoid tight coiling, which can stress the internal wires.
- Regular Inspection: Periodically inspect the entire length of the cord, including the plugs and receptacles, for any signs of wear, damage, or corrosion. Replace the cord if any damage is found.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to welder |
|
|
| Cord feels warm during use |
|
|
| Loose connection at plug/receptacle |
|
|
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 10AWG-20ft |
| Length | 20 feet (6.1 meters) |
| Wire Gauge | 10 AWG |
| Conductors | 3 |
| Voltage Rating | 250 Volts |
| Amperage Rating | 25 Amps |
| Plug Type | NEMA 6-50P (Male) |
| Receptacle Type | NEMA 6-50R (Female) |
| Jacket Type | STW (Hard Service, Thermoplastic, Weather Approved) |
| Operating Temperature | -40°C to +90°C (-40°F to 194°F) |
| Item Weight | 6.6 pounds (approx.) |
| Manufacturer | YESWELDER |
9. Warranty and Support
YESWELDER products are designed for durability and performance. This product typically comes with a 1-Year Warranty against manufacturing defects. For warranty claims, technical support, or any inquiries, please contact YESWELDER customer service.
Contact Information:
- Refer to the packaging or the official YESWELDER website for the most current customer support contact details.
- Online support may be available through the YESWELDER Store on Amazon.
Image: A graphic indicating YESWELDER's commitment to quality, 1-year warranty, and 24/7 customer support.
