1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Bobrick B-4998 Swing-Up Wall-Mounted Grab Bar. This product is designed to offer support and enhance safety in bathroom environments, particularly for individuals requiring assistance with balance or mobility. The swing-up feature allows the bar to be moved out of the way when not in use, optimizing space.
2. Safety Information
Read all instructions thoroughly before installation and use. Failure to follow these instructions may result in injury or product damage.
- Proper Installation: The grab bar must be securely mounted to structural blocking or approved wall anchors capable of supporting the intended load. Consult local building codes and a qualified professional for installation if unsure.
- Weight Capacity: Do not exceed the maximum weight capacity specified by local building codes or manufacturer guidelines for grab bars. Overloading can lead to failure and injury.
- Regular Inspection: Periodically inspect the grab bar and its mounting hardware for any signs of looseness, corrosion, or damage. Discontinue use immediately if any issues are found and address them before further use.
- Cleaning: Use only mild, non-abrasive cleaners. Harsh chemicals can damage the finish and material.
3. Package Contents
Verify that all components are present before beginning installation:
- 1x Bobrick B-4998 Swing-Up Wall-Mounted Grab Bar
- Mounting Hardware (screws, washers, etc.)
4. Setup and Installation
Proper installation is crucial for the safety and functionality of the grab bar. Ensure you have the necessary tools and expertise.
Tools Required:
- Drill and appropriate drill bits
- Stud finder or other wall scanning device
- Level
- Measuring tape and pencil
- Screwdriver (appropriate type for mounting hardware)
Installation Steps:
- Identify Mounting Location: Determine the desired height and location for the grab bar. It must be mounted to wall studs or adequate structural blocking within the wall. Use a stud finder to locate suitable support.
- Mark Drilling Points: Hold the grab bar's mounting plate against the wall at the chosen location. Use a level to ensure it is perfectly vertical. Mark the centers of the mounting holes with a pencil.
- Drill Pilot Holes: Using the appropriate drill bit size for your mounting hardware, drill pilot holes at the marked locations. Ensure the holes are deep enough to accommodate the screws.
- Secure Mounting Plate: Align the mounting plate with the drilled holes. Insert the provided mounting screws and tighten them securely. Do not overtighten, as this can strip the screws or damage the wall.
- Attach Grab Bar: Connect the swing-up grab bar assembly to the secured mounting plate according to the manufacturer's specific instructions for your model. Ensure all connections are firm.
- Test Stability: Once installed, apply moderate downward and outward pressure to the grab bar to ensure it is firmly secured and does not wobble or flex. Re-tighten any loose connections if necessary.

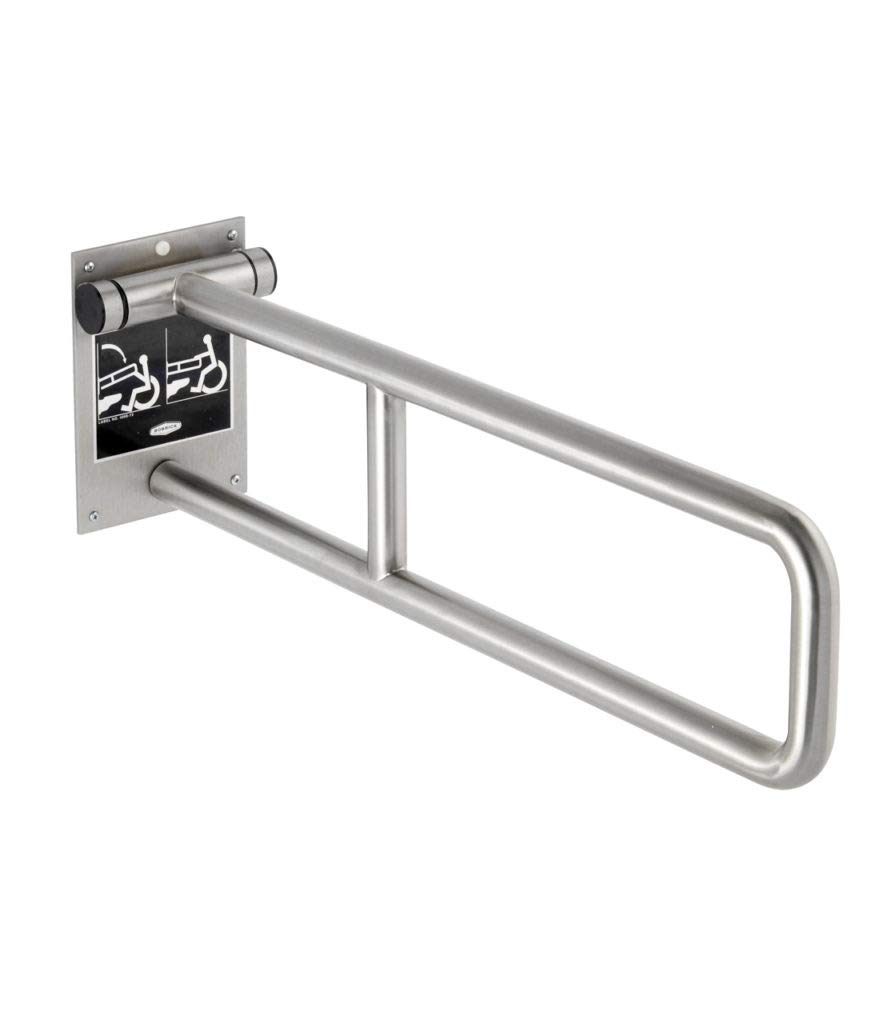

Image 1: The Bobrick B-4998 Swing-Up Wall-Mounted Grab Bar shown in its horizontal, ready-to-use position. This image illustrates the product's design and how it appears when properly installed on a wall.
5. Operating Instructions
The Bobrick B-4998 grab bar features a swing-up mechanism for convenient storage when not in use.
- To Lower the Grab Bar: Gently pull the grab bar downwards from its upright position until it clicks into the horizontal, locked position. Ensure it is fully engaged before applying weight.
- To Raise the Grab Bar: Lift the grab bar upwards from its horizontal position. It will pivot and lock into a vertical, upright position against the wall, clearing space.
- Always ensure the grab bar is securely locked in either the horizontal or vertical position before use or storage.
6. Maintenance
Regular maintenance will ensure the longevity and safe operation of your grab bar.
- Cleaning: Clean the stainless steel surface regularly with a soft cloth and mild, non-abrasive soap and water. Rinse thoroughly and dry to prevent water spots. Avoid using abrasive pads, harsh detergents, or chemical cleaners, which can damage the satin finish.
- Inspection: At least once a month, visually inspect the grab bar for any signs of wear, damage, or corrosion. Check all mounting screws for tightness. If any part appears loose or damaged, tighten or replace it immediately.
- Pivot Points: If the swing mechanism becomes stiff, clean the pivot points and apply a small amount of silicone-based lubricant. Avoid oil-based lubricants, which can attract dirt.
7. Troubleshooting
If you encounter issues with your grab bar, refer to the following common solutions:
- Problem: Grab bar feels loose or wobbly.
Solution: Immediately cease using the grab bar. Check all mounting screws to ensure they are tight. Verify that the grab bar is mounted to adequate structural support within the wall. If the wall support is insufficient, professional re-installation to a reinforced area is required. - Problem: Swing mechanism is stiff or difficult to move.
Solution: Clean the pivot points thoroughly to remove any accumulated dirt or debris. Apply a small amount of silicone-based lubricant to the pivot points. Ensure no foreign objects are obstructing the mechanism.
8. Specifications
- Model: B-4998
- Overall Length: 29 inches (73.66 cm)
- Diameter: 1-1/4 inches (3.18 cm)
- Mounting Plate Dimensions: 6-1/8 inches (15.56 cm) W x 8-3/4 inches (22.23 cm) H
- Material: Stainless Steel
- Finish: Satin
- Mounting Type: Surface Mounted
- Features: Slip-Resistant, Swing-Up Design
- Manufacturer: Bobrick
9. Warranty and Support
Specific warranty information for the Bobrick B-4998 Grab Bar is not provided in this manual. Please refer to the product packaging or contact the retailer (Choice Builder Solutions) or Bobrick directly for warranty details.
For technical support or further assistance, please contact the seller or manufacturer through their official channels.
