Introduction
This manual provides essential information for the proper installation, maintenance, and care of your Maruyama Dual Layer Air Filter, Part Number 281861. This air filter is designed for use with Maruyama models BL32, BL3100, and BL3200 to ensure optimal engine performance and longevity by protecting against dust and debris.

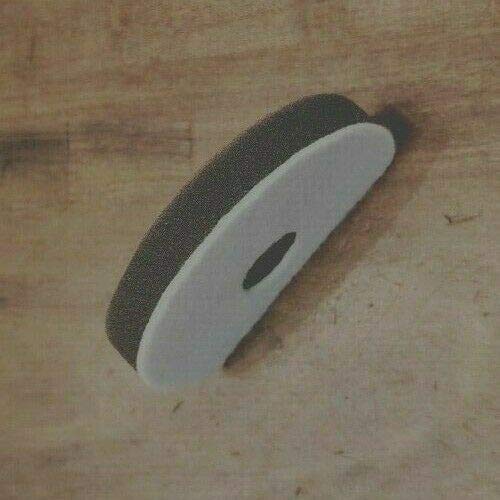

Figure 1: Maruyama Dual Layer Air Filter, Part Number 281861.
Setup and Installation
Proper installation of the air filter is crucial for effective engine protection. Always ensure the engine is turned off and cool before beginning any maintenance.
- Safety First: Disconnect the spark plug wire to prevent accidental starting of the engine.
- Locate Air Filter Cover: Identify the air filter housing, typically located on the side of the engine. It is usually secured by clips or screws.
- Remove Cover: Carefully unfasten the clips or screws and remove the air filter cover.
- Remove Old Filter: Take out the old air filter. Note its orientation for correct installation of the new filter. Inspect the air filter housing for any debris and clean if necessary.
- Install New Filter: Insert the new Maruyama Dual Layer Air Filter (Part 281861) into the housing, ensuring it fits snugly and is correctly seated. The dual-layer design should face the incoming air flow as per the original filter's orientation.
- Replace Cover: Reattach the air filter cover and secure it with the clips or screws. Ensure it is tightly sealed to prevent unfiltered air from entering the engine.
- Reconnect Spark Plug: Reconnect the spark plug wire.
Figure 2: Close-up view of the Maruyama Air Filter, showing its dual-layer construction.
Operating Principles
The Maruyama Dual Layer Air Filter 281861 functions by trapping airborne dust, dirt, and debris before they can enter the engine's carburetor and combustion chamber. The dual-layer design provides enhanced filtration, with an outer layer capturing larger particles and an inner layer filtering finer contaminants. This process is continuous during engine operation, ensuring a clean air supply for optimal fuel combustion and preventing premature wear of internal engine components.
Maintenance
Regular maintenance of your air filter is essential for maintaining engine performance and extending its lifespan. A clogged or dirty air filter can lead to reduced power, increased fuel consumption, and engine damage.
- Inspection: Inspect the air filter every 10-20 hours of operation, or more frequently in dusty conditions. Look for signs of heavy dirt accumulation, tears, or damage.
- Cleaning: If the filter is only lightly soiled, it may be cleaned. Gently tap the filter against a hard surface to dislodge loose dirt. For more stubborn dirt, the filter can be washed with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinstallation. Do not use compressed air, as this can damage the filter material.
- Replacement: Replace the air filter annually, or sooner if it is heavily soiled, damaged, or cannot be cleaned effectively. Always use genuine Maruyama replacement parts, such as Part Number 281861, to ensure proper fit and filtration performance.
Troubleshooting
If you experience issues with your Maruyama equipment, a dirty or improperly installed air filter could be a contributing factor.
| Symptom | Possible Cause (Air Filter Related) | Solution |
|---|---|---|
| Engine loses power or runs poorly | Clogged or dirty air filter restricting airflow. | Inspect, clean, or replace the air filter. |
| Increased fuel consumption | Engine working harder due to restricted airflow from a dirty filter. | Inspect, clean, or replace the air filter. |
| Engine difficult to start | Severely clogged air filter preventing proper air-fuel mixture. | Inspect, clean, or replace the air filter. |
| Visible dirt or debris in carburetor area | Damaged or improperly installed air filter. | Ensure filter is correctly seated and undamaged. Replace if necessary. |
Specifications
- Part Number: 281861
- Type: Dual Layer Air Filter
- Brand: Maruyama
- Compatible Models: Maruyama BL32, BL3100, BL3200
- Fit Type: Vehicle Specific Fit
