DURHAND 54 Piece Pegboard and Shelf Tool Organizer Instruction Manual

1. Product Overview

The DURHAND 54 Piece Pegboard and Shelf Tool Organizer is designed for efficient storage in workshops, garages, and home workstations. This versatile system helps organize hand tools, accessories, and small parts, keeping them neatly arranged and easily accessible. It features a modular design, allowing for flexible configuration to suit various spaces and storage needs.

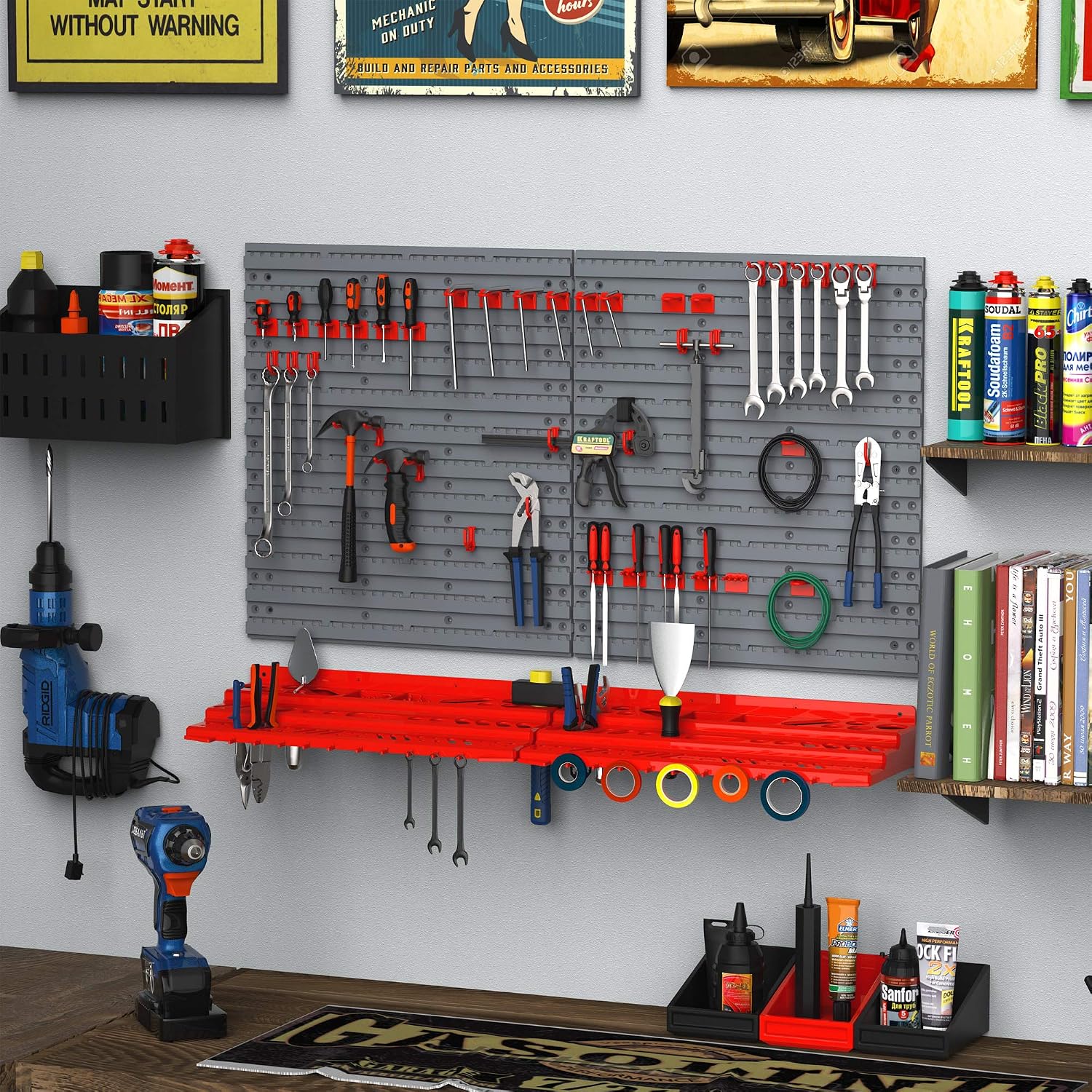

Image 1.1: Fully assembled DURHAND pegboard system with tools and accessories.

Key Features:

• Versatile Storage: Includes 2 grey back pegboards and 2 shelves, along with 50 hooks, suitable for a wide range of tools and small items.
• Modular Design: Can be used as a single large unit or separated into individual displays, ideal for optimizing space.
• Customizable: Comes with 5 different types of hooks (10 of each) to accommodate various tools like screwdrivers, hammers, and pliers. Shelves also feature assorted holes for flexible tool placement.
• Durable Construction: Made from robust polypropylene (PP) for long-lasting use.
• High Weight Capacity: Each pegboard supports up to 66 lbs (30 kg), and each shelf supports 18 lbs (8 kg).

2. Setup and Installation

This pegboard system is designed for wall mounting. Ensure you have the necessary tools for installation, such as a drill, level, and screwdriver. The modular design allows you to configure the two pegboard panels and two shelves to best suit your available wall space and storage requirements.

Image 2.1: The modular design allows for flexible arrangement of the pegboard panels and shelves.

Installation Steps:

1. Plan Layout: Determine the desired arrangement of the pegboard panels and shelves on your wall. Use a level to ensure proper alignment.
2. Mark Drilling Points: Hold the first pegboard panel against the wall in its intended position. Mark the drilling points through the pre-drilled holes on the panel.
3. Drill Holes: Use an appropriate drill bit (refer to the included hardware for size) to drill pilot holes at the marked points. Insert wall anchors if necessary for your wall type.
4. Mount Panels: Secure the pegboard panels to the wall using the provided screws. Repeat for all panels.
5. Attach Shelves: Once the pegboards are securely mounted, attach the shelves by inserting their tabs into the desired slots on the pegboard.
6. Install Hooks: Insert the various hooks into the pegboard holes according to your tool organization plan.

Installation Demonstration (Similar Product):

Video 2.2: Demonstration of pegboard panel installation, showing marking, drilling, and mounting steps. (Note: This video features a similar product from a different brand, HUHOLE, but illustrates the general installation process.)

3. Operating Instructions

The DURHAND pegboard system offers flexible storage solutions. Utilize the various hooks and shelves to organize your tools and accessories efficiently. Experiment with different arrangements to find the most convenient setup for your workflow.

Image 3.1: Detailed view of the pegboard's customized design with various hooks and shelves.

Using Hooks and Shelves:

• Standard Hooks: Ideal for hanging tools with handles such as screwdrivers, wrenches, and pliers.
• Curved Hooks: Suitable for items like cables, hoses, or larger tools.
• Shelves: Use for storing small parts, containers, or tools that cannot be hung. The shelves feature various holes to hold specific tools upright.
• Weight Distribution: Distribute the weight evenly across the pegboard and shelves to maintain stability and prevent overloading any single area.

Accessory Usage Demonstration (Similar Product):

Video 3.2: Demonstration of various pegboard accessories, including different hook types and their application for organizing tools. (Note: This video features a similar product from a different brand, INCLY, but illustrates general accessory usage.)

Video 3.3: Overview of pegboard hooks and bins, demonstrating how to attach them and store small items. (Note: This video features a similar product from a different brand, FZK Direct, but illustrates general accessory usage.)

4. Maintenance

To ensure the longevity and appearance of your DURHAND pegboard system, regular maintenance is recommended.

Cleaning:

• The polypropylene material is washable. Use a damp cloth with mild soap and water to wipe down the pegboard panels and shelves.
• Avoid abrasive cleaners or harsh chemicals, as these may damage the material.
• Ensure all components are dry before re-attaching tools or items.

Inspection:

• Periodically check the mounting screws to ensure they remain tight and secure.
• Inspect hooks and shelves for any signs of wear or damage. Replace any broken or compromised accessories to prevent accidents.

5. Troubleshooting

If you encounter any issues with your pegboard system, refer to the following common solutions:

Hooks Not Staying Securely:

• Check Hook Compatibility: Ensure the hooks are designed for 1/4-inch pegboard holes.
• Proper Insertion: Make sure the hooks are fully inserted and seated correctly in the pegboard holes.
• Weight Limit: Avoid overloading individual hooks, as excessive weight can cause them to dislodge.

Pegboard Appears Loose on Wall:

• Tighten Screws: Re-tighten all mounting screws. Do not overtighten.
• Wall Anchors: Verify that appropriate wall anchors were used for your wall material (e.g., drywall, concrete). If not, consider using stronger anchors.
• Weight Capacity: Ensure the total weight on the pegboard does not exceed the specified capacity of 66 lbs (30 kg) per panel.

6. Specifications

Detailed product specifications for the DURHAND 54 Piece Pegboard and Shelf Tool Organizer:

Image 6.1: Visual representation of the product dimensions.

7. Warranty and Support

DURHAND is committed to providing quality products and customer satisfaction.

Warranty Information:

This product comes with a 90 Day Warranty Against Manufacturer Defects. Please retain your proof of purchase for any warranty claims.

Customer Support:

For technical assistance, missing parts, or warranty inquiries, please contact Aosom Canada, the manufacturer, using the details below:

• Address: 101-1251 Tapscott Road Scarborough, Ontario, M1X 1S9, Canada
• Phone: 1-416-792-6088
