ROCKPALS Portable Power Station 500W User Manual

Model: Rockpower 500w

Brand: ROCKPALS

1. Safety Information

Please read all safety instructions carefully before using the ROCKPALS Portable Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • Do not disassemble, repair, or modify the unit.
  • Keep the unit away from fire, heat sources, and direct sunlight.
  • Avoid exposure to water or high humidity.
  • Do not use the unit if it is damaged or has been dropped.
  • Ensure proper ventilation during use and charging.
  • Keep out of reach of children.

For detailed safety guidelines, refer to the official Safety Information PDF.

2. Product Overview

The ROCKPALS Portable Power Station 500W is a compact and powerful energy solution designed for various applications, from outdoor adventures to emergency home backup. It features a robust design with multiple output options.

ROCKPALS Portable Power Station 500W

Figure 2.1: Front view of the ROCKPALS Portable Power Station 500W.

2.1 Key Features

  • 505Wh (140,400mAh) Battery Capacity: Enough power for various electronics.
  • Fast Charging Technology: Achieves 0%~80% in 3 hours using 72W DC and 45W USB-C PD simultaneously.
  • Multiple Output Ports: Includes 2 pure sine wave 110V AC outlets (500W rated, 750W max), 1 car port (12V/10A), 2 DC ports (12V/5A), 2 USB 3.1A ports, 1 USB-A 3.0 Quick Charge port (18W max), and 1 USB-C PD output (45W max).
  • 12V Regulated Output: Ensures stable voltage for sensitive appliances like CPAP machines.
  • Versatile Charging Methods: Can be recharged via solar panels, wall outlet, or car charger.
  • Built-in MPPT Technology: Optimizes solar charging efficiency.

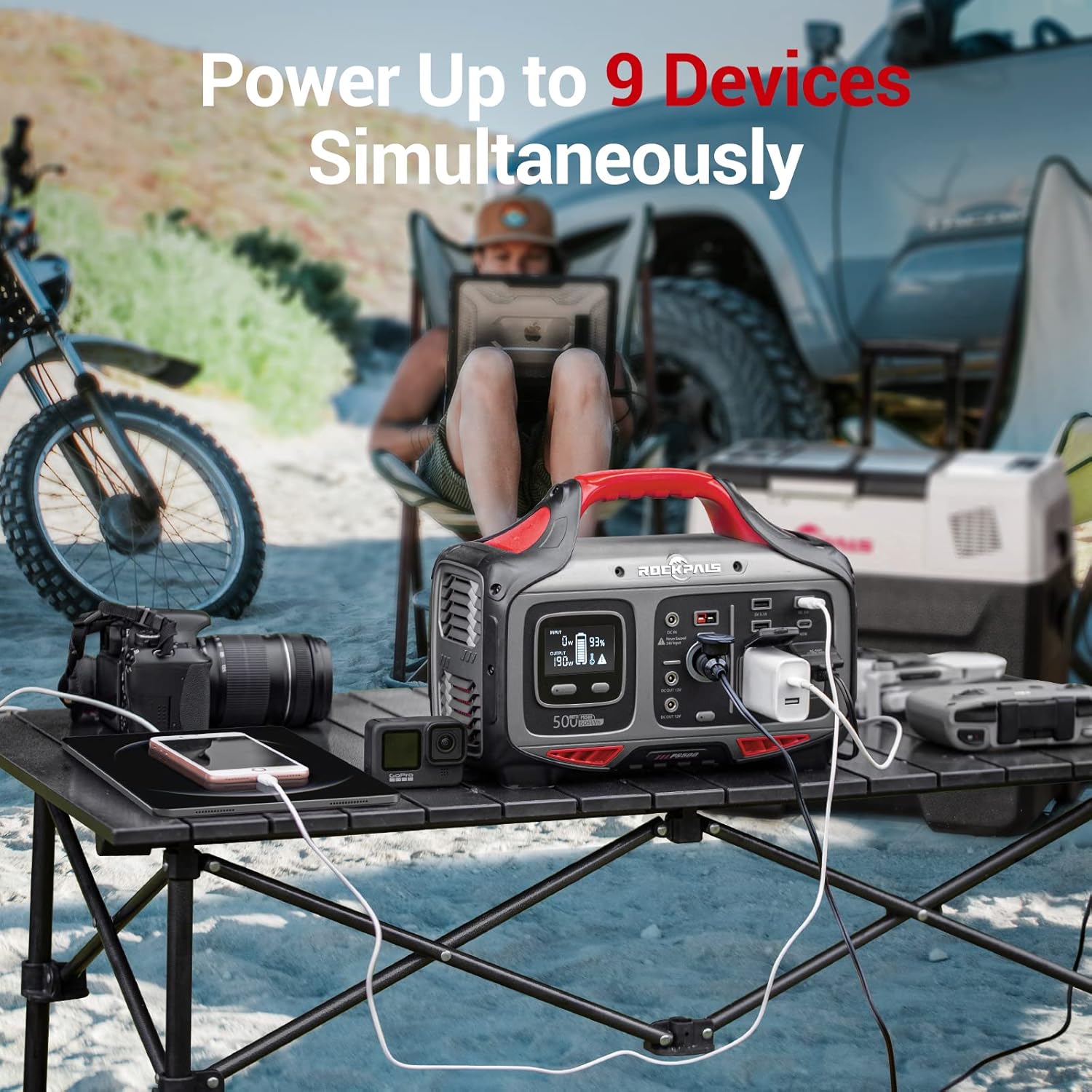

Power Up to 9 Devices Simultaneously

Figure 2.2: The power station can charge up to 9 devices concurrently.

3. Setup

3.1 Initial Charging

Before first use, or if the display shows less than 20% capacity, fully charge the power station. There are multiple ways to recharge your ROCKPALS 500W.

  • AC Wall Charger: Connect the included wall charger adapter to the DC input port on the power station and plug it into a standard wall outlet.
  • Car Charger: Use the provided car charger cable to connect the power station to your vehicle's 12V cigarette lighter port.
  • Solar Panel: Connect compatible solar panels (e.g., ROCKPALS 120W Solar Panel) to the Anderson input port for solar recharging. The built-in MPPT technology optimizes charging efficiency.
  • USB-C PD: For faster charging, you can combine the AC wall charger with a USB-C PD charger (not included) plugged into the USB-C PD output port.

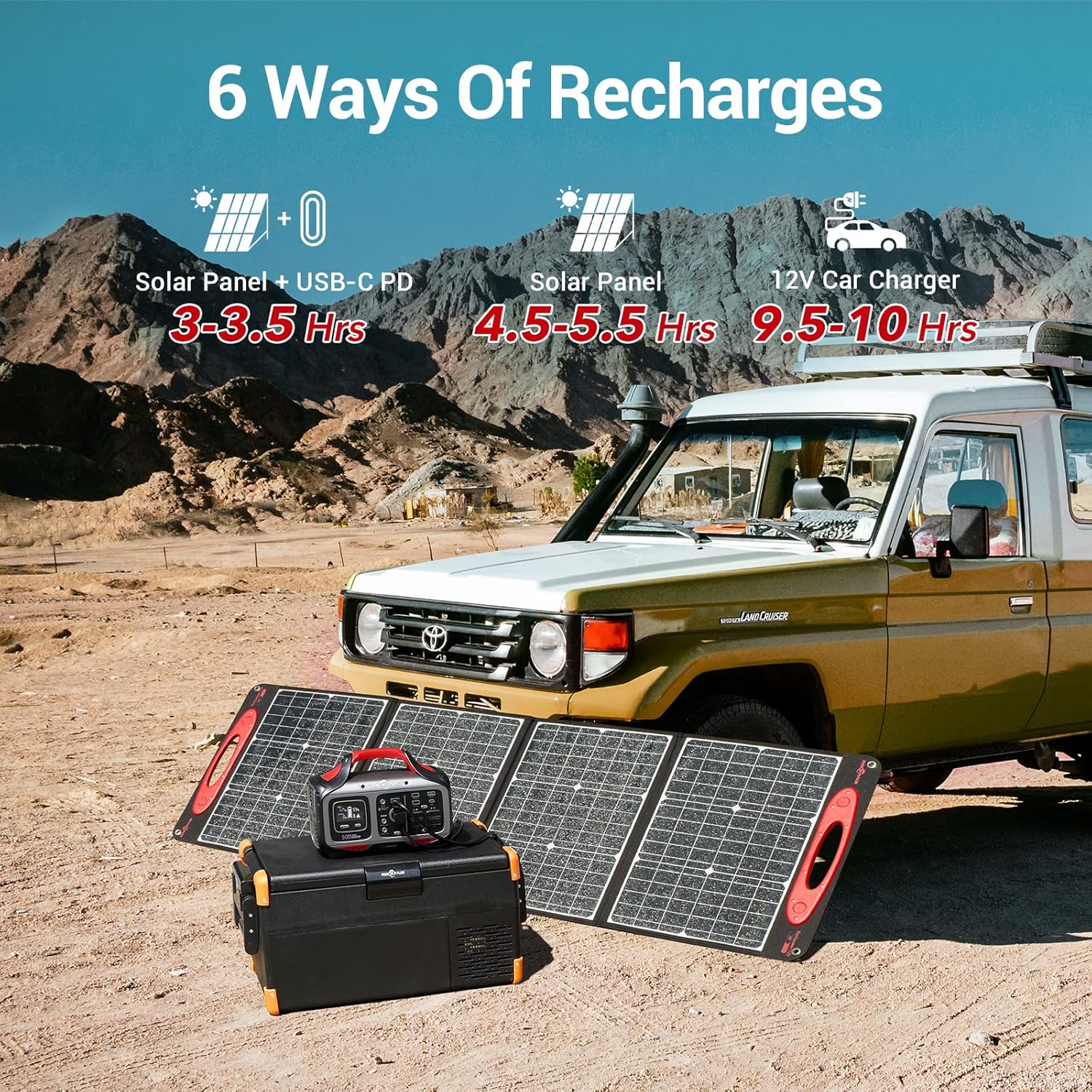

6 Ways Of Recharges

Figure 3.1: Various methods for recharging the power station.

Fast Recharging Technology

Figure 3.2: Fast recharging using both wall charger and USB-C PD.

Video 3.1: Demonstrates the ROCKPALS 120W parallel solar panel charging the portable power station.

4. Operating Instructions

4.1 Powering On/Off

  • To Power On: Long press the main power button for 3-5 seconds. The LCD display will illuminate.
  • To Power Off: Long press the main power button again for 3-5 seconds. The LCD display will turn off.

4.2 Using Output Ports

The power station can power up to 9 devices simultaneously through its various output ports.

  • AC Outlets: Press and hold the
