Palió Vesuvio Triple Jet Flame Torch Lighter User Manual
Comprehensive guide for the Palio Vesuvio Triple Jet Flame Torch Lighter, ensuring optimal performance and longevity.
Product Overview
The Palio Vesuvio Triple-Jet Flame Torch Lighter is designed for precision lighting and touch-ups, featuring a unique apex flame for a powerful and controlled burn. Its vase-shaped, translucent body allows for easy monitoring of butane levels, and the extra-large fuel tank provides extended use. This refillable butane lighter is built for versatility, offering reliable performance in various environments, including high altitudes up to 14,000 feet. The wind-resistant triple jet-flame ensures consistent ignition, and the oversized fuel adjustment wheel allows for easy flame customization.

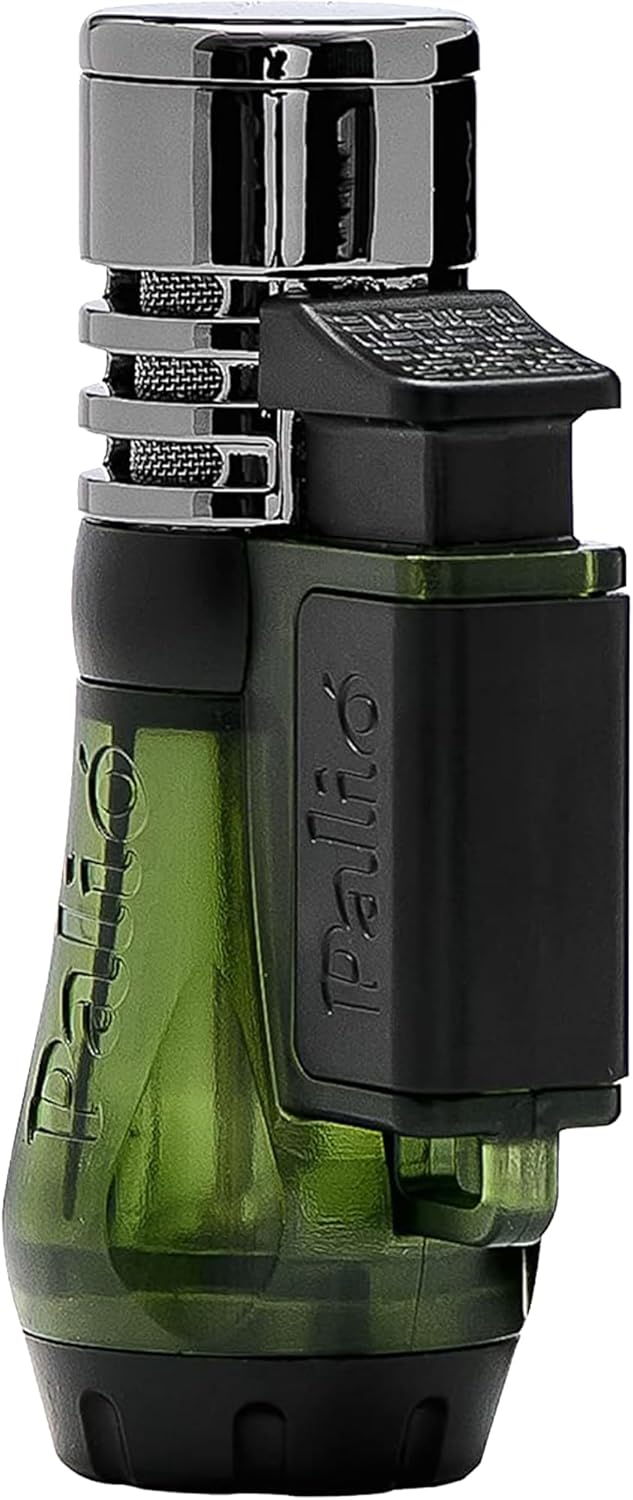

Figure 1: The Palio Vesuvio Triple Jet Flame Torch Lighter, showcasing its sleek design and translucent green fuel tank.
Setup
1. Fueling the Lighter
The Palio Vesuvio lighter uses liquefied petroleum gas (butane) as fuel. Ensure you use high-quality butane for optimal performance and to prevent clogging. The translucent fuel tank allows you to visually monitor the fuel level.
- Turn the lighter upside down.
- Insert the nozzle of the butane can vertically into the refill valve located at the bottom of the lighter.
- Press down firmly for 5-10 seconds. Repeat 2-3 times, allowing a few seconds between each press for the fuel to settle.
- After fueling, wait at least 2-3 minutes before attempting to ignite the lighter. This allows the gas to stabilize and reach room temperature.
Figure 2: The extra-large translucent fuel tank allows for easy monitoring of butane levels, ensuring you know when a refill is needed.
Operating Instructions
1. Adjusting Flame Height
The lighter features an oversized fuel adjustment wheel at the bottom. This allows you to customize the flame height to suit your specific needs, whether for a smaller, concentrated flame or a larger, more powerful one.
- To increase flame height: Rotate the adjustment wheel towards the '+' symbol.
- To decrease flame height: Rotate the adjustment wheel towards the '-' symbol.
2. Igniting the Lighter
The Palio Vesuvio lighter utilizes a triple jet flame for efficient ignition.
- Flip open the protective cap covering the burner nozzles.
- Press the ignition button located on the side of the lighter. This will activate the triple jet flame.
- Release the ignition button to extinguish the flame.
- Close the protective cap to keep the burner nozzles clean and protected.
Figure 3: The powerful triple jet flame provides a strong and consistent burn for effortless lighting.
Maintenance
1. Refilling
Refer to the "Fueling the Lighter" section under Setup for detailed refilling instructions. Regular refilling with high-quality butane is crucial for consistent performance.
2. Cleaning
To maintain optimal performance, periodically clean the burner nozzles and the lighter's exterior.
- Use a soft, dry cloth to wipe down the lighter's exterior.
- For burner nozzles, use a can of compressed air to clear any dust or debris. Avoid using sharp objects that could damage the nozzles.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lighter does not ignite. | Low or no butane fuel. Air in the fuel tank. Clogged burner nozzles. | Refill with butane. Purge air from the tank by pressing the refill valve with a small tool until no more gas escapes, then refill. Clean nozzles with compressed air. |
| Flame is weak or inconsistent. | Low fuel. Flame adjustment too low. Low-quality butane. | Refill with butane. Adjust flame height using the wheel at the bottom. Use high-quality triple-purified butane. |
| Lighter leaks gas during refilling. | Butane can nozzle not properly aligned. Tank is full. | Ensure the butane can nozzle is straight and firmly pressed into the refill valve. Stop refilling once the tank is full. |
Specifications
- Brand: Palio
- Model: Vesuvio Triple Jet Flame Torch Lighter
- Color: Green
- Material: Plastic
- Style: Torch
- Fuel Type: Liquefied Petroleum Gas (Butane)
- Dimensions: Approximately 5 inches (Length) x 3 inches (Width) - Note: Width is likely at the base, not overall.
- Weight: Approximately 6.4 ounces
- Altitude Performance: Tested to function reliably up to 14,000 feet.
- UPC: 892708000167
- Manufacturer: QUALITY IMPORTERS TRADING COMPANY
Figure 4: Key dimensions and weight of the Palio Vesuvio lighter.
Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please contact the manufacturer, QUALITY IMPORTERS TRADING COMPANY, or refer to the official Palio website. Keep your purchase receipt as proof of purchase for any warranty claims.
