1. Introduction
Thank you for choosing the IKRA ICB 20 Cordless Axial Leaf Blower. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new garden tool. Please read these instructions carefully before use and keep them for future reference.
2. Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury.
- Read the entire manual: Familiarize yourself with the controls and proper use of the appliance.
- Wear appropriate personal protective equipment (PPE): Always wear safety glasses, hearing protection, and sturdy footwear. Long pants are recommended.
- Keep bystanders away: Ensure children, pets, and other people are at a safe distance (at least 15 meters) from the operating area.
- Inspect the work area: Before starting, remove any objects that could be thrown or become entangled in the blower.
- Do not operate in wet conditions: Avoid using the blower in rain or on wet surfaces to prevent electric shock.
- Handle batteries safely: Use only the specified battery packs and charger. Do not expose batteries to extreme temperatures or direct sunlight.
- Secure the blower: When not in use, store the blower in a dry, secure place out of reach of children.
- Maintenance: Regularly check the blower for any damage or loose parts. Do not attempt repairs beyond what is described in this manual.
Image: Safety labels indicating general warnings, hearing protection, eye protection, and reading the manual.
3. Product Components
The IKRA ICB 20 Cordless Axial Leaf Blower typically includes the following components:
- Main Blower Unit
- Blower Tube
- 20V/2.0 Ah Lithium-ion Battery
- 20V/2.5 Ah Lithium-ion Battery
- Fast Charger
- Instruction Manual
Image: The IKRA ICB 20 leaf blower, showing the main unit, two battery packs, and the battery charger.
4. Assembly
The IKRA ICB 20 leaf blower features a detachable tube for convenient storage. Follow these steps for assembly:
- Align the blower tube with the outlet on the main blower unit.
- Push the tube firmly onto the unit until it clicks into place, ensuring a secure connection.
- To disassemble, press the release button (if present) and pull the tube off.
Video: This video demonstrates the simple assembly of the blower tube to the main unit and the process of inserting and removing the battery.
5. Battery Charging and Installation
5.1 Charging the Battery
The IKRA ICB 20 comes with two 20V Lithium-ion batteries and a fast charger. Ensure the battery is fully charged before first use.
- Connect the fast charger to a suitable power outlet.
- Slide the battery pack onto the charger until it locks into place.
- The charger's indicator light will show the charging status. A full charge typically takes approximately 60 minutes.
- Once fully charged, remove the battery from the charger.
Image: The IKRA fast charger, used for recharging the 20V Lithium-ion batteries.
5.2 Installing the Battery
To install the battery into the blower unit:
- Ensure the blower is switched off.
- Slide the charged battery pack into the battery compartment on the blower handle until it clicks securely into place.
- To remove the battery, press the release button on the battery pack and slide it out.

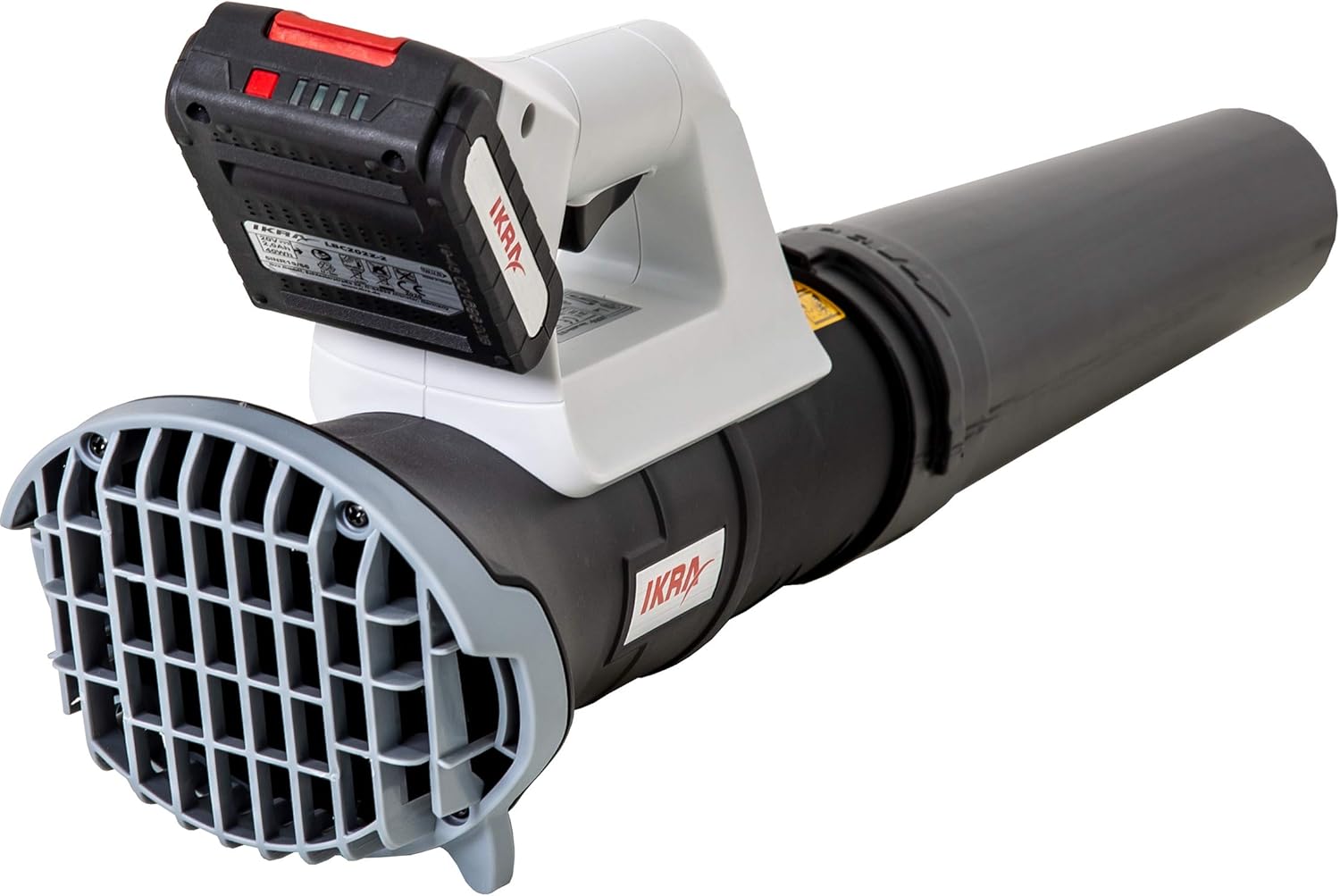

Image: The IKRA ICB 20 leaf blower with a 20V battery pack correctly inserted into the handle.
6. Operation
The IKRA ICB 20 is designed for clearing leaves and light debris from hard surfaces and lawns.
6.1 Starting and Stopping
- Ensure the battery is securely installed and the blower tube is attached.
- Hold the blower firmly with one hand on the main handle.
- Press the trigger switch to start the blower.
- Release the trigger switch to stop the blower.
6.2 Variable Speed Control
The blower features a variable speed switch, allowing you to adjust the airflow intensity based on the task:
- Low to Medium Speed: Suitable for dry leaves and light debris on delicate surfaces.
- High Speed: Recommended for wet leaves, stubborn debris, or larger areas requiring maximum blowing power.
6.3 Operating Tips
- Work in a sweeping motion, moving leaves into piles.
- Direct the airflow away from yourself and others.
- Avoid blowing debris towards open windows, cars, or water bodies.
- The 2.0 Ah battery provides approximately 10-30 minutes of runtime, while the 2.5 Ah battery offers 12-37.5 minutes, depending on the speed setting.
Image: A person wearing hearing protection using the IKRA ICB 20 leaf blower to clear dry leaves from a wooden patio.
Image: A woman using the lightweight IKRA ICB 20 leaf blower to clear a thick layer of leaves from outdoor steps near a shed.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your IKRA ICB 20 leaf blower.
- Cleaning: After each use, clean the exterior of the blower with a damp cloth. Ensure the air intake and blower tube are free of debris.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
- Storage: For space-saving storage, detach the blower tube. Store the blower and charger in a dry, protected area, away from direct sunlight and extreme temperatures.
- Inspection: Periodically check for loose screws, damaged parts, or excessive wear. Contact customer support for repairs if necessary.
8. Troubleshooting
This section addresses common issues you might encounter with your IKRA ICB 20 leaf blower.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower does not start | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly inserted until it clicks. |
| Reduced blowing power | Air intake or blower tube obstructed. | Check and clear any debris from the air intake vents and the blower tube. |
| Short battery runtime | Battery not fully charged or operating at maximum speed continuously. | Fully charge the battery. Use variable speed control to conserve power when full force is not needed. |
| Unusual noise or vibration | Loose components or internal obstruction. | Stop the blower immediately. Check for loose parts. If the issue persists, contact customer support. |
9. Specifications
Key technical specifications for the IKRA ICB 20 Cordless Axial Leaf Blower:
- Model Number: 74002700-AZ
- Power Source: Battery Powered
- Battery Type: 20V Lithium-ion (2.0 Ah and 2.5 Ah included)
- Charging Time: Approx. 60 minutes (with fast charger)
- Max. Blowing Volume: 7 m³/min
- Max. Air Speed: Approx. 150 km/h
- Weight: 1.8 kg
- Dimensions (L x W x H): 87 x 23 x 14 cm
- Noise Level: 97 Decibels
- Special Features: Lightweight, Ergonomic, Detachable Tube, Variable Speed
10. Warranty and Support
IKRA products are manufactured to high-quality standards. In the unlikely event of a defect due to material or manufacturing faults, please contact your retailer or IKRA customer service. Keep your proof of purchase for warranty claims.
For further assistance, spare parts, or detailed technical support, please refer to the contact information provided with your purchase or visit the official IKRA website.
