Kuayi MY1016Z Brushed DC Gear Motor User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Kuayi MY1016Z Brushed DC Gear Motor. This motor is specifically designed for use in electric wheelchairs, offering reliable and efficient performance. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage to the product or injury.

2. Safety Information

Always observe the following safety precautions to reduce the risk of injury or damage:

• Electrical Safety: Ensure all electrical connections are made by a qualified technician. Disconnect power before performing any installation, maintenance, or troubleshooting.
• Proper Voltage: Only connect the motor to a power source that matches its specified voltage (24V or 36V, depending on the model variant).
• Secure Mounting: The motor must be securely mounted to the wheelchair frame to prevent movement during operation.
• Avoid Overload: Do not exceed the motor's rated torque or power output. Overloading can lead to overheating and premature failure.
• Keep Clear: Ensure no clothing, hair, or other objects can become entangled in moving parts of the motor or wheelchair.
• Environmental Conditions: Avoid exposing the motor to excessive moisture, dust, or extreme temperatures.

3. Product Overview

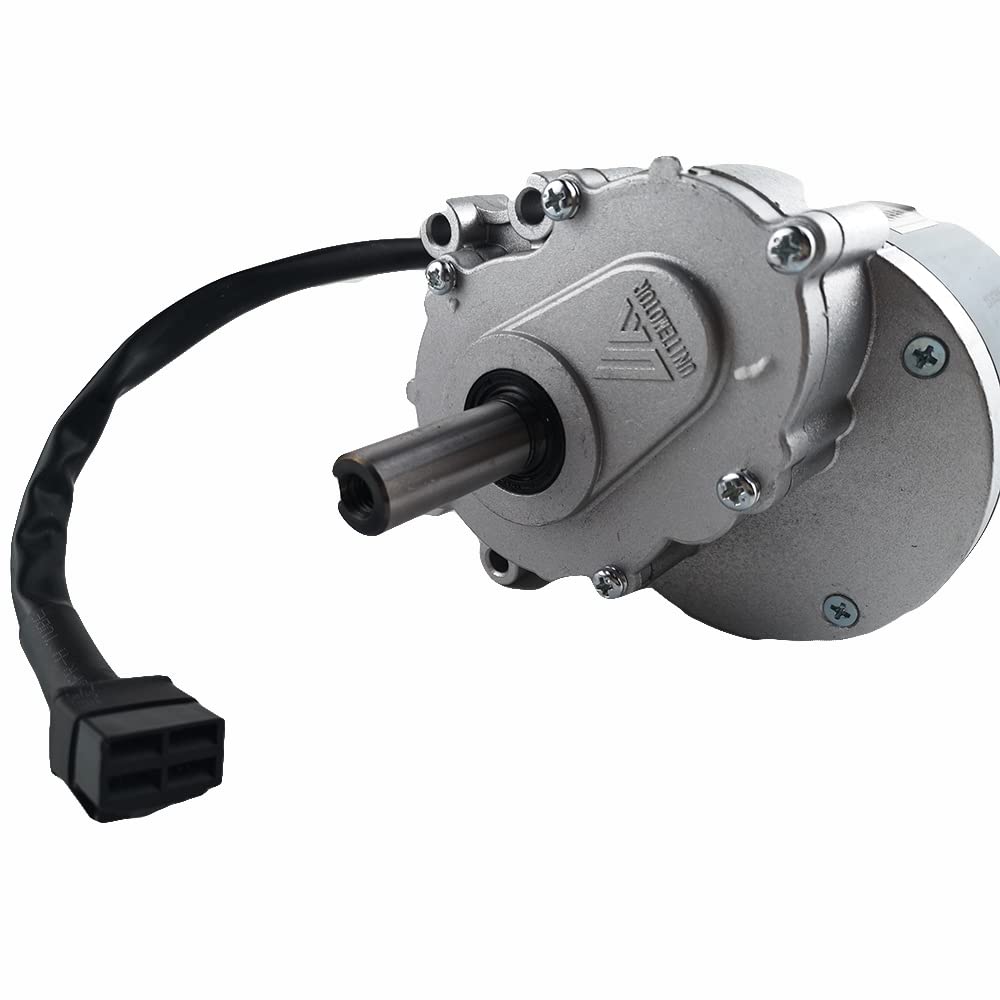

The Kuayi MY1016Z is a brushed DC gear motor designed for electric wheelchair applications. It features a robust construction for durability and a gear reduction system for high torque output at low speeds. The motor is designed for easy installation and reliable performance.

Key Features:

• Efficient Performance: Rated torque of 0.80 N·m and a rated speed of 120 RPM, with motor efficiency exceeding 76%.
• Flexible Rotation: The motor's direction of rotation (clockwise or counter-clockwise) can be changed by reversing the power cord connections.
• Low Noise: Engineered for quiet operation, enhancing user comfort.
• High Reliability: Designed for long-term use with minimal maintenance.

Components:

4. Specifications

The Kuayi MY1016Z motor is available in different voltage configurations. Please refer to the specific model variant for exact specifications.

4.1. 24V 250W Variant

4.2. 36V 250W Variant (General Information)

4.3. General Physical Specifications

5. Setup and Installation

Proper installation is crucial for the safe and efficient operation of the motor. It is recommended that installation be performed by a qualified technician.

5.1. Pre-Installation Checks

• Verify that the motor's voltage (24V or 36V) matches the wheelchair's power system.
• Inspect the motor for any visible damage from shipping.
• Ensure all necessary mounting hardware is available and compatible with the wheelchair frame.

5.2. Mounting the Motor

1. Position the motor on the designated mounting points of the wheelchair frame.
2. Align the motor's mounting holes with those on the frame.
3. Secure the motor using appropriate bolts, washers, and nuts. Ensure all fasteners are tightened to the manufacturer's specifications to prevent vibration and loosening during operation.
4. Confirm that the motor's output shaft aligns correctly with the wheelchair's drive mechanism (e.g., wheel axle).

5.3. Electrical Connections

1. Disconnect Power: Ensure the wheelchair's battery is disconnected before making any electrical connections.
2. Connect Power Wires: Connect the motor's power wires to the wheelchair's control system. Pay close attention to polarity. The motor's rotation direction can be changed by reversing the polarity of the power connection.
3. Secure Connections: Use appropriate connectors and ensure all electrical connections are secure and insulated to prevent short circuits.
4. Cable Management: Route cables away from moving parts and secure them to prevent chafing or damage.

6. Operation

The Kuayi MY1016Z motor is designed to be controlled by a compatible joystick or control system typically found in electric wheelchairs.

6.1. Initial Power-Up

1. After installation, reconnect the wheelchair's battery.
2. Turn on the wheelchair's main power switch.
3. Perform a low-speed test in a safe, open area to confirm proper motor function and direction.

6.2. Direction Control

The motor's direction of rotation is determined by the polarity of the DC voltage applied to its terminals. If the motor rotates in the incorrect direction for a specific side of the wheelchair, the power connections to that motor will need to be reversed. This is typically managed by the wheelchair's control unit or by manually swapping the positive and negative wires at the motor's connector.

7. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your Kuayi MY1016Z motor.

7.1. Routine Checks

• Visual Inspection: Periodically inspect the motor for any signs of wear, damage, or loose connections. Check for frayed wires or cracked housing.
• Mounting Security: Ensure all mounting bolts are tight. Re-tighten if necessary.
• Cleanliness: Keep the motor free from dust, dirt, and debris. Use a dry cloth or compressed air to clean the exterior. Avoid using liquids directly on the motor.
• Noise and Vibration: Listen for any unusual noises or feel for excessive vibrations during operation, which could indicate an issue.

7.2. Brush Inspection (if applicable)

As a brushed DC motor, the carbon brushes will wear down over time. If the motor experiences reduced performance or intermittent operation, the brushes may need inspection and replacement. This procedure should be performed by a qualified technician.

8. Troubleshooting

This section provides solutions to common issues you might encounter with the Kuayi MY1016Z motor.
