ABCCANOPY Garden Gazebo Instruction Manual

1. Introduction and Product Overview

Thank you for choosing the ABCCANOPY Garden Gazebo. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor shelter. Please read these instructions carefully before beginning assembly and retain them for future reference.

This gazebo is designed to provide a robust and comfortable outdoor shelter. It features a powder-coated stainless steel frame for enhanced durability and rust resistance, with sturdy 50mm diameter legs. The canopy is made from 180 gsm Rip-Lock fabric with a PU coating, offering excellent tear resistance and sun protection. Its waterproof design includes a lace structure to prevent rain accumulation and drainage holes to manage water runoff, preventing fabric damage. The integrated mesh fabric with zippers offers protection from sun and insects while maintaining ventilation and visibility. A top hook is included for hanging lighting or a fan.

Figure 1.1: The ABCCANOPY Garden Gazebo, showcasing its spacious interior and mesh curtains.

2. Safety Information

To ensure safe use and prevent injury or damage, please adhere to the following safety guidelines:

• Assembly: Always assemble the gazebo with at least two people. Ensure all screws and fasteners are securely tightened as per the assembly instructions.
• Anchoring: Proper ground anchoring is highly recommended to prevent the gazebo from being lifted or damaged by wind. Use the provided stakes or additional weights if necessary.
• Weather Conditions: While the gazebo is designed to be waterproof and winter-resistant, it is advisable to remove the canopy and mesh netting during extreme weather conditions such as heavy winds, snow, or thunderstorms to prevent damage.
• Fire Safety: The canopy fabric is CPAI-84 flame resistant. However, keep all heat sources, open flames, and flammable materials away from the gazebo.
• Structural Integrity: Regularly inspect the frame for any signs of damage, rust, or loose connections. Address any issues promptly to maintain structural stability.
• Drainage: The canopy features drainage holes to prevent water accumulation. Ensure these holes remain clear of debris.

3. Package Contents

Please verify that all components are present before beginning assembly. Refer to the packing list included with your product for a detailed inventory. Typical components include:

• Main Frame Components (legs, beams, roof supports)
• Canopy Fabric (main roof and vented top)
• Mesh Netting Curtains with Zippers
• Hardware (screws, bolts, washers, nuts)
• Assembly Tools (e.g., wrench, hex key)
• Ground Stakes/Anchors

4. Setup and Assembly

Assembly of the ABCCANOPY Garden Gazebo is designed to be straightforward, though it is recommended to have two people for easier installation. All connections are secured with screws for enhanced stability.

General Assembly Steps:

1. Unpack and Identify Parts: Lay out all components and identify them using the parts list provided in your product packaging.
2. Assemble the Base Frame: Connect the horizontal beams to the vertical legs, ensuring all connections are secure.
3. Install Roof Supports: Attach the roof support beams to the top of the main frame.
4. Attach Canopy Fabric: Carefully drape the main canopy fabric over the roof structure, securing it at all designated attachment points. Then, attach the smaller vented top canopy. Ensure drainage grommets are correctly positioned.
5. Install Mesh Netting: Hang the mesh netting curtains from the designated rails or hooks around the perimeter of the gazebo.
6. Secure to Ground: Once fully assembled, use the provided ground stakes or other anchoring methods to secure the gazebo firmly to the ground.

For detailed, step-by-step instructions, please refer to the specific assembly manual included in your product packaging. Ensure all fasteners are tightened before use.

Figure 4.1: Detail of the sturdy 50mm diameter powder-coated stainless steel leg.

5. Operating Instructions

The ABCCANOPY Garden Gazebo is designed for ease of use and versatility.

• Mesh Netting Operation: The mesh curtains feature zippers, allowing you to fully enclose the gazebo for protection against insects or to tie them back to create an open, airy space.
• Ventilation: The double-tiered vented roof design promotes airflow, reducing heat buildup and increasing comfort within the gazebo.
• Accessory Hook: A hook is located at the center of the roof frame, suitable for hanging lightweight accessories such as a portable fan or a lighting fixture (ensure weight limits are observed and electrical safety precautions are followed).

Figure 5.1: Gazebo with mesh curtains fully closed for insect protection.

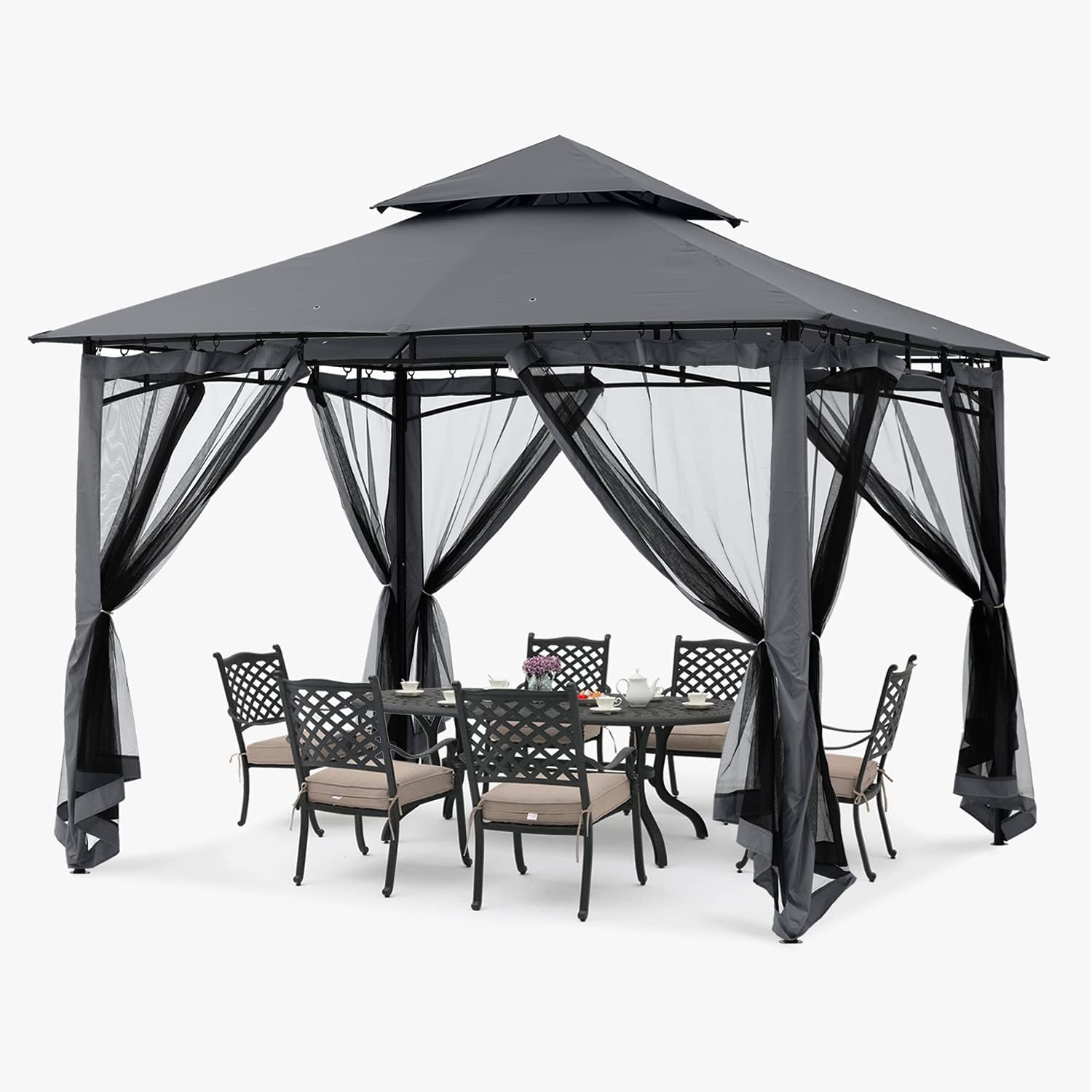

Figure 5.2: Gazebo with mesh curtains tied back, providing an open and airy environment.

6. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning the Canopy and Mesh: Clean the fabric components with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
• Frame Care: The powder-coated stainless steel frame is rust-resistant. However, regularly wipe down the frame with a damp cloth to remove dirt and debris. Inspect for any scratches or chips in the coating and touch up if necessary to prevent rust.
• Fastener Check: Periodically check all screws and connections to ensure they remain tight. Re-tighten as needed.
• Winter Storage: For prolonged durability, especially in regions with harsh winters, it is recommended to disassemble and store the canopy fabric and mesh netting indoors during the off-season. The frame can typically remain outdoors if properly anchored and maintained.
• Drainage Holes: Ensure the drainage holes on the canopy are clear of leaves and debris to prevent water pooling.

Figure 6.1: Key features for maintenance: vented roof, sturdy frame, and canopy drainage grommets.

7. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

• Issue: Water accumulation on canopy.
  Solution: Ensure the canopy is tautly installed and that the drainage holes are clear of any obstructions. The lace design helps prevent pooling, but proper tension is crucial.
• Issue: Gazebo feels unstable in wind.
  Solution: Verify that the gazebo is securely anchored to the ground using all provided stakes. In very windy conditions, consider adding additional weights to the legs or temporarily disassembling the canopy.
• Issue: Mesh netting zipper is stuck or difficult to operate.
  Solution: Check for any fabric caught in the zipper. Apply a silicone-based lubricant to the zipper teeth if it's stiff.
• Issue: Parts missing or damaged upon arrival.
  Solution: Contact ABCCANOPY customer support immediately with your purchase details.

8. Specifications

Figure 8.1: Gazebo dimensions and key features.

9. Warranty and Support

ABCCANOPY is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you encounter any problems with this product, please do not hesitate to contact us. Our customer support team is available to assist you with any questions, concerns, or issues you may have.

Please refer to your purchase documentation or the ABCCANOPY official website for the most up-to-date warranty information and contact details.
