Introduction
This manual provides essential information for the proper installation, use, and maintenance of your HJC HJ-32 Pinlock Ready Shield. Designed specifically for the HJC F70 helmet, this replacement shield offers 95% UV protection and is prepared for the integration of a Pinlock anti-fog insert (sold separately) to enhance visibility in various riding conditions.
Product Overview
The HJC HJ-32 Pinlock Ready Shield is a high-quality replacement visor engineered for durability and clear vision. Its key features include:
- Pinlock Ready: Designed with pins to securely attach a Pinlock anti-fog insert.
- UV Protection: Provides 95% protection against harmful UV rays.
- Compatibility: Specifically made for the HJC F70 helmet.
- Material: Constructed from Acrylonitrile Butadiene Styrene (ABS) for impact resistance and clarity.

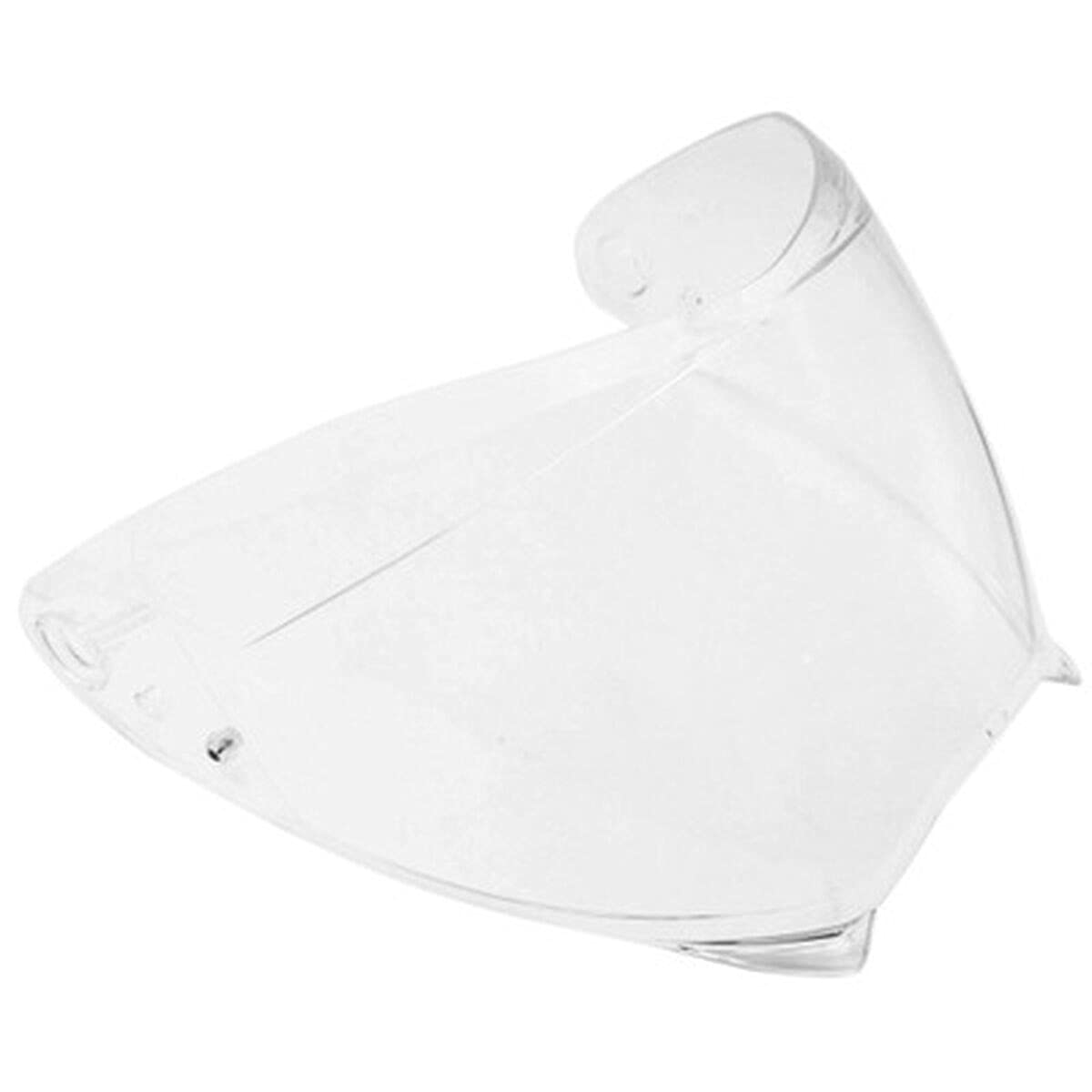

Image: The HJC HJ-32 Pinlock Ready Shield, a clear replacement visor for motorcycle helmets.
Setup and Installation
Proper installation of the HJ-32 shield and any compatible Pinlock insert is crucial for safety and performance. Always handle the shield carefully to avoid scratches.
Installing the HJ-32 Shield on your HJC F70 Helmet:
- Ensure your helmet is clean and free of debris.
- Align the shield's mounting points with the helmet's visor mechanism.
- Press firmly until the shield clicks securely into place on both sides. Refer to your HJC F70 helmet manual for specific instructions on shield removal and installation.
Installing a Pinlock Anti-Fog Insert (if applicable):
The HJ-32 shield is designed to accept a Pinlock insert. Follow these general steps for installation. For detailed instructions, always refer to the specific Pinlock insert's manual.
- Remove the HJ-32 shield from your helmet.
- Clean the inner surface of the shield thoroughly with a soft cloth and mild cleaner. Ensure it is completely dry and dust-free.
- Carefully bend the shield flat to allow the Pinlock insert to fit between the pins.
- Align the Pinlock insert with the pins on the inside of the HJ-32 shield.
- Press the edges of the Pinlock insert firmly against the shield, ensuring a tight seal around the silicone gasket.
- Release the shield, allowing it to return to its natural curve, which will create tension and seal the Pinlock insert.
- Reinstall the shield onto your helmet.
Visual Guides for Anti-Fog Film Installation:
The following videos demonstrate the installation process for various anti-fog films, which can be applied to your Pinlock-ready shield. These are general guides and may vary slightly from your specific Pinlock insert.
Video: This video demonstrates an innovative three-stage installation process for an anti-fog sticker on a helmet visor, showing cleaning, positioning, and final application steps.
Video: A comprehensive installation guide for applying both anti-fog and rainproof films to a helmet visor, detailing preparation and application techniques.
Video: This video showcases the installation of a WeePro anti-fog visor insert, demonstrating how to align and affix the insert to a motorcycle helmet shield.
Operating (Usage)
Once installed, your HJC HJ-32 Pinlock Ready Shield provides clear vision and UV protection. If a Pinlock insert is installed, it will significantly reduce fogging, especially in cold or humid conditions. Always ensure the shield is securely closed while riding to protect your eyes from wind, debris, and impacts.
Anti-Fog Performance Demonstration:
Observe the effectiveness of anti-fog solutions in real-world and simulated conditions.
Video: This video provides a comparison of a helmet visor with and without an anti-fog paste, demonstrating the clear vision provided by the anti-fog solution under humid conditions.
Video: An authentic comparison demonstrating the rain and fog resistance of a treated helmet visor versus an untreated one, highlighting improved visibility in adverse weather.
Maintenance
To maintain the clarity and longevity of your HJC HJ-32 Pinlock Ready Shield:
- Cleaning the Shield: Use warm water and a soft, lint-free cloth. Avoid abrasive cleaners or paper towels, which can scratch the surface. For stubborn dirt, use a helmet-specific visor cleaner.
- Cleaning the Pinlock Insert: If you have a Pinlock insert, remove it from the shield. Clean it gently with warm water and a soft cloth. Do not rub the inner surface vigorously, as this can damage the anti-fog coating. Allow it to air dry completely before reinstallation.
- Storage: Store your helmet in a clean, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
Fogging:
If your shield fogs up, ensure your Pinlock insert (if installed) is properly sealed. If fogging persists, check for proper helmet ventilation. In extreme conditions, slightly opening the shield can help. If you do not have a Pinlock insert, consider purchasing one for enhanced anti-fog performance.
Scratches:
Minor scratches can sometimes be polished out with specialized visor scratch remover kits. Deep scratches may require replacement of the shield to ensure optimal visibility and safety.
Specifications
| Feature | Detail |
|---|---|
| Model Name | HJC HJ-32 Pinlock Ready Shield |
| Item Model Number | 0980-9400-00 |
| Brand | HJC |
| Compatibility | HJC F70 Helmet |
| Color | Clear |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| UV Protection | 95% |
| Item Weight | 2 pounds |
Warranty and Support
For detailed warranty information and customer support regarding your HJC HJ-32 Pinlock Ready Shield, please refer to the official HJC website or contact HJC customer service directly. Keep your proof of purchase for any warranty claims.
