1. Introduction
Thank you for choosing the VirtuFit Foldable Fitness Trampoline with Handle. This manual provides important information regarding the safe assembly, operation, and maintenance of your fitness trampoline. Please read this manual thoroughly before first use and keep it for future reference.
The VirtuFit fitness trampoline is designed to help improve your endurance, coordination, and balance through effective and enjoyable workouts. Its foldable design ensures convenient storage.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in serious injury.
- Always consult a physician before starting any new exercise program.
- Ensure the trampoline is placed on a flat, stable, non-slip surface.
- Maintain a clear area of at least 1 meter (3 feet) around the trampoline.
- Do not exceed the maximum weight capacity of 120 kg (264 lbs).
- Only one person should use the trampoline at a time.
- Children should only use the trampoline under strict adult supervision.
- Inspect the trampoline for any damage or loose parts before each use. Do not use if damaged.
- Wear appropriate athletic footwear.
- Do not attempt acrobatic jumps or flips.
- The product is CE certified, indicating compliance with European safety standards.
3. Package Contents
Carefully unpack all components and ensure you have received the following items:
- Foldable Trampoline Frame with Jumping Mat
- Handlebar (multi-part)
- Legs (6 pieces)
- Assembly Hardware (screws, knobs)
- User Manual (this document)
4. Setup and Assembly
Follow these steps to assemble your VirtuFit fitness trampoline:
- Unfold the Frame: Carefully unfold the trampoline frame. Ensure it locks securely into place.
- Attach the Legs: Screw the six legs into the designated sockets on the underside of the trampoline frame. Tighten them firmly by hand.
- Assemble the Handlebar: Connect the handlebar sections. Insert the assembled handlebar into the frame's attachment points and secure it with the provided knobs or screws. Ensure the handlebar is stable and does not wobble.
- Final Check: Before first use, double-check all connections and ensure the trampoline is stable.

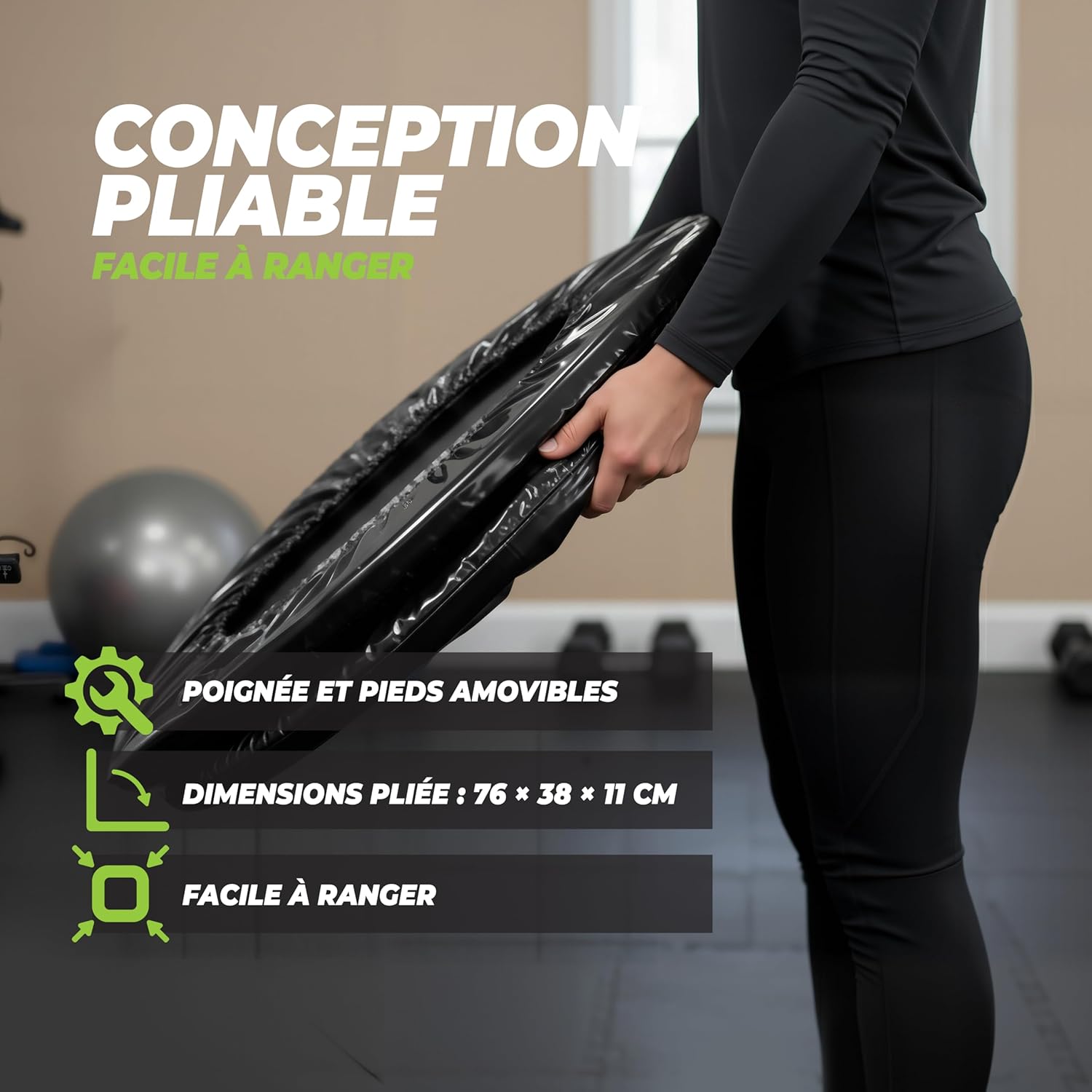

To fold the trampoline for storage, reverse these steps: remove the handlebar and legs, then fold the jumping surface twice. The folded dimensions are approximately 76 x 38 x 11 cm.
5. Operating Instructions
The VirtuFit fitness trampoline offers an effective and fun way to exercise. Here are some guidelines for use:
- Starting Your Workout: Step onto the trampoline carefully, holding the handlebar for stability. Begin with gentle bounces to get accustomed to the rebound.
- Benefits: Regular use can improve cardiovascular endurance, coordination, and balance. The low-impact nature of trampolining is gentle on joints and muscles while effectively burning calories. It can also stimulate circulation and help reduce the appearance of cellulite.
- Jumping Fitness: Explore various "Jumping Fitness" routines available online (e.g., YouTube) for structured workouts. These often incorporate different movements and poses, such as stationary jogging or planks on the trampoline, to engage various muscle groups and enhance rhythm.
- Handlebar Use: The handlebar provides additional support and stability, especially for beginners or during more intense exercises.
6. Maintenance
Proper maintenance will extend the life of your trampoline:
- Cleaning: Wipe down the frame and jumping mat with a damp cloth after each use. Use mild soap if necessary, but avoid harsh chemicals.
- Inspection: Regularly check all bolts, screws, and connections to ensure they are tight. Inspect the jumping mat and springs for any signs of wear, tears, or damage.
- Storage: When not in use, especially for extended periods, store the trampoline in a clean, dry place away from direct sunlight and extreme temperatures. Its foldable design makes storage convenient.
7. Troubleshooting
If you encounter any issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Trampoline feels unstable. | Legs not fully tightened or uneven surface. | Ensure all legs are securely tightened. Move to a flat, level surface. |
| Handlebar is wobbly. | Handlebar sections not fully connected or securing knobs/screws are loose. | Check that all handlebar sections are properly joined and tighten all securing hardware. |
| Unusual noise during use. | Loose connections or friction between parts. | Inspect all connections and tighten any loose bolts. Apply a small amount of silicone lubricant to contact points if necessary. |
If the problem persists or you encounter an issue not listed here, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | VF06006 |
| Brand | VirtuFit |
| Color | Black |
| Frame Material | Alloy Steel |
| Shape | Round |
| Product Dimensions (L x W x H) | 100 x 100 x 22 cm (excluding handle height) |
| Handle Height | Approximately 108 cm (from floor to top of handle) |
| Folded Dimensions (L x W x H) | 76 x 38 x 11 cm |
| Maximum Weight Capacity | 120 kg (264 lbs) |
| Number of Springs | 32 steel springs (8.6 cm) |
9. Warranty and Support
The VirtuFit Foldable Fitness Trampoline is backed by a 2-year warranty, ensuring high quality and durability. This warranty covers manufacturing defects and material flaws under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact VirtuFit customer service through the retailer where you purchased the trampoline. Please have your model number (VF06006) and proof of purchase ready.
VirtuFit is a Dutch fitness brand committed to providing high-quality fitness equipment with a focus on ease of use, design, and full functionality, all while prioritizing safety.
