ECHO PB-9010T 79.9cc Gas 2-Stroke Backpack Blower User Manual

1. Important Safety Information

Read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in serious injury.

• Personal Protective Equipment: Always wear appropriate personal protective equipment (PPE) including eye protection (safety glasses or goggles), hearing protection (earplugs or earmuffs), and sturdy footwear. Long pants and sleeves are also recommended.
• Fuel Handling: Handle gasoline with extreme care. It is highly flammable. Store fuel in approved containers, in a well-ventilated area, away from ignition sources. Never refuel a hot engine.
• Exhaust Fumes: This product produces carbon monoxide, an odorless, colorless gas that can cause death. Operate only in well-ventilated outdoor areas.
• Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
• Children and Bystanders: Keep children, pets, and bystanders at least 50 feet (15 meters) away from the operating area. This product is not intended for use by children.
• General Operation: Do not operate the blower when tired, ill, or under the influence of alcohol or drugs. Inspect the work area for debris that could be thrown.

2. Product Overview

The ECHO PB-9010T is a powerful 79.9cc gas-powered backpack blower designed for efficient clearing of leaves and debris. Its robust 2-stroke engine delivers high air volume and speed for demanding tasks.

This image highlights the main features of the ECHO PB-9010T backpack blower, including the 79.9 cc professional-grade 2-stroke engine, tool-less access air filtration system, large capacity fuel tank, patented wear ring, and Posi-loc™ pipes.

Key Features:

• 79.9 cc Professional-Grade 2-Stroke Engine
• Tube-Mounted Throttle with Cruise Control
• Tool-less Access Air Filtration System
• Large Capacity Fuel Tank
• Patented Wear Ring and Posi-loc™ Pipes
• Ergonomic Backpack Design

3. Unpacking and Assembly

Carefully remove all components from the packaging. Inspect for any damage. If any parts are damaged or missing, do not assemble or operate the unit. Contact your dealer.

Assembly Steps:

1. Attach Blower Tubes: Connect the flexible tube to the blower outlet. Secure it with the provided clamp.
2. Install Throttle Handle: Slide the tube-mounted throttle handle onto the main blower tube. Position it for comfortable operation and tighten securely.
3. Connect Nozzle: Attach the desired nozzle (round or flat) to the end of the blower tube.

A full view of the ECHO PB-9010T backpack blower, fully assembled with its tube-mounted throttle and blower tubes, ready for operation.

4. Fuel and Starting Procedures

Fuel Requirements:

This unit is powered by a 2-stroke engine and requires a mixture of gasoline and 2-stroke engine oil. Use fresh, unleaded gasoline with an octane rating of 89 or higher. Mix with ECHO-approved 2-stroke oil at a 50:1 ratio (50 parts gasoline to 1 part oil).

• Do not use E85 fuel.
• Always mix fuel in an approved container.
• Shake the fuel mixture thoroughly before filling the tank.

Starting the Engine:

1. Place the blower on a flat, stable surface.
2. Ensure the ignition switch is in the 'ON' position.
3. Push the primer bulb 5-7 times until fuel is visible in the return line.
4. Move the choke lever to the 'CLOSED' (full choke) position.
5. Pull the starter handle firmly and smoothly until the engine attempts to start (usually 1-3 pulls).
6. Once the engine 'pops' or attempts to start, move the choke lever to the 'HALF CHOKE' position.
7. Pull the starter handle again until the engine starts.
8. Allow the engine to warm up for 30-60 seconds, then move the choke lever to the 'OPEN' (run) position.

Stopping the Engine:

To stop the engine, simply move the ignition switch to the 'OFF' position.

5. Operating the Blower

Wearing the Backpack Blower:

Carefully lift the blower and place it on your back. Adjust the shoulder straps and chest strap (if equipped) for a snug and comfortable fit. The weight should be evenly distributed across your shoulders and hips.

Using the Tube-Mounted Throttle:

• The throttle lever controls engine speed and air output.
• Increase engine speed gradually to avoid sudden torque.
• Use the cruise control feature to maintain a desired engine speed without continuously holding the throttle lever.

Operating Tips:

• Work in a sweeping motion, moving debris in front of you.
• Direct the air stream carefully to avoid blowing debris into unwanted areas or towards people/property.
• For heavy, wet debris, use short, powerful bursts of air.
• Always be aware of your surroundings and potential hazards.

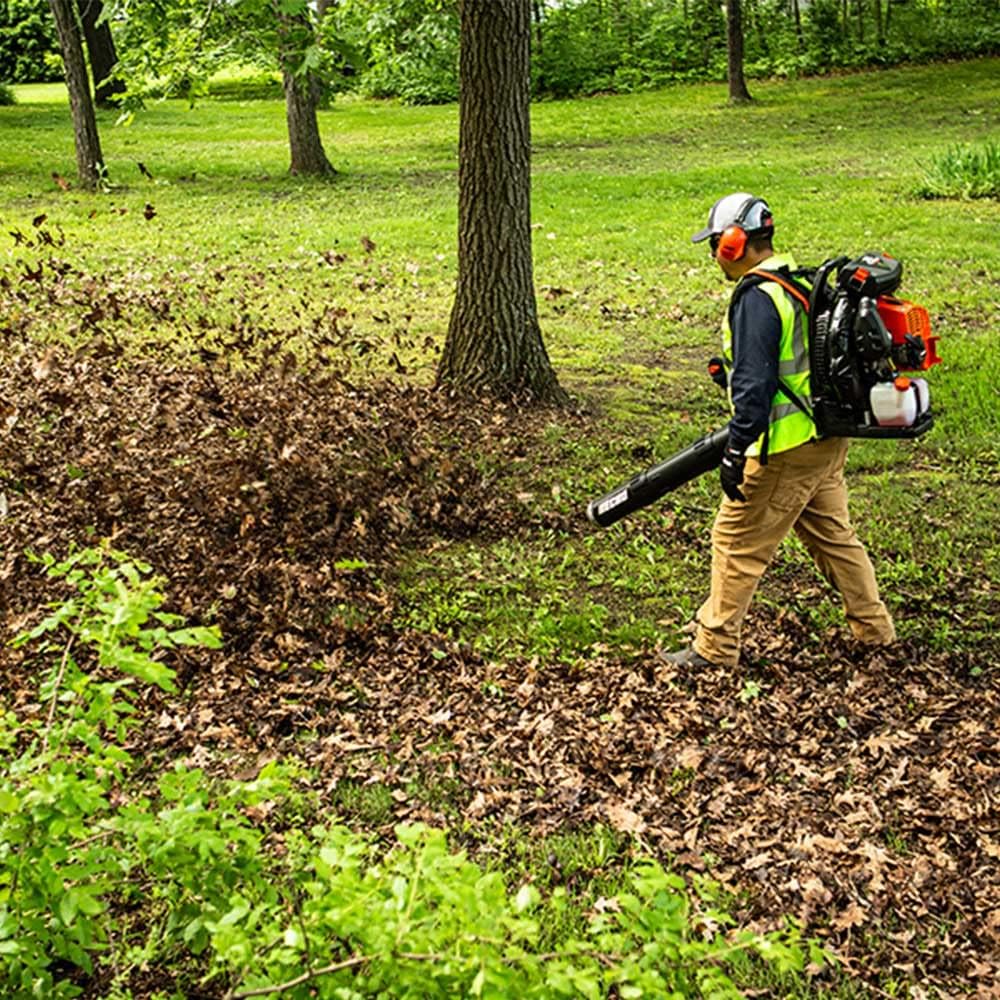

An individual wearing the ECHO PB-9010T backpack blower, actively clearing a large pile of dry leaves from a grassy area. The user is wearing hearing protection and safety glasses.

A user operating the ECHO PB-9010T backpack blower, directing the powerful air stream to move leaves across a lawn. The blower's ergonomic design and tube-mounted throttle are visible.

A close-up rear view of the ECHO PB-9010T backpack blower, showcasing its padded shoulder straps and backplate designed for user comfort during extended operation. The unit rests on a bed of leaves.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your ECHO PB-9010T blower. Always disconnect the spark plug wire before performing any maintenance.

Maintenance Schedule:

• After Each Use: Clean the exterior of the blower. Check for loose fasteners.
• Every 5-10 Hours of Operation: Clean or replace the air filter. Inspect the spark plug.
• Every 25-50 Hours of Operation: Replace the spark plug. Inspect the fuel filter.
• Annually: Have the unit inspected by an authorized service dealer.

Air Filter:

The air filter is crucial for engine protection. Access the air filter cover (tool-less design), remove the filter, and clean it with warm, soapy water. Rinse thoroughly and allow to air dry completely before reinstallation. Replace if damaged or excessively dirty.

Spark Plug:

Remove the spark plug using a spark plug wrench. Inspect for carbon buildup or wear. Clean or replace as necessary. Ensure the correct gap is maintained (refer to the specifications section).

Fuel Filter:

The fuel filter is located inside the fuel tank. Periodically check for debris and replace if clogged. Use a hook or wire to carefully retrieve the filter from the tank.

Storage:

Before storing the blower for an extended period, drain the fuel tank and run the engine until it stops to clear the carburetor. Clean the unit thoroughly and store in a dry, well-ventilated area, out of reach of children.

7. Troubleshooting

This section provides solutions to common operational issues. For problems not listed here, or if solutions do not resolve the issue, contact an authorized ECHO service dealer.

8. Specifications

9. Warranty and Support

ECHO products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ECHO website.

For technical assistance, parts, or service, please contact an authorized ECHO service dealer. You can find your nearest dealer by visiting the ECHO website or contacting their customer support line.
