1. Introduction
This user manual provides detailed instructions for the safe installation, operation, and maintenance of your ASD LED 32 Inch Oval Flush Mount Light Fixture. Please read this manual thoroughly before installation and retain it for future reference.
Important Safety Information
- Always turn off the power at the circuit breaker before beginning installation.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are made in accordance with local codes and ordinances.
- Do not install this fixture in wet locations. It is rated for dry and damp locations only.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create a safety hazard.
2. What's in the Box
Carefully unpack the contents and ensure all items are present and undamaged:
- Light Fixture
- Mounting Plate
- Screws, Anchors
- Wire Nuts
Image: The ASD LED 32 Inch Oval Flush Mount Light Fixture shown with its product packaging.
3. Product Specifications
| Specification | Detail |
|---|---|
| Model Name | LED Double Ring Flushmount |
| Model Number | A-LFMOV-M32D45C-N |
| Dimensions (L x W x H) | 32.44" x 18.13" x 4.81" (824mm x 460mm x 122mm) |
| Wattage | 45W |
| Brightness | 3750 Lumens |
| Color Temperature (CCT) | 3000K (Warm White), 4000K (Cool White), 5000K (Daylight) - Selectable |
| Voltage | 100-277V |
| Dimmable | Yes, with compatible Triac dimmer switch (10% to 100%) |
| Material | Durable Alloy Steel Housing, Frosted Acrylic Shade, Matte White Diffuser Cover, Solid Metal Base |
| Finish Type | Brushed Nickel |
| Certifications | ETL Listed, Energy Star Certified |
| Lifespan | 50,000 Hours |
| Usage Environment | Indoor, Dry and Damp Locations |
| Item Weight | 7.8 Pounds |
Image: Detailed product specifications including dimensions and electrical ratings.
4. Installation Instructions
Follow these steps for proper installation of your flush mount light fixture. Ensure power is OFF at the circuit breaker before starting.
- Prepare the Fixture: Unscrew the cap nuts counter-clockwise and carefully remove the metal ring and the lens from the fixture.
- Attach Mounting Plate: Attach the mounting plate to the outlet box using two screws. Use the mounting plate as a template to mark the location for wall anchors if needed. Drill appropriate sized holes for anchors, insert anchors, and twist self-tapping screws into them.
- Connect Wiring: Connect the electrical wires: Black to Black (Live), White to White (Neutral), and Ground to Ground. Secure connections with wire nuts. Carefully tuck all wires back into the outlet box.
- Secure Fixture: Attach the back plate to the ceiling by feeding self-tapping screws through the keyhole slots and then tightening them. Secure the fixture to the mounting plate using two screws.
- Select Color Temperature: Before reattaching the lens, choose your desired color temperature (3000K, 4000K, or 5000K) using the switch located on the fixture.
- Reattach Lens: Secure the lens and metal ring to the fixture pan using the cap nuts.

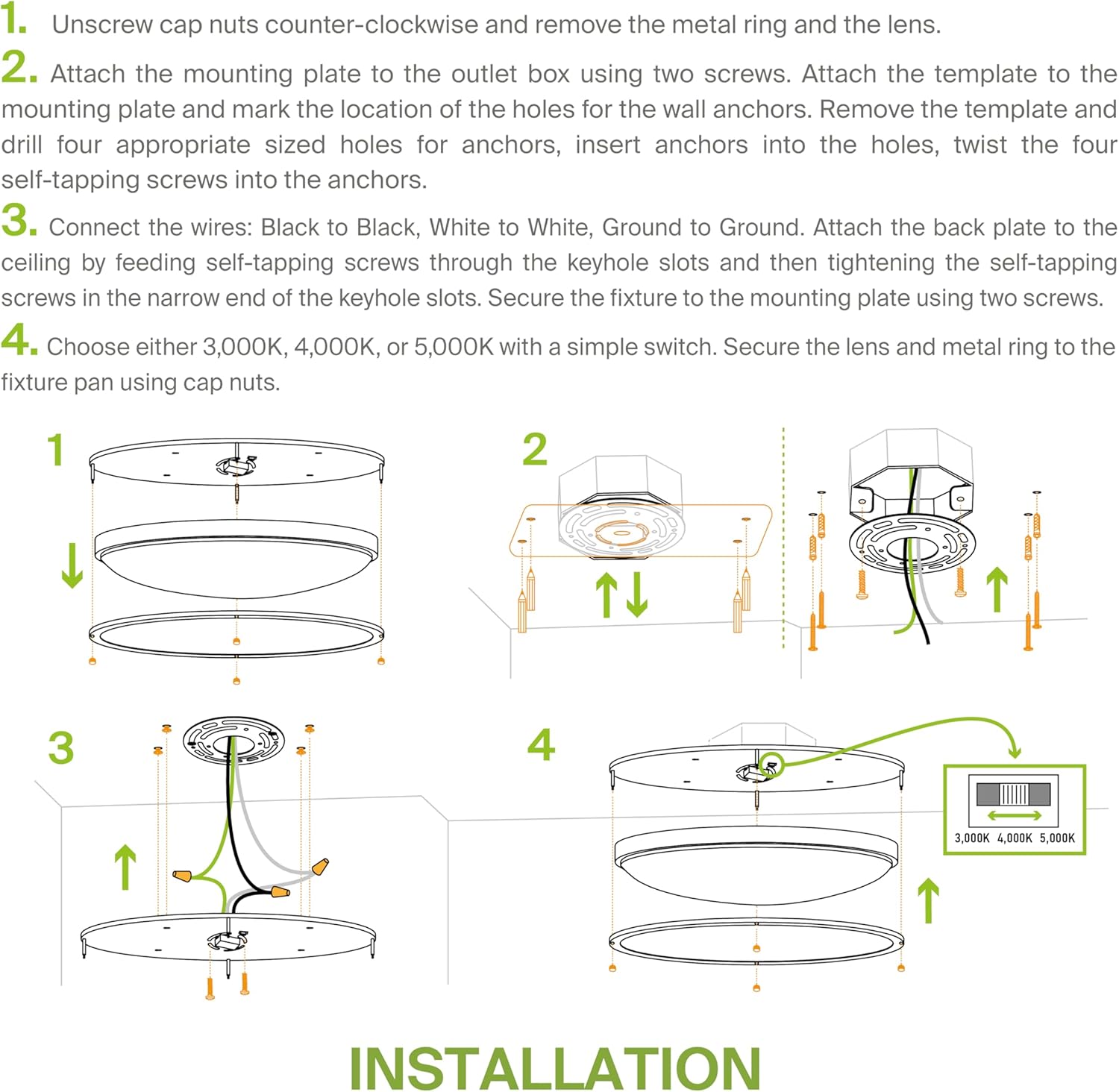

Image: Visual guide for the installation process, from preparing the fixture to securing the lens.
Image: Another detailed diagram illustrating the mounting and wiring steps.
For a full cut sheet and detailed instructions, you can refer to the official user manual PDF: Download User Manual (PDF)
5. Operating Instructions
Color Temperature Selection (3CCT)
Your fixture features a selectable color temperature switch, allowing you to choose between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight). This switch is located on the fixture body and should be set during installation before the lens is secured.
Image: Illustration of the three selectable color temperature options: 3000K, 4000K, and 5000K.
Dimming Functionality
This fixture supports smooth, flicker-free Triac dimming. To utilize the dimming feature, ensure you have a compatible dimmer switch installed. The brightness can be adjusted from 10% to 100%.
6. Maintenance
The ASD LED Flush Mount Light Fixture requires minimal maintenance. Follow these guidelines to ensure its longevity and optimal performance:
- Cleaning: Before cleaning, ensure the power to the fixture is turned off. Use a soft, dry or slightly damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic lens.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, consult a qualified electrician.
- LEDs: The integrated LED light source is designed for a long lifespan (50,000 hours) and is not user-replaceable.
7. Troubleshooting
If you experience issues with your light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture, loose wiring, faulty switch, incorrect installation. | Check circuit breaker. Verify all wire connections are secure. Test the switch. Re-check installation steps. |
| Light flickers or dims inconsistently | Incompatible dimmer switch, loose wiring, voltage fluctuations. | Ensure you are using a compatible Triac dimmer. Check wire connections. The fixture is designed for 100-277V to handle fluctuations, but extreme voltage issues may require professional assessment. |
| Incorrect color temperature | CCT switch set incorrectly. | Turn off power, remove lens, and adjust the CCT switch to your desired setting (3000K, 4000K, or 5000K). Reattach lens. |
| Buzzing noise from fixture | Incompatible dimmer, loose wiring, internal component issue. | Try a different compatible dimmer. Check wiring. If the issue persists, contact customer support. |
8. Warranty and Support
ASD products are covered by a 5-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any other inquiries, please contact ASD Customer Support. Ensure you have your proof of purchase and model number ready.
- Manufacturer: ASD Lighting Corp
- Brand: ASD
- Model Number: A-LFMOV-M32D45C-N
- UPC: 810050732055
Image: ASD's commitment to quality, safety, and certifications like ETL and Energy Star.
