BEEM ESPRESSO-SELECT 15 Bar Espresso Machine User Manual

Introduction

Thank you for choosing the BEEM ESPRESSO-SELECT 15 Bar Espresso Machine. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Important Safety Instructions

• Read all instructions before operating the appliance.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance matches your local mains voltage.
• Close supervision is necessary when the appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to "off", then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Exercise extreme caution when using hot steam.

Product Overview

The BEEM ESPRESSO-SELECT is a versatile 15-bar espresso machine designed for preparing a variety of coffee specialties, including espresso, cappuccino, and latte macchiato. It features a durable stainless steel and polypropylene construction, a 1.5-liter water tank, and a powerful 1100-watt heating system.

Figure 1: Components of the BEEM ESPRESSO-SELECT Espresso Machine
This image displays the main components of the espresso machine, including the removable 1.5 L water tank, temperature display for optimal coffee temperature, espresso function, hot water/steam regulator, steam/frothing function, portafilter holder, swivel milk frother, tamper & dosing spoon, single espresso filter insert, double espresso filter insert, and removable drip tray with water level indicator.

Key Features:

• 15-Bar Pump System: Ensures optimal pressure for rich espresso extraction.
• Thermoblock Heating System: Provides rapid heating and consistent temperature control up to 93°C.
• Swivel Steam Nozzle: For frothing milk for cappuccinos and latte macchiatos.
• Removable Water Tank (1.5 L): Easy to fill and clean.
• Removable Drip Tray: Simplifies cleaning and accommodates various cup sizes.
• Integrated Thermometer: Displays brewing temperature for precise control.
• Includes Accessories: Single and double espresso filter inserts, tamper, and dosing spoon.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials and ensure all components are present.
2. Placement: Place the machine on a stable, flat, heat-resistant surface, away from water sources and heat.
3. Cleaning: Before first use, clean the water tank, portafilter, and filter inserts with warm water and mild detergent. Rinse thoroughly.
4. Fill Water Tank: Remove the 1.5-liter water tank from the back of the machine. Fill it with fresh, cold water up to the MAX mark. Reinsert the tank securely.
5. Initial Rinse Cycle:
   • Plug the machine into a grounded power outlet.
   • Press the power button (U) to turn on the machine. The indicator light will illuminate.
   • Place a large cup or container under the portafilter outlet.
   • Turn the function knob to the espresso symbol (☕). Water will flow through the portafilter. Let it run for about 30 seconds.
   • Turn the function knob back to the standby position (O).
   • Place a cup under the steam nozzle. Turn the function knob to the steam symbol (♨️) and open the steam regulator knob. Let steam release for about 15 seconds. Close the steam regulator knob and return the function knob to standby.
   This process primes the pump and cleans the internal components.

Figure 2: Removable Water Tank
The transparent water tank is located at the back of the machine and can be easily removed for filling and cleaning.

Operating Instructions

Making Espresso:

1. Prepare the Portafilter: Insert either the single or double espresso filter into the portafilter.
2. Add Ground Coffee: Use the dosing spoon to add freshly ground espresso coffee to the filter. For a single espresso, use one level spoon (approx. 7g). For a double, use two level spoons (approx. 14g).
3. Tamp the Coffee: Use the tamper to press the coffee grounds firmly and evenly. Ensure the surface is level.
4. Attach Portafilter: Align the portafilter with the "INSERT" position on the brew head. Insert it and turn it firmly to the right until it locks into the "LOCK" position.
5. Preheat Cups (Optional): Place your espresso cups on the cup warming tray on top of the machine or rinse them with hot water.
6. Brew Espresso: Place one or two cups under the portafilter spouts. Ensure the machine is heated (temperature gauge indicates optimal range). Turn the function knob to the espresso symbol (☕). The espresso will begin to flow.
7. Stop Brewing: Once the desired amount of espresso is brewed, turn the function knob back to the standby position (O).
8. Remove Portafilter: Carefully turn the portafilter to the left to unlock and remove it. Dispose of the used coffee grounds.

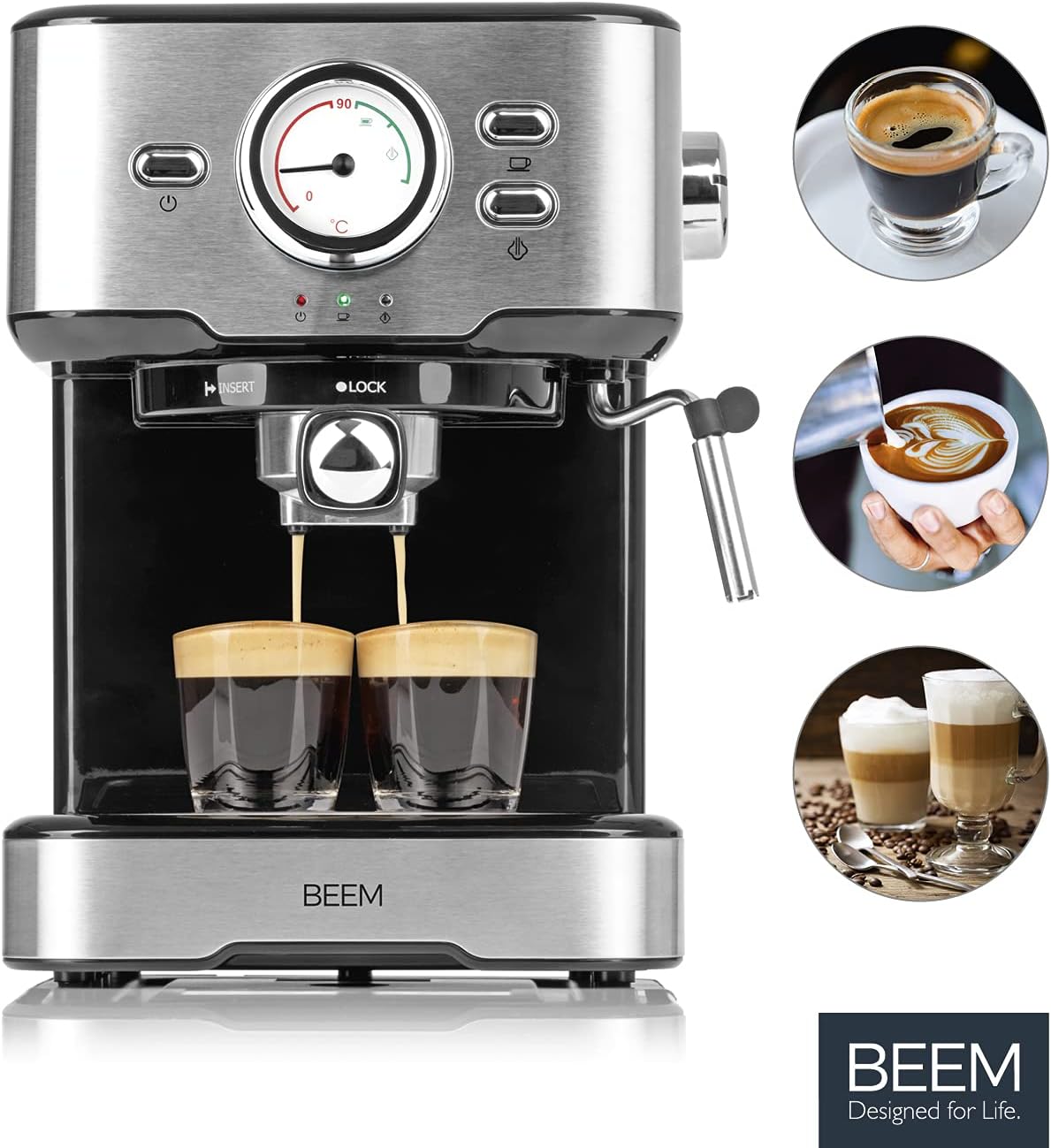

Figure 3: Brewing Espresso
The machine is shown actively brewing two cups of espresso, demonstrating its dual-spout capability. The temperature gauge is visible, indicating optimal brewing conditions.

Frothing Milk for Cappuccino/Latte Macchiato:

1. Prepare Milk: Fill a stainless steel milk pitcher with cold milk (preferably whole milk) to about one-third full.
2. Activate Steam Function: Turn the function knob to the steam symbol (♨️). Wait for the machine to heat up to steam temperature (the indicator light will change or the gauge will show steam readiness).
3. Purge Steam Wand: Briefly open the steam regulator knob to release any condensed water from the steam wand. Close it immediately.
4. Froth Milk: Immerse the steam wand tip just below the surface of the milk. Open the steam regulator knob. Move the pitcher up and down slightly to create foam. Once the desired foam consistency and temperature are reached (pitcher becomes hot to touch), close the steam regulator knob.
5. Clean Steam Wand: Immediately wipe the steam wand with a damp cloth to remove any milk residue. Briefly open the steam regulator knob again to clear any internal milk.

Figure 4: Milk Frothing and Machine Operations
This image illustrates the process of frothing milk using the steam wand, along with other operational aspects like adjusting the control knob and handling the water tank.

Maintenance and Cleaning

Regular cleaning and maintenance ensure the longevity and optimal performance of your BEEM ESPRESSO-SELECT machine.

Daily Cleaning:

• Portafilter and Filter Inserts: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter inserts under running water.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth and briefly purge steam to prevent milk residue buildup.
• Drip Tray: Empty and rinse the drip tray daily or when the water level indicator shows it's full.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scourers.

Weekly Cleaning:

• Water Tank: Remove the water tank and wash it with warm, soapy water. Rinse thoroughly and refill with fresh water.
• Brew Head: Use a damp cloth to wipe the brew head area, removing any coffee grounds.

Descaling:

Depending on water hardness and frequency of use, descaling should be performed every 2-3 months. Use a commercial descaling solution suitable for espresso machines and follow the manufacturer's instructions. Always perform several rinse cycles with fresh water after descaling.

Troubleshooting

Technical Specifications

Warranty and Support

BEEM products are manufactured with care and undergo strict quality control. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical support, spare parts, or warranty claims, please contact BEEM customer service. Contact information can typically be found on the BEEM official website or on the product packaging.

Online Resources: For additional information, FAQs, and product registration, please visit the official BEEM website.
