KikkaBoo Warmy 3-in-1 Bottle Warmer, Sterilizer, and Juicer Instruction Manual

1. Introduction and Overview

The KikkaBoo Warmy is a versatile 3-in-1 device designed to simplify feeding preparation for your baby. It functions as a bottle warmer, a sterilizer, and a juicer, offering convenience and efficiency for busy parents. Its compact design makes it suitable for both home use and travel.

Image 1.1: KikkaBoo Warmy 3-in-1 device with juicer attachment. This image shows the main unit in white and mint green, with the juicer cone attached to the top. A power button is visible on the front.

2. Safety Instructions

Please read all instructions carefully before use and retain for future reference.

• Always ensure the device is placed on a stable, heat-resistant surface.
• Do not immerse the main unit in water or any other liquid.
• Keep out of reach of children.
• Unplug the device when not in use and before cleaning.
• Do not operate the device if it has a damaged cord or plug, or if it malfunctions.
• Use only manufacturer-recommended accessories.
• Exercise caution when handling hot components or steam.

3. Package Contents

Verify that all components are present in the package:

• Main Unit (Warmy device)
• Heating Basket
• Heating Cup
• Lid
• Juicer Attachment
• Measuring Cup

Image 3.1: Heating Basket. A clear plastic basket with small holes, used to hold bottles or food jars during warming or sterilization.

Image 3.2: Heating Cup. A clear plastic cup, typically used for warming baby food or smaller items.

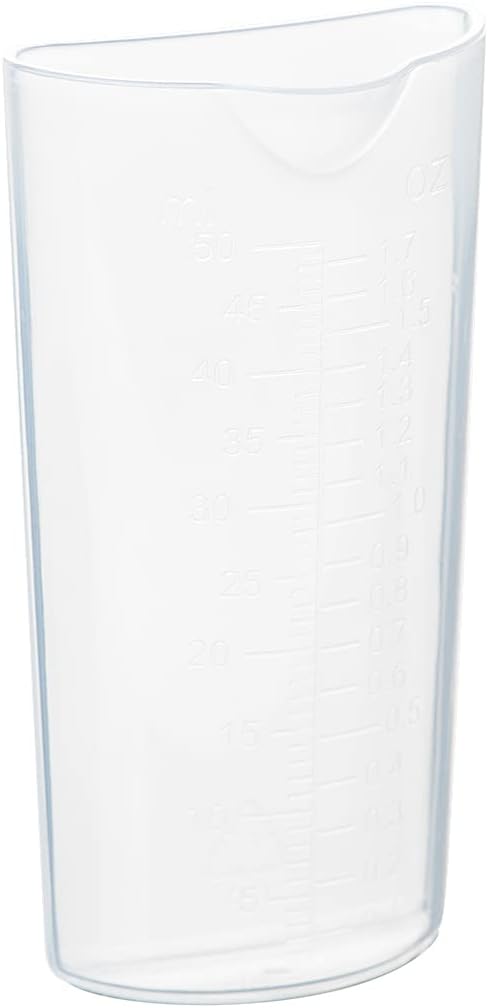

Image 3.3: Measuring Cup. A clear plastic cup with measurement markings, used to add the correct amount of water for warming or sterilization.

4. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Before first use, wash all removable parts (basket, heating cup, lid, juicer attachment, measuring cup) with warm soapy water and rinse thoroughly. Wipe the main unit with a damp cloth.
3. Placement: Place the main unit on a flat, stable, and heat-resistant surface, away from direct sunlight or heat sources. Ensure adequate ventilation around the device.
4. Power Connection: Plug the power cord into a suitable electrical outlet.

5. Operating Instructions

5.1. Bottle Warming

1. Place the heating basket into the main unit.
2. Place the baby bottle or food jar into the heating basket.
3. Using the measuring cup, add the appropriate amount of water into the main unit's water reservoir, ensuring it does not exceed the maximum fill line. The water level should be below the bottle's neck.
4. Cover the unit with the lid.
5. Select the warming function. The device will use steam to warm the contents. Warming milk can take approximately 3 minutes, depending on the initial temperature and volume.
6. Once warming is complete, carefully remove the bottle/jar using the basket handle to avoid direct contact with hot steam or water.
7. Always check the temperature of the milk or food before feeding your baby.

Image 5.1: KikkaBoo Warmy configured for bottle warming. The image shows a baby bottle placed inside the heating basket within the main unit, covered by the lid.

Image 5.2: A hand demonstrating how to safely remove a bottle from the warmer using the basket handle, minimizing contact with hot surfaces.

5.2. Sterilization

1. Ensure bottles, nipples, and other accessories are thoroughly cleaned before sterilization.
2. Place the heating basket into the main unit.
3. Arrange the items to be sterilized in the heating basket, ensuring steam can circulate freely.
4. Add approximately 50-100ml of water to the main unit's water reservoir using the measuring cup.
5. Cover the unit with the lid.
6. Select the sterilization function. The device will generate steam to eliminate harmful bacteria.
7. Once sterilization is complete, allow items to cool before handling. Use tongs to remove items to maintain hygiene.

5.3. Juicing

1. Ensure the main unit is clean and dry.
2. Attach the juicer cone to the top of the main unit.
3. Place a cup or container under the juicer spout to collect the juice.
4. Cut citrus fruits (e.g., oranges, lemons) in half.
5. Press the fruit half onto the rotating juicer cone, applying gentle downward pressure.
6. Continue until all juice is extracted.
7. Serve fresh juice immediately or store appropriately.

Image 5.3: A person preparing fresh juice using the KikkaBoo Warmy's juicer function. The image shows cut fruits and vegetables on a cutting board next to the juicer, with a cup of juice already prepared.

6. Cleaning and Maintenance

• Daily Cleaning: After each use, unplug the device and allow it to cool. Wash all removable parts (basket, heating cup, lid, juicer attachment, measuring cup) with warm soapy water and rinse thoroughly.
• Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
• Descaling: Mineral deposits can build up in the water reservoir over time. To descale, mix 50ml of white vinegar with 100ml of water and pour into the reservoir. Let it stand for 30 minutes, then pour out the solution and rinse thoroughly with clean water. Repeat if necessary.
• Storage: Ensure all parts are dry before storing. Store the device in a cool, dry place, away from direct sunlight.

7. Troubleshooting

8. Specifications

• Model Number: 3801304020100
• Dimensions (L x W x H): 20 x 14 x 10 cm
• Weight: 500 grams
• Manufacturer: Kikkaboo
• Batteries Required: No
• Functions: Bottle Warmer, Sterilizer, Juicer

9. Warranty and Support

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your product packaging or contact your retailer.

For technical support, spare parts, or service inquiries, please contact KikkaBoo customer service through their official website or the contact information provided with your purchase.
