Important Safety Information
Please read and understand all safety instructions before operating the OOTORI N500pro Massage Chair. Failure to follow these instructions may result in injury or damage to the product.
- Ensure the user's weight does not exceed the maximum recommended weight of 287 lb (130 kg).
- Be mindful of the power consumption and ensure the chair is connected to a suitable power outlet (120V/60Hz).
- Keep the massage chair away from any heat sources, flammable materials, or excessive moisture.
- Do not allow children or pets to play on or around the massage chair.
- Always unplug the chair from the power outlet before cleaning or performing any maintenance.
- Consult a physician before using the massage chair if you have any medical conditions, are pregnant, or have a pacemaker.
Product Overview
The OOTORI N500pro is a full-body massage chair designed to provide a comprehensive and relaxing massage experience. It features zero gravity recline, lower-back heating, foot rollers, and a system of airbags for various massage techniques.
Key Features
- Zero Gravity Design: Multiple stages of recline to elevate legs above heart level, promoting relaxation and reducing spinal pressure.
- Full Body Airbag Massage: 32 airbags located in the shoulders, arms, seat, and legs provide compression massage.
- Lower-Back Heating: Integrated heating pads in the lower back area for soothing warmth.
- Foot Roller Massage: Rollers in the footrest target pressure points on the soles of the feet.
- Shiatsu Massage Rollers: 8 massage rollers in the backrest for deep tissue and shiatsu-style massage.
- Adjustable Settings: Control massage style, speed, and airbag strength.

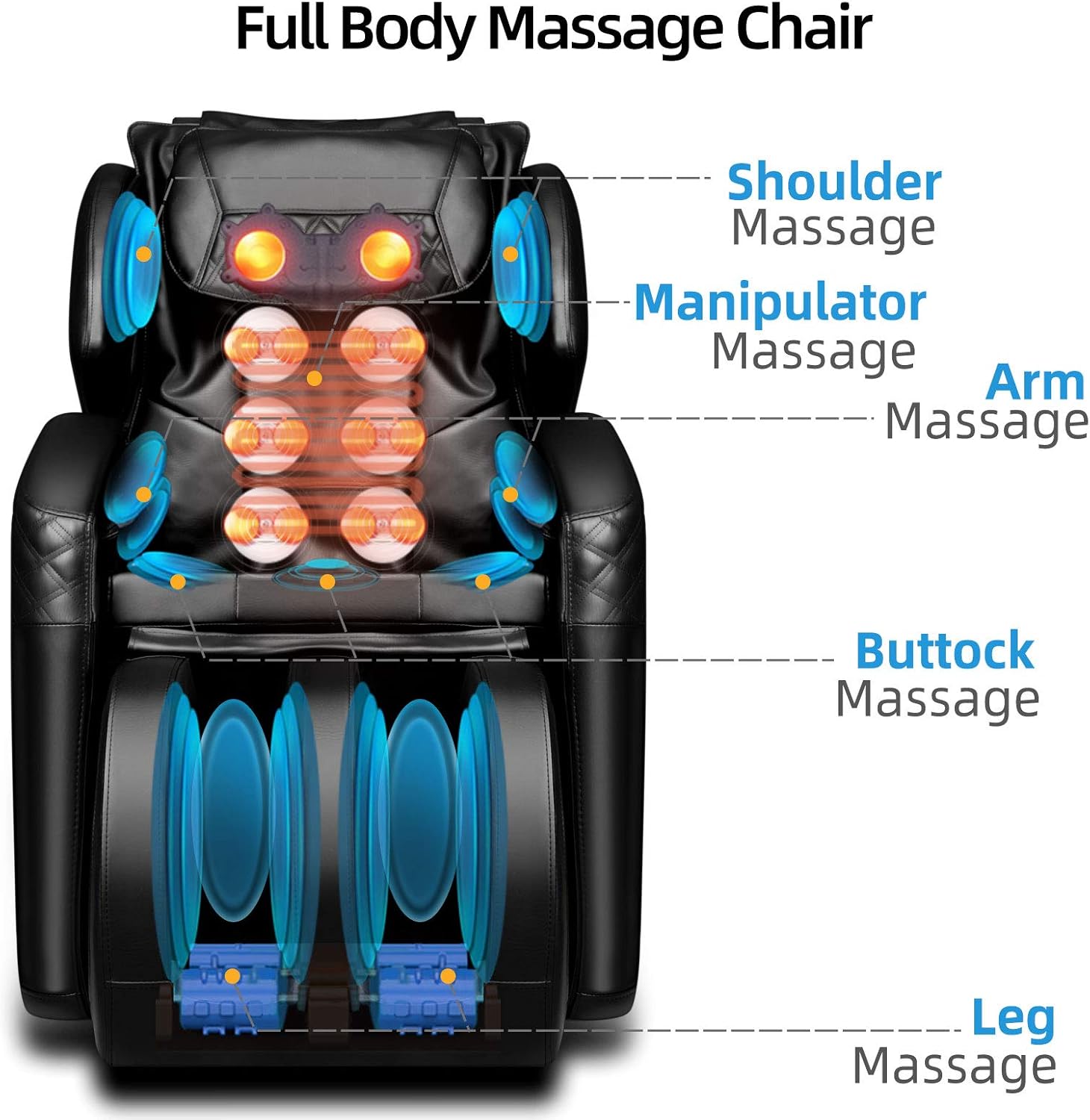

Image: Diagram illustrating the various massage areas of the OOTORI N500pro Massage Chair.
Image: Close-up view of the two heating pads located in the lower back area.

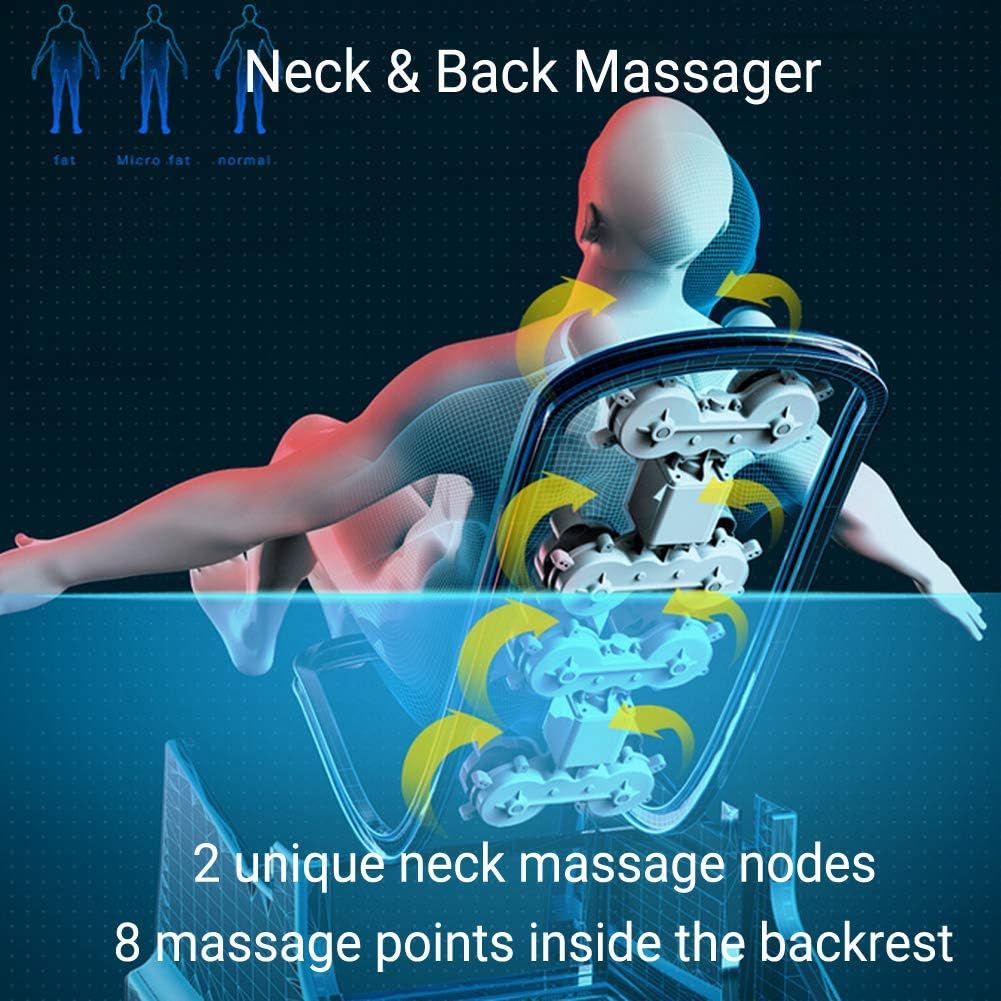

Image: Internal view showing the 2 unique neck massage nodes and 8 massage points within the backrest.

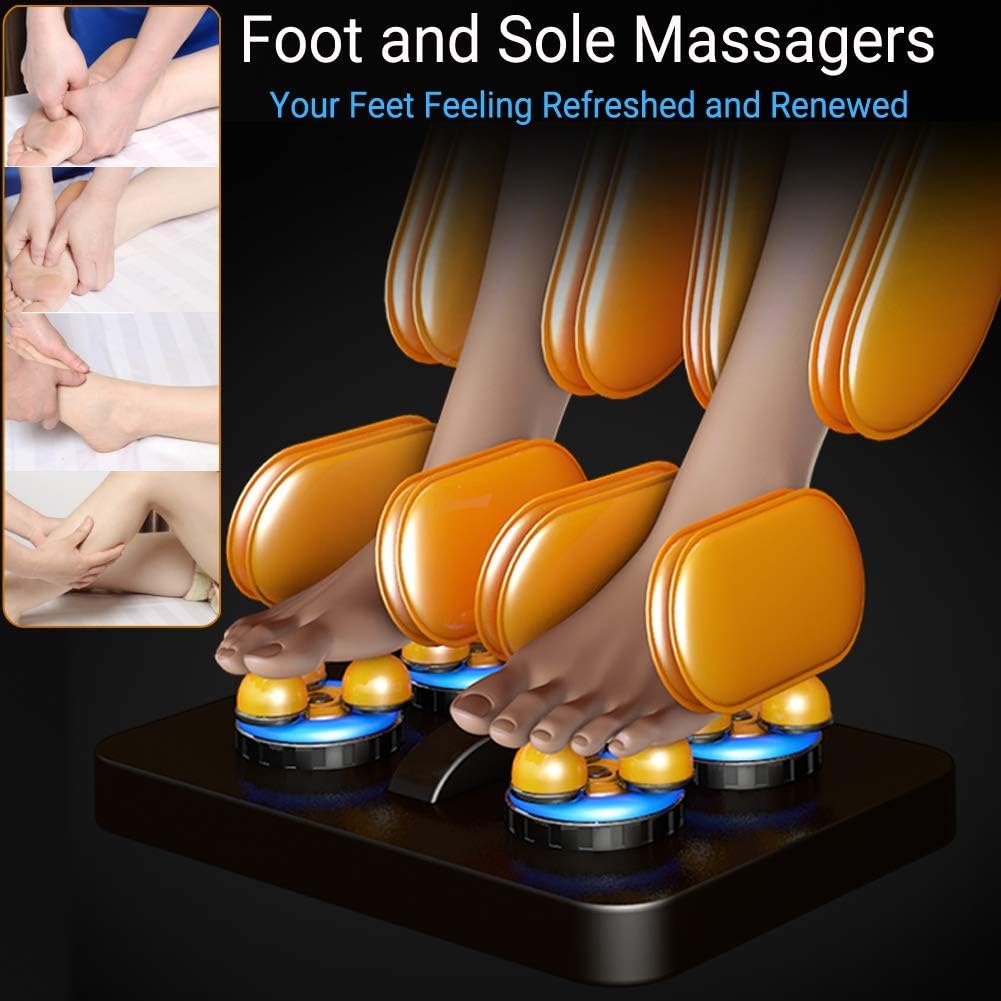

Image: Detailed view of the foot and sole massagers, designed to refresh and renew your feet.
Setup and Assembly
Follow these steps to correctly assemble your OOTORI N500pro Massage Chair. It is recommended to have two people for assembly.
Unpacking Components
Carefully remove all components from the packaging. Verify that all parts are present:
- Main Unit (Seat Part with Foot Roller)
- Backrest
- Left Armrest
- Right Armrest
- Cushion
- Shoulder Set (2 pieces)
- User Manual
- Power Line
- Remote Control
- Screws & Bolts (various sizes)
- Warranty Card
Assembly Steps
- Attach the Backrest: Align the backrest with the main unit and secure it using the provided bolts and pins. Ensure all connections are firm.
- Connect Wiring: Locate the main power and control wires from the backrest and main unit. Carefully connect them, ensuring a secure fit.
- Install Armrests: Attach the left and right armrests to the main unit. Connect any internal wiring or air hoses as instructed. Secure with bolts.
- Place Cushion and Shoulder Set: Position the seat cushion and attach the shoulder set pieces as desired for comfort and massage targeting.
- Power Connection: Connect the power line to the chair's power input and then to a wall outlet.
- Remote Control: Connect the remote control to its designated port on the chair.
Video: This video demonstrates the assembly process for the OOTORI N500pro Massage Chair, showing how to connect the main components and secure them.
Operating Instructions
The OOTORI N500pro Massage Chair is operated using the included remote control. Familiarize yourself with the remote's layout and functions.
Remote Control Functions
Image: The remote control for the OOTORI N500pro Massage Chair, displaying buttons for power, heating, vibration, foot rolling, zero gravity, automatic programs, speed control, strength control, and airbag adjustments.
- Power Button: Turns the massage chair on or off.
- Automatic Programs: Select from pre-programmed massage routines.
- Massage Style: Choose specific massage techniques like Shiatsu, Kneading, Tapping, etc.
- Speed Control: Adjust the speed of the massage rollers.
- Strength Control: Adjust the intensity of the massage.
- Airbag Control: Independently adjust the intensity of airbags in different areas (calf, buttock, arm, shoulder).
- Heating Function: Activate or deactivate the lower-back heating.
- Zero Gravity: Initiate or adjust the zero gravity recline positions.
- Foot Rolling: Turn the foot roller massage on or off.
- Buttock Vibrate: Activate or deactivate the seat vibration function.
Zero Gravity Feature
The OOTORI N500pro offers multiple stages of zero gravity recline. This position elevates your legs above your heart, which can help to decompress the spine, improve circulation, and deepen relaxation. Use the dedicated 'Zero Gravity' button on the remote to cycle through the available recline stages.
Video: This video illustrates the various zero gravity recline positions available on the OOTORI N500pro Massage Chair, highlighting the transition between stages.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your massage chair.
Cleaning
- Always unplug the chair before cleaning.
- Wipe the surface of the chair with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals.
- For leather surfaces, use a specialized leather cleaner and conditioner periodically to maintain its quality.
- Ensure no liquid enters the internal components or control panel.
Storage
- Store the chair in a cool, dry place away from direct sunlight and extreme temperatures.
- Cover the chair with a dust cover if it will not be used for an extended period.
Troubleshooting
If you encounter any issues with your OOTORI N500pro Massage Chair, refer to the following common problems and solutions:
- Chair does not power on:
- Check if the power cord is securely plugged into both the chair and the wall outlet.
- Ensure the power switch on the chair (usually located near the power input) is in the 'ON' position.
- Verify the wall outlet is functional by plugging in another appliance.
- Check the fuse located near the power input. If blown, replace it with a fuse of the same rating.
- Massage functions are not working:
- Ensure the remote control is properly connected to the chair.
- Check if any specific massage programs or functions are selected on the remote.
- Confirm that all internal wiring connections made during assembly are secure.
- Unusual noises during operation:
- Minor operational noises are normal. If the noise is loud or unusual, turn off the chair and inspect for any obstructions or loose parts.
- Contact customer support if the noise persists or indicates a malfunction.
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact OOTORI customer support.
Product Specifications
| Feature | Specification |
|---|---|
| Model Number | N500pro (Internal ID: d5437a7f-4285-4dd3-9408-33056ba1774e) |
| Brand | OOTORI |
| Material | Skin-Friendly Leather |
| Color | NBlack |
| Rated Voltage | 120V/60Hz |
| Rated Power | 100W |
| Incline Range | 95-180 degrees |
| Number of Air Bags | 32 |
| Number of Air Pumps | 1 |
| Number of Motors | 5 |
| Maximum User Weight | 287 lb (130 kg) |
| Item Weight | 126.7 pounds (57.5 kg) |
| Product Dimensions (Upright) | 47.3"D x 30.3"W x 45.3"H (120.1cm D x 77cm W x 115.1cm H) |
| Product Dimensions (Reclined) | 70.9"D x 30.3"W x 29.5"H (180.1cm D x 77cm W x 74.9cm H) |
| Controller Wire Length | 63 Inch (160 cm) |
| Power Supply Wire Length | 69 Inch (175 cm) |
| UPC | 689347325351 |
| ASIN | B08P7R6G82 |
Warranty and Customer Support
Warranty Information
The OOTORI N500pro Massage Chair comes with a 3-Year "Rock Solid" Warranty. This warranty guarantees that your qualified product will be replaced or repaired at no cost to you, should any manufacturing defects or issues arise under normal use conditions. An additional warranty extension may also be available; please refer to your warranty card for details on how to register or extend your warranty.
Customer Support
For any questions, technical assistance, warranty claims, or to purchase replacement parts, please contact OOTORI customer support. Have your model number and purchase date ready when contacting support.
Contact Information:
Please refer to the contact details provided on your warranty card or the official OOTORI website for the most up-to-date customer support information.
