DL-pro Carbon Filter Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your DL-pro activated carbon filter, model 11017314. This filter is designed to effectively remove odors and grease particles from the air in your kitchen when used with compatible range hoods operating in recirculation mode. Proper installation and regular maintenance ensure optimal performance and air quality.

2. Product Overview

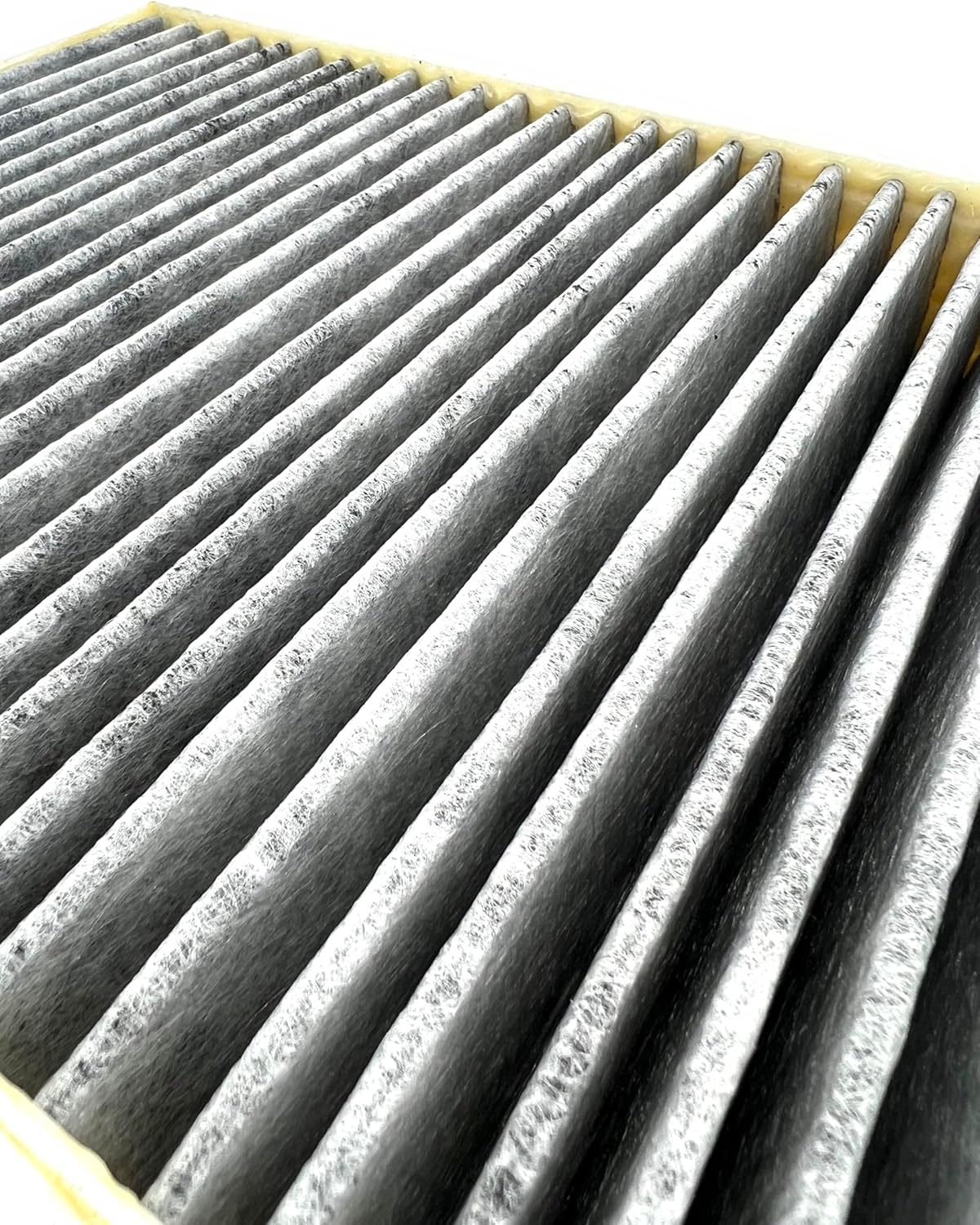

The DL-pro carbon filter is a rectangular, activated carbon filter designed for specific range hood models. It features a pleated structure containing activated carbon granules, which are highly effective at absorbing cooking odors and airborne impurities.

3. Compatibility

This DL-pro carbon filter is compatible with various range hood models from the following brands, serving as a replacement for original part numbers 00678460 and 11033934 (replaces 11017314).

Compatible Brands: Balay, Bosch, Constructa, Gaggenau, Neff, Siemens.

Examples of Compatible Models:

• Bosch: DSZ5201, DSZ5230, DSZ6220, DSZ6240, DII31RV60, DWI37RU60, DWZ0AX5C0 series.
• Constructa: CZ5170X1, CZ5270X0, CZ5280X0 series.
• Gaggenau: AA200110, AA200812, AA442110 series.
• Neff: Z5170X1, Z5180X0, Z5270X0, D99L11N0, I38KHV2S0 series.
• Siemens: LZ56200, LF31IVP60, LC37IVV60 series.

Please verify your appliance's model number and existing filter's part number to ensure compatibility before installation.

4. Setup and Installation

Installing the carbon filter typically involves a few steps. Always refer to your specific range hood's instruction manual for detailed, model-specific instructions. The following are general guidelines:

1. Safety First: Disconnect the range hood from the main power supply before beginning any installation or maintenance.
2. Access the Filter Compartment: Open the grease filter grille or remove the metal grease filters to access the carbon filter compartment.
3. Remove Old Filter: If an old carbon filter is present, carefully remove it. Note its orientation for correct installation of the new filter.
4. Install New Filter: Insert the new DL-pro carbon filter into the designated compartment. Ensure it is securely seated and correctly oriented according to your range hood's design. Some filters may twist or clip into place.
5. Reassemble: Replace the grease filters and close the grille.
6. Restore Power: Reconnect the range hood to the power supply.

Incorrect installation can affect filter performance and potentially damage the appliance.

5. Operating Instructions

The DL-pro carbon filter operates passively within your range hood's recirculation system. Air drawn into the hood passes through the carbon filter, where activated carbon absorbs odors and traps fine particles before the cleaned air is returned to the kitchen. No specific user interaction is required during operation other than ensuring the range hood is turned on when cooking.

6. Maintenance

Activated carbon filters cannot be washed or regenerated. Their effectiveness diminishes over time as the carbon becomes saturated with absorbed odors and particles. Regular replacement is crucial for maintaining optimal air purification.

• Replacement Frequency: It is recommended to replace the carbon filter every 3 to 6 months, depending on cooking frequency and intensity. Heavy cooking may require more frequent replacement.
• Disposal: Dispose of used carbon filters according to local waste disposal regulations.

7. Troubleshooting

If you experience issues with odor removal or reduced airflow from your range hood, consider the following:

• Persistent Odors: If cooking odors are not being effectively removed, the carbon filter may be saturated and require replacement.
• Reduced Airflow: While less common for carbon filters than grease filters, a heavily saturated carbon filter can slightly impede airflow. Ensure grease filters are clean and the carbon filter is not excessively old.
• Improper Installation: Verify that the carbon filter is correctly installed and securely seated in its compartment.

If problems persist after checking these points, consult your range hood's specific troubleshooting guide or contact a qualified technician.

8. Specifications

9. Warranty and Support

For information regarding product warranty or technical support, please refer to the retailer's policy or contact DL-pro customer service directly. Keep your purchase receipt as proof of purchase.
