URAQT 60W LED Work Light Instruction Manual

1. Introduction

Thank you for choosing the URAQT 60W LED Work Lights. These high-performance lights are designed to provide superior illumination for a wide range of vehicles and applications. This manual contains important information regarding the installation, operation, and maintenance of your new LED work lights. Please read it thoroughly before use and retain it for future reference.

The URAQT 60W LED Work Light features a combined beam pattern, delivering 3600 lumens per pair with a 6000K color temperature. Each light contains 20 LED chips. Constructed with a 6063 anti-corrosion aluminum housing, these lights are designed for a lifespan exceeding 50,000 hours. They operate on 9-30V DC and are rated for temperatures from -40°C to 80°C. The package includes two 4-inch LED shooter lights with stainless steel nuts and bolts for installation.

2. Product Features

• High-Intensity Visibility: Each 60W work light features 3 rows of advanced LED chips, producing a bright 3600LM 6000K white light. The 120-degree ultra-wide projection reflector optics ensure uniform light distribution, enhancing visibility during night driving, low light conditions, or rain.
• Efficient Heat Dissipation: Constructed with a highly transparent, unbreakable PC housing and a 6063 anti-corrosion aluminum alloy body. Fine thermal fins and high-quality aluminum alloy heat sinks maximize surface area for optimal cooling, extending the lifespan of the LED chips.
• IP65 Rating: These LED lights are IP65 rated, providing excellent resistance to water, dust, and shocks. The die-cast aluminum housing is designed to withstand heat and contribute to an extended bulb lifespan of over 50,000 hours.
• Wide Application: Suitable for all 9V-30V vehicles and devices, including cars, ATVs, SUVs, UTVs, boats, trailers, bicycles, excavators, trucks, and tractors. Also ideal for courtyard and garden lighting, emergency lighting, and construction site illumination.

3. Package Contents

Please check the package contents upon receipt to ensure all items are present and undamaged:

• 2 x URAQT 4-inch 60W LED Work Lights
• 2 x Adjustable Mounting Brackets
• Set of Stainless Steel Nuts and Bolts

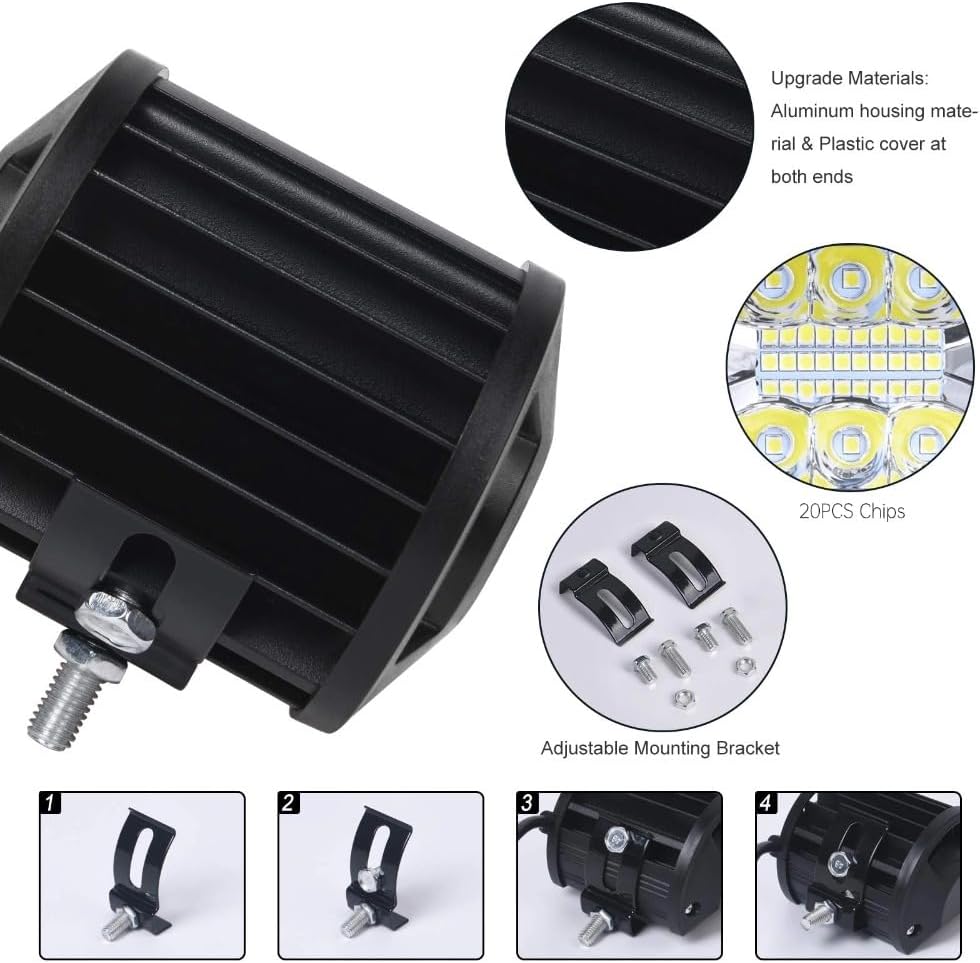

Image: Components of the URAQT LED Work Light, showing the light unit, adjustable mounting brackets, and hardware.

4. Specifications

Image: Detailed dimensions of the URAQT LED Work Light.

5. Safety Information

• Always disconnect power before installation or maintenance.
• Ensure the operating voltage (9-30V DC) is compatible with your vehicle's electrical system.
• Do not look directly into the light when it is operating, as it can cause eye strain or damage.
• Mount the lights securely to prevent vibration or detachment during vehicle operation.
• Keep wiring away from hot surfaces or moving parts.
• Consult a professional if you are unsure about the installation process.

6. Setup and Installation

The URAQT LED Work Lights are designed for straightforward installation. Follow these general steps:

1. Choose Mounting Location: Select a suitable location on your vehicle (e.g., bumper, roof rack, grille) that provides optimal light projection and does not obstruct other vehicle functions or lights.
2. Assemble Brackets: Attach the adjustable mounting brackets to the LED work lights using the provided nuts and bolts. Ensure they are tightened securely.
3. Mount Lights: Position the assembled lights at your chosen location. Mark and drill holes if necessary. Secure the lights firmly using the mounting hardware. The sliding bracket allows for angle adjustment.
4. Wiring: Connect the positive (+) wire of the LED light to a fused 9-30V DC power source (e.g., battery, auxiliary switch). Connect the negative (-) wire to a suitable ground point on the vehicle chassis. It is recommended to use a relay and switch for proper control and circuit protection.
5. Test Functionality: Once installed and wired, turn on the power to test the lights. Adjust the angle of the lights as needed for optimal beam direction.

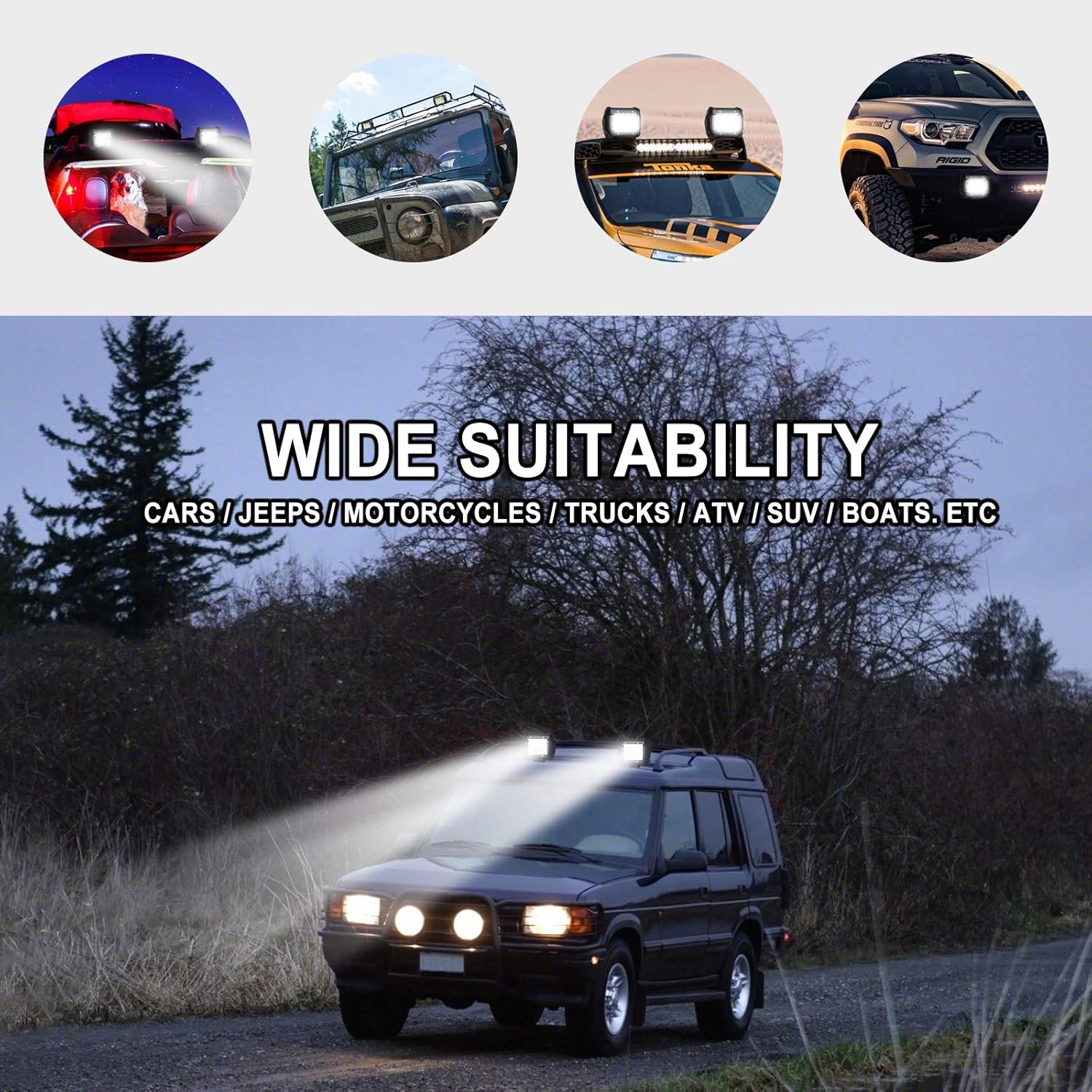

Image: Examples of URAQT LED Work Lights installed on different vehicle types.

7. Operating Instructions

Once properly installed and wired, operating your URAQT LED Work Lights is simple:

• Turn on the connected switch or power source to activate the lights.
• Turn off the switch or power source to deactivate the lights.
• Ensure the lights are only used when appropriate and in compliance with local regulations regarding auxiliary lighting.

Image: Demonstration of enhanced visibility provided by the URAQT LED Work Lights.

8. Maintenance

To ensure optimal performance and longevity of your URAQT LED Work Lights, follow these maintenance guidelines:

• Cleaning: Periodically clean the lens and housing with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the lens or finish.
• Inspection: Regularly check the mounting hardware for tightness and ensure all electrical connections are secure and free from corrosion.
• Damage: If the housing or lens becomes damaged, consider replacing the unit to maintain its IP65 rating and performance.

Image: The IP65 waterproof rating ensures durability against water and dust.

9. Troubleshooting

If you encounter issues with your URAQT LED Work Lights, refer to the following common problems and solutions:

• Lights Not Turning On:
  • Check all electrical connections for looseness or corrosion.
  • Verify that the power source (battery, switch) is functioning correctly and providing the correct voltage (9-30V DC).
  • Inspect the fuse in the circuit; replace if blown.
  • Ensure the ground connection is secure.
• Lights Flickering:
  • Check for loose wiring or poor connections.
  • Ensure the voltage supply is stable and within the specified range.
• Reduced Brightness:
  • Clean the lens surface to remove dirt or debris.
  • Verify that the voltage supply is adequate.

If these steps do not resolve the issue, please contact customer support.

10. Warranty and Support

URAQT products are manufactured to high-quality standards. For warranty information or technical support, please refer to the seller's policy or contact the point of purchase. Keep your purchase receipt as proof of purchase.
