1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Bristan BUZ2 SHXDIVCTFF C Buzz Safetouch Rigid Riser Bar Mixer Shower. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The Bristan Buzz Safetouch Rigid Riser Bar Mixer Shower is designed to deliver a high-quality showering experience with advanced safety features and ease of use. It includes a large rain shower head and a multi-mode hand shower.

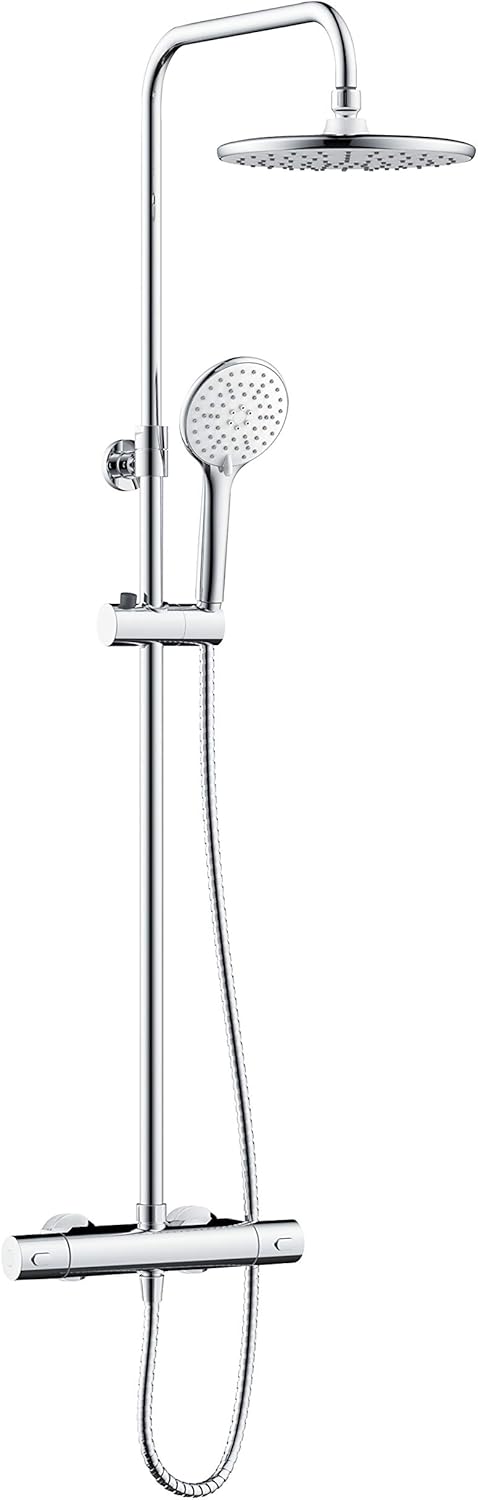

Figure 1: Bristan BUZ2 SHXDIVCTFF C Buzz Safetouch Rigid Riser Bar Mixer Shower, showing the main unit with overhead and handheld shower components.
2. Setup and Installation
Proper installation is crucial for the performance and longevity of your shower. It is recommended that installation be carried out by a qualified professional.
2.1 Key Installation Features
- Unique isolating fast fix wall mounting brackets (Wall Mount 12 Kit) for installation during the second fix onto the tiled surface.
- Connects to 15mm pipework and 3/4" male threads at 150mm pipe centres.
- Designed to fit over previously installed bar shower valves with 3/4" threaded connections at 150mm pipe centres width apart.
Figure 2: Close-up view of the unique front of tile mounting brackets with integral water isolation valves, facilitating easy installation.
2.2 Adjustable Height and Riser Arm
The rigid riser top section can be extended or lowered to suit specific installation requirements. The shower head clamp bracket is also adjustable for user preference.
Figure 3: Illustration of the adjustable height feature of the rigid riser and the swivel capability of the riser arm.
3. Operating Instructions
3.1 Water Flow and Temperature Control
The shower features smooth motion ceramic 1/2 turn cartridges. The left-hand side control rotates in one direction for the shower head and the other for the rain shower head. Temperature control is located on the right-hand side, with intuitive markings for flow and temperature.
- Flow Control: Use the left-hand knob to select between the main shower head and the rain shower head.
- Temperature Control: Use the right-hand knob to adjust water temperature.
Figure 4: The Bristan shower in active use, demonstrating water flow from the main shower head.

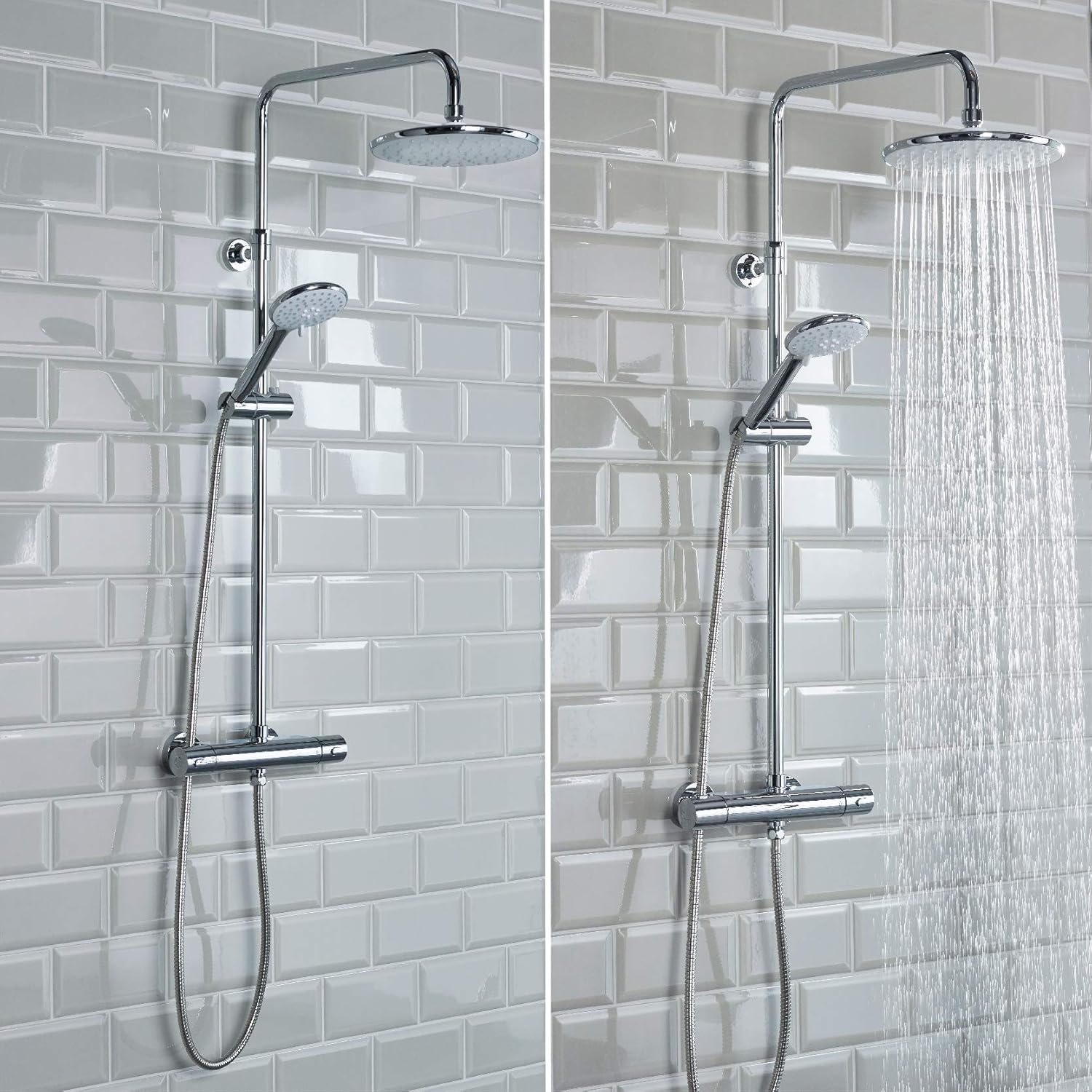

Figure 5: Comparison showing the shower unit before and during water flow, highlighting the deluge head and handheld shower.
3.2 Shower Head Modes
The 110mm diameter chrome shower head offers three distinct modes: Rain Spray, Massage Spray, and Combined Spray. These modes can be changed using the thumb toggle on the handset.
Figure 6: Visual representation of the three shower head modes (Rain, Massage, Combined) and the thumb toggle for mode change. Also shows how to rub clean nozzles.
3.3 Safety Features
- Thermostatic Anti-Scald: Maintains constant water temperature, preventing sudden changes.
- Maximum Temperature Stop: Set at 43 degrees Celsius for safety.
- Safe Touch Valve: Ensures the valve body remains cool during use, reducing the risk of burns.
4. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Bristan shower.
4.1 Cleaning the Shower Heads
To remove limescale build-up from the nozzles of both the deluge head and the handheld shower, simply rub them clean. This helps maintain consistent spray patterns.
Figure 7: Close-up showing how to rub clean the nozzles on the shower head to remove limescale build-up.
4.2 General Cleaning
Clean the chrome finish with a soft, damp cloth. Avoid abrasive cleaners, scourers, or chemical cleaning agents as these can damage the surface finish.
5. Troubleshooting
This section addresses common issues you might encounter with your shower unit.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure/Flow |
|
|
| Water Not Hot Enough |
|
|
| Dripping After Use |
|
|
6. Specifications
Detailed technical specifications for the Bristan BUZ2 SHXDIVCTFF C Buzz Safetouch Rigid Riser Bar Mixer Shower.
Figure 8: Technical Data Sheet providing comprehensive specifications and flow rates.
Figure 9: Detailed dimensional drawing of the shower unit and its components.
| Feature | Detail |
|---|---|
| Product Type | Bar Mixer Shower |
| Main Construction Material | Brass |
| Connection Inlet | 15mm Compression |
| Connection Outlet | G1/2" BSP |
| Number of Controls | 2 |
| Flow Control Valve Type | Thermostatic Cartridge |
| Plumbing System | Suitable for all plumbing systems |
| Minimum Dynamic Pressure | 0.5 Bar |
| Maximum Dynamic Pressure | 5.0 Bar |
| Maximum Static Pressure | 10 Bar |
| Maximum Hot Water Temperature | 65°C |
| Pre-set Outlet Temperature | 38°C |
| Isolation Included | Yes |
| Check Valve Supplied | Yes |
| Shower Kit | Adjustable Rigid Riser Kit |
| Product Dimensions | 47 x 30 x 111 cm |
| Item Weight | 4.19 kg |
| Colour | Chrome |
| Finish | Chrome |
| Material | Stainless Steel, Brass, ABS Plastic |
7. Warranty and Support
Bristan offers a 5-year guarantee on this product, covering manufacturing defects and material quality. This demonstrates Bristan's commitment to premium quality components and rigorous testing (tested to 200,000 on/off cycles).
For product advice, customer service assistance, spare parts requests, or service engineer visits, please contact Bristan's award-winning after-sales support.
Further information and support can be found on the official Bristan website: www.bristan.com
