1. Introduction
This instruction manual provides guidance for the HQparts Carburetor Rebuild Kit, designed for Walbro K10-HDC carburetors used in Solo 600, 605, 606, 616, and 631 models. This kit contains essential components for restoring the functionality of your carburetor. Proper installation is crucial for optimal performance and safety.
2. Package Contents
Please verify that all items listed below are present in your package:
- One (1) set Carburetor Rebuild Kit (Walbro K10-HDC compatible)
- Two (2) fuel filters
- One (1) fuel line

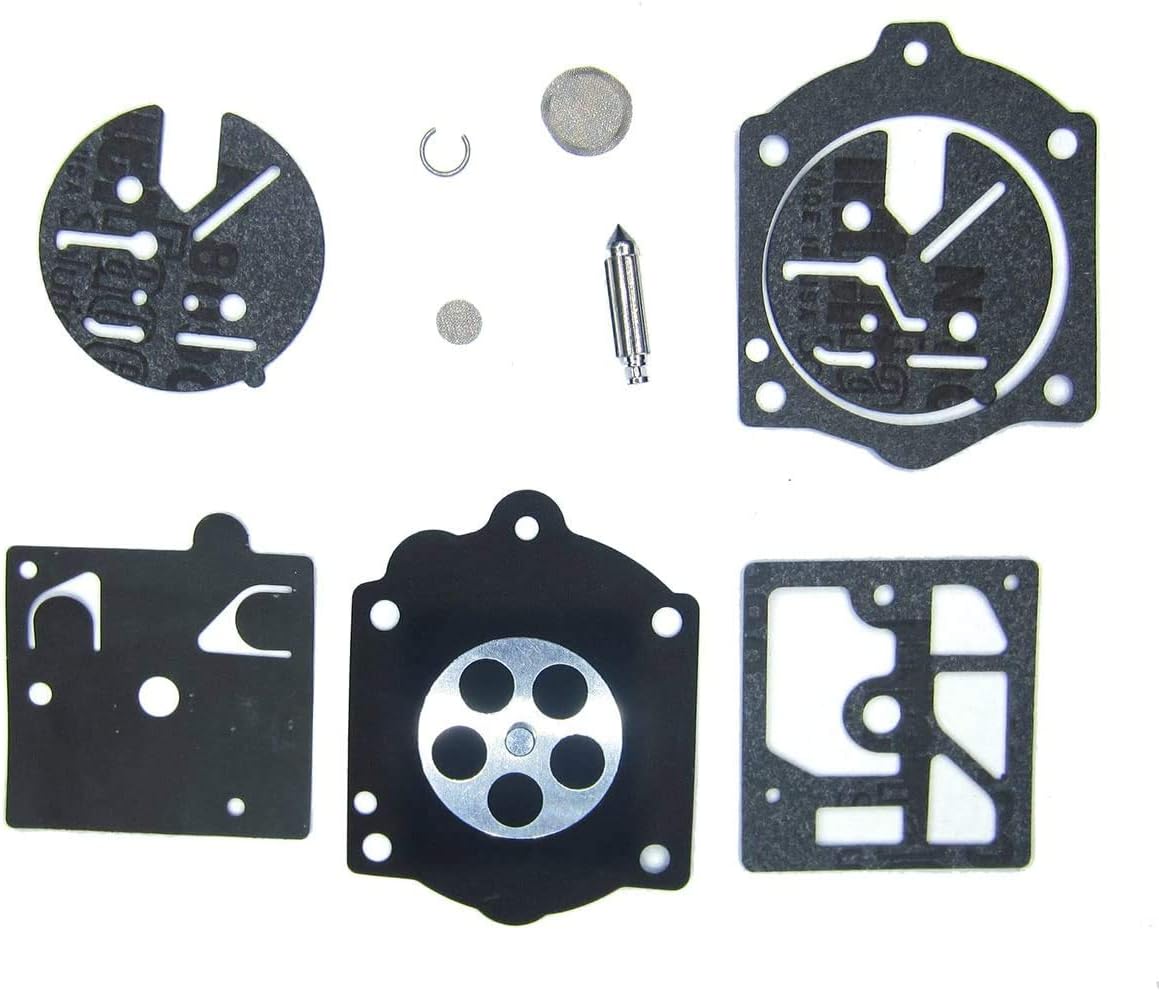

Image 1: Components included in the HQparts Carburetor Rebuild Kit. This image displays various gaskets, diaphragms, a needle valve, and screens, which are typical components for a carburetor overhaul.
3. Compatibility Information
Important: Amazon's compatibility information may not be 100% accurate and is primarily for search purposes. Before purchasing and installing, carefully compare the provided images, model numbers, and OEM part numbers with your existing carburetor components.
To ensure proper fitment, it is recommended to compare your old parts with the components in this kit. If uncertain, consult a qualified technician or contact the manufacturer with photos and model numbers of your existing parts for verification.
Image 2: A warning message emphasizing the importance of verifying compatibility by comparing product images, models, and OEM part numbers before purchase. This is crucial for ensuring the correct fit for your equipment.
4. Setup and Installation
This kit is intended for rebuilding Walbro K10-HDC carburetors. Installation requires mechanical aptitude and familiarity with small engine repair. If you are not confident in your ability to perform this repair, it is recommended to seek assistance from a qualified service technician.
4.1. Safety Precautions
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the engine is cool and disconnected from its power source (e.g., spark plug wire removed) before beginning work.
- Work in a well-ventilated area.
- Have a fire extinguisher readily available when working with fuel.
4.2. General Installation Steps (Refer to your equipment's service manual for specific instructions)
- Disassembly: Carefully remove the carburetor from the engine. Document or photograph the disassembly process to aid reassembly.
- Cleaning: Thoroughly clean all carburetor components using a suitable carburetor cleaner. Ensure all passages are clear and free of debris.
- Component Replacement: Replace all old gaskets, diaphragms, needle valves, and other worn components with the new parts from this kit. Pay close attention to the orientation of diaphragms and gaskets.
- Reassembly: Reassemble the carburetor, ensuring all screws are tightened to the manufacturer's specifications (if available).
- Installation: Reinstall the rebuilt carburetor onto the engine. Connect fuel lines and linkages correctly.
- Initial Start-up and Adjustment: After installation, the carburetor may require adjustment (e.g., idle speed, mixture screws) to ensure proper engine operation. Refer to your equipment's service manual for specific adjustment procedures.
5. Operating Considerations After Rebuild
Once the carburetor rebuild kit has been installed and the carburetor reassembled and adjusted, the engine should operate smoothly. Monitor engine performance closely during initial use. If the engine runs poorly, stalls, or exhibits unusual behavior, re-check the installation and adjustments.
6. Maintenance
Regular maintenance helps prolong the life of your carburetor and ensures reliable engine performance.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the equipment is stored for extended periods.
- Fuel Filters: The kit includes new fuel filters. Replace fuel filters periodically (e.g., annually or as recommended by your equipment manufacturer) to prevent debris from reaching the carburetor.
- Air Filter: Ensure the engine's air filter is clean and properly installed to prevent dirt from entering the carburetor.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system to prevent gum and varnish buildup in the carburetor.
7. Troubleshooting Common Issues
If you encounter problems after installing the rebuild kit, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine will not start or starts with difficulty | Incorrect reassembly, clogged fuel line/filter, improper carburetor adjustment, air leak. | Verify all components are correctly installed. Check fuel flow. Adjust carburetor settings. Inspect for air leaks around gaskets. |
| Engine runs rough or stalls | Improper carburetor adjustment, fuel delivery issues, debris in carburetor. | Re-adjust carburetor. Check fuel filter and line. Disassemble and clean carburetor again. |
| Fuel leaks from carburetor | Improperly seated gasket/diaphragm, damaged fuel line, float needle issue. | Inspect all gaskets and diaphragms for correct placement and damage. Check fuel line connections. Ensure float needle is seating properly. |
If troubleshooting steps do not resolve the issue, consult a professional service technician.
8. Specifications
- Product Type: Carburetor Rebuild Kit
- Compatible Carburetor Model: Walbro K10-HDC
- Compatible Engine Models: Solo 600, 605, 606, 616, 631
- Manufacturer: HQparts
- ASIN: B08NX2HH3F
9. Warranty and Support
Specific warranty information for this HQparts product is not provided in the product details. For warranty inquiries or technical support, please contact the seller or manufacturer directly through your purchase platform.
