1. Safety Information
Read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the electrical supply is disconnected at the circuit breaker or fuse box before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code (NEC).
- The mounting structure must be capable of supporting the weight of the fan (approximately 11.8 pounds).
- Do not operate the fan with damaged blades or housing.
- Maintain a minimum clearance of 7 feet from the floor to the bottom of the fan blades.
- Do not insert objects into the path of the fan blades.
2. Product Overview
The Prominence Home Memphis 52-inch indoor ceiling fan is designed for contemporary indoor spaces. It features a sleek design with four reversible blades, an integrated dimmable LED light, and pull chain controls. This fan is suitable for medium to large rooms.
Key Features:
- 52-inch Blade Span: Ideal for rooms up to 12 ft x 18 ft.
- Integrated LED Light: Dimmable (20% to 100%) 8.5-watt LED with 3000K color temperature, providing 800 lumens. Two E26/A15 bulbs are included.
- Reversible Blades: Features a white finish on one side and a gray oak finish on the other, allowing for customizable aesthetics.
- Reversible Motor: Provides adjustable airflow for both summer cooling and winter heat circulation.
- Pull Chain Control: Independent pull chains for fan speed and light operation.
- Dual Mount Compatible: Can be installed with a standard downrod (6-inch downrod included) or on angled ceilings (angle bracket sold separately for angles greater than 17 degrees).
3. Setup and Installation
This section provides general guidelines for installing your ceiling fan. Refer to the detailed instruction manual included in your product packaging for specific step-by-step diagrams and safety warnings.
Before You Begin:
- Ensure power is OFF at the circuit breaker.
- Gather all necessary tools (screwdriver, wire strippers, ladder, etc.).
- Verify that you have all parts included in the package. Note: Ceiling mounting screws may not be included and might need to be purchased separately depending on your ceiling type.
Installation Steps (General):
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box. Ensure the junction box is rated for ceiling fan support.
- Downrod Assembly: Attach the downrod to the motor housing. For angled ceilings, a separate angle bracket may be required.
- Wiring Connections: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram. This typically involves connecting ground, neutral, and live wires for both the fan and light functions.
- Canopy Installation: Slide the canopy up to the ceiling and secure it to the mounting bracket.
- Blade Attachment: Attach the fan blades to the blade irons, then secure the blade irons to the motor housing. It is often easier to attach blades before hanging the motor if possible, but follow the specific manual's guidance.
- Light Kit Assembly: Install the light kit, including the LED bulbs and frosted globe.
- Final Checks: Ensure all connections are secure and all screws are tightened. Restore power and test the fan and light functions.
4. Operating Instructions
The Prominence Home Memphis ceiling fan is operated using two pull chains and a reversible motor switch.
Fan Speed Control:
- Locate the pull chain with the fan icon.
- Pull the chain once for High speed.
- Pull the chain twice for Medium speed.
- Pull the chain three times for Low speed.
- Pull the chain four times to turn the fan OFF.
Light Control:
- Locate the pull chain with the light bulb icon.
- Pull the chain once to turn the light ON.
- Pull the chain again to turn the light OFF.
- To dim the light, hold the light pull chain for a few seconds while the light is on. Release when the desired brightness is reached.

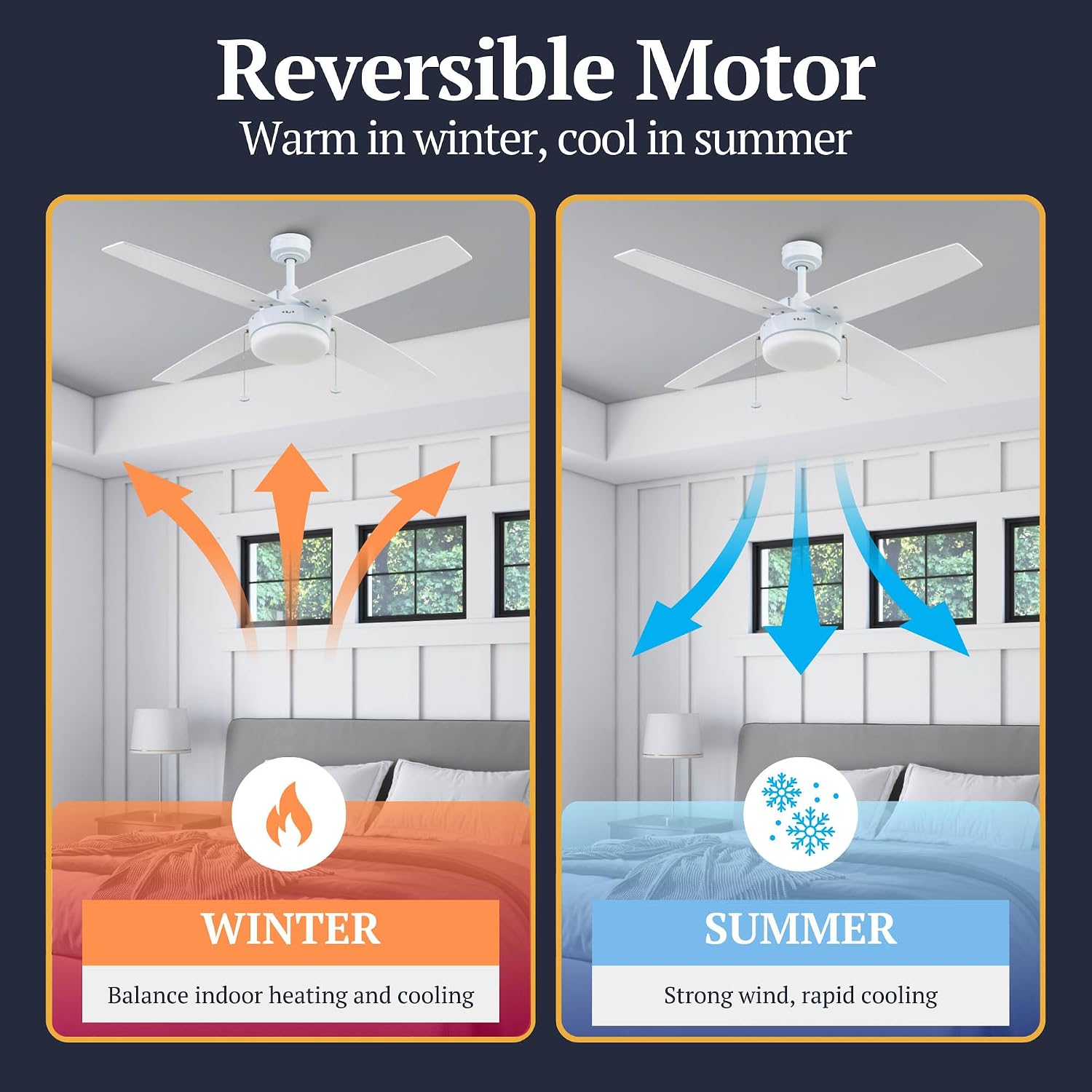

Reversible Motor Function:
The fan features a reversible motor for year-round comfort. A slide switch on the motor housing controls the direction of blade rotation.
- Summer Mode (Downward Airflow): Set the switch to the position that causes the blades to rotate counter-clockwise, pushing air down to create a cooling breeze.
- Winter Mode (Upward Airflow): Set the switch to the position that causes the blades to rotate clockwise, drawing air up towards the ceiling to circulate warm air.
- Always turn off the fan and wait for the blades to stop completely before changing the direction switch.
Official product video demonstrating the features and appearance of the Prominence Home Memphis 52-inch ceiling fan in bright white.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your ceiling fan.
Cleaning:
- Always turn off the power before cleaning.
- Use a soft, damp cloth to clean the fan blades and motor housing. Avoid abrasive cleaners that could damage finishes.
- Clean the light globe periodically to maintain light output.
Bulb Replacement:
- Ensure power is off before replacing bulbs.
- The fan uses two E26/A15 LED bulbs. Replace with bulbs of the same type and wattage (8.5W) to ensure proper dimming function and light output.
- Carefully twist off the frosted globe to access the bulbs.
Tightening Fasteners:
- Periodically check all screws and fasteners on the fan assembly, especially those securing the blades and mounting bracket, to ensure they are tight. Loose fasteners can cause noise or wobbling.
6. Troubleshooting
If you experience issues with your ceiling fan, consult the following troubleshooting guide before contacting support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Motor switch is off. | Check circuit breaker/fuse; Verify all wire connections are secure; Ensure pull chain is engaged and reversible switch is in a valid position. |
| Light does not work | Loose bulb; Faulty bulb; Loose wire connection to light kit. | Tighten or replace bulbs; Check light kit wiring connections. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use the included balancing kit if necessary; Ensure mounting bracket is securely fastened to the ceiling. |
| Noisy operation | Loose screws; Blades hitting an obstruction; Motor hum. | Check and tighten all screws; Ensure no objects are in the fan's path; A slight motor hum is normal, but excessive noise may indicate loose components. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Prominence Home |
| Model Name | Memphis |
| Model Number | 51651-01 |
| Color | White |
| Product Dimensions | 52"D x 52"W x 13.57"H |
| Blade Span | 52 inches |
| Number of Blades | 4 |
| Blade Material | Engineered Wood |
| Light Kit | Integrated LED, Dimmable (20-100%) |
| Bulb Type | 2 x E26/A15 LED (8.5 watts, 3000K, 800 lumens) |
| Control Type | Pull Chain Control |
| Number of Speeds | 3 |
| Special Features | Reversible Airflow |
| Mounting Type | Ceiling Mount (Downrod, Angled) |
| Indoor/Outdoor Usage | Indoor |
| Voltage | 120 volts_of_alternating_current |
| Wattage | 55.5 watts (fan) |
| Air Flow Capacity | 4620.44 cfm |
| Item Weight | 11.8 pounds |
| Certification | cETLus |
8. Warranty and Support
Warranty Information:
This Prominence Home Memphis ceiling fan is backed by a Limited Lifetime Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your product or visit the official Prominence Home website.
Customer Support:
If you have any questions, require assistance with installation, or need to troubleshoot an issue not covered in this manual, please contact Prominence Home customer support. Contact information can typically be found on the product packaging or the manufacturer's website.
