Adam Equipment ABW 8 Aqua Washdown Scales User Manual

Product Overview

The Adam Equipment ABW 8 Aqua Washdown Scale is designed for precise weighing in environments requiring frequent cleaning, such as food processing, industrial settings, and professional kitchens. It features robust construction and an IP67 rating for water and dust protection, ensuring durability and easy maintenance.

Figure 1: Front view of the Adam Equipment ABW 8 Aqua Washdown Scale, showing the stainless steel pan and LED display.

Key Features:

• IP67 Protection: Fully protected from dirt, dust, and water immersion (up to 1 meter for 30 minutes).
• NSF Certified: Meets public health and safety standards for food contact.
• Dual Displays: Large front-facing and rear-facing LED displays for enhanced productivity.
• Checkweighing Function: LED color-changing indicators for low, OK, or high limits.
• Versatile Applications: Supports weighing, parts counting, and percentage weighing.
• Durable Construction: Features a removable stainless steel pan and ABS plastic housing.
• Power Options: Operates via AC adapter or built-in rechargeable battery (up to 55 hours).

Setup and Installation

Unpacking the Scale:

Carefully remove the scale from its packaging. Inspect all components for any signs of damage during transit. Retain the original packaging for future transport or storage.

Components:

• ABW 8 Scale Base
• Stainless Steel Weighing Pan
• AC Adapter
• User Manual (this document)

Figure 2: Top-down view of the ABW 8 scale, highlighting its compact design and stainless steel pan.

Placement:

1. Place the scale on a firm, stable, and level surface, free from vibrations.
2. Avoid direct sunlight, drafts, or rapid temperature changes, which can affect accuracy.
3. Ensure adequate space around the scale for operation and cleaning.

Leveling the Scale:

The ABW 8 scale is equipped with adjustable feet and a spirit level bubble. Adjust the feet until the bubble is centered within the circle, indicating the scale is level.

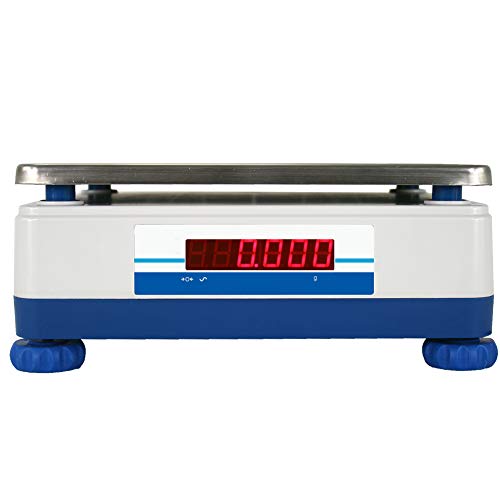

Figure 3: Side view of the ABW 8 scale, showing the adjustable feet for leveling.

Power Connection:

Connect the supplied AC adapter to the power input port on the scale and then to a suitable power outlet. The internal rechargeable battery will begin charging automatically. The scale can be operated while charging.

Operating Instructions

Basic Weighing:

1. Press the Power button to turn on the scale.
2. Wait for the display to show "0.000" and the stability indicator to appear.
3. Place the item to be weighed on the center of the stainless steel pan.
4. Read the weight displayed on the LED screen.

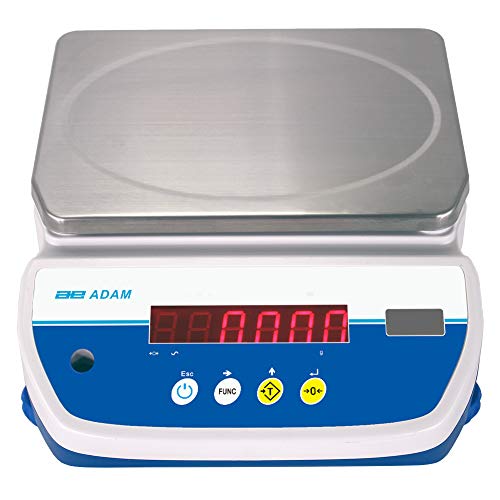

Figure 4: Close-up of the ABW 8 control panel, showing the power, function, and zero/tare buttons.

Tare Function:

To weigh an item in a container, first place the empty container on the pan. Press the Zero/Tare button. The display will return to "0.000". Now, place the item inside the container, and the scale will display only the net weight of the item.

Changing Weighing Units:

The ABW 8 supports multiple weighing units (g, kg, lb, oz, lb:oz). To cycle through available units, press the FUNC button repeatedly until the desired unit is displayed.

Parts Counting:

1. With the scale displaying zero, press the FUNC button until "COUNT" mode is indicated (if applicable, consult full manual for specific mode entry).
2. Place a known quantity of items (e.g., 10, 20, 50) on the pan.
3. Follow the on-screen prompts or use the FUNC button to confirm the sample size.
4. Remove the sample and place the bulk quantity of items on the pan. The display will show the total count.

Checkweighing:

The checkweighing function allows you to set upper and lower weight limits. The scale will indicate if the weighed item is below, within, or above these limits using color-changing LEDs (if equipped) or on-screen indicators.

1. Enter checkweighing mode (refer to the full manual for specific steps).
2. Set the desired upper and lower limits.
3. Place items on the pan. The scale will visually indicate if the weight is within tolerance.

Maintenance and Cleaning

General Cleaning:

Due to its IP67 rating, the ABW 8 scale can be easily cleaned. Use a damp cloth with mild detergent to wipe down the exterior surfaces. The stainless steel pan is removable for thorough cleaning.

Figure 5: The ABW 8 scale with its removable stainless steel pan, facilitating easy cleaning.

Washdown Procedure:

The scale can be hosed down for comprehensive cleaning. Ensure all port covers (if any) are securely closed before washing. After washing, allow the scale to air dry completely or wipe it down with a clean, dry cloth.

Battery Care:

To maximize battery life, fully charge the scale before first use. For long-term storage, charge the battery periodically (e.g., every 3 months) to prevent deep discharge.

Calibration:

The ABW 8 scale supports external calibration. Regular calibration with certified weights is recommended to maintain accuracy, especially after relocation or significant temperature changes. Refer to the full user manual for detailed calibration procedures.

Troubleshooting

Specifications

Figure 6: Detailed diagram illustrating the dimensions of the ABW 8 scale.

Support and Warranty

Adam Equipment is committed to providing reliable products and excellent customer support. For technical assistance, repairs, or calibration services, please contact our support team.

Contact Information:

Adam Equipment Inc.

1 Fox Hollow Road

Oxford, CT 06478, USA

Telephone: 203-790-4774

Website: www.adamequipment.com

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Adam Equipment website. Adam Equipment products are designed for durability and performance, backed by a commitment to quality.
