Introduction
This manual provides essential information for the safe and efficient operation of your Klarstein Delicatessa Slim Domino Induction Cooker. Please read all instructions carefully before installation and use, and retain this manual for future reference.
Important Safety Information
To prevent personal injury or property damage, always observe basic safety precautions, including the following:
- Ensure proper installation by a qualified technician.
- Do not operate the appliance if it is damaged.
- Keep children away from the appliance during operation and cooling.
- Use only induction-compatible cookware.
- Avoid placing metallic objects on the cooktop surface.
- Do not clean the cooktop with steam cleaners.
- The appliance features an automatic shut-off, child safety lock, and overheating protection.
Product Overview
The Klarstein Delicatessa Slim Domino Induction Cooker is a built-in hob designed for efficient and flexible cooking. It features two cooking zones with VarioHeating technology, allowing for combined use of the zones.
Key Features:
- Two cooking zones with a total power of 3500 Watts.
- VarioHeating for combining cooking zones into a flexible area.
- Sensor-touch control panel with digital display.
- ThermoBoost function for rapid heating.
- Timer function up to 99 minutes.
- Pot detection.
- Keep-warm function.
- EcoThermal Control with residual heat display.
- Child safety lock and overheating protection.
Setup and Installation
The Klarstein Delicatessa Slim Domino Induction Cooker is designed for drop-in installation. Professional installation is recommended to ensure correct electrical connection and proper ventilation.
Included Components:
- Built-in electric induction hob
- Mounting material
Installation Dimensions:
- Total dimensions: approximately 29 x 5.5 x 52 cm (W x H x D)
- Installation dimensions: approximately 27 x 5 x 50 cm (W x H x D)
- Cable length: approximately 100 cm
Refer to the detailed installation guide provided with the product for specific cutout dimensions and electrical requirements (220-240 V~ | 50/60 Hz).
Operating Instructions
Control Panel:

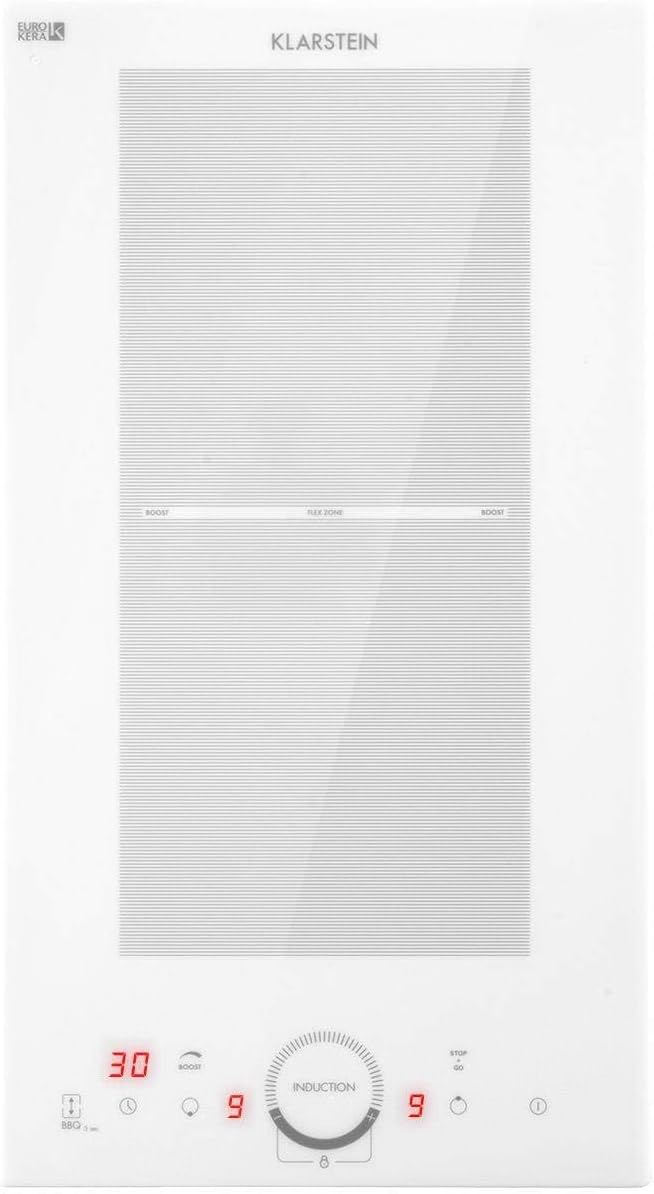

The cooktop is operated via a sensor-touch control panel located at the front. The digital display shows power levels and timer settings.
Power Levels and Zones:
- The cooktop has 9 adjustable power levels.
- Two cooking zones: one with 2000 Watt (Boost 2300W) and one with 1500 Watt (Boost 1800W).
- Total power output is 3500 Watts.
Special Functions:

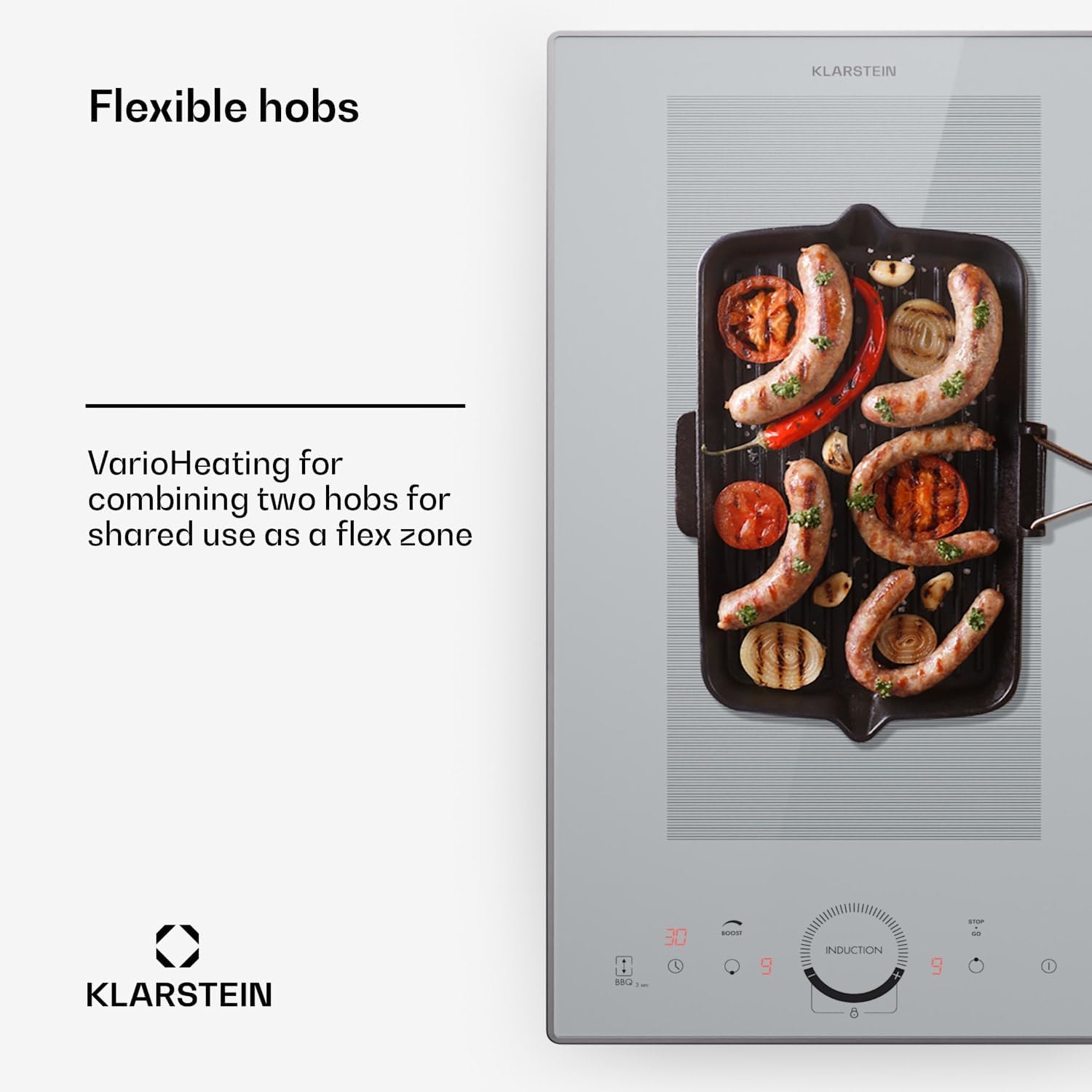

- VarioHeating (Flex Zone): Combine both cooking zones to create a larger flexible cooking area, ideal for larger pots or griddle pans.
- ThermoBoost: Activates maximum power for rapid heating. Each zone has an individual boost function (1800W or 2800W).
- Timer: Set a cooking duration up to 99 minutes for each zone. The cooktop will automatically switch off when the timer expires.
- Pot Detection: The cooktop automatically detects suitable induction-compatible cookware. Operation will not begin without a pot or with an incompatible pot.
- Keep-Warm Function: Maintains a low temperature to keep food warm after cooking.
- EcoThermal Control: Displays residual heat, allowing you to use the remaining heat to save energy.
- Stop & Go (ThermalRecall System): Temporarily pauses cooking and saves the current temperature settings, allowing you to resume cooking without re-entering settings.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction cooker.
- Always disconnect the appliance from the power supply before cleaning.
- Allow the cooktop to cool completely before cleaning.
- Wipe the glass-ceramic surface with a soft, damp cloth and a mild detergent.
- For stubborn stains, use a specialized ceramic hob cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the surface.
- Do not use steam cleaners.
Troubleshooting
If you encounter issues with your induction cooker, refer to the following common troubleshooting tips:
- Appliance does not turn on: Check if the appliance is properly connected to the power supply. Ensure the child safety lock is not activated.
- Cooktop not heating: Verify that induction-compatible cookware is being used and is correctly placed on the cooking zone.
- Error codes displayed: Consult the full user manual for a list of specific error codes and their solutions.
- Unusual noises: A slight humming or clicking sound during operation is normal for induction cooktops.
If the problem persists, contact qualified service personnel.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | KLARSTEIN |
| Model Info | Klarstein Delicatessa |
| Item Model Number | CP4-Delicatessa-D-WH |
| Installation Type | Drop-In |
| Burner Type | Induction |
| Heating Elements | 2 |
| Total Wattage | 3500 watts |
| Voltage | 220-240 Volts |
| Fuel Type | Electric |
| Material Type | Glass Ceramic |
| Color | White |
| Item Weight | 10.12 pounds (approx. 4.6 kg) |
| Product Dimensions (D x W x H) | 20.47" x 11.42" x 2.17" (approx. 52 x 29 x 5.5 cm) |
| Special Features | Automatic Shut-Off, Safety Lock, Timer, Pot Detection, VarioHeating, ThermoBoost, Keep-Warm Function, EcoThermal Control |
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Klarstein website. Keep your purchase receipt as proof of purchase.
