1. Introduction
Thank you for choosing the Mabe 510L Automatic Stainless Steel Refrigerator. This manual provides important information regarding the installation, operation, and maintenance of your new appliance. Please read it thoroughly before using the refrigerator to ensure safe and efficient operation. Keep this manual for future reference.
2. Important Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
- Electrical Safety: Ensure the refrigerator is connected to a grounded electrical outlet. Do not use extension cords.
- Ventilation: Maintain adequate clearance around the refrigerator for proper ventilation.
- Cleaning: Unplug the appliance before cleaning. Use non-flammable cleaning agents.
- Child Safety: Do not allow children to play with or inside the refrigerator. Old refrigerators must be disposed of safely to prevent child entrapment.
- Flammable Materials: Do not store explosive substances or flammable materials inside the appliance.

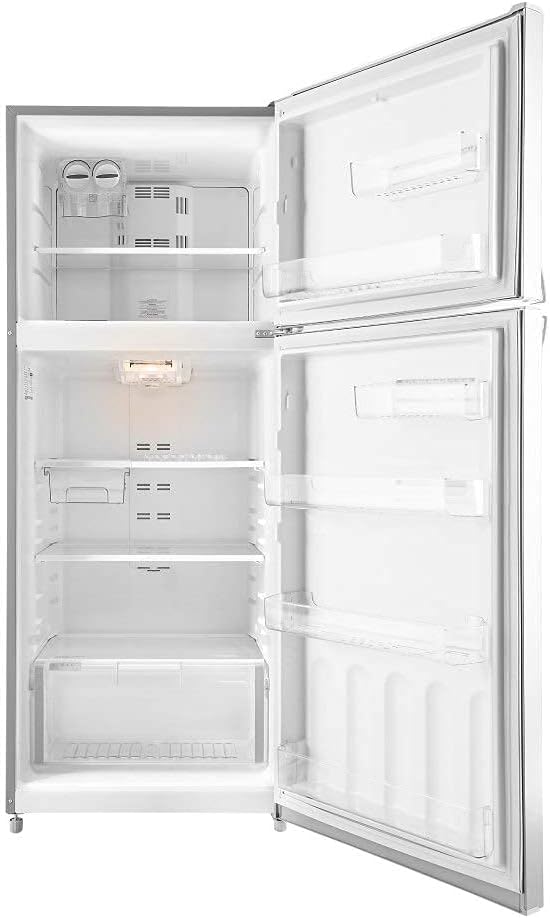

3. Parts and Features
Your Mabe refrigerator is designed for convenience and efficiency. Familiarize yourself with its main components:
Key Features:
- Spacious Interior: Allows for storage of large food items and containers.
- Tempered Glass Shelves: Designed to contain small spills, making cleanup easier.
- Energy Saving: Features multi-energy saving technology to reduce electricity consumption.
4. Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Report any damage to your retailer immediately.
Placement
- Choose a location away from direct sunlight and heat sources (e.g., stove, radiator).
- Ensure the floor is level and strong enough to support the refrigerator when fully loaded.
- Allow at least 10 cm (4 inches) of space at the back and sides for proper air circulation.
Leveling
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
Initial Cleaning
Before first use, clean the interior and exterior of the refrigerator with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth.
Power Connection
Plug the refrigerator into a dedicated, grounded 3-prong outlet. Allow the refrigerator to run for at least 2-4 hours before placing food inside to ensure it reaches the optimal temperature.
5. Operating Instructions
Temperature Control
The refrigerator features an adjustable thermostat, typically located inside the fresh food compartment. Turn the dial to adjust the cooling intensity. A higher number usually indicates colder temperatures. Start with a medium setting and adjust as needed based on your food storage requirements and ambient temperature.
Using Shelves and Drawers
- Adjustable Shelves: The tempered glass shelves can be repositioned to accommodate items of various heights. Lift the shelf and slide it out, then reinsert it into the desired slots.
- Crisper Drawer: Use the crisper drawer for storing fruits and vegetables to maintain their freshness and humidity levels.
- Door Bins: Ideal for storing bottles, jars, and smaller items.
Automatic Defrost System
This refrigerator is equipped with an automatic defrost system, eliminating the need for manual defrosting of the freezer compartment. Frost buildup is automatically melted and drained.
6. Care and Maintenance
Cleaning the Interior
Unplug the refrigerator before cleaning. Wash interior surfaces with a solution of warm water and baking soda (2 tablespoons baking soda to 1 liter of water). Rinse and dry thoroughly. Do not use abrasive cleaners or harsh chemicals.
Cleaning the Exterior
Clean the exterior surfaces with a soft cloth dampened with mild detergent and warm water. For stainless steel finishes, use a specialized stainless steel cleaner and polish in the direction of the grain. Wipe dry to prevent streaks.
Door Gaskets
Regularly clean the door gaskets with warm, soapy water to ensure they remain pliable and maintain a tight seal. A damaged gasket can lead to inefficient cooling.
Power Outages
In case of a power outage, keep the refrigerator and freezer doors closed as much as possible to maintain internal temperatures. Food should remain frozen for approximately 24 hours if the doors are kept closed.
Vacation Care
- Short Vacations (less than 3 weeks): Leave the refrigerator operating normally.
- Long Vacations (3 weeks or more): Empty all food, unplug the refrigerator, clean it thoroughly, and leave the doors ajar to prevent odors and mold growth.
7. Troubleshooting
Before contacting service, review the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power to the unit; power cord unplugged; circuit breaker tripped. | Check power supply; ensure cord is securely plugged in; reset circuit breaker. |
| Refrigerator is not cooling sufficiently. | Temperature control set too warm; door left open; excessive food load; poor ventilation. | Adjust temperature setting; ensure door is closed properly; avoid overloading; check clearances. |
| Unusual noises. | Refrigerator not level; items vibrating inside; normal operating sounds. | Level the refrigerator; rearrange items; some sounds (e.g., refrigerant flow) are normal. |
| Water on floor or inside. | Drain tube clogged; door not sealing properly. | Clear drain tube; check door gasket for damage or obstruction. |
If the problem persists after attempting these solutions, please contact customer service.
8. Product Specifications
Detailed specifications for your Mabe 510L Automatic Stainless Steel Refrigerator:
| Specification | Value |
|---|---|
| Brand | Mabe |
| Model Number | RMT 510RXMRX0 |
| Color | Gray (Stainless Steel finish) |
| Product Dimensions (D x W x H) | 78.8 cm x 66.1 cm x 187.3 cm |
| Product Weight | 77 kg |
| Capacity | 19 Cubic Feet (approx. 510 Liters) |
| Freezer Capacity | 9 Cubic Feet |
| Voltage | 28V (Note: This value seems unusually low for a refrigerator. Please verify with product label.) |
| Defrost System | Automatic |
| Number of Doors | 2 (Top Freezer configuration) |
| Installation Type | Freestanding |
9. Warranty and Support
Warranty Information
Your Mabe refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Customer Support
For technical assistance, spare parts, or service requests, please contact Mabe customer support. You can find contact details on the Mabe official website or your warranty documentation.
For additional resources and product information, you may visit the official Mabe YouTube channel playlist: Mabe Product Videos
