Introduction
Thank you for purchasing the Mayer MMAO24 Air Fryer Oven. This appliance is designed to cook a variety of foods with minimal or no oil, providing healthier and delicious results. It functions as both an air fryer and a convection oven, featuring top and bottom stainless steel heating elements.
Please read this manual thoroughly before operation to ensure safe and efficient use of your appliance.
Important Safety Instructions
- Always place the appliance on a stable, heat-resistant surface.
- Ensure adequate ventilation around the appliance during operation.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Keep children and pets away from the appliance during operation.
- Unplug the appliance from the outlet when not in use and before cleaning.
- Do not operate the appliance if the cord or plug is damaged.
- The exterior surfaces may become hot during use. Use oven mitts when handling hot parts.
- Do not block any ventilation openings.
Product Overview
Front view of the Mayer MMAO24 Air Fryer Oven, showing the control panel, glass door, and interior rack.
Angled view of the Mayer MMAO24 Air Fryer Oven, highlighting its compact design and side ventilation.
Key Features:
- 24.0L Capacity
- Counter-top Convection Oven with built-in Air Fryer
- Top and bottom stainless steel heating elements
- Double glass door for improved insulation and visibility
- 60-minute timer with automatic shut-off
- Adjustable temperature up to 230°C
- Removable crumb tray for easy cleaning
Setup and First Use
Unpacking:
- Carefully remove the air fryer oven and all accessories from the packaging.
- Remove any protective film or stickers from the appliance.
- Check that all components are present: 1 x Air Fryer Oven, 1 x Wire Rack, 1 x Enameled Baking Tray, 1 x Air Fry Basket Tray.
Placement:
- Place the oven on a flat, stable, and heat-resistant surface.
- Ensure there is at least 10-15 cm of clear space on all sides (back, sides, and top) for proper ventilation.
- Do not place the oven near flammable materials or under cabinets.
Initial Cleaning:
- Before first use, wipe the exterior of the oven with a damp cloth.
- Wash the wire rack, enameled baking tray, and air fry basket tray with warm, soapy water. Rinse thoroughly and dry completely.
- Insert the crumb tray at the bottom of the oven.
Burn-in Process (Recommended):
- Plug the oven into a grounded electrical outlet.
- Set the temperature to 230°C and the timer to 15-20 minutes.
- Allow the oven to run empty to burn off any manufacturing residues. A slight odor or smoke is normal during this process. Ensure the area is well-ventilated.
- After the cycle, unplug the oven and let it cool down completely.
Operating Instructions
Control Panel:
Close-up view of the control panel with Function, Temperature, and Timer knobs.
The Mayer MMAO24 features three main control knobs:
- Function Knob (Left): Selects the cooking mode.
- Temperature Knob (Middle): Adjusts the cooking temperature from OFF to 230°C.
- Timer Knob (Right): Sets the cooking time up to 60 minutes.
Cooking Functions:
The Function knob allows you to choose from the following cooking modes:
- Air Fry: Utilizes a powerful fan for rapid hot air circulation, ideal for crispy results.
- Bottom Heat: Heats from the bottom element, suitable for baking or slow cooking.
- Top Heat: Heats from the top element, good for browning or grilling.
- Top & Bottom Heat: Standard oven function, using both heating elements.
- Top & Bottom Heat with Fan: Convection oven function, combining both elements with fan assistance for even cooking.
General Operation:
- Place food on the appropriate accessory (wire rack, baking tray, or air fry basket).
- Slide the accessory into the desired rack position inside the oven.
- Close the double glass door securely.
- Turn the Function Knob to select your desired cooking mode.
- Turn the Temperature Knob to set the desired cooking temperature (up to 230°C).
- Turn the Timer Knob clockwise to set the cooking time (up to 60 minutes). The power indicator light will illuminate. For times less than 20 minutes, turn the knob past 20 and then back to the desired time for accuracy.
- The oven will automatically shut off when the timer reaches zero, indicated by an audible bell.
- Carefully remove cooked food using oven mitts.

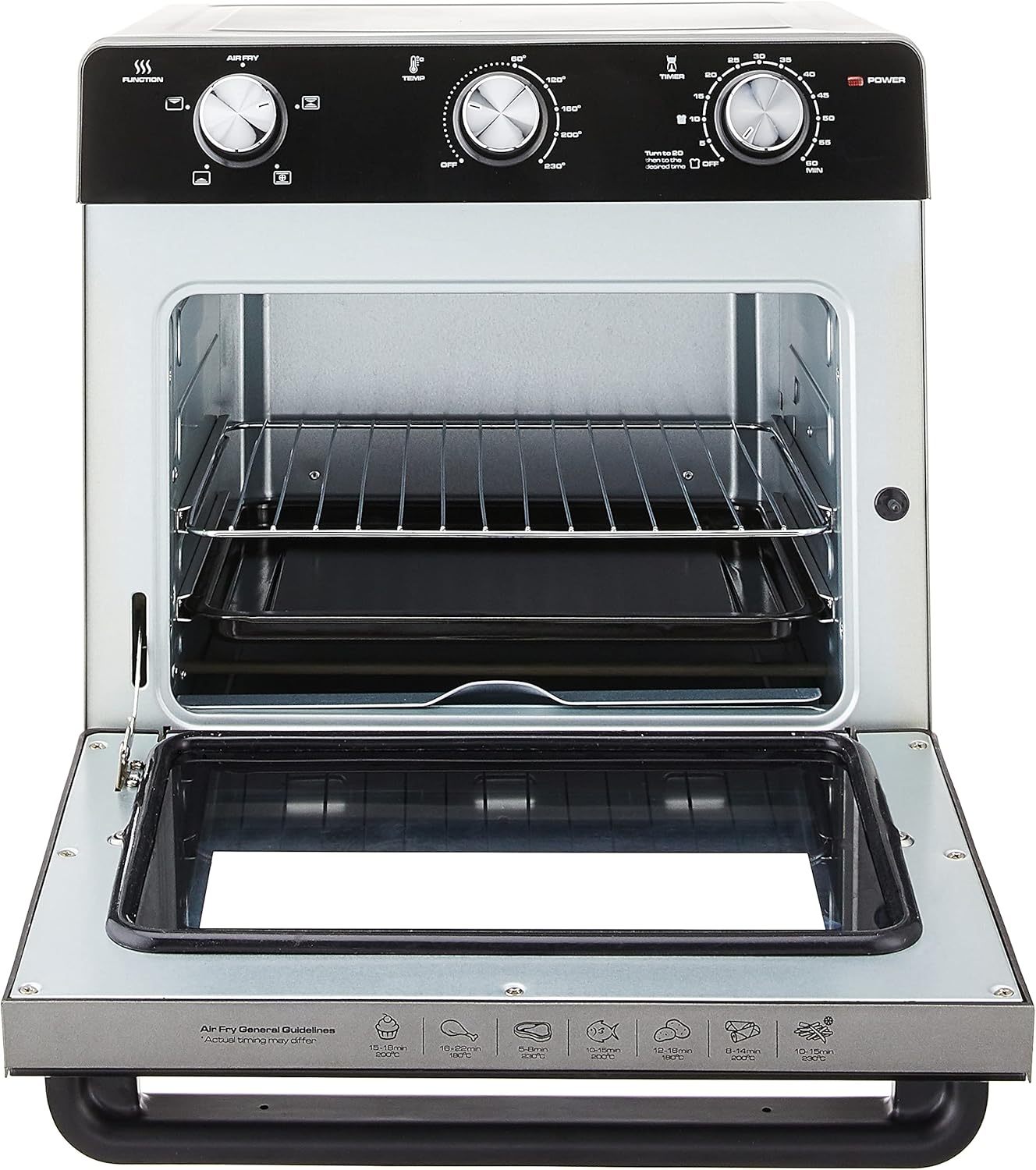

Interior view of the oven showing the wire rack and enameled baking tray in place.
Interior view of the oven with the air fry basket tray inserted, ideal for air frying.
Maintenance and Cleaning
Regular cleaning will help maintain the performance and longevity of your Mayer MMAO24 Air Fryer Oven.
- Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
- Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, a non-abrasive sponge can be used. Ensure the interior is dry before next use.
- Accessories: The wire rack, enameled baking tray, and air fry basket tray can be washed in warm, soapy water. They are also dishwasher safe.
- Removable Crumb Tray: Pull out the crumb tray from the bottom of the oven. Empty any crumbs and wash it with warm, soapy water. Rinse and dry thoroughly before reinserting.
- Do not use metal scouring pads or sharp objects to clean the interior or accessories, as this may damage the non-stick coating or surfaces.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; power outlet issue; timer not set. | Ensure the power cord is securely plugged into a working outlet. Turn the timer knob to the desired cooking time. |
| Food is not cooking evenly. | Overcrowding; incorrect temperature/time; food placement. | Avoid overcrowding the oven. Adjust temperature and time as needed. Ensure food is placed centrally on the rack. Consider using the "Top & Bottom Heat with Fan" function for better circulation. |
| Excessive smoke from oven. | Food residue; fatty foods; initial burn-off. | Clean the oven interior and accessories thoroughly. For fatty foods, use the baking tray to catch drips. A small amount of smoke during first use is normal. |
| Timer not working correctly. | Incorrect setting for short times. | For times less than 20 minutes, turn the timer knob past 20 minutes first, then back to the desired shorter time. |
If the problem persists after attempting these solutions, please contact Mayer customer support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Mayer |
| Model | MMAO24 |
| Capacity | 24 Liters |
| Wattage | 1850 watts |
| Voltage | 220 Volts |
| Material | Stainless Steel, Glass |
| Control Type | Knob |
| Product Dimensions (D x W x H) | 40.5 x 42 x 37 cm |
| Item Weight | 11.74 kg |
| Special Features | Timer, Removable Crumb Tray |
| Included Components | 1 x Air Fryer Oven, 1 x Wire Rack, 1 x Enameled Baking Tray, 1 x Air Fry Basket Tray |
Diagram illustrating the dimensions of the Mayer MMAO24 Air Fryer Oven.

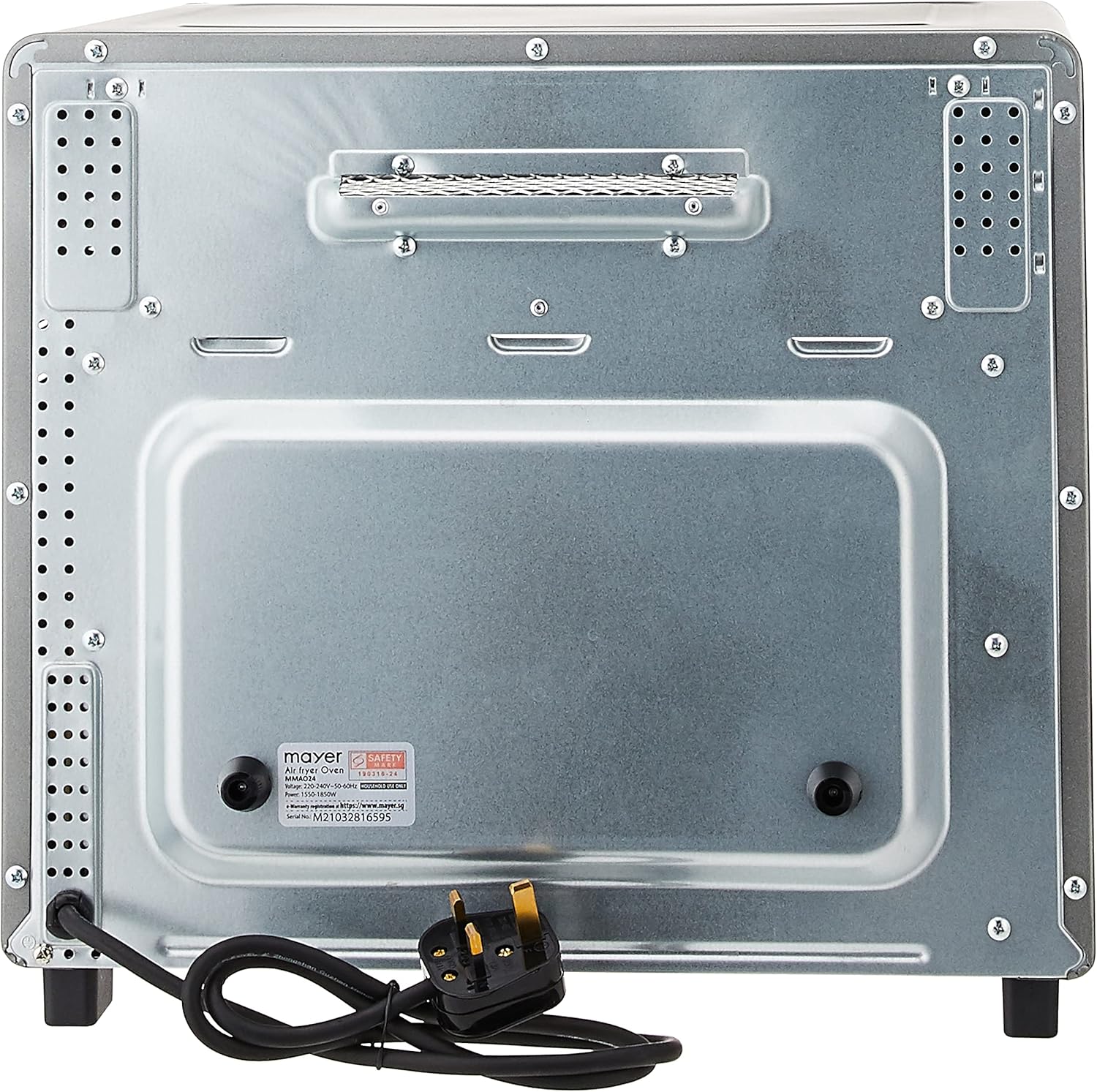

Rear view of the oven showing the power cord and product label with model information.
Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Mayer website. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support, spare parts, or service inquiries, please contact Mayer customer service. Contact details can typically be found on the Mayer official website or on the product packaging.
Online Resources: For additional tips, recipes, and FAQs, you may visit the Mayer official website.
