Aokin ESP8266 D1 Mini NodeMCU Development Board: User Guide

1. Introduction

The Aokin ESP8266 D1 Mini is a compact Wi-Fi development board based on the ESP8266EX chip, featuring 4MB of flash memory. It is designed for Internet of Things (IoT) applications and is compatible with popular development environments like Arduino, MicroPython, and NodeMcu. Its small form factor allows for easy integration into various projects, including those requiring breadboard compatibility.

2. Key Features

• Integrated Wi-Fi: Built-in WLAN (802.11a/b/g/n/ac) for wireless connectivity.
• Memory: Equipped with 4MB of flash memory.
• Input/Output Pins: 11 digital input/output pins, supporting interrupt, PWM, I2C, and one-wire protocols (except D0).
• Analog Input: One analog input pin with a maximum input of 3.2V.
• Power Input: Can be powered via the 5V pin or the 5V Micro USB port. The board's operating voltage is 3.3V, with internal conversion for 5V input. It is not advised to use more than a 5V power supply.
• Compatibility: Compatible with Arduino IDE, MicroPython, and NodeMcu for flexible programming.
• OTA Support: Supports Over-The-Air (OTA) updates.

3. Package Contents

The package typically includes the following components:

• 5 x ESP8266 D1 Mini Wi-Fi Boards
• 10 x Normal Pins (2 for each board)
• 10 x Long Female Pins (2 for each board)
• 10 x Short Female Pins (2 for each board)

Image: Contents of the Aokin ESP8266 D1 Mini development board package, showing five boards and sets of header pins.

Image: A single Aokin ESP8266 D1 Mini board displayed with its accompanying normal, long female, and short female header pins.

4. Setup Guide

To begin using your Aokin ESP8266 D1 Mini development board, follow these steps:

1. Install CH340G Driver: Before connecting the development board to your computer, you must install the CH340G USB-to-Serial driver. This driver enables your computer to communicate with the board via the Micro USB port. Search online for "CH340G driver" and download the appropriate version for your operating system.
2. Install Python (Windows Users): If you are using Windows, Python 2.7.10 or a later compatible version is required for certain development tools. Linux and macOS typically have Python pre-installed.
3. Install ESP8266 Board Package:
   • Arduino IDE: Open the Arduino IDE, go to File > Preferences, and add http://arduino.esp8266.com/stable/package_esp8266com_index.json to the "Additional Board Manager URLs." Then, go to Tools > Board > Boards Manager, search for "ESP8266," and install the package.
   • GIT (Recommended): For the latest versions and development features, it is recommended to install the hardware package via GIT. Refer to the official ESP8266 Arduino core documentation for detailed instructions on using GIT.

Image: Top and bottom views of the Aokin ESP8266 D1 Mini development board, showing component layout and pin headers.

5. Operating Instructions

The Aokin ESP8266 D1 Mini is a versatile board for various projects. Here's how to get started:

5.1 Powering the Board

The board can be powered through its Micro USB port or by supplying 5V to the dedicated 5V pin. The internal regulator converts 5V input to the board's operating voltage of 3.3V. Ensure that the input voltage does not exceed 5V to avoid damaging the board.

5.2 Programming with Arduino IDE

Once the ESP8266 board package is installed in your Arduino IDE, you can select "WeMos D1 R1" or "LOLIN(WEMOS) D1 mini (ESP-12E Module)" from Tools > Board. You can then write and upload sketches (programs) to the board using the Micro USB connection. The board's 11 digital I/O pins (D0-D8, RX, TX) and one analog input (A0) can be accessed in your code.

5.3 Using Digital and Analog Pins

• Digital Pins (D0-D8, RX, TX): These pins support various functions including interrupts, Pulse Width Modulation (PWM), I2C communication, and one-wire protocols. Note that D0 has limited functionality compared to other digital pins.
• Analog Input (A0): This pin can read analog sensor values. The maximum input voltage for A0 is 3.2V.

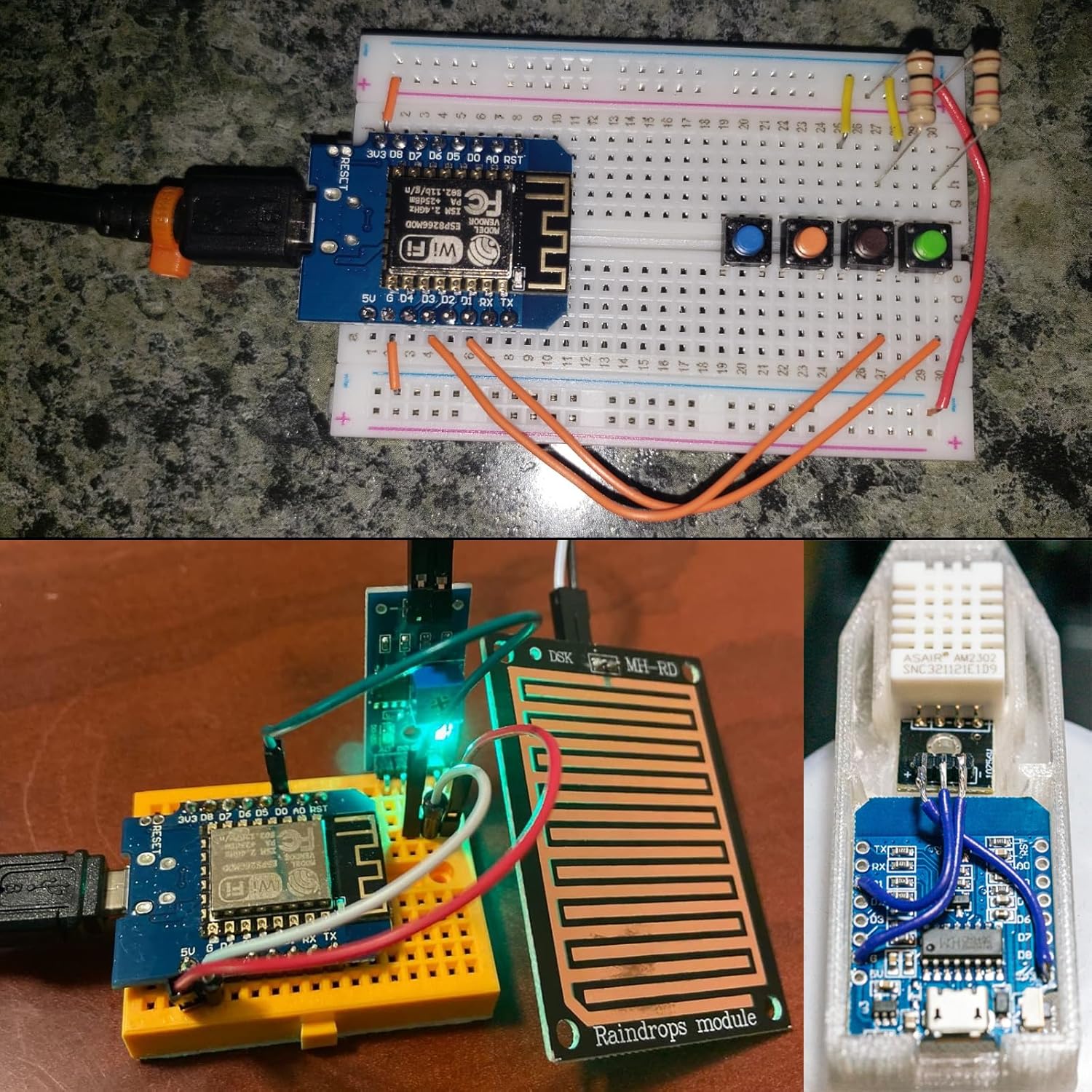

Image: Various example projects demonstrating the Aokin ESP8266 D1 Mini board integrated into breadboard circuits, including a clock display and sensor connections.

6. Technical Specifications

Image: Dimensional diagram of the Aokin ESP8266 D1 Mini board, indicating its length and width.

7. Troubleshooting

• Board Not Connecting/Uploading:

  Ensure the CH340G driver is correctly installed. Verify that the correct board and COM port are selected in the Arduino IDE. Try a different USB cable or port. Sometimes, pressing the "Flash" or "Reset" button on the board during upload can help establish a connection.

• Power Supply Issues:

  The board operates at 3.3V internally, even when supplied with 5V. Do not exceed a 5V input power supply to avoid damaging the board. If using an external power source, ensure it provides a stable 5V. Some boards may have linear regulators that are sensitive to higher input voltages, despite some descriptions. Always verify the specific regulator on your board if using non-standard power.
• Wi-Fi Connectivity Problems:

  Check your Wi-Fi credentials (SSID and password) in your code. Ensure the board is within range of your Wi-Fi network. Verify that your router is operating on a 2.4GHz band, as ESP8266 modules typically support this frequency.

8. Warranty and Support

For specific warranty information and technical support, please refer to the official Aokin store or contact the seller directly. Product documentation and community forums for ESP8266 and NodeMcu are also valuable resources for project development and troubleshooting.
