1. Introduction
Thank you for choosing the ROIDMI X30 Pro Cordless Vacuum Cleaner. This powerful and versatile cleaning device is designed to provide efficient and convenient cleaning for your home. Featuring a 120,000 rpm digital motor, a six-level HEPA filtration system, and a smart OLED color screen, the X30 Pro offers advanced cleaning performance and real-time information. This manual provides essential instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
2. Safety Instructions
Please read all safety warnings and instructions before using this appliance.
- This appliance is intended for household use only. Do not use it for commercial or industrial purposes.
- Do not use the vacuum cleaner to pick up water or other liquids, hot ashes, large sharp objects, or hazardous materials.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Ensure the dustbin and filters are correctly installed before use.
- Do not operate the vacuum cleaner if it is damaged or malfunctioning. Contact customer support for assistance.
- Use only the original charger and accessories provided by ROIDMI.
- Do not immerse the main unit in water or other liquids.
- Supervise children and ensure they do not play with the appliance.
- Unplug the charger from the power outlet when not in use and before cleaning or performing maintenance.
3. Package Contents
Verify that all components are present in the package:
- Main Vacuum Unit
- Extension Rod
- Nex-V All-Surface Brush Head
- Pet and Mattress Brush
- Crevice Tool
- Dusting Brush
- MOP Accessory (for wet cleaning)
- Wall-mounted Charging Dock
- Power Adapter
- HEPA Filter (pre-installed)
- User Manual
4. Product Overview
Familiarize yourself with the main components of your ROIDMI X30 Pro.
Image 1: Fully assembled ROIDMI X30 Pro Cordless Vacuum Cleaner, showing the main unit, extension rod, and floor brush.
Image 2: Close-up of the main vacuum unit, highlighting the ergonomic handle, dustbin, and motor housing.
OLED Color Screen
The integrated OLED color screen provides real-time information, including:
- Battery level
- Current cleaning mode
- Dustbin full indicator
- Filter replacement reminder
- Calorie consumption during cleaning (via Bluetooth app)
5. Setup
5.1 Assembly
- Insert the extension rod into the main vacuum unit until it clicks securely.
- Attach the desired cleaning head (e.g., Nex-V brush) to the other end of the extension rod until it clicks. For direct handheld use, attach accessories directly to the main unit.
5.2 Initial Charging
Before first use, fully charge the vacuum cleaner.
- Mount the charging dock on a wall in a convenient location, ensuring it is near a power outlet.
- Connect the power adapter to the charging dock and plug it into a power outlet.
- Place the vacuum cleaner onto the charging dock. The OLED screen will indicate charging status. A full charge takes approximately 2.5 hours.

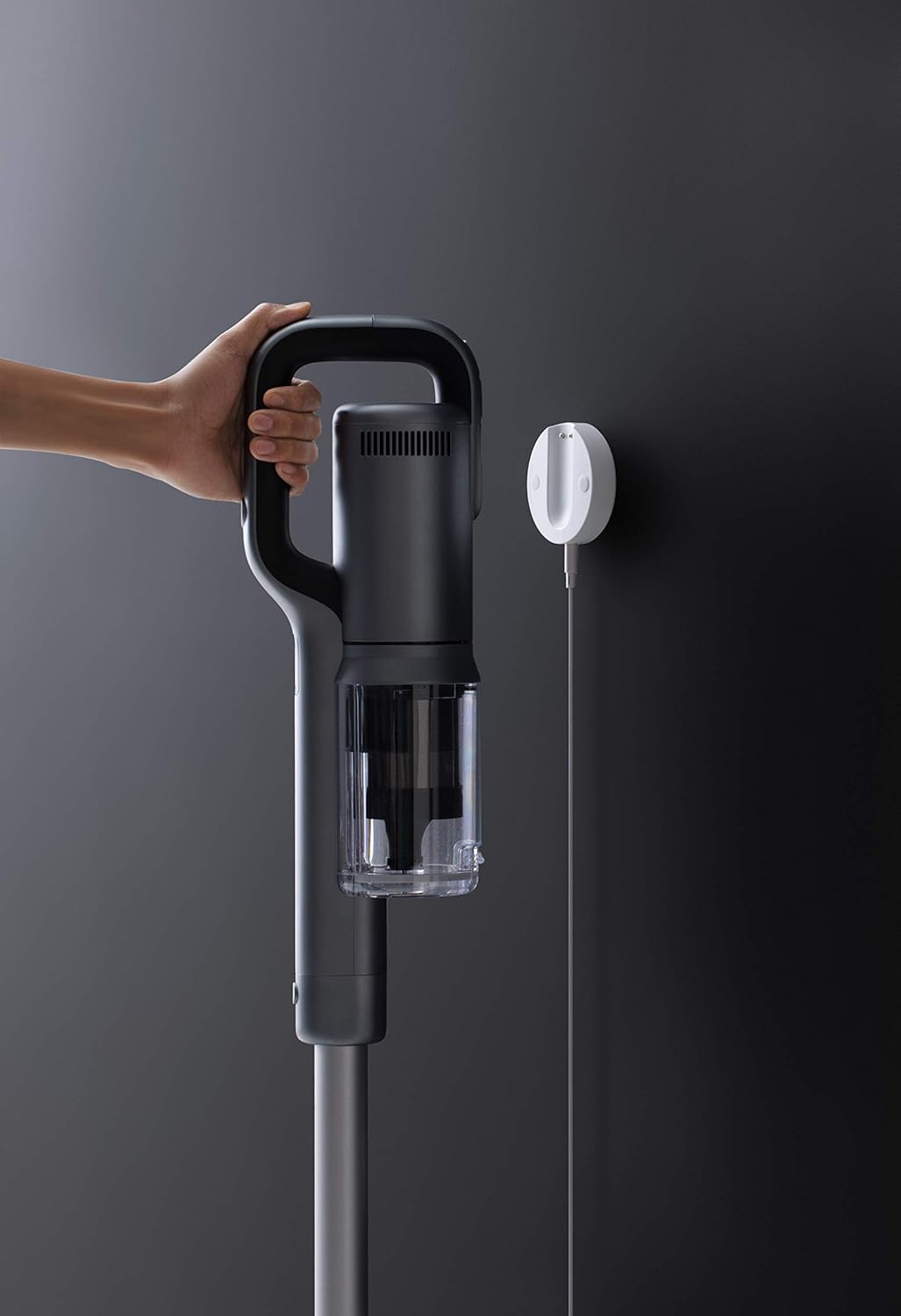

Image 3: The ROIDMI X30 Pro charging on its wall-mounted dock, connected to a power source.
5.3 Bluetooth Connection (Optional)
For enhanced features and real-time data, connect your ROIDMI X30 Pro to the ROIDMI app via Bluetooth.
- Download the 'ROIDMI' app from your smartphone's app store.
- Ensure Bluetooth is enabled on your smartphone.
- Open the ROIDMI app and follow the on-screen instructions to pair your vacuum cleaner.
6. Operating Instructions
6.1 Power On/Off and Mode Selection
- Press the power button on the main unit to turn the vacuum cleaner on. It will start in standard cleaning mode.
- Press the mode selection button to cycle through different power modes (e.g., Standard, Max). The OLED screen will display the current mode.
- Press the power button again to turn the vacuum cleaner off.
6.2 Using Cleaning Attachments
Select the appropriate attachment for your cleaning task:
- Nex-V All-Surface Brush Head: Ideal for both hard floors and carpets. Its innovative hydrophobic fiber design eliminates the need to switch brush rolls between different surfaces.
- Pet and Mattress Brush: Designed for deep cleaning of upholstery, mattresses, and pet hair removal from fabrics.
- Crevice Tool: Perfect for narrow gaps, corners, and hard-to-reach areas.
- Dusting Brush: Suitable for delicate surfaces, curtains, and shelves.
- MOP Accessory: For wet cleaning. Attach this accessory to the main unit or extension rod as instructed in its specific manual. Ensure the dustbin is empty before using the MOP function.

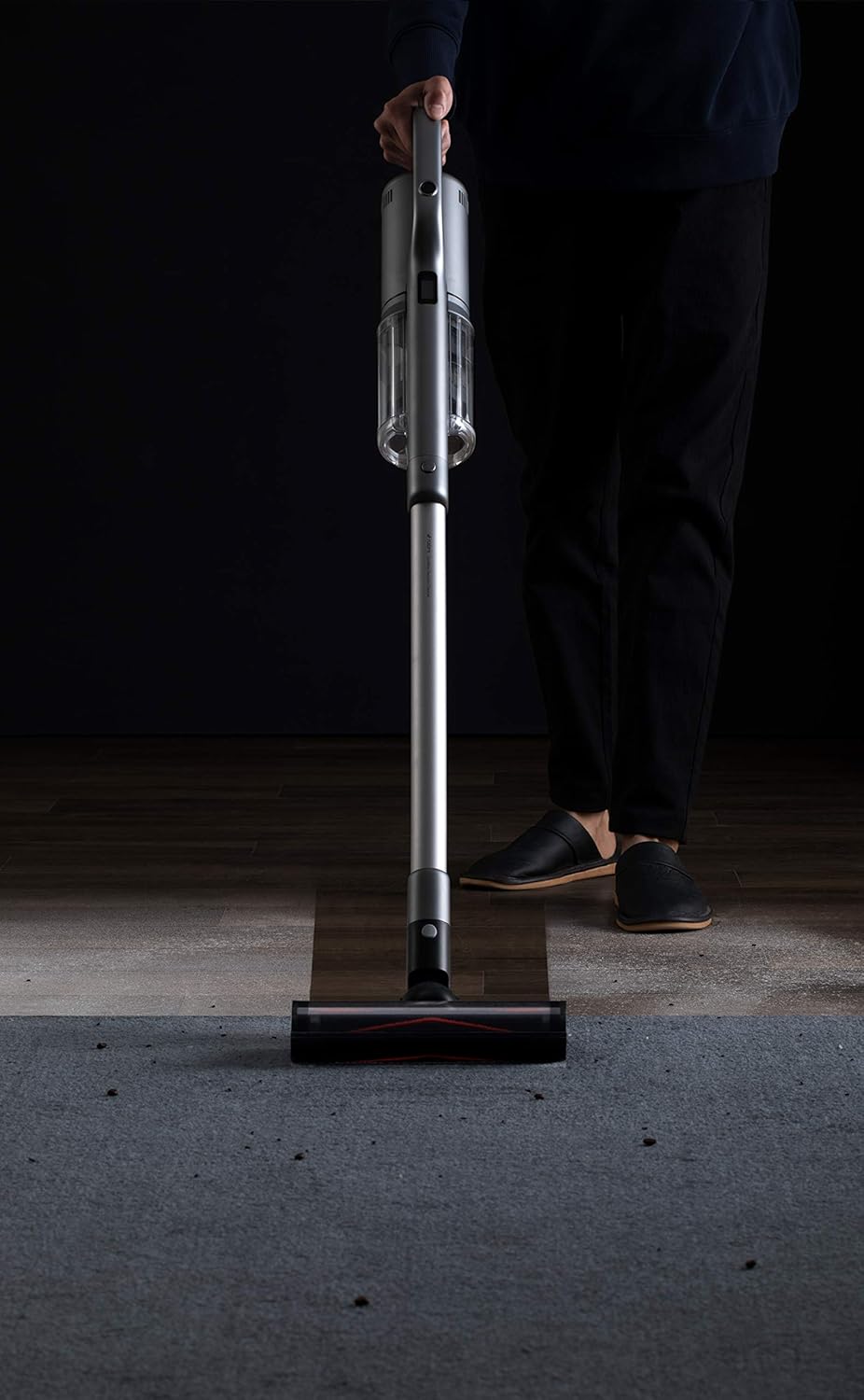

Image 4: A user operating the ROIDMI X30 Pro on a carpeted floor, demonstrating its ease of use.
Image 5: The flexible brush head of the ROIDMI X30 Pro reaching under low furniture for thorough cleaning.
Image 6: The ROIDMI X30 Pro in operation, with the OLED screen clearly displaying operational information.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ROIDMI X30 Pro.
7.1 Emptying the Dustbin
Empty the dustbin when the 'dustbin full' indicator appears on the OLED screen or after each use.
- Ensure the vacuum cleaner is turned off.
- Press the dustbin release button to detach it from the main unit.
- Hold the dustbin over a trash can and open the bottom flap to release the debris.
- Close the flap and reattach the dustbin to the main unit until it clicks.
7.2 Cleaning the HEPA Filter
Clean the HEPA filter regularly, especially when suction power decreases or the 'filter change' indicator appears.
- Remove the dustbin as described above.
- Carefully remove the HEPA filter from the dustbin.
- Tap the filter gently over a trash can to remove loose dust.
- Rinse the filter under running water until the water runs clear. Do not use detergents.
- Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use a dryer or direct heat.
7.3 Cleaning the Brush Roll
Periodically check the brush roll for tangled hair or debris.
- Turn off the vacuum cleaner and detach the brush head.
- Locate the brush roll release mechanism (usually a latch or button) and remove the brush roll.
- Use scissors or a cleaning tool to cut and remove any tangled hair or fibers.
- Reinsert the brush roll and secure it in place.
8. Troubleshooting
If you encounter issues with your ROIDMI X30 Pro, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Low battery; Power button not pressed correctly | Charge the battery; Ensure power button is fully pressed |
| Weak suction power | Dustbin full; Clogged filter; Blocked brush head/tube | Empty dustbin; Clean/replace filter; Remove blockages |
| Brush roll not spinning | Tangled hair/debris; Brush roll not installed correctly | Clean brush roll; Reinstall brush roll securely |
| OLED screen not displaying | Device off; Malfunction | Turn on device; If issue persists, contact support |
| MOP accessory not dispensing water | Water tank empty; Nozzle clogged | Refill water tank; Clean nozzle |
If the problem persists after attempting these solutions, please contact ROIDMI customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | ROIDMI |
| Model Number | XCQ28RM |
| Motor Speed | 120,000 rpm (Engine-X 2.0 Digital Motor) |
| Runtime | Up to 70 minutes (1 hour 10 minutes) |
| Charging Time | Approx. 2.5 hours (wireless fast charge) |
| Filtration System | Six-level HEPA filtration with ZiWei sterilization |
| Display | OLED Color Screen |
| Connectivity | Bluetooth (for ROIDMI App) |
| Dimensions (L x W x H) | 119.1 x 25.09 x 16.04 cm |
| Color | Grey |
| Special Features | HEPA, Portable, Pet Brush, MOP Accessory compatible |
| Surface Recommendation | Carpet, All floors |
| Power Source | Battery powered |
| Form Factor | Stick |
10. Warranty Information
ROIDMI products are covered by a limited warranty. Please refer to the warranty card included in your product packaging or visit the official ROIDMI website for detailed warranty terms and conditions specific to your region. Keep your purchase receipt as proof of purchase for warranty claims.
11. Customer Support
For technical assistance, spare parts, or any inquiries regarding your ROIDMI X30 Pro, please contact ROIDMI customer support through their official website or the contact information provided in your product documentation. When contacting support, please have your model number (XCQ28RM) and purchase details ready.
