Introduction
Thank you for choosing the ARDES ARM8P02 NEAT Air Purifier. This device is designed to improve your indoor air quality by filtering out pollutants, allergens, and odors. Please read this manual carefully before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.
Safety Information
To reduce the risk of fire, electric shock, or injury, please observe the following safety precautions:
- Always unplug the air purifier before cleaning, performing maintenance, or when not in use.
- Do not operate the appliance with a damaged cord or plug. If the cord or plug is damaged, contact qualified service personnel.
- Do not use the air purifier in wet or damp environments, such as bathrooms or laundries.
- Keep the air inlet and outlet clear of obstructions. Do not insert fingers or foreign objects into the openings.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not use abrasive cleaners or flammable liquids to clean the appliance.
- Place the air purifier on a stable, level surface.
Product Components and Features
The ARDES ARM8P02 NEAT Air Purifier features advanced technology for effective air purification.

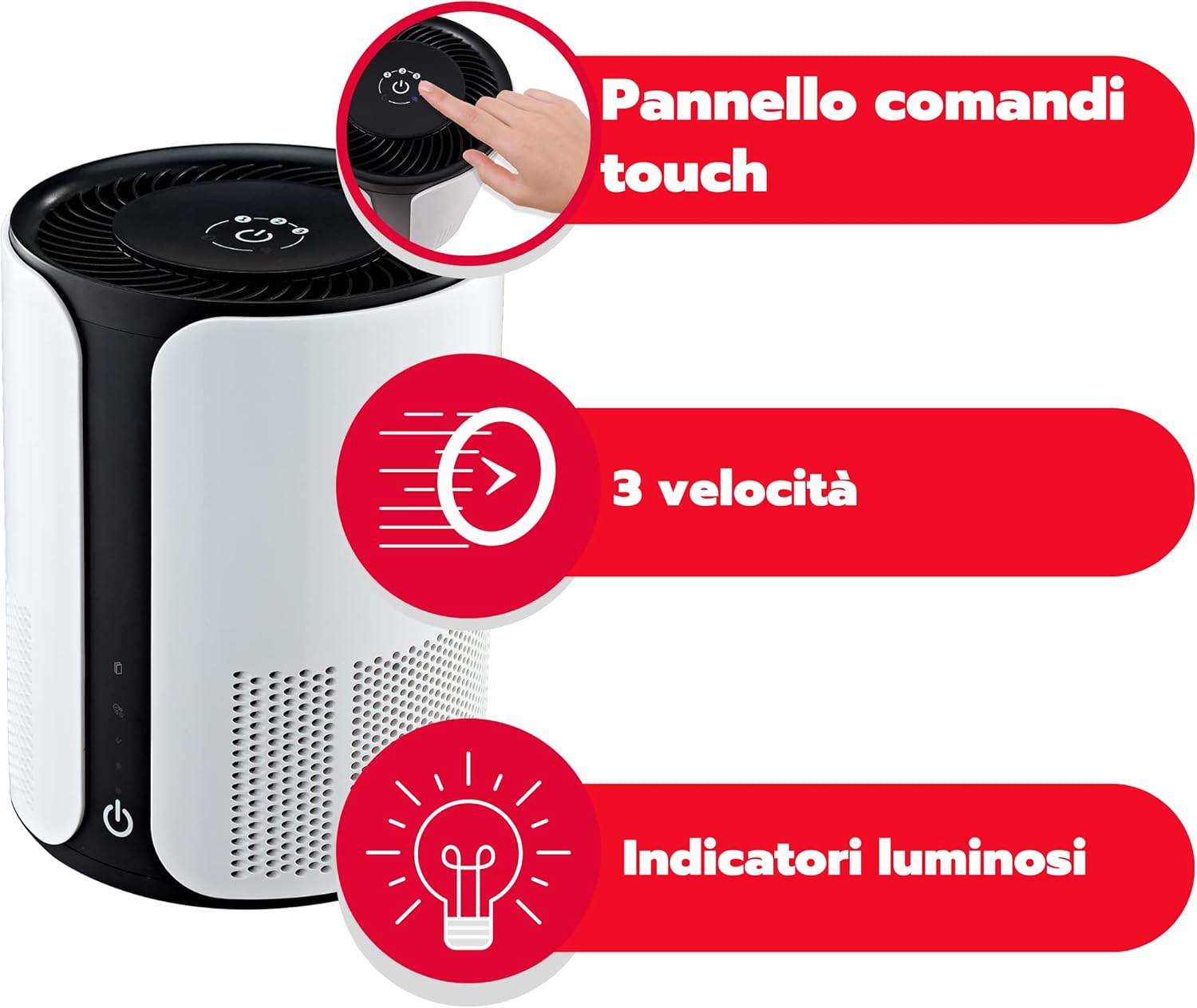

Control Panel and Operation
- Touch Control Panel: Easily manage settings with intuitive touch buttons located on the top of the unit.
- 3 Speed Settings: Adjust the fan speed to your preference for optimal air circulation and purification.
- Light Indicators: Visual indicators provide feedback on the current operating mode and air quality.
Triple-Layer Filtration System
The air purifier utilizes a comprehensive three-stage filtration system to ensure clean air:
- Pre-filter: Captures larger particles such as pet dander, dust, and lint.
- HEPA Filter: Traps fine particles, including dust mites, pollen, and other allergens.
- Activated Carbon Filter: Absorbs harmful chemicals, gases, and unpleasant odors like smoke.
Additionally, an Ionizer releases negative ions to further enhance air freshness and quality.

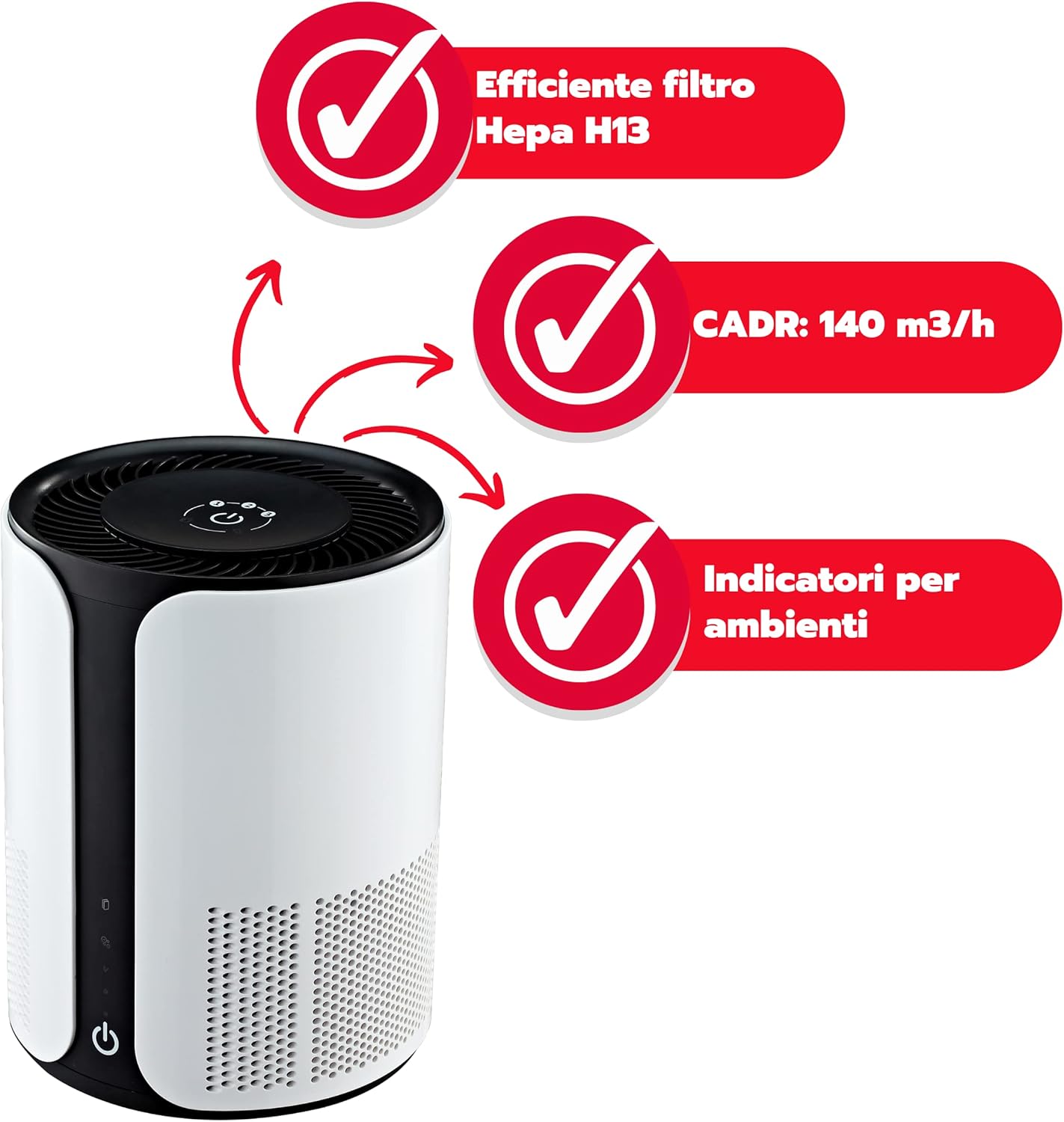

Performance Indicators
- Efficient HEPA H13 Filter: Ensures high-level filtration of airborne particles.
- CADR: 140 m³/h: Clean Air Delivery Rate indicates the volume of clean air produced per hour, suitable for rooms up to 25 square meters.
- Room Indicators: Provides information relevant to the air quality in your environment.
Setup
Follow these steps to set up your ARDES ARM8P02 NEAT Air Purifier:
- Unpack the Unit: Carefully remove the air purifier from its packaging. Retain packaging for future storage or transport.
- Remove Filter Packaging: Open the filter compartment (usually located at the bottom or back of the unit) and remove the plastic packaging from the filter. The filter is typically pre-installed but wrapped for protection.
- Install Filter: Place the filter back into the unit, ensuring it is correctly seated. Close the filter compartment cover securely.
- Position the Purifier: Place the air purifier on a firm, level surface. Ensure there is at least 20 cm (8 inches) of space around the air inlet and outlet for optimal airflow.
- Connect to Power: Plug the power cord into a suitable electrical outlet.
Image: Proper placement of the air purifier in a room.
Operating Instructions
Operating your ARDES ARM8P02 NEAT Air Purifier is straightforward:
- Power On/Off: Press the power button on the touch control panel to turn the unit on or off.
- Adjust Fan Speed: Tap the fan speed button to cycle through the 3 available speed settings (Low, Medium, High). Choose a higher speed for faster purification or a lower speed for quieter operation.
- Night Mode: Activate night mode for quiet operation during sleep. In this mode, the fan speed is reduced, and indicator lights may dim or turn off.
- Ionizer Function: The ionizer function typically operates automatically or can be toggled via a dedicated button on the control panel, if available. Refer to the specific icons on your unit's touch panel.
The LED display will show current settings and air quality indicators.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your air purifier.
Cleaning the Exterior
- Always unplug the unit before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners, waxes, or solvents.
- Clean the air inlet and outlet grilles with a soft brush or vacuum cleaner to remove dust buildup.
Filter Replacement
The triple-layer filter (pre-filter, HEPA, activated carbon) is a combined unit and should be replaced periodically. The lifespan of the filter depends on usage and air quality, but typically ranges from 6 to 12 months.
- Unplug the air purifier from the power outlet.
- Locate and open the filter compartment cover.
- Carefully remove the old filter. Dispose of it according to local regulations.
- Unpack the new ARDES ARM8P02 replacement filter (ensure it's the correct model).
- Insert the new filter into the compartment, making sure it fits snugly.
- Close the filter compartment cover.
- Plug the unit back in. Some models may require a filter reset button to be pressed after replacement. Refer to your unit's specific instructions if a filter indicator light remains on.
Note: Replacement filters are essential for maintaining purification efficiency. Ensure you purchase genuine ARDES replacement filters for model ARM8P02.
Troubleshooting
If you encounter issues with your air purifier, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Not plugged in; power outlet malfunction; power button not pressed; damaged power cord. | Ensure the power cord is securely plugged into a working outlet. Press the power button firmly. Check for any visible damage to the cord. |
| Airflow is weak or no air comes out. | Air inlets/outlets blocked; filter clogged; filter packaging not removed. | Check for obstructions around the unit. Clean or replace the filter. Ensure all filter packaging has been removed. |
| Unusual noise. | Unit not on a level surface; foreign object inside; filter not installed correctly. | Place the unit on a stable, level surface. Unplug and check for any foreign objects. Reinstall the filter correctly. |
| Air quality does not improve. | Filter needs replacement; room size too large; excessive pollutants. | Replace the filter if it's old. Ensure the unit is used in a room within its recommended coverage area (up to 25 sqm). Consider running the unit on a higher speed. |
| Indicator lights are flashing or behaving unusually. | Filter replacement reminder; internal error. | Replace the filter and reset the filter indicator if applicable. If the issue persists, unplug the unit for 5 minutes and plug it back in. Contact customer support if the problem continues. |
If the problem persists after trying these solutions, please contact ARDES customer support.
Specifications
| Model Number | ARM8P02 |
| Brand | Ardes |
| Dimensions (W x D x H) | 22 cm x 22 cm x 28 cm (8.7 x 8.7 x 11 inches) |
| Weight | 2.4 kg (5.3 lbs) |
| Power Source | Corded Electric |
| Filter Type | Triple-layer (Pre-filter, HEPA H13, Activated Carbon) |
| CADR (Clean Air Delivery Rate) | 140 m³/h |
| Recommended Room Size | Up to 25 sqm (269 sq ft) |
| Special Features | Ionizer, Touch Control Panel, 3 Speed Settings, Night Mode |
Image: Physical dimensions of the air purifier.
Warranty and Support
ARDES products are designed for reliability and performance. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official ARDES website.
For technical assistance, replacement parts (such as filters), or any other inquiries, please contact ARDES customer support. Contact details can typically be found on the product packaging, the official ARDES website, or your purchase documentation.
ARDES: Committed to providing functional, safe, and easy-to-use products for your home and kitchen for over 60 years.
