Farberware 40628 Pro Digital Stainless Steel Scale User Manual

1. Introduction and Overview

The Farberware 40628 Pro Digital Stainless Steel Scale is an essential kitchen tool designed for precise measurement of ingredients. Its sleek, rectangular design features a durable stainless steel surface with a white glass platform, making it both functional and aesthetically pleasing for any kitchen.

This digital scale provides clear weight readings on its integrated display, allowing users to easily switch between grams and pounds. With a maximum capacity of 5 kg (11 lbs) and precise 1-gram increments, it offers the accuracy needed for various culinary tasks. The scale operates on 2 AAA batteries, ensuring portability and convenience.

Figure 1: Top view of the Farberware 40628 Pro Digital Stainless Steel Scale, showing the weighing platform, display, and control buttons.

Key Features:

• Ease of use and ideal convenience for various kitchen tasks.
• Perfect design to complement your kitchen decor.
• Constructed with durable materials for long-lasting performance.
• Ensures quality and reliability in every measurement.

2. Safety Information

Please read all safety instructions carefully before using the scale. Failure to follow these instructions may result in damage to the scale or personal injury.

• Do not immerse the scale in water or any other liquid. The scale is not waterproof.
• Clean the scale with a damp cloth only. Do not use abrasive cleaners or harsh chemicals.
• Do not overload the scale beyond its maximum capacity of 5 kg (11 lbs). Overloading can damage the sensor.
• Place the scale on a hard, flat, and stable surface during use to ensure accurate readings. Avoid soft or uneven surfaces.
• Keep the scale away from extreme temperatures, direct sunlight, and high humidity.
• This scale is intended for household use only. Do not use for commercial or industrial purposes.
• Keep out of reach of children.

3. Package Contents

Upon opening the package, please ensure all items are present and in good condition:

• Farberware 40628 Pro Digital Stainless Steel Scale
• User Manual (this document)
• Note: 2 AAA batteries are required for operation and may or may not be included depending on the retailer. Please check packaging.

4. Setup

4.1 Battery Installation

1. Locate the battery compartment on the underside of the scale.
2. Open the battery compartment cover by sliding or lifting it.
3. Insert 2 AAA batteries, ensuring the correct polarity (+ and -) as indicated inside the compartment.
4. Close the battery compartment cover securely.

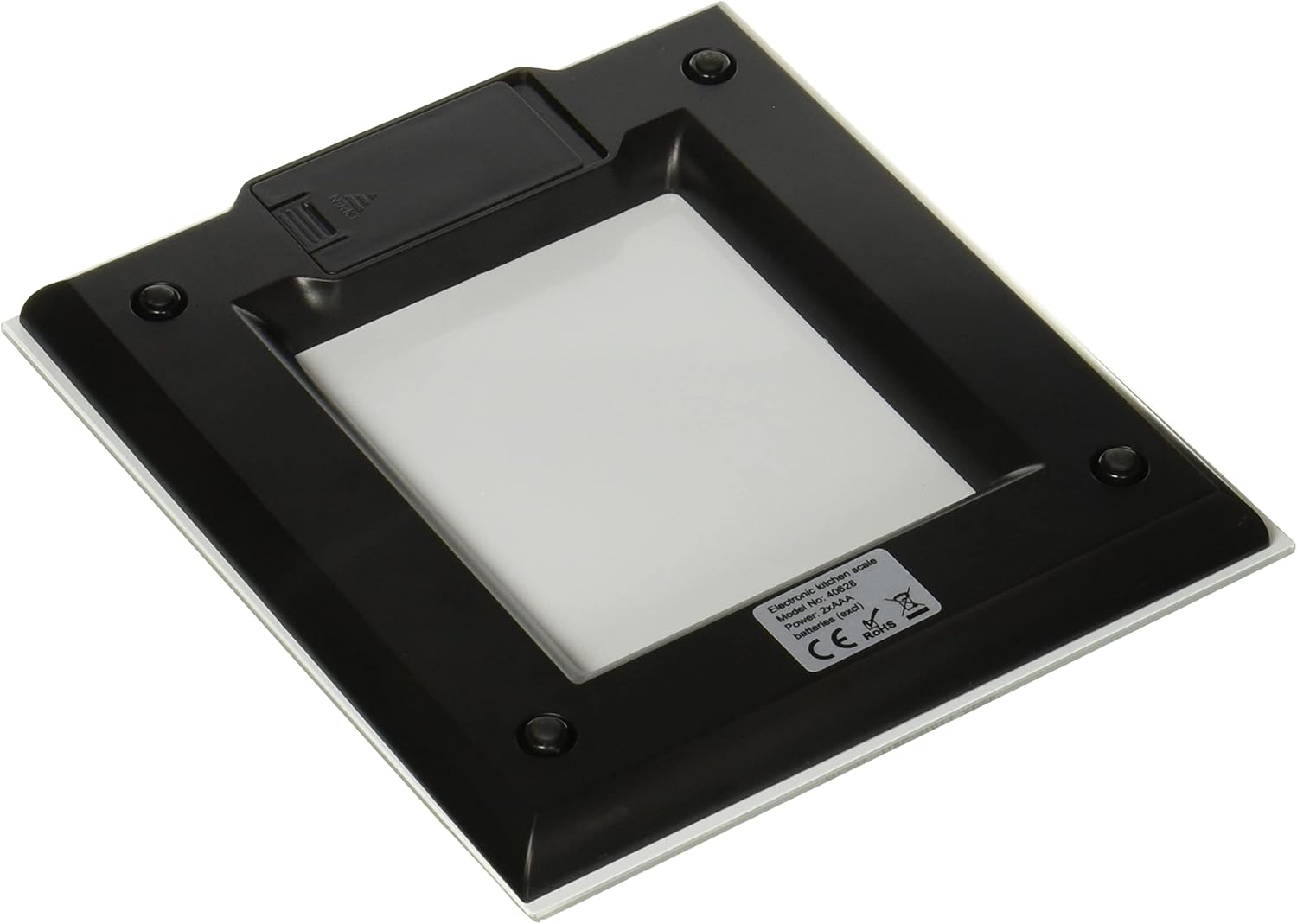

Figure 2: Underside of the scale, illustrating the battery compartment location.

4.2 Placement

For accurate measurements, place the scale on a hard, flat, and stable surface. Avoid placing it on carpets, rugs, or uneven countertops, as this can affect precision.

5. Operating Instructions

5.1 Turning On/Off

• To turn on the scale, press the ON/OFF button located on the scale's surface. The display will light up and show "0g" or "0lb".
• To turn off the scale, press and hold the ON/OFF button for a few seconds. The scale will also automatically shut off after a period of inactivity to conserve battery life.

5.2 Unit Conversion

• To switch between measurement units (grams and pounds), press the UNIT button while the scale is on. The display will cycle between "g" (grams) and "lb" (pounds).

5.3 Weighing Items

1. Place the scale on a flat, stable surface.
2. Press the ON/OFF button to turn on the scale. Wait for the display to show "0g" or "0lb".
3. Gently place the item(s) to be weighed onto the center of the weighing platform.
4. Read the weight displayed on the screen.

5.4 Tare Function (Zeroing)

The tare function allows you to weigh multiple ingredients in the same container or to subtract the weight of a container from the total weight.

1. Place an empty container on the scale. The display will show the container's weight.
2. Press the ON/OFF button (or sometimes a dedicated TARE button if present, though not explicitly shown on this model, ON/OFF often doubles as tare). The display will reset to "0g" or "0lb".
3. Add the ingredient(s) you wish to weigh into the container. The display will show only the weight of the added ingredients.
4. Repeat step 2 and 3 for additional ingredients.

6. Maintenance and Care

• Cleaning: Wipe the scale surface with a soft, damp cloth. Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish and electronic components.
• Storage: Store the scale in a cool, dry place. Avoid storing it in areas with high humidity or extreme temperatures.
• Battery Replacement: When the display shows "Lo" or becomes dim, it's time to replace the batteries. Follow the battery installation steps in Section 4.1. Remove batteries if the scale will not be used for an extended period to prevent leakage.
• Handling: Handle the scale with care. Avoid dropping it or subjecting it to strong impacts, as this can damage the internal sensors.

7. Troubleshooting

8. Specifications

Figure 3: Scale dimensions illustrated, showing approximate size in hand.

9. Warranty and Support

Specific warranty information for the Farberware 40628 Pro Digital Stainless Steel Scale is not provided in the product details. Please refer to the product packaging or contact Farberware customer service for warranty details and support inquiries.

For customer support, you may visit the official Farberware website or contact their customer service line, details of which are typically found on the product packaging or within the purchase documentation.

You can also visit the Farberware Store on Amazon for more product information and potential support resources.
