Introduction
Welcome to your new OttLite Mood LED Desk Lamp. This manual provides essential information for the safe and efficient operation of your lamp. Please read all instructions carefully before use and retain this manual for future reference.
Image: The OttLite Mood LED Desk Lamp, showcasing its sleek design with a white flexible neck and a color-changing base glowing in blue.
Important Safety Instructions
To reduce the risk of fire, electric shock, or injury to persons, please observe the following safety precautions:
- Read all instructions before operating the lamp.
- Do not operate the lamp near water or in excessively humid environments.
- Clean only with a dry cloth. Unplug the lamp before cleaning.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Use only attachments and accessories specified by the manufacturer.
- Unplug this lamp during lightning storms or when unused for long periods.
- Refer all servicing to qualified service personnel. Servicing is required when the lamp has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the lamp, the lamp has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Ensure the power adapter is easily accessible and can be disconnected quickly if needed.
- Avoid looking directly into the LED light source for extended periods, as this may cause eye discomfort.
Package Contents
Verify that all items are present in the package:
- OttLite Mood LED Desk Lamp (Model CSB3000W)
- Power Cable
Product Features
The OttLite Mood LED Desk Lamp is designed to enhance your workspace with advanced lighting and convenient features:
- ClearSun LED Technology: Reduces eye strain by up to 51% by providing a balanced, smooth light spectrum that closely matches natural daylight.
- Color Changing Base: The lamp base glows in your choice of color or cycles through a spectrum of colors, allowing you to set the mood.
- Integrated USB Charging Port: A 5V, 2.1A USB port is built into the base for convenient charging of smartphones, tablets, and other electronic devices.
- Touch Activated Controls: Easily switch between three brightness settings with simple touch controls.
- Flexible Neck: The rubberized neck allows for adjustable illumination, directing light precisely where needed.
- High Color Rendering Index (CRI): With a CRI of 95+, the ClearSun LEDs provide excellent color accuracy, making colors appear vivid and true-to-life.

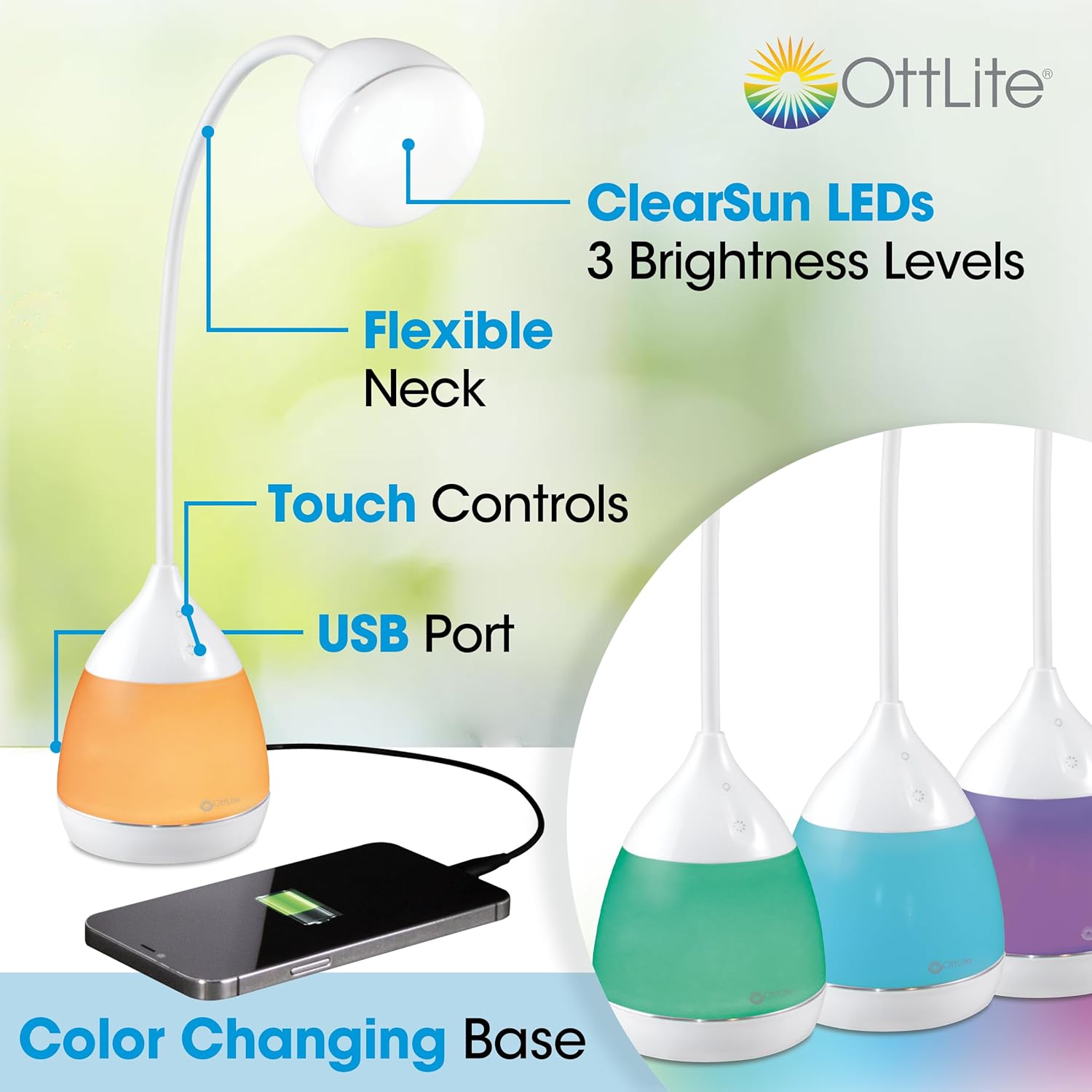

Image: An illustration of the OttLite Mood LED Desk Lamp highlighting its key features: ClearSun LEDs, flexible neck, touch controls, USB port, and color-changing base.
Setup
Follow these steps to set up your OttLite Mood LED Desk Lamp:
- Unpack the Lamp: Carefully remove the lamp and all components from the packaging.
- Position the Lamp: Place the lamp on a stable, flat surface in your desired location. Ensure there is adequate space around the lamp for ventilation.
- Connect Power: Insert the power cable into the power input port located on the back of the lamp base. Plug the other end of the power cable into a standard electrical wall outlet.
Operating Instructions
Power On/Off and Brightness Control
The lamp features touch-activated controls for easy operation:
- To turn the lamp ON, gently touch the power symbol on the lamp base.
- To adjust the brightness, continue to touch the power symbol. The lamp will cycle through three brightness settings (low, medium, high).
- To turn the lamp OFF, touch the power symbol after the highest brightness setting, or hold the power symbol for a few seconds.
Color Changing Base Operation
The base of your lamp offers customizable ambient lighting:
- To activate the color-changing base, locate the color control symbol on the lamp base.
- Touch the color control symbol to cycle through various static colors.
- Hold the color control symbol to initiate a continuous color-cycling mode.
- Touch the color control symbol again to pause on a desired color or to turn off the color-changing feature.
Image: A display of six OttLite Mood LED Desk Lamps, each with its base illuminated in a different color, demonstrating the color-changing feature.
USB Charging Port
The integrated USB port allows you to charge your devices conveniently:
- Locate the USB charging port on the side of the lamp base.
- Connect your device's USB charging cable to the port.
- The USB port provides 5V, 2.1A output, suitable for charging most smartphones, tablets, and other USB-powered devices.
- Ensure the lamp is connected to power for the USB charging function to operate.
Image: The OttLite Mood LED Desk Lamp with key dimensions indicated, showing a smartphone connected to and charging from the lamp's USB port.
Maintenance
Proper care will ensure the longevity and optimal performance of your lamp:
- Cleaning: Always unplug the lamp before cleaning. Use a soft, dry, non-abrasive cloth to wipe down the lamp's surfaces. Do not use liquid cleaners or aerosol sprays, as they may damage the finish or internal components.
- LED Light Source: The LED light source in this lamp is designed for long-term use and is not user-replaceable. Do not attempt to replace the LEDs.
- Storage: If storing the lamp for an extended period, ensure it is clean, dry, and stored in a safe place away from extreme temperatures and direct sunlight.
Troubleshooting
If you encounter issues with your OttLite Mood LED Desk Lamp, refer to the following common problems and solutions:
- Lamp Does Not Turn On:
- Ensure the power cable is securely plugged into both the lamp's power input and a functional wall outlet.
- Try plugging the lamp into a different wall outlet to rule out an issue with the power source.
- Avoid using power strips if possible; plug the lamp directly into a wall outlet.
- USB Charging Port Not Working:
- Verify that the lamp is powered on and connected to a live electrical outlet.
- Check the USB cable for damage and ensure it is properly connected to both the lamp and your device.
- Test with a different USB cable or device to confirm the issue is with the lamp's port and not the cable or device.
- Color Changing Base Not Responding:
- Ensure the lamp is powered on.
- Gently touch the color control symbol to cycle through colors or activate the cycling mode.
- If unresponsive, unplug the lamp from the power source for a few minutes, then plug it back in and try again.
If these steps do not resolve the issue, please contact OttLite customer support for further assistance.
Specifications
| Feature | Specification |
|---|---|
| Model Number | CSB3000W |
| Light Source Type | LED (ClearSun Technology) |
| Color Rendering Index (CRI) | 95+ |
| Brightness | 308 Lumens |
| Color Temperature | 5000 Kelvin (Daylight) |
| Wattage | 4.51 watts |
| Voltage | 120 Volts |
| USB Charging Output | 5V, 2.1A |
| Product Dimensions (D x W x H) | 3.93" x 3.93" x 10.25" |
| Base Diameter | 3.94 Inches |
| Neck Length | 11.75 Inches (approx.) |
| Item Weight | 1.54 Pounds |
| Material | Plastic |
| Control Method | Touch |
Warranty and Support
OttLite products are manufactured with quality and care. For warranty information, product support, or to inquire about replacement parts, please visit the official OttLite website or contact their customer service department directly. Please have your model number (CSB3000W) and purchase date available when contacting support.
For the most up-to-date contact information, please refer to the OttLite official website: www.ottlite.com
