1. Introduction
This manual provides essential information for the safe and effective use of your HYCHIKA 40V Cordless Hedge Trimmer. Please read all instructions carefully before operating the tool. Retain this manual for future reference.
2. General Safety Instructions
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
- Keep children and bystanders away while operating the hedge trimmer.
- Do not operate the tool in wet conditions or in the presence of flammable liquids or gases.
- Ensure the work area is clear of debris and obstacles.
- Before performing any maintenance, cleaning, or storage, always remove the battery pack.
- Inspect the hedge trimmer for any damage before each use. Do not use if damaged.
- Maintain a firm grip with both hands on the trimmer handles during operation.
3. Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, contact HYCHIKA customer service.
- 1x 20V Cordless Hedge Trimmer
- 2x 20V Lithium Batteries
- 1x Fast Charger
- 1x Protective Shell (Blade Sheath)
- 1x User Manual
Figure 3.1: Package Contents
4. Product Overview
Familiarize yourself with the components of your HYCHIKA 40V Cordless Hedge Trimmer before use.
Figure 4.1: Main Components of the Hedge Trimmer
- Power Start Switch + Indicator Light: Activates the tool and shows power status.
- Rear Control Switch Trigger: Part of the dual-switch safety system.
- Rear Handle Swivel Lock: Allows for 180° handle rotation.
- Front Control Switch Trigger: Part of the dual-switch safety system.
- 2x 2.0Ah Batteries: Provide 40V power to the brushless motor.
- Guard: Protects the user from debris.
- Blade: 24-inch dual-action hardened steel blade.
- Protection of the Cutting Tools: Blade tip protector.
5. Setup
5.1 Charging the Batteries
- Insert the 20V Lithium-ion batteries into the fast charger.
- Plug the charger into a standard power outlet.
- Allow approximately 1 hour for each battery to fully charge. The charger's indicator light will signal when charging is complete.
5.2 Installing the Batteries
- Ensure the hedge trimmer is turned off.
- Align the two charged 20V batteries with the battery slots on the trimmer.
- Slide the batteries into place until they click securely.
5.3 Removing the Blade Sheath
Before operation, carefully remove the protective blade sheath by sliding it off the blade. Store the sheath in a safe place for future use.
6. Operation
6.1 Starting the Hedge Trimmer
The HYCHIKA hedge trimmer features a dual-switch safety mechanism to prevent accidental starting.
- Press the Power Start Switch (with indicator light) to activate the tool.
- Simultaneously depress both the Front Control Switch Trigger and the Rear Control Switch Trigger. The blades will begin to move.
- To stop the trimmer, release either trigger.

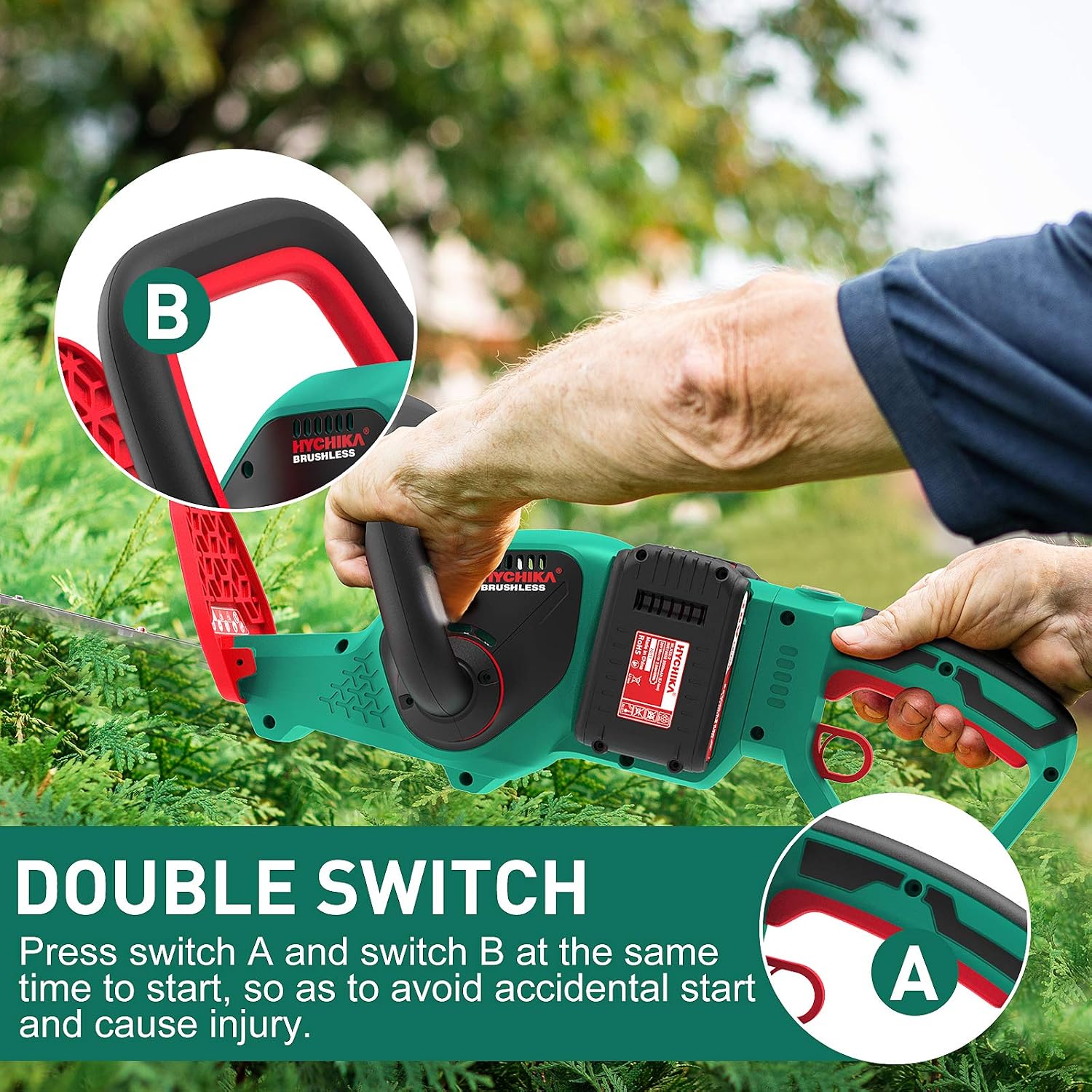

Figure 6.1: Dual-Switch Operation
6.2 Cutting Techniques
- General Trimming: Hold the trimmer firmly with both hands. Use a sweeping motion to cut through hedges. The 24-inch dual-action blade is designed for efficient cutting.
- Thick Branches: The trimmer can cut branches up to 1.0 inch in diameter. Position the blade carefully and allow the brushless motor to work through the material.
- Vertical and Horizontal Cuts: Utilize the 180° rotatable handle for comfortable and precise cutting at various angles, including tops, sides, and bottoms of hedges.
Figure 6.2: Rotatable Handle for Versatile Cutting
Figure 6.3: 24-inch Dual-Action Blade
Figure 6.4: 1.0 Inch Cutting Capacity
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your hedge trimmer.
7.1 Cleaning
- After each use, remove the battery pack.
- Use a stiff brush or cloth to remove debris, sap, and leaves from the blades and housing.
- Do not use solvents or abrasive cleaners, as they may damage plastic parts.
7.2 Blade Care
- Regularly apply a light machine oil or blade lubricant to the cutting blades to reduce friction and prevent rust.
- If the blades become dull, they can be sharpened by a qualified service technician.
7.3 Storage
- Always remove the battery pack before storing the trimmer.
- Clean the tool thoroughly and apply blade lubricant.
- Place the protective blade sheath over the blades.
- Store the hedge trimmer in a dry, secure location out of reach of children.
8. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | Battery not charged or improperly installed Safety switches not engaged simultaneously | Ensure batteries are fully charged and correctly inserted Press both front and rear triggers simultaneously |
| Poor cutting performance | Dull or dirty blades Attempting to cut branches too thick | Clean and lubricate blades; sharpen if necessary Do not exceed 1.0 inch cutting capacity |
| Trimmer stops during operation | Battery charge low Overload protection activated | Recharge batteries Reduce cutting load; allow tool to cool down |
| Excessive vibration | Damaged or bent blade | Inspect blades for damage; replace if necessary |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | HYCHIKA |
| Model Number | HT40B-36V |
| Power Source | Battery Powered (2x 20V Lithium-ion) |
| Blade Length | 24 Inches |
| Cutting Capacity | 1.0 Inch |
| Blade Material | Alloy Steel |
| Motor Type | Brushless |
| Handle Rotation | 180° |
| Weight | Approx. 7.2 lbs (with batteries) |
| Charger Type | Fast Charger (approx. 1 hour charge time) |
10. Warranty & Support
HYCHIKA is dedicated to providing satisfying products and services. This product comes with a lifetime after-sales service commitment.
10.1 Warranty Information
Please refer to the warranty card included with your product for specific terms and conditions. Keep your proof of purchase for warranty claims.
10.2 Customer Support
If you have any questions, concerns, or require assistance with your HYCHIKA 40V Cordless Hedge Trimmer, please contact our customer support team. Contact details can typically be found on the HYCHIKA official website or on the product packaging.
