Introduction
Thank you for choosing the JOYMOR 2 Seat Ride-On Truck. This 12V electric battery-powered vehicle is designed to provide a fun and safe driving experience for children, featuring both manual and remote control options, adjustable speeds, and integrated multimedia functions. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and safety.

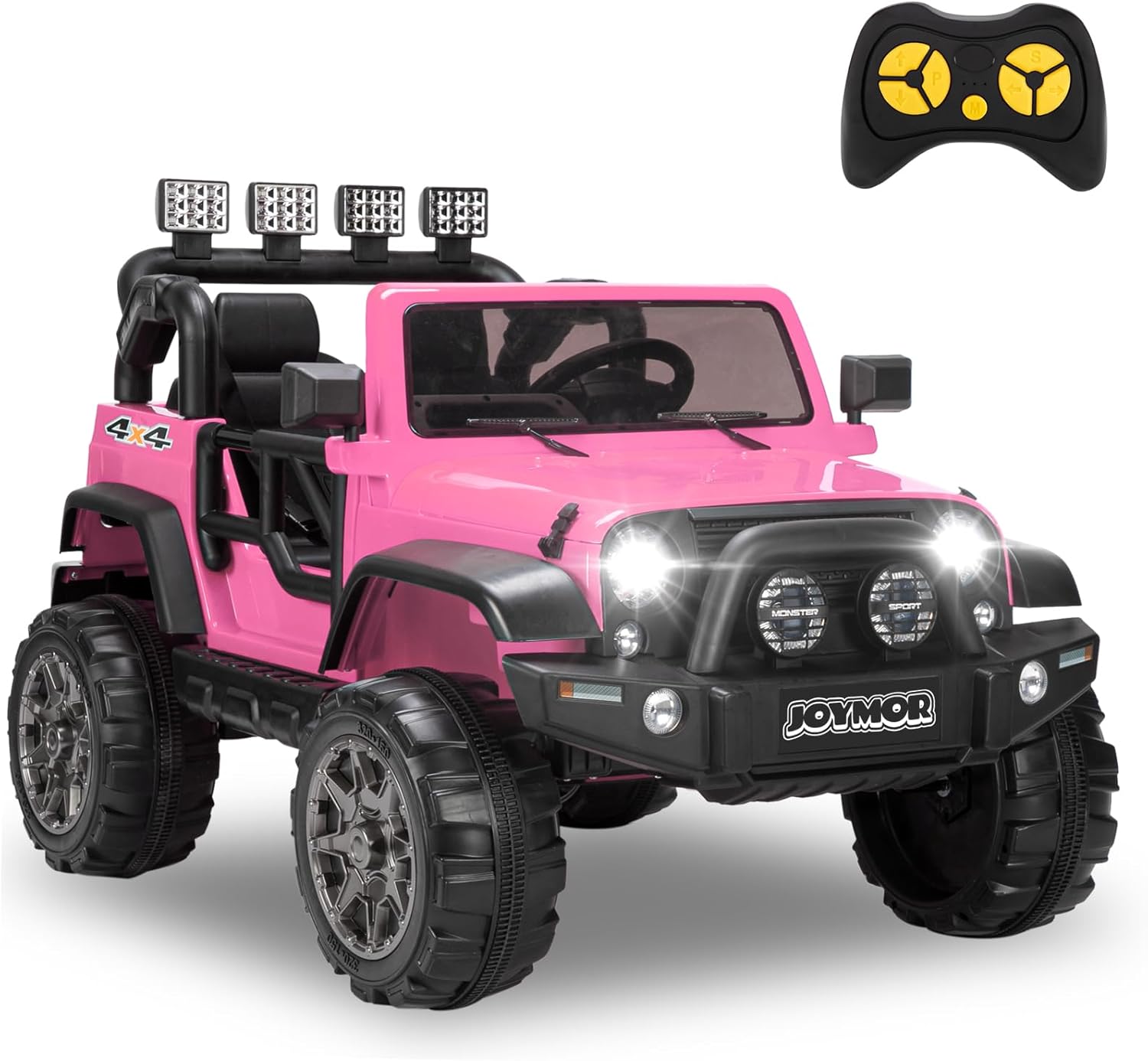

Figure 1: JOYMOR 2 Seat Ride-On Truck with Remote Control
Setup and Assembly
Careful assembly is required before first use. Please follow the instructions provided in the separate assembly guide. Ensure all components are securely fastened. Assembly typically takes approximately 1 hour.
Initial Battery Charge
Before the first use, fully charge the 12-volt battery for a minimum of 24 hours. Subsequent charges should be for up to 8 hours as needed. Always use the original charger provided with the vehicle.
Figure 2: Product Dimensions and Shipping Configuration
Operating Instructions
Control Modes
- Manual Driving: The child can operate the truck using the foot pedal and steering wheel. This mode offers two adjustable speeds. The vehicle stops when the foot pedal is released.
- Remote Control: Parents can control the truck using the 2.4G remote control. This mode provides three adjustable speeds, along with parking, forward, and reverse functions, ensuring enhanced safety and control.
Figure 3: Parent Remote Control for Enhanced Safety
Multimedia Features
The truck is equipped with various multimedia options for entertainment during playtime:
- Pre-loaded music
- USB port for external media
- AUX input
- TF card slot
- Story and early education functions

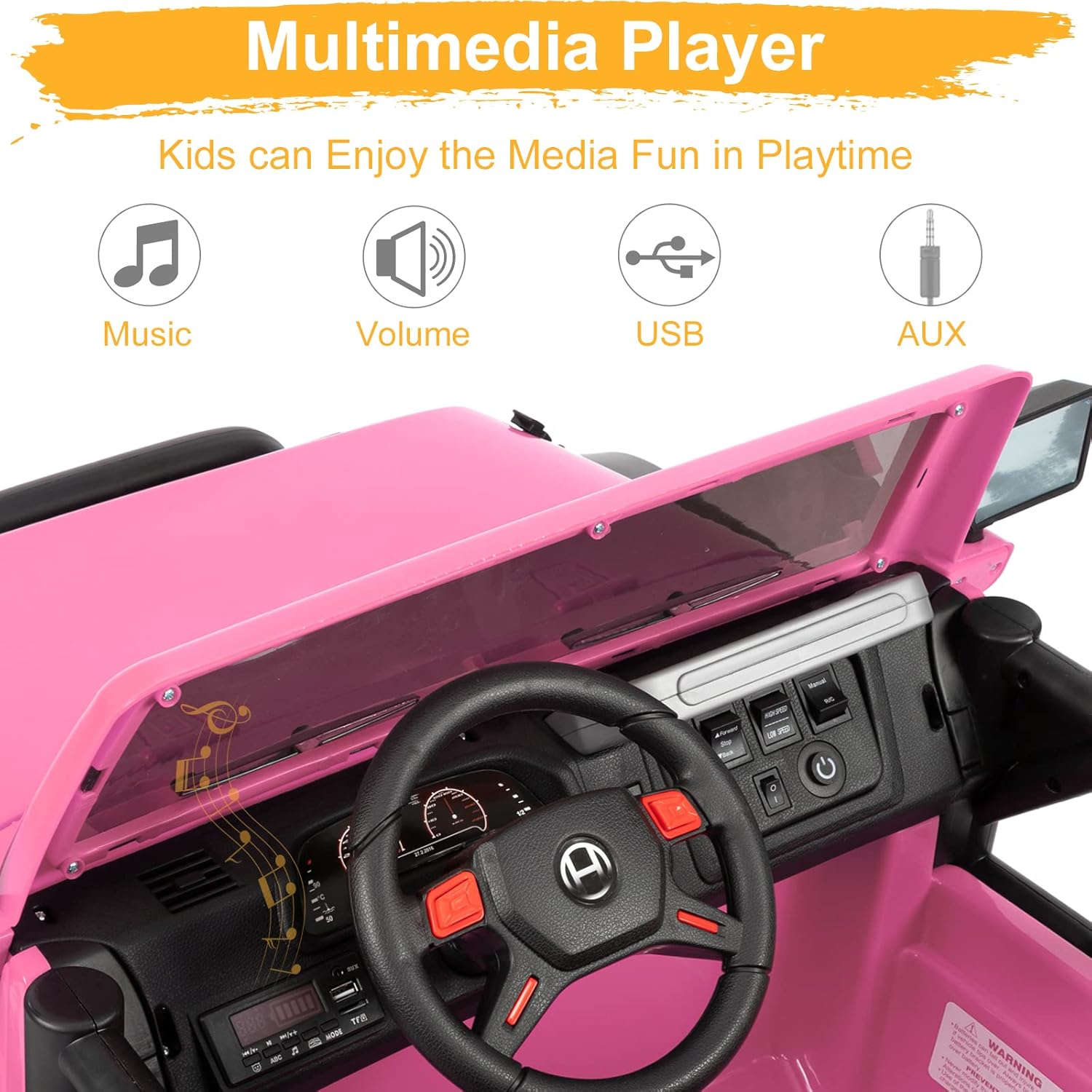

Figure 4: Multimedia Player Interface
Safety Features
The vehicle includes important safety features:
- Adjustable safety seatbelt
- Working LED headlights
- Horn
- Easy start/stop button
- Double doors with magnetic lock

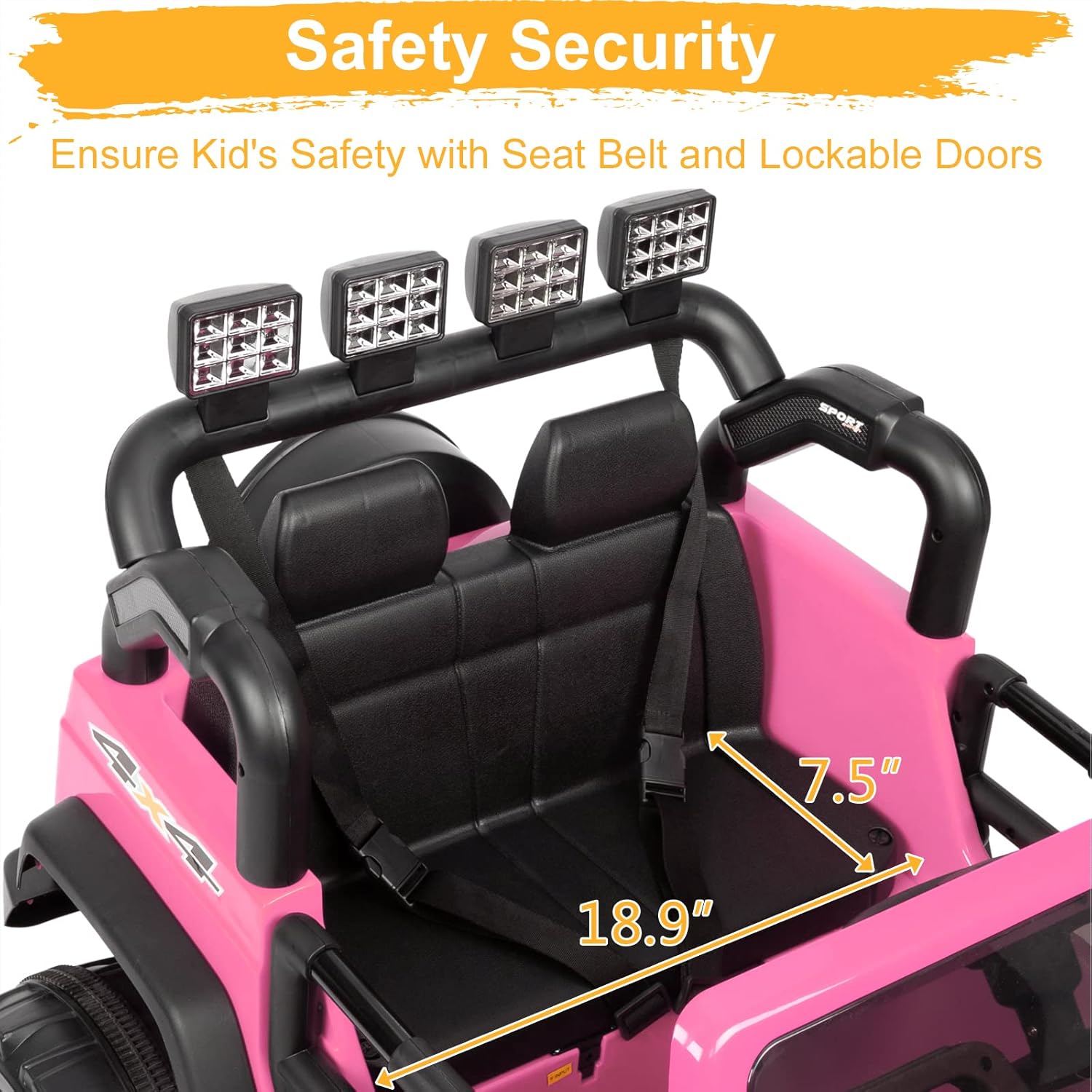

Figure 5: Safety Seatbelt and Lockable Doors
Maintenance
Battery Care
- Recharge the battery after each use to maintain its lifespan.
- Do not overcharge the battery (maximum 8 hours for regular charging).
- If storing the vehicle for an extended period, charge the battery fully every 3 months to prevent deep discharge.
Cleaning and Storage
- Wipe the vehicle with a damp cloth. Do not use abrasive cleaners or solvents.
- Store the vehicle in a dry, cool place away from direct sunlight and moisture.
Troubleshooting
If you encounter issues with your JOYMOR Ride-On Truck, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery; Loose wire connection; Overload | Charge battery; Check all connections; Reduce weight |
| Short run time | Battery not fully charged; Old battery; Overloaded | Ensure full charge; Replace battery if old; Reduce weight |
| Remote control not working | Remote battery low; Not paired correctly | Replace remote batteries; Re-pair remote with vehicle |
For persistent issues or problems not listed here, please contact JOYMOR customer support for assistance.
Specifications
- Product Dimensions: 49.2 x 31.5 x 31.5 inches (L x W x H)
- Item Weight: 54 pounds
- Max Weight Capacity: 110 LBS
- Battery: 12 Volt
- Run-time: 1 to 2 hours (depending on usage)
- Recommended Age: 3 years and up (suitable for 2 kids aged 3, or 1 kid aged 4-8 years)
- Certifications: ASTM F963
Figure 6: Antiskid & Durable Wheels for Various Terrains
Warranty and Support
For information regarding product warranty, returns, or technical support, please contact JOYMOR directly. Keep your purchase receipt and model number (B08LPTW8CK) handy when contacting support.
You can typically find contact information on the manufacturer's official website or through the retailer where the product was purchased.
