1. Product Overview
The WUBEN H1 is a high-performance, rechargeable LED headlamp designed for various outdoor and indoor activities. It features multiple light sources, adjustable brightness levels, and a durable, waterproof design.
The WUBEN H1 headlamp features an adjustable elastic headband and includes helmet clips for versatile attachment.
Key features of the WUBEN H1 headlamp include a maximum brightness of 1200 lumens, a 100-degree beam angle, up to 500 hours of runtime, 10 lighting modes, a 2600mAh battery, and 180-degree adjustability.
2. Setup and First Use
2.1 Package Contents
- WUBEN H1 Headlamp x1
- Rechargeable 2600mAh Li-ion Battery x1 (integrated)
- Micro-USB Charging Cable x1
- Headband x1
- Waterproof Silicone Ring x2
- User Manual x1
2.2 Headband Adjustment
The elastic headband is adjustable to fit various head sizes comfortably. Simply slide the buckles on the strap to achieve a secure and comfortable fit. The headband is also reflective for added safety during nighttime use.
Weighing only 102g, the WUBEN H1 headlamp is comfortable to wear. Its headband is removable for cleaning or replacement, and the lamp body can be adjusted 180 degrees to direct light precisely.
2.3 Charging the Headlamp
Before first use, fully charge the headlamp. The WUBEN H1 features an integrated 2600mAh Li-ion battery and charges via a Micro-USB port.
- Locate the Micro-USB charging port on the headlamp.
- Connect the provided Micro-USB cable to the headlamp and plug the other end into a USB power source (e.g., wall adapter, computer, power bank).
- During charging, the indicator light will be red.
- Once fully charged, the indicator light will turn blue. A full charge typically takes approximately 3 hours.
When charging, the indicator light will be red. Once fully charged, the indicator light will turn blue.
3. Operating Instructions
3.1 Power Button Functions
The WUBEN H1 headlamp is operated using its main button. The functions are as follows:
- Single Click: Controls the main white light modes (High, Medium, Low, Moon).
- Long Press: Controls the auxiliary light modes (Red light, Red Flashes, CRI).
- Triple Click: Activates the breathing light (a subtle blue indicator light).
- Four Clicks: Engages or disengages the lockout switch to prevent accidental activation.

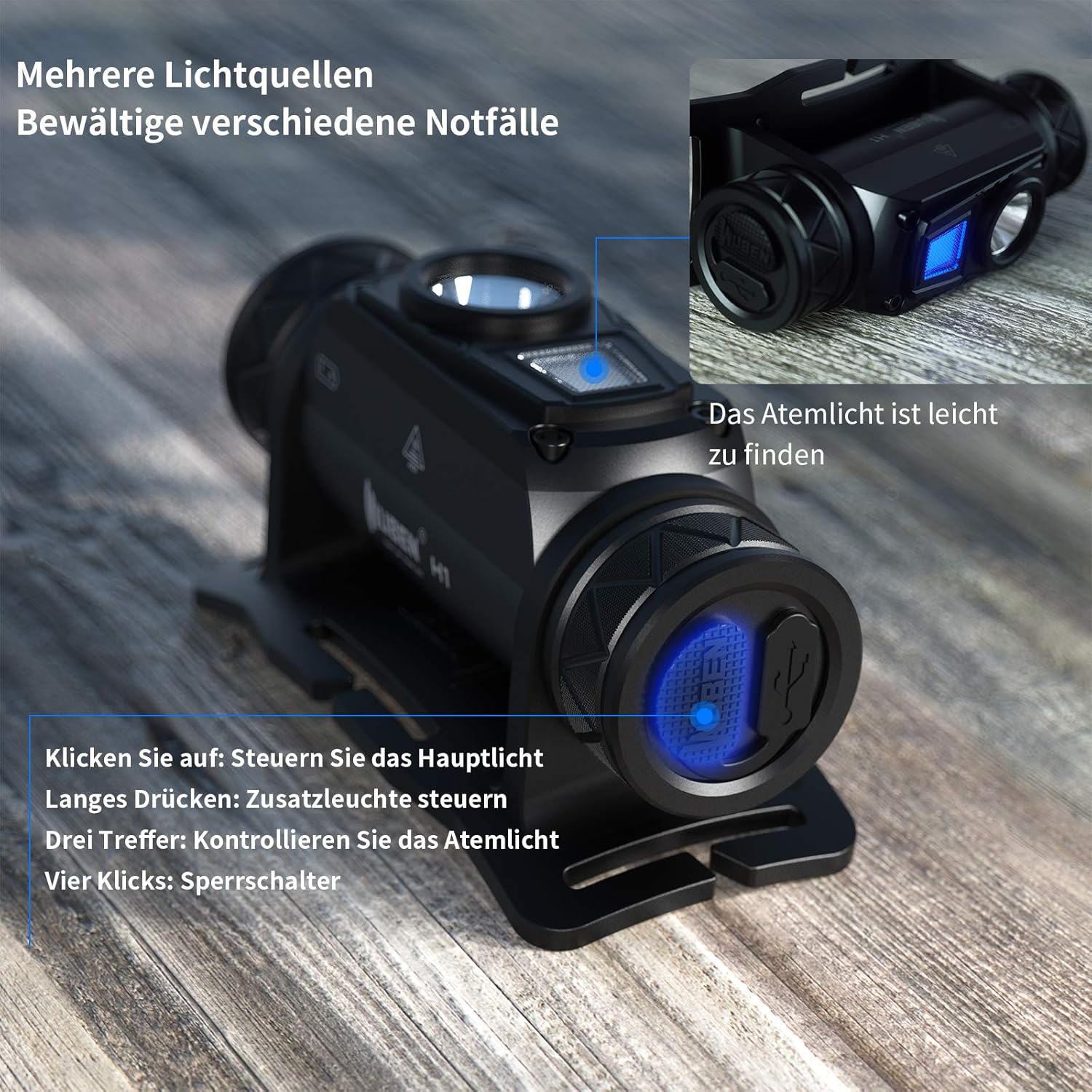

The WUBEN H1 features multiple light sources and intuitive button controls. A single click controls the main light, a long press controls the auxiliary light, three clicks activate the breathing light, and four clicks engage the lockout switch.
3.2 Light Modes
The headlamp offers 10 distinct lighting modes:
- White Light Modes: High, Medium, Low, Moon (controlled by single clicks).
- Red Light Modes: Red light, Red Flashes (controlled by long press).
- Special Modes: CRI (Color Rendering Index), SOS, Strobe, Beacon.
To cycle through the white light modes, press the button once repeatedly. To access red light modes, press and hold the button. Refer to the diagram below for a visual representation of the main light modes.
The headlamp offers a maximum output of 1200 lumens and a 100-degree wide beam. It features multiple lighting modes including High, Medium, Low, Moon, Strobe, SOS, Beacon, White light, Red light, and Red Flashes.
3.3 Angle Adjustment
The headlamp body can be manually adjusted up to 180 degrees vertically. This allows you to direct the light beam precisely where needed without having to move your head.
4. Maintenance
4.1 Water Resistance
The WUBEN H1 headlamp has an IP68 waterproof rating, meaning it is protected against dust ingress and can withstand immersion in water up to 2 meters for 1 hour. Ensure the charging port cover is securely closed before exposing the headlamp to water.
The WUBEN H1 headlamp is IP68 rated, allowing it to be submerged in water up to 2 meters for 1 hour.
4.2 Cleaning and Storage
- Clean the headlamp with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- If the headband becomes dirty, it can be removed and hand-washed with mild soap and water.
- Store the headlamp in a cool, dry place away from direct sunlight and extreme temperatures.
- For long-term storage, it is recommended to fully charge the battery every 3-6 months to maintain battery health.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Headlamp does not turn on | Battery is depleted; Lockout mode is active; Internal connection issue. | Charge the battery; Press the button four times quickly to deactivate lockout mode; If the issue persists, try removing and reinserting the battery if accessible, or contact support. |
| Light output is dim | Low battery level; Lens is dirty. | Recharge the battery; Clean the lens with a soft cloth. |
| Headlamp not charging | Charging cable or adapter is faulty; Charging port is obstructed. | Try a different Micro-USB cable and USB power adapter; Ensure the charging port is clean and free of debris. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | WUBEN |
| Model Number | H1 |
| Luminosity | 1200 lm (Max) |
| Battery Type | 1 Lithium-ion (2600mAh, integrated) |
| Voltage | 3.7 Volts |
| Light Source Type | LED |
| Material | Aluminum |
| Waterproof Rating | IP68 |
| Weight | 300 g (Product weight) |
| Package Dimensions | 17.7 x 12.5 x 6.3 cm |
| Charging Time | Approx. 3 hours |
| Runtime | 1-30 hours (depending on mode) |
7. Warranty and Support
WUBEN provides comprehensive support for its products:
- 30-Day Free Returns: All WUBEN LED flashlights can be returned free of charge within 30 days of purchase.
- 1-Year Free Repair: Free repair service is provided for up to 1 year from the date of purchase.
- 5-Year Manufacturer Repair: Repair services are available from the manufacturer for up to 5 years.
- Customer Service: WUBEN aims to resolve product issues within 24 hours. For support, please refer to the contact information provided with your product packaging or visit the official WUBEN website.
