FREESTYLE FH0955 LED Bluetooth Headphones User Manual

1. Introduction

Thank you for choosing the FREESTYLE FH0955 LED Bluetooth Headphones. This manual provides essential information for the proper setup, operation, and maintenance of your new headphones. Please read it carefully before use to ensure optimal performance and longevity of the product.

2. Product Overview

The FREESTYLE FH0955 headphones offer a wireless audio experience with integrated features designed for convenience and style. Key features include Bluetooth 5.0 + EDR connectivity, a built-in microSD card slot for direct music playback, a foldable headband for portability, and subtle LED backlighting on the earcups.

Image 2.1: Front view of the FREESTYLE FH0955 LED Bluetooth Headphones, showcasing the over-ear design and LED lighting.

Image 2.2: Side profile of the FREESTYLE FH0955 LED Bluetooth Headphones, highlighting the earcup and headband design.

Image 2.3: A person wearing the FREESTYLE FH0955 LED Bluetooth Headphones, demonstrating typical usage.

3. Setup

3.1. Charging the Headphones

Before first use, fully charge the headphones. The FH0955LB model is equipped with a 400 mAh Lithium-ion battery.

1. Connect the supplied MicroUSB charging cable to the charging port on the headphones.
2. Connect the other end of the cable to a USB power source (e.g., computer USB port, USB wall adapter, or power bank).
3. The LED indicator will illuminate during charging and turn off or change color once fully charged.
4. A full charge typically takes approximately 2 hours and provides up to 10 hours of continuous music playback.

3.2. Bluetooth Pairing

To connect your headphones wirelessly to a device:

1. Ensure the headphones are charged and powered off.
2. Press and hold the Power button on the headphones until the LED indicator flashes, indicating pairing mode.
3. On your device (smartphone, tablet, computer), enable Bluetooth and search for available devices.
4. Select "FH0955" or a similar name from the list of found devices.
5. Once connected, the LED indicator will stop flashing and remain solid or turn off, depending on the model.
6. The Bluetooth 5.0 + EDR technology allows for a stable connection up to 10 meters.

3.3. MicroSD Card Playback

The headphones feature an integrated microSD card slot for direct music playback without a connected device.

1. Insert a microSD card (pre-loaded with audio files) into the designated slot on the headphones.
2. The headphones should automatically switch to microSD playback mode. If not, use the Mode button (if available) to switch.
3. Use the playback controls on the headphones to manage your music.

3.4. Wired Connection (3.5mm Audio Jack)

For devices without Bluetooth or when the battery is depleted, you can use the included 3.5mm audio cable.

1. Connect one end of the 3.5mm audio cable to the audio jack on the headphones.
2. Connect the other end to the 3.5mm audio output of your device.
3. The headphones will operate in passive mode, and Bluetooth functionality will be disabled.

4. Operating Instructions

4.1. Power On/Off

• Power On: Press and hold the Power button for approximately 3 seconds until the LED indicator lights up.
• Power Off: Press and hold the Power button for approximately 3-5 seconds until the LED indicator turns off.

4.2. Music Playback

• Play/Pause: Press the Play/Pause button once.
• Next Track: Press the "Next" button (often Volume Up, long press).
• Previous Track: Press the "Previous" button (often Volume Down, long press).
• Volume Up: Short press the Volume Up button.
• Volume Down: Short press the Volume Down button.

4.3. Call Management

With the built-in microphone, you can manage phone calls when connected via Bluetooth.

• Answer/End Call: Press the Play/Pause button once during an incoming call.
• Reject Call: Press and hold the Play/Pause button for approximately 2 seconds during an incoming call.
• Redial Last Number: Double-press the Play/Pause button.

4.4. LED Backlighting

The headphones feature subtle LED backlighting. Refer to the specific controls on your device for toggling or changing LED modes, if available. This feature is primarily aesthetic.

5. Maintenance

5.1. Cleaning

• Use a soft, dry cloth to clean the surface of the headphones.
• Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the finish.
• Keep the charging port and audio jack free from dust and debris.

5.2. Storage

• Store the headphones in a cool, dry place away from direct sunlight and extreme temperatures.
• When not in use for extended periods, charge the battery at least once every three months to maintain battery health.
• Utilize the foldable headband feature for compact storage and transport.

6. Troubleshooting

7. Specifications

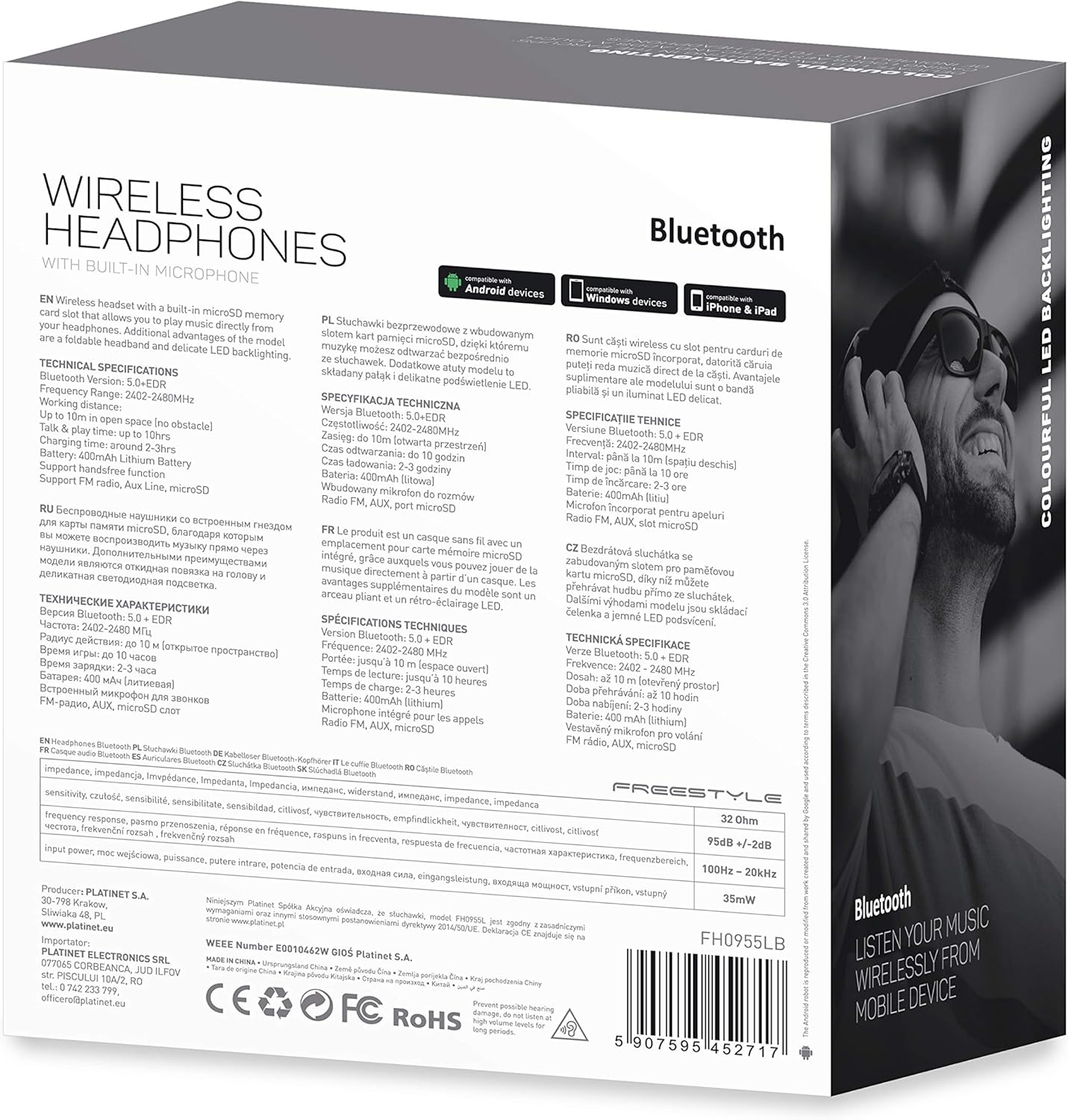

Image 7.1: Detailed view of the product packaging, showing technical specifications and compliance information.

8. Warranty and Support

Specific warranty details are typically provided with your purchase documentation or on the manufacturer's official website. Please retain your proof of purchase for any warranty claims.

For technical support or inquiries, please refer to the contact information provided by your retailer or the manufacturer, Platinet.

9. Safety Information

• Do not expose the headphones to extreme temperatures, humidity, or liquids.
• Avoid listening at high volume levels for extended periods to prevent hearing damage.
• Do not attempt to disassemble or modify the headphones, as this may void the warranty and cause damage.
• Keep out of reach of children.
• Dispose of the product responsibly according to local electronic waste regulations.
