Neoperl Dual Thread Vandal Resistant Faucet Aerator

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of your Neoperl Dual Thread Vandal Resistant Faucet Aerator, Model 5509205. This aerator is designed to provide a consistent spray stream while offering vandal resistance and compatibility with both 15/16"-27 external and 55/64"-27 internal threaded faucets.

2. Safety Information

• Always turn off the water supply to the faucet before beginning installation or maintenance.
• Use appropriate tools and avoid overtightening, which can damage the aerator or faucet threads.
• Wear safety glasses to protect your eyes from debris or water spray.
• Keep small parts away from children to prevent choking hazards.

3. Package Contents

Your package should contain the following item:

• 1 x Neoperl Dual Thread Vandal Resistant Faucet Aerator (Model 5509205)

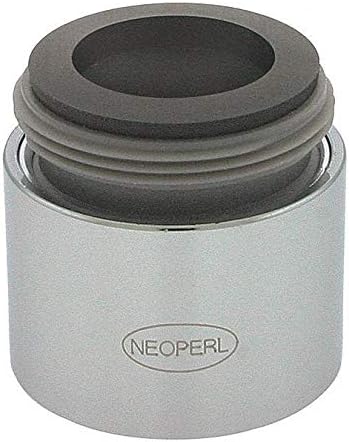

Image 1: The Neoperl Dual Thread Vandal Resistant Faucet Aerator, showing its chrome finish and threaded base.

4. Setup and Installation

Tools Required: Adjustable wrench or aerator key (if applicable), soft cloth.

1. Turn off Water Supply: Locate the water shut-off valves under your sink and turn them off.
2. Remove Existing Aerator: If an old aerator is present, unscrew it from the faucet spout. This may require an adjustable wrench or an aerator key. Wrap the faucet with a soft cloth to prevent scratching.
3. Clean Faucet Spout: Clean any debris or mineral buildup from the faucet spout threads.
4. Install New Aerator: The Neoperl Model 5509205 features dual threads, allowing it to fit both 15/16"-27 external and 55/64"-27 internal threaded faucets. Simply screw the new aerator onto the faucet spout by hand until snug.
5. Tighten (Optional): If necessary, use an adjustable wrench to gently tighten the aerator a quarter turn more. Do not overtighten.
6. Restore Water Supply: Turn the water supply back on and check for leaks. If leaks occur, gently tighten the aerator further.

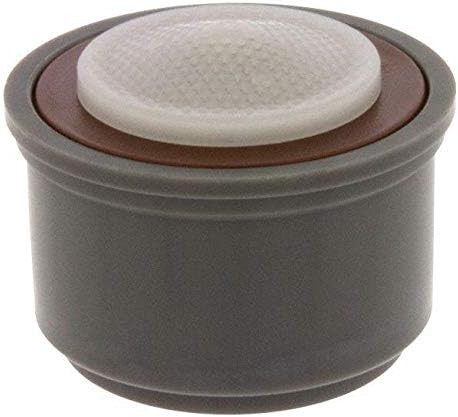

Image 2: Internal components of the aerator, showing the insert responsible for the spray pattern.

5. Operating Instructions

The Neoperl Model 5509205 aerator provides a consistent spray stream. Once installed, simply turn on your faucet as usual to activate the water flow. The aerator is designed to deliver a uniform spray pattern, optimizing water usage while maintaining effective washing capabilities.

Image 3: A faucet equipped with a Neoperl aerator, demonstrating the fine spray stream produced.

6. Maintenance

Regular cleaning helps maintain optimal performance and extends the life of your aerator.

1. Remove Aerator: Turn off the water supply and carefully unscrew the aerator from the faucet spout.
2. Disassemble (if applicable): Some aerators can be disassembled further to access the screen and flow restrictor. For this vandal-resistant model, the internal components are typically not user-serviceable for disassembly.
3. Clean: Rinse the aerator under running water. Use a soft brush or toothpick to gently remove any mineral deposits or debris from the screen and spray holes. For stubborn mineral buildup, soak the aerator in a solution of equal parts white vinegar and water for 30 minutes to an hour.
4. Reassemble and Reinstall: Rinse thoroughly after soaking, then screw the aerator back onto the faucet spout. Turn on the water supply and check for leaks.

Image 4: Bottom view of the aerator insert, highlighting the multiple small holes that create the spray stream.

7. Troubleshooting

• Low Water Flow: This is typically caused by mineral buildup or debris clogging the aerator screen. Refer to the Maintenance section for cleaning instructions.
• Leaking Around Aerator: Ensure the aerator is properly tightened and that the rubber washer (if present and removable) is seated correctly. Do not overtighten.
• Irregular Spray Pattern: Mineral deposits or debris in the spray holes can cause an uneven spray. Clean the aerator as described in the Maintenance section.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the manufacturer's official website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
