Introduction

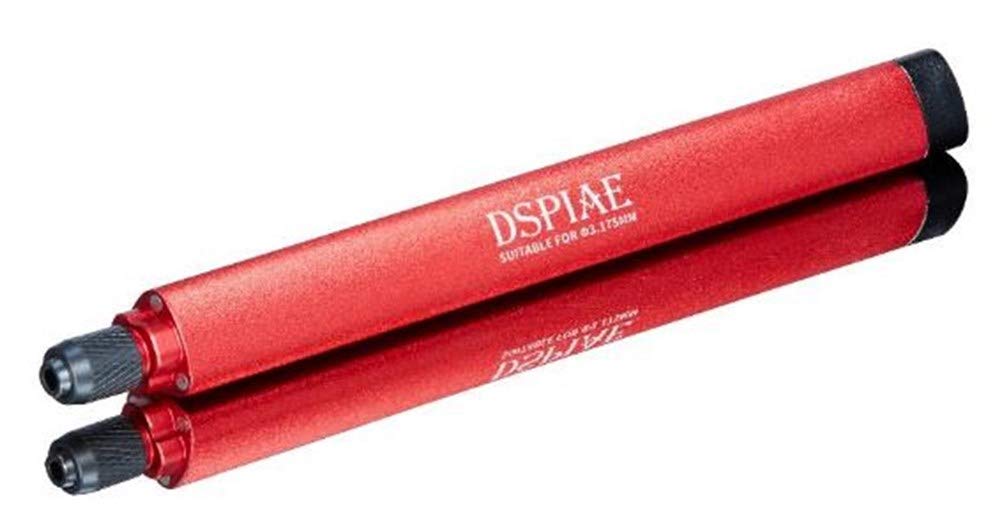

The DSPIAE at-TH 3.175mm Multi-Function Hobby Tool Handle is designed for precision work in various hobby applications, particularly with chisels and broaches. This handle provides a secure grip for tools with a shank diameter of up to 3.175mm, enhancing control and accuracy during use. Constructed from durable aluminum alloy and brass, it offers a comfortable and reliable experience for modelers and hobbyists.
Safety Information
Always observe the following safety precautions when using the DSPIAE at-TH tool handle:
- Always wear appropriate personal protective equipment, such as safety glasses, to protect against flying debris.
- Ensure the chisel or broach is securely fastened in the handle before use. A loose tool can cause injury.
- Keep fingers and other body parts clear of the cutting edge of the tool.
- Use the tool on a stable and secure work surface.
- Store the tool with the protective cap on when not in use to prevent accidental cuts or damage to the tool.
- Keep out of reach of children.
Package Contents
Verify that all items are present in your package:
- 1 x DSPIAE at-TH 3.175mm Multi-Function Hobby Tool Handle
- 1 x Protective Cap
- Note: Chisels, broaches, or other tools are sold separately.
Setup
Follow these steps to properly set up your DSPIAE at-TH tool handle:
- Unscrew the Collar: Gently twist the knurled collar at the tip of the handle counter-clockwise to loosen it. This will open the collet jaws inside.
- Insert the Tool: Carefully insert the shank of your chisel, broach, or other compatible tool into the opening. Ensure the tool's shank diameter does not exceed 3.175mm. Insert the tool deep enough for a secure grip, leaving the working end exposed as needed.
- Secure the Tool: While holding the tool in place, twist the knurled collar clockwise to tighten it. Continue tightening until the tool is firmly gripped and does not wobble or slip. Do not overtighten, as this may damage the tool shank or the collet.
- Verify Security: Gently pull on the inserted tool to confirm it is securely held. If there is any movement, loosen the collar, re-adjust the tool, and tighten again.
Operating Instructions
Once your tool is securely installed, you can begin using the DSPIAE at-TH handle for your hobby projects:
- Grip: Hold the handle firmly but comfortably. The ergonomic design is intended to reduce fatigue during extended use.
- Application: Apply the working end of your chisel or broach to the material with controlled pressure. The handle provides excellent leverage and precision.
- Control: Use steady, deliberate movements. Avoid excessive force, which can lead to slips or damage to the workpiece or tool.
- Angle: Maintain the appropriate angle for your specific tool and task to achieve desired results and prevent premature dulling of the blade.
- Storage After Use: After completing your work, remove the tool if necessary, clean the handle, and always place the protective cap over any sharp or delicate tool tips before storing.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your DSPIAE at-TH tool handle:
- Cleaning: Wipe the handle clean with a soft, dry cloth after each use to remove dust, debris, or fingerprints. For stubborn grime, a slightly damp cloth can be used, followed by immediate drying.
- Lubrication: Periodically, a small amount of light machine oil can be applied to the threads of the collar and collet mechanism to ensure smooth operation. Wipe off any excess oil.
- Inspection: Regularly inspect the collet jaws and collar for any signs of wear, damage, or deformation. If damage is observed, discontinue use and consider replacement.
- Storage: Store the handle in a clean, dry environment, away from extreme temperatures and corrosive substances. Always use the protective cap when a tool is inserted.
Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool slips or wobbles in the handle. | Collar not tightened sufficiently; tool shank too small for collet; collet jaws worn. | Ensure collar is fully tightened. Verify tool shank diameter is 3.175mm or less. Inspect collet for wear; if worn, replacement may be necessary. |
| Collar is difficult to turn. | Threads are dirty or dry; overtightening. | Clean threads and apply a small amount of light machine oil. Avoid overtightening. |
| Tool cannot be inserted. | Collar not loosened enough; tool shank too large. | Loosen the collar completely. Ensure tool shank diameter is 3.175mm or less. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | DSPAT-TH |
| Clamping Diameter | Up to 3.175mm |
| Handle Material | Aluminum Alloy, Brass |
| Color | Red (handle) |
| Length | Approximately 141mm (5.55 inches) |
| Product Dimensions | 5.91 x 0.79 x 0.79 inches |
| Item Weight | 4.2 ounces (approx. 36g) |
| Special Features | Multi-function, includes protective cap |
Warranty and Support
DSPIAE products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official DSPIAE website. If you encounter any issues or require technical assistance, please contact DSPIAE customer support through their official channels. Keep your proof of purchase for warranty claims.
