1. Introduction
Thank you for choosing the Arcchio LED 'Advik' Outdoor Wall Light with Motion Detector. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Figure 1: Arcchio Advik LED Outdoor Wall Light, front view.
The Advik LED outdoor wall light features an angled light source and a graphite grey finish. It is equipped with bright and efficient integrated LED lamps and an integrated motion detector for enhanced functionality and energy saving.
2. Safety Instructions
- Electrical Installation: Installation must be performed by a qualified electrician in accordance with local wiring regulations and safety standards.
- Power Disconnection: Always disconnect the main power supply before installation, maintenance, or repair.
- Voltage: Ensure the supply voltage matches the fixture's requirements (230V AC).
- Outdoor Use: This product is designed for outdoor use with an IP54 protection rating, meaning it is dustproof and protected against splashing water. Do not submerge the fixture in water.
- Damage: Do not use the product if any part is damaged. Contact customer support for replacement parts.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
3. Package Contents
Please check that all components are present and undamaged.
- Arcchio LED 'Advik' Outdoor Wall Light (1 unit)
- Integrated LED light source (1 unit)
- Mounting hardware (screws, wall plugs)
- Instruction Manual
4. Product Overview
The Arcchio Advik wall light is constructed from durable aluminum with a graphite grey finish and features an opal white diffuser. It includes an integrated motion sensor for automatic operation.

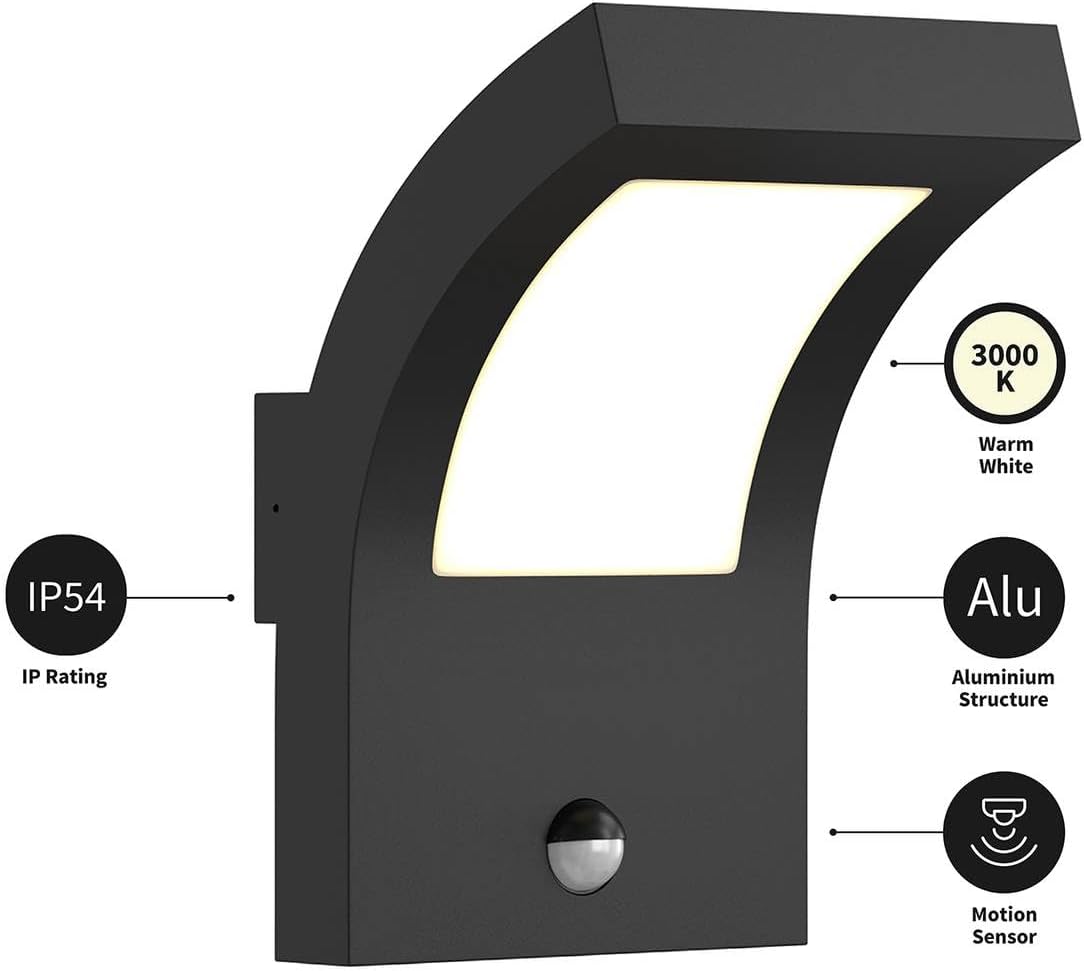

Figure 2: Key features of the Advik LED Outdoor Wall Light.
- Integrated LED: Energy-efficient 13.5W LED light source.
- Motion Sensor: Detects movement to activate the light automatically.
- Durable Construction: Made from aluminum, suitable for outdoor environments.
- IP54 Rating: Provides protection against dust and splashing water.
- Warm White Light: Emits a pleasant 3000K warm white illumination.
Figure 3: Detail of the integrated motion sensor.
5. Setup and Installation
Important: Installation should only be carried out by a qualified electrician. Ensure the main power supply is switched off before beginning installation.
- Prepare the Installation Area: Choose a suitable outdoor location on a wall, ensuring it is free from obstructions and has access to a 230V AC power supply.
- Mark Drilling Points: Hold the fixture's mounting plate against the wall at the desired installation height and mark the drilling points.
- Drill Holes: Drill holes at the marked points and insert appropriate wall plugs.
- Connect Wiring: Open the wiring compartment of the fixture. Connect the live (brown/black), neutral (blue), and earth (green/yellow) wires from your mains supply to the corresponding terminals inside the fixture. Ensure all connections are secure.
- Mount the Fixture: Secure the fixture to the wall using the provided screws. Ensure it is firmly attached.
- Restore Power: Once installation is complete and all connections are secure, restore power to the circuit.
Figure 4: Wiring connections inside the fixture.
6. Operating Instructions
The Arcchio Advik LED wall light operates automatically via its integrated motion sensor.
- Automatic Activation: The light will automatically turn on when the motion sensor detects movement within its detection range.
- Automatic Deactivation: After a period of no detected movement, the light will automatically turn off. The duration of illumination is typically pre-set or adjustable (refer to specific sensor settings if available, not detailed in product info).
- Sensor Adjustment: Some motion sensors allow adjustment of sensitivity and light duration. Consult the sensor's specific instructions if you wish to modify these settings. (Note: Specific adjustment details are not provided in the product description.)
Figure 5: The Advik light providing illumination in an outdoor setting.
7. Maintenance
- Cleaning: Regularly clean the fixture with a soft, dry, or slightly damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive materials.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LED Replacement: The LED light source is integrated and not user-replaceable. If the LED fails, the entire fixture may need to be replaced.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Faulty wiring connection. Motion sensor malfunction. |
Check circuit breaker. Verify wiring connections (consult electrician). Ensure sensor is not obstructed. |
| Light stays on continuously. | Constant movement detected. Sensor sensitivity too high. Sensor malfunction. |
Ensure no constant movement in detection zone. Adjust sensor sensitivity (if adjustable). Consult electrician if issue persists. |
| Light flickers. | Unstable power supply. Loose wiring connection. |
Check power supply stability. Verify wiring connections (consult electrician). |
If troubleshooting steps do not resolve the issue, contact a qualified electrician or Arcchio customer support.
9. Specifications
| Model Name: | Advik |
| Model Number: | 9619189 |
| Brand: | Arcchio |
| Material: | Aluminum / Zinc |
| Color: | Graphite Grey (RAL 840-M), Opal White |
| Dimensions (L x W x H): | 19 cm x 18 cm x 28 cm |
| Light Source: | Integrated LED |
| Wattage: | 13.5 W |
| Luminous Flux: | 760 Lumen |
| Light Color: | Warm White (3000 K) |
| Connection Voltage: | 230 V AC |
| Protection Class: | IP54 (Dustproof, protected against splashing water) |
| Safety Class: | I |
| Special Features: | Integrated Motion Sensor |
| Weight: | 1.82 kg |
| Energy Efficiency Class (new scale): | E |
Figure 6: Product dimensions.
10. Warranty and Support
Arcchio products are manufactured to high-quality standards. For warranty information and customer support, please refer to the documentation provided with your purchase or contact your retailer.
For further assistance, you may also visit the official Arcchio website or contact their customer service department.
